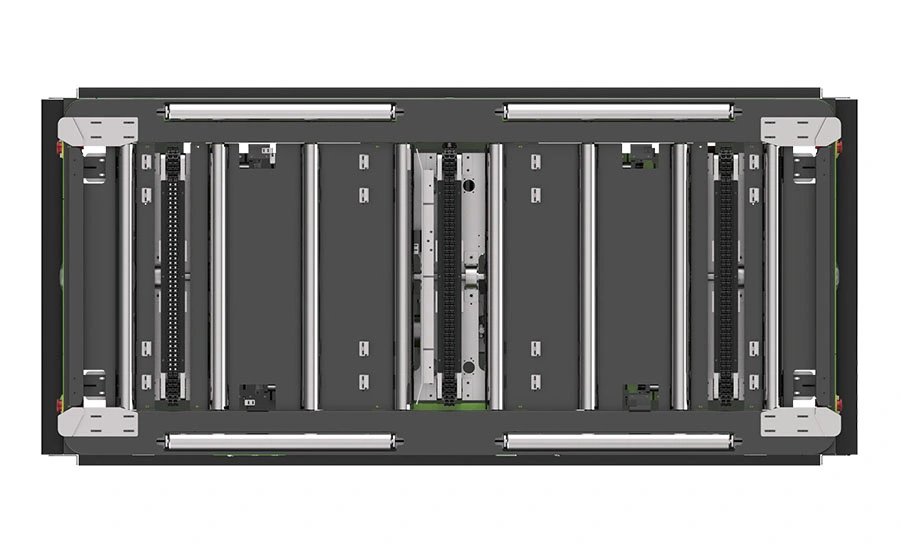

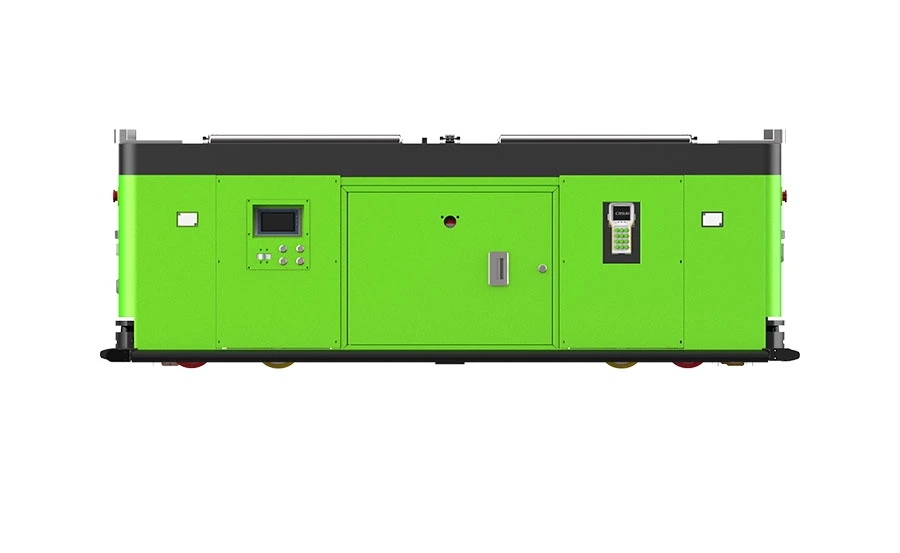

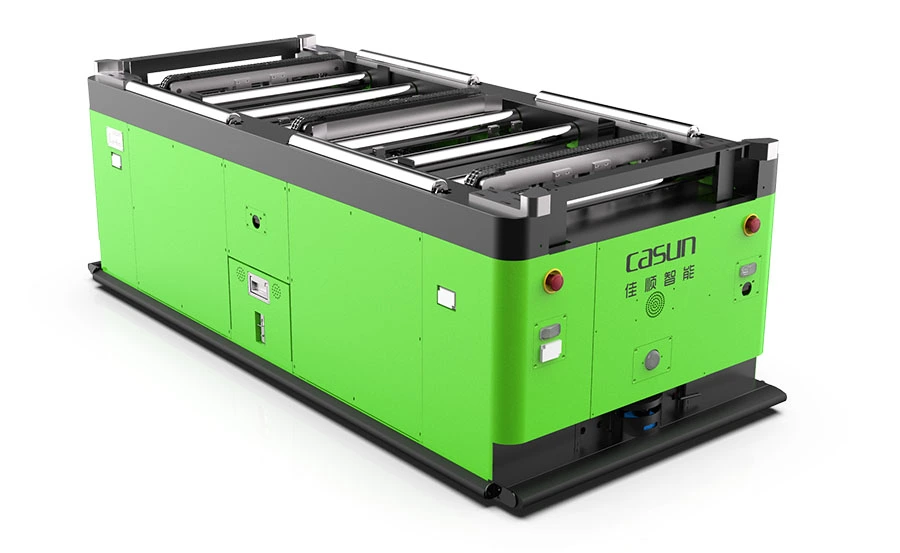

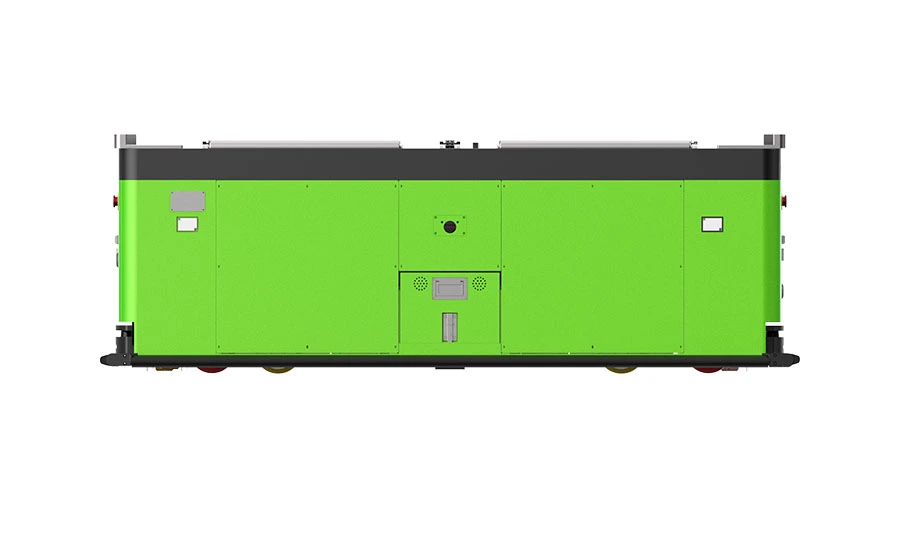

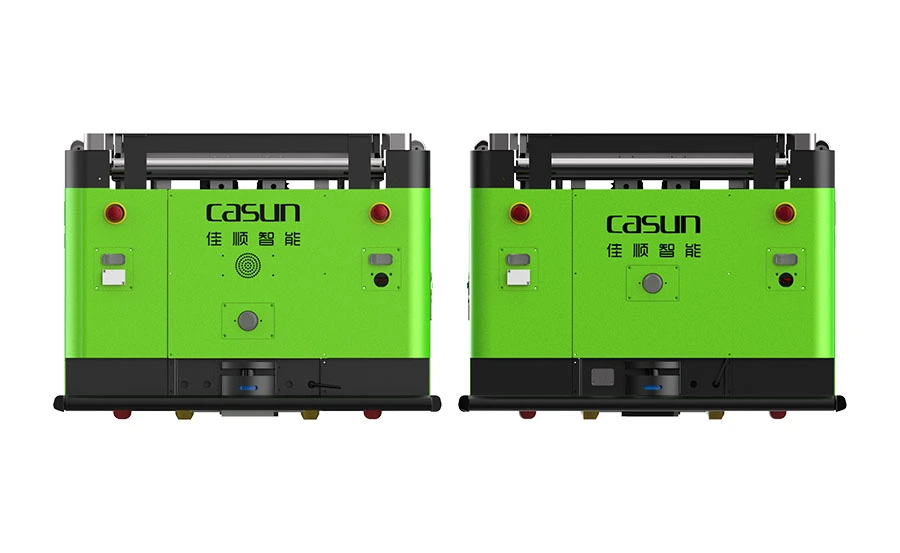

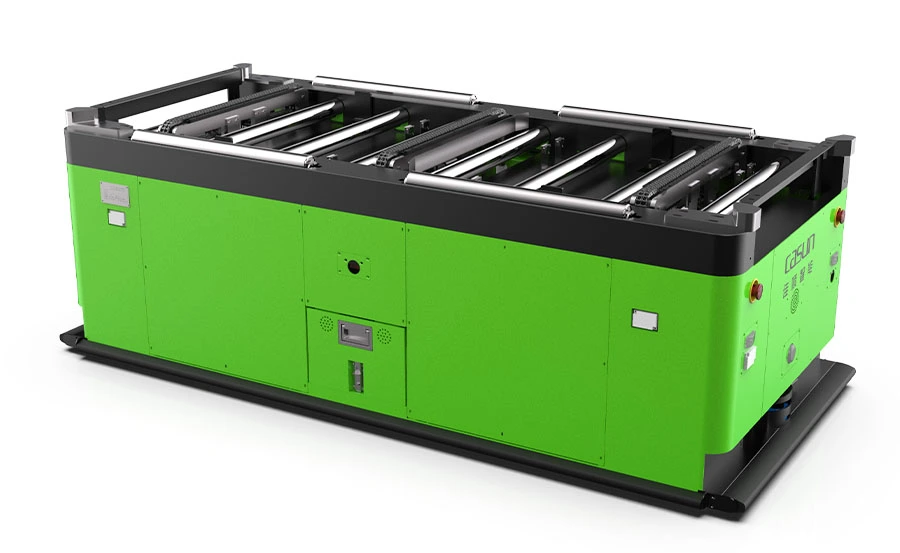

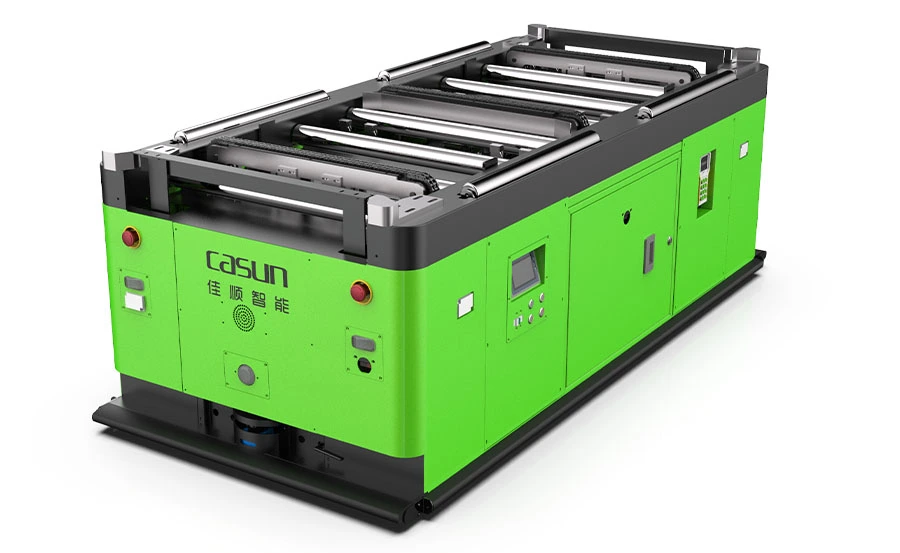

C3-42 Single Layer-four Conveyor Deck Load AGV

C3-42 is a single layer-four conveyor deck roller unit load carrier AGV, which can automatically dock with the production line or transmission line connecting platform at both ends and both sides and can rotate and move sideways in situ.

C3-42 Single Layer-four Conveyor Deck Load AGV

Parameters of C3-42 Monolayer Four Station Load Shifting AGV


GuidanceMagnetic navigationStopping accuracy±10mm
DimensionsL2240xW1060xH700(mm)(Docking height is 600mm)Driving methodSteering wheel
Traveling directionForward, backward, rotation and lateralCharging methodAuto charger(Side /ground type)
Load capacity500KGBatteryLithium battery
Travel speed0~45m/minCommunicationWiFi/5G
Turning radius1100mmSafety alarmSound and visual warning
Conveyor deck numberFourSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper+emergency stop switch


Core Advantages of C3-42 Monolayer Four Station Load Shifting AGV

Core Advantages of C3-42 Monolayer Four Station Load Shifting AGV

01
Flexible operation

At the same time, it has the functions of 90-degree turn, 180-degree turn and side shift.

02
Flexible docking

Both sides of the AGV can be connected to the wiring side equipment, the transportation is more flexible, and the docking height only needs 180mm.

03
Get up and down the elevator

It can communicate and interact with ordinary elevators, and use elevators to complete up and down stairs.

04
Linkage of multiple devices

Synchronous scheduling of multiple AGVs is suitable for complex material handling scenarios.

05
Easy to use

Operate independently according to scheduling instructions, without manual intervention in the production process.

06
Fault self-check

It has perfect fault self-checking function, and has remote fault diagnosis and self-recovery function.

07
Automatic charging

When the battery is low, it can be automatically charged at the charging station. And can realize 24 hours of uninterrupted operation, without manual intervention.

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice alarm to ensure safe operation.
