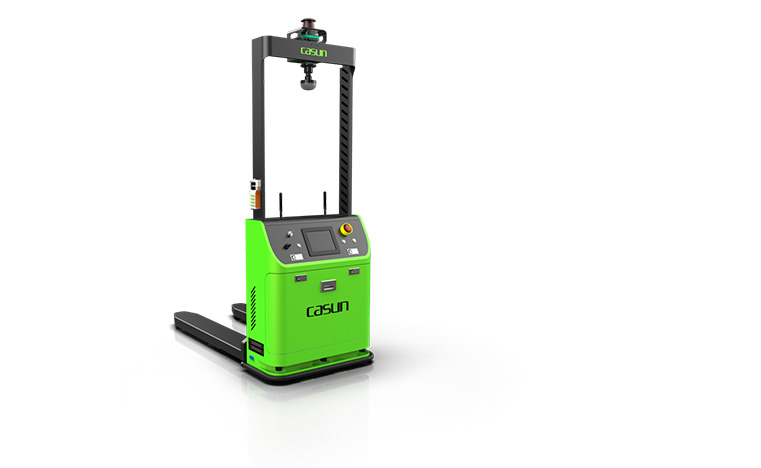

C5-B2 Handling type forklift AGV

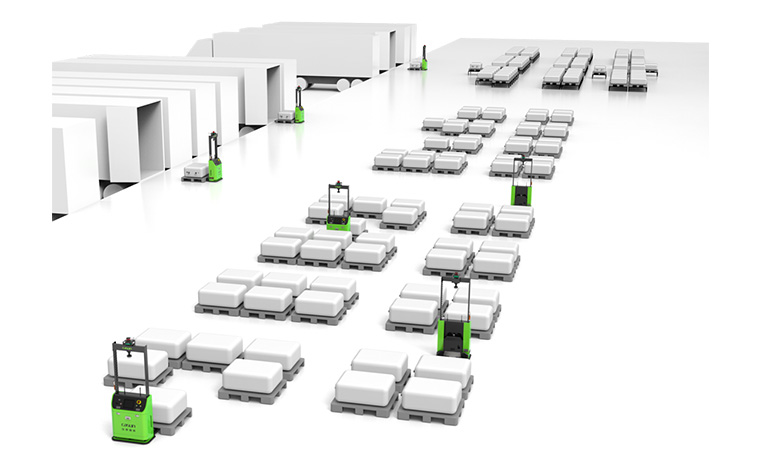

C5-B2 is a laser guided forklift AGV independently developed by Casun, with a load capacity up to 800KG, small volume and small turning radius. This laser-guided AGV can meet the needs of material transfer in workshops with narrow channels.

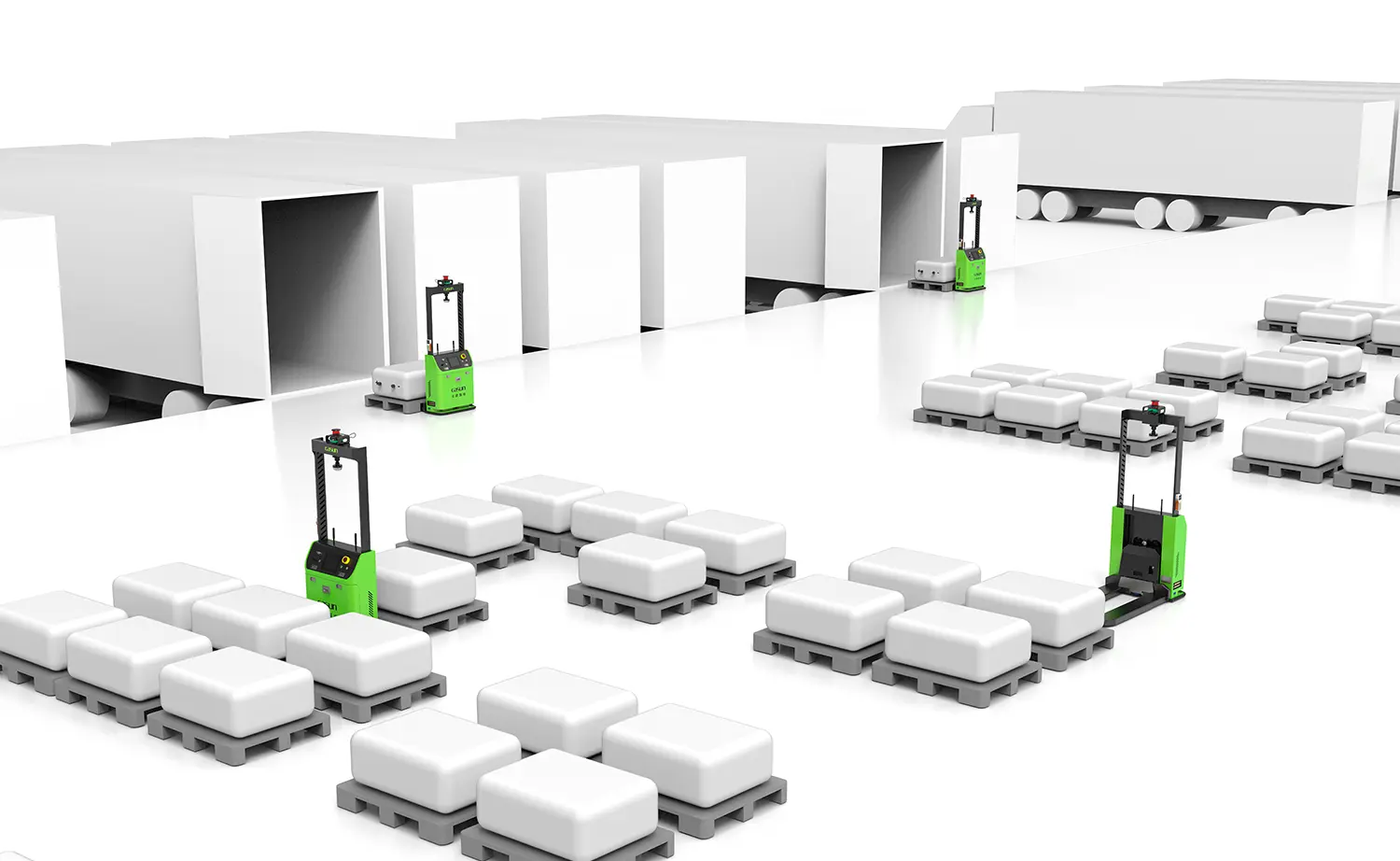

c5 b2 1

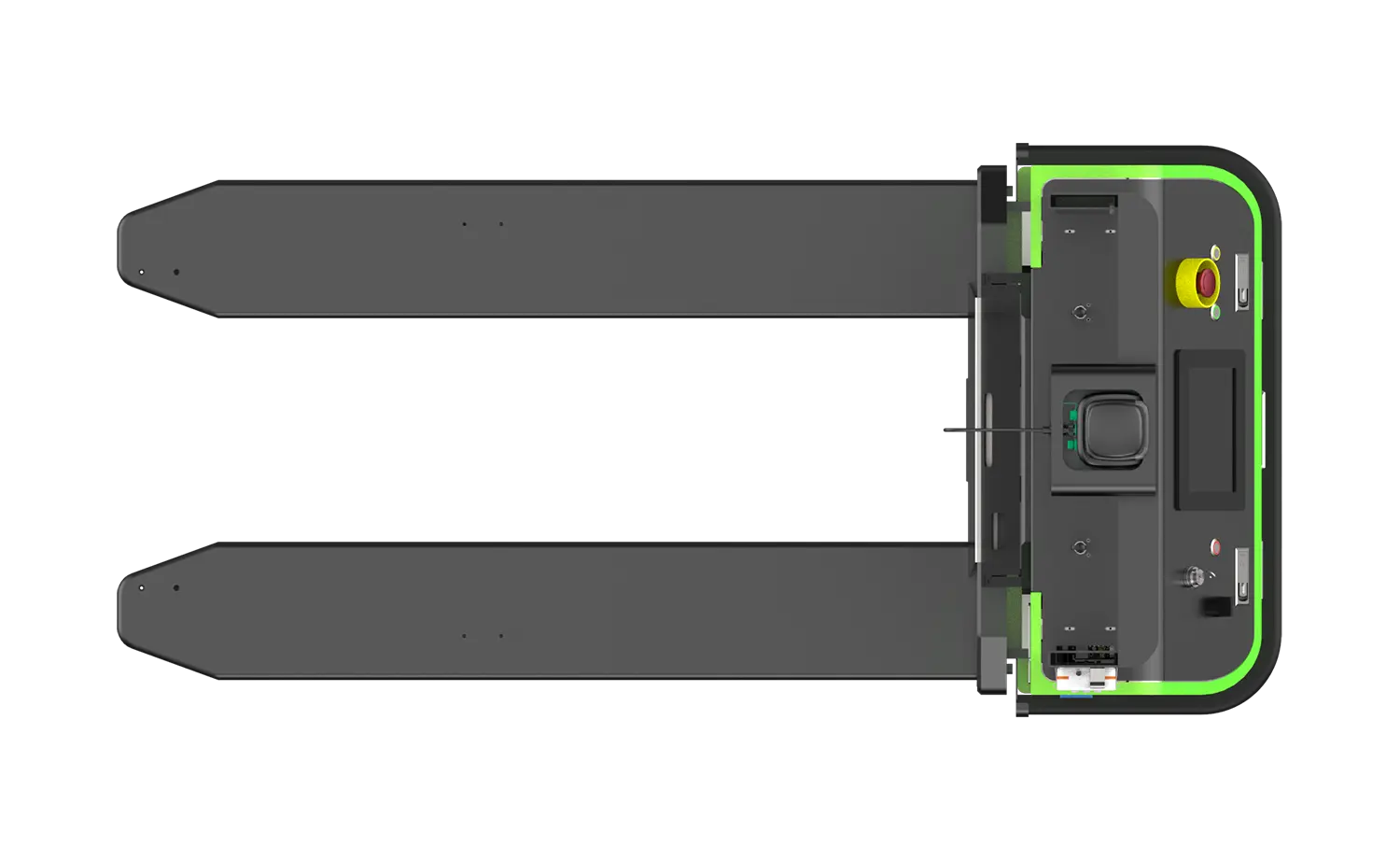

c5 b2 2

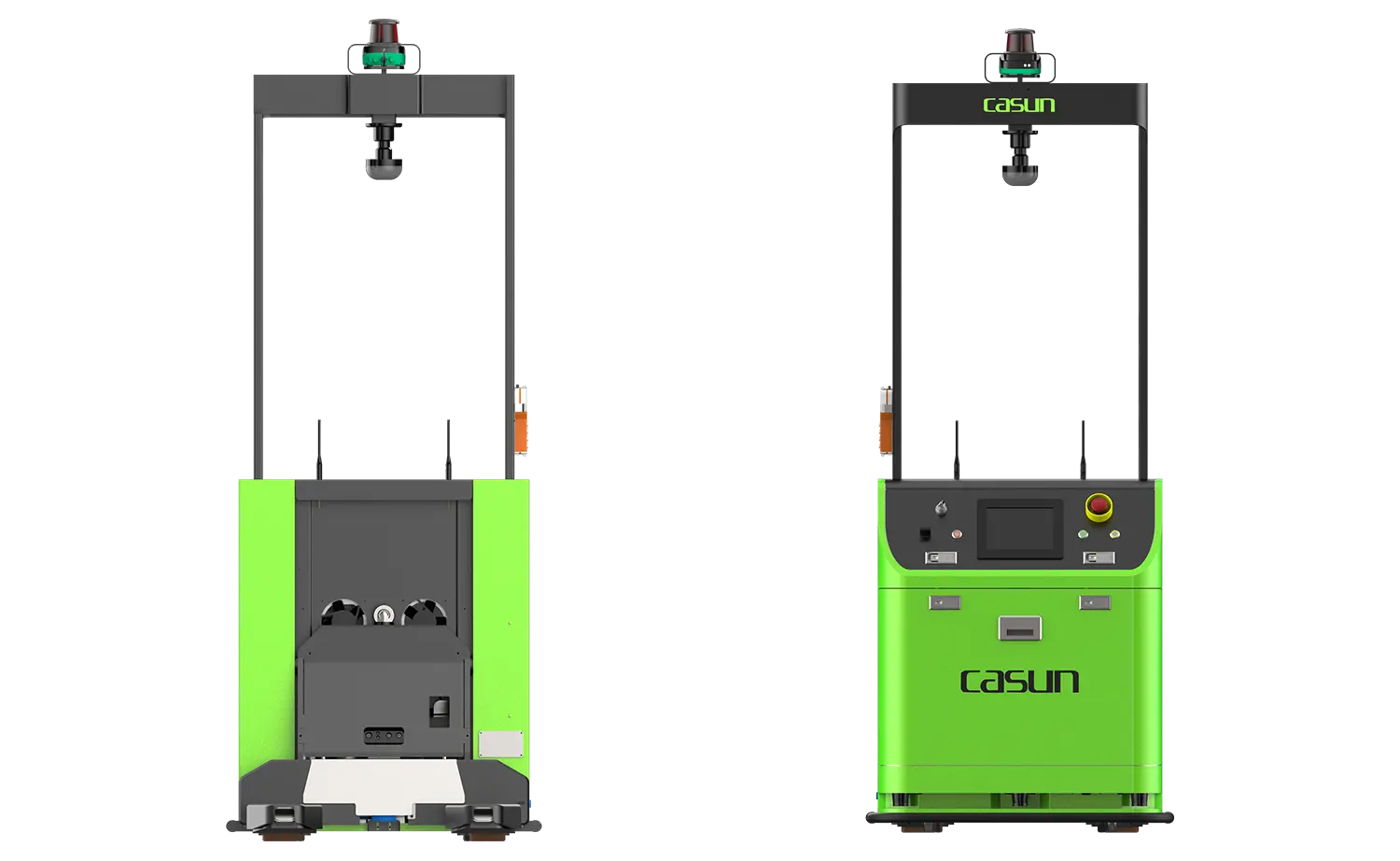

c5 b2 3

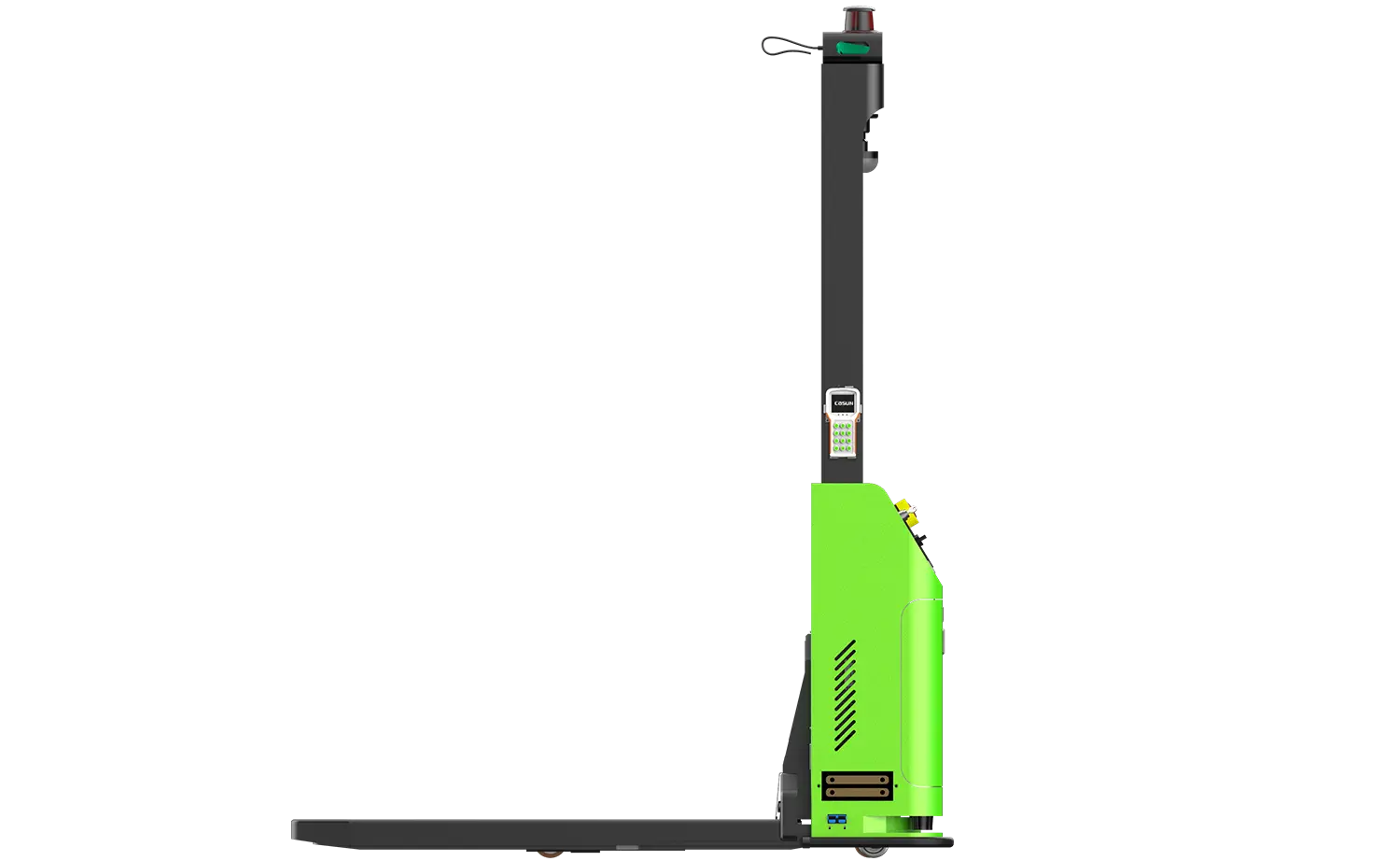

c5 b2 5
c5 b2 6

Parameters of C5-B2 Handling Forklift AGV

Basic parameterClassificationHandling
DimensionL1585*W780*H2035 (mm)
 Fork size1170*188*55  (mm)
Fork outside distance570/680mm
Max load capacity1000kg
Truck weight (battery included)400kg
Turning raduis1350mm
Lifting height120mm
Applicable   carrierPallet type Two-way Entry
Pallet size1200*1000mm / 1100*1100mm
Navigation   performanceNavigate mode Laser navigation
Navigation accuracy ±10mm
Stop accuracy ±10mm
Stop Angle accuracy±1°
Movenent   performanceTravelling directionForward、Backward、Rotate
Drive modeSingle Steering Wheel Drive
Acceleration0.35 m/s²
Max travelling speed1.2 m/s
Maximum climbing capacity (no load/full   load)3° / 2°
Battery   performanceBattery typeLithium battery
Charging modeSide charging
Charging timeCharging time after complete discharge ≤1H
Rated endurance6H
Network performanceCommunication modeWiFi / 5G
Protective   performanceSafety warningLight warning      ●Voice broadcast
Safe sensing range≤3m Adjustable

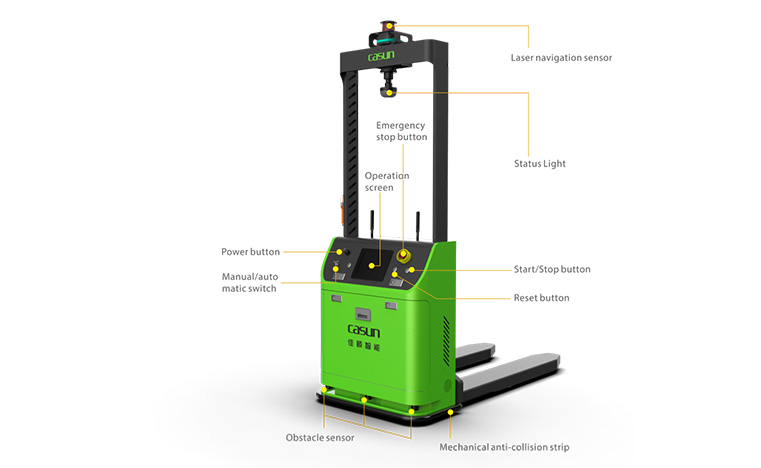

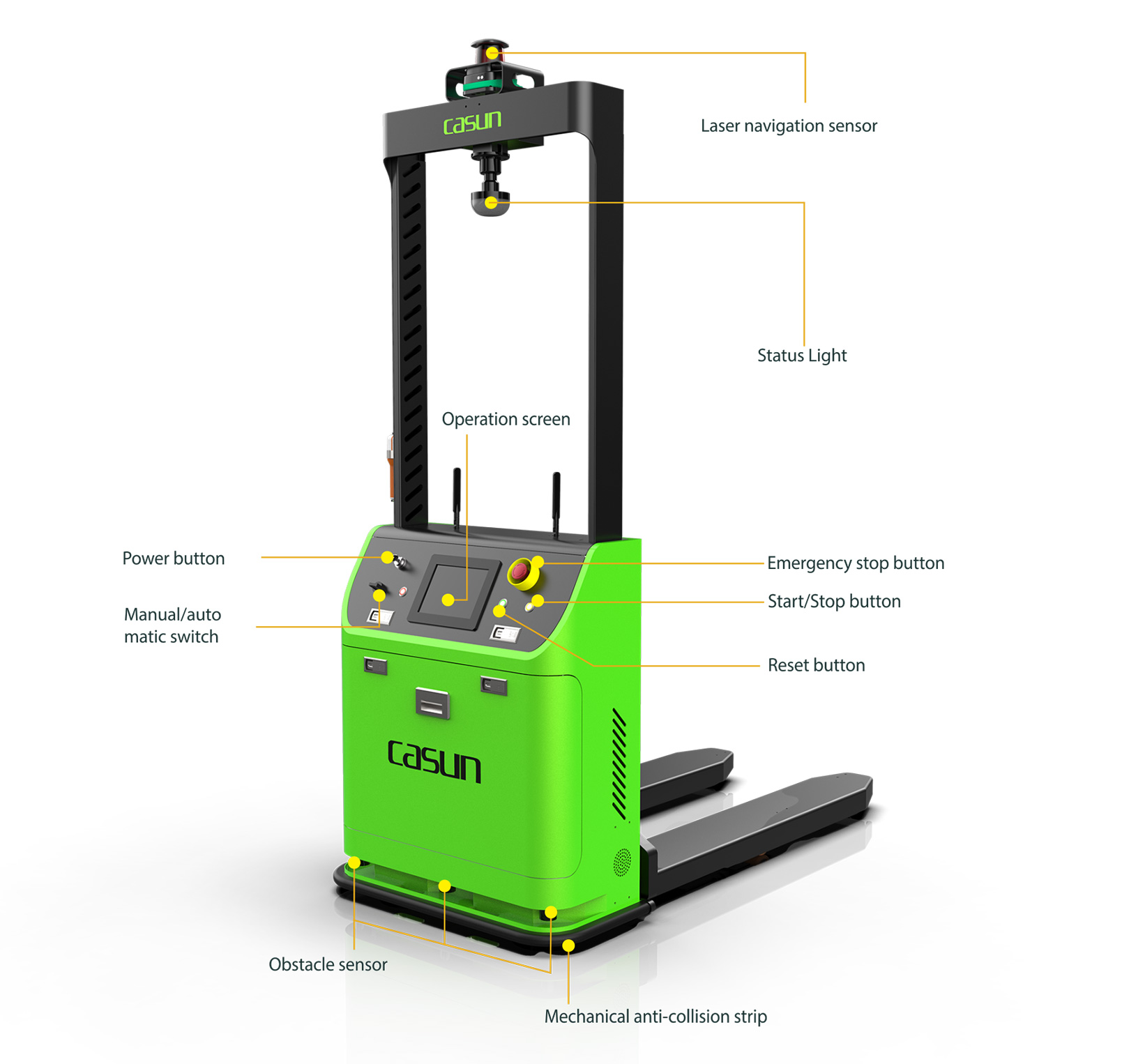

Safety protection● Front and rear obstacle detection sensor ● mechanical   anti-collision mechanism ● emergency stop switch
Fork protectionLaser distance sensor
Application   environmentOperating ambient temperature -10℃~45℃
Operating environmentNo dust, inflammable, explosive and corrosive gases


Core Advantages of C5-B2 Handling Forklift AGV

Core Advantages of C5-B2 Handling Forklift AGV

01
Low requirements on site space

The width with only 775MM, 800MM logistics channel can pass, at the same time with 90 degrees turn, 180 degrees in situ rotation turn function, can be applied to the occasion of small space.

02
High utilization rate for the site

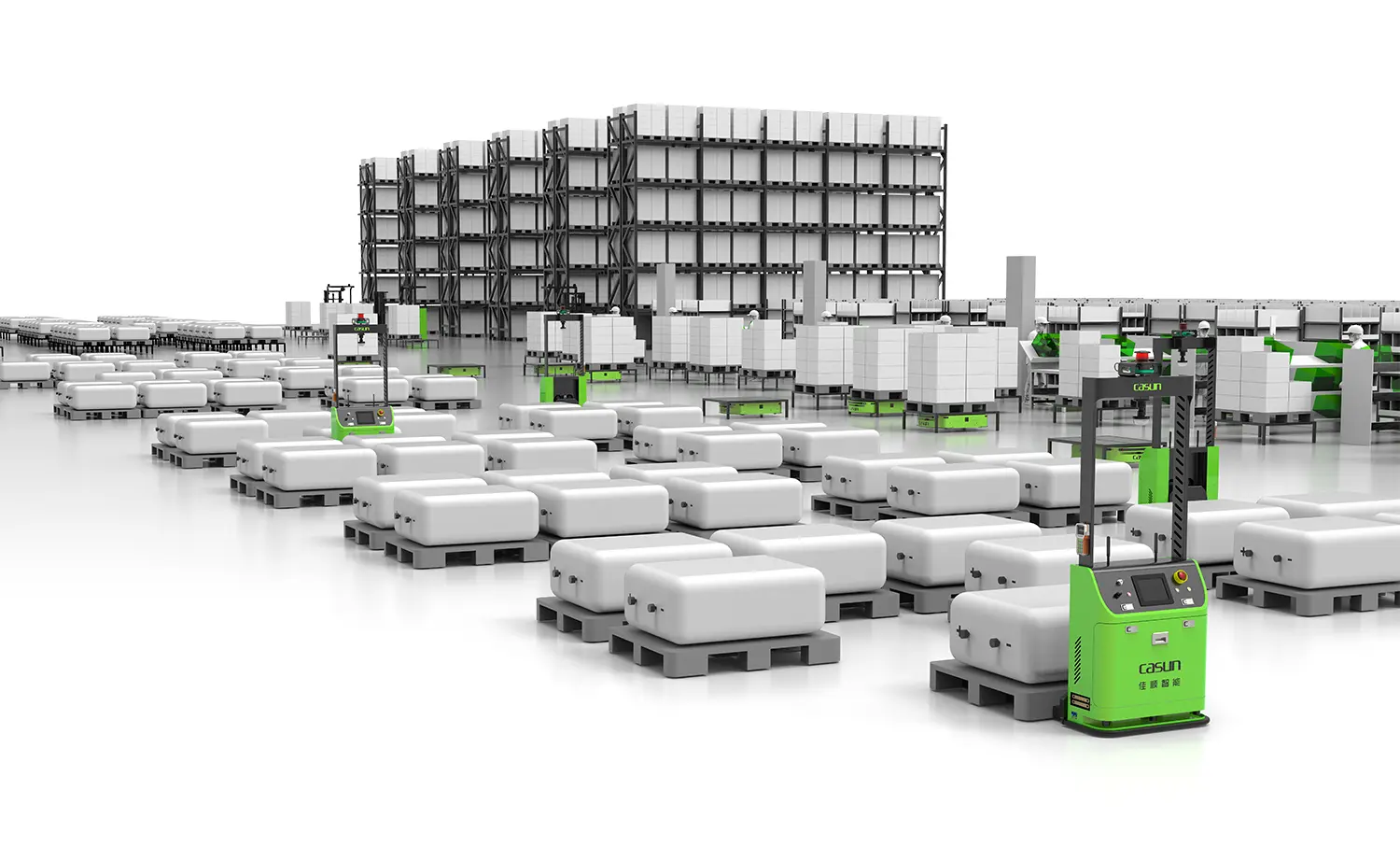

Compared with ordinary forklift truck, the storage capacity of the AGV pallet mover can be increased by 20% when placing goods in parallel.

03
Up and down the elevator

It can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.

04
Run across floors

It can be used to the similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.

05
High operation efficiency

Unique dual wheel differential drive, fast speed (0-60 meters only needs 3 seconds), and with fast rotation function (in situ rotation only 4 seconds)

06
Strong environment self-applicable

The AGV can be quickly put into use without on-site transformation of the application.

07
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

08
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

09
Auto-charging

When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
