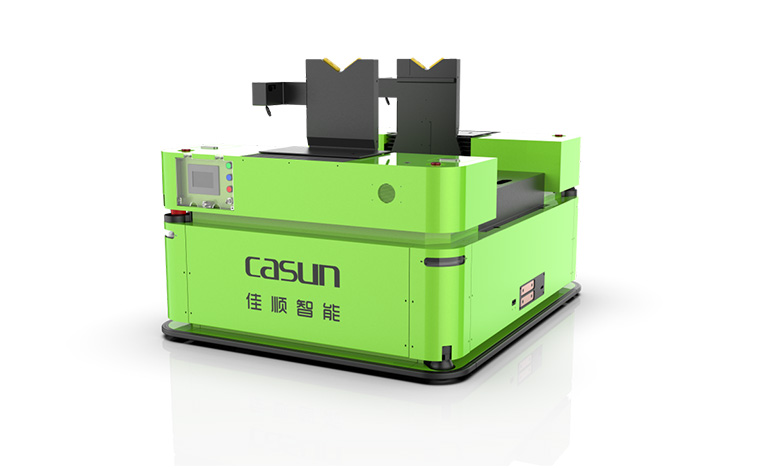

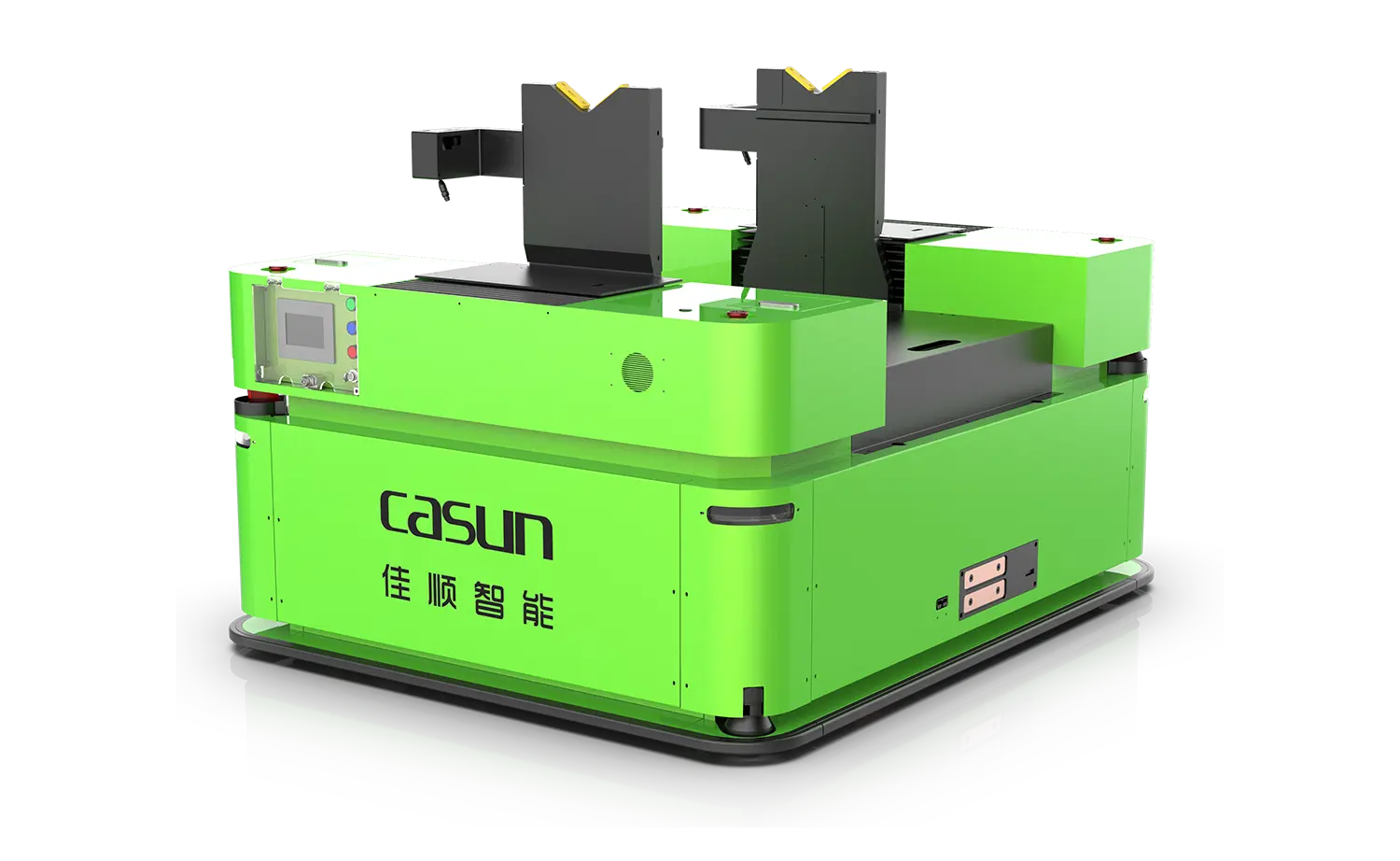

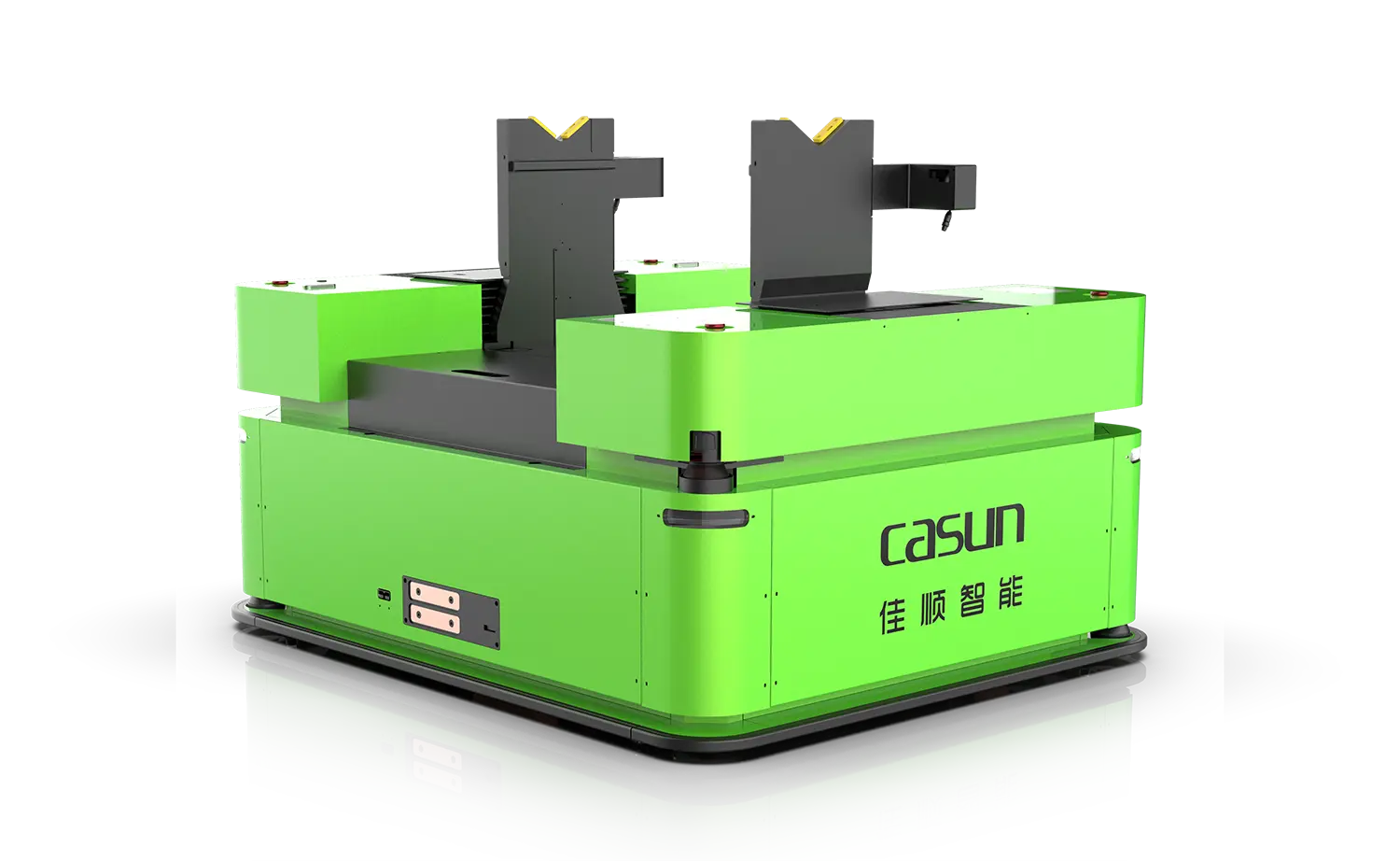

CCM-52 is a single-fork lift AGV, which is currently the most widely used in the front-end process of cell production workshops in the new energy lithium battery industry for foil and unslit pole roll handling.

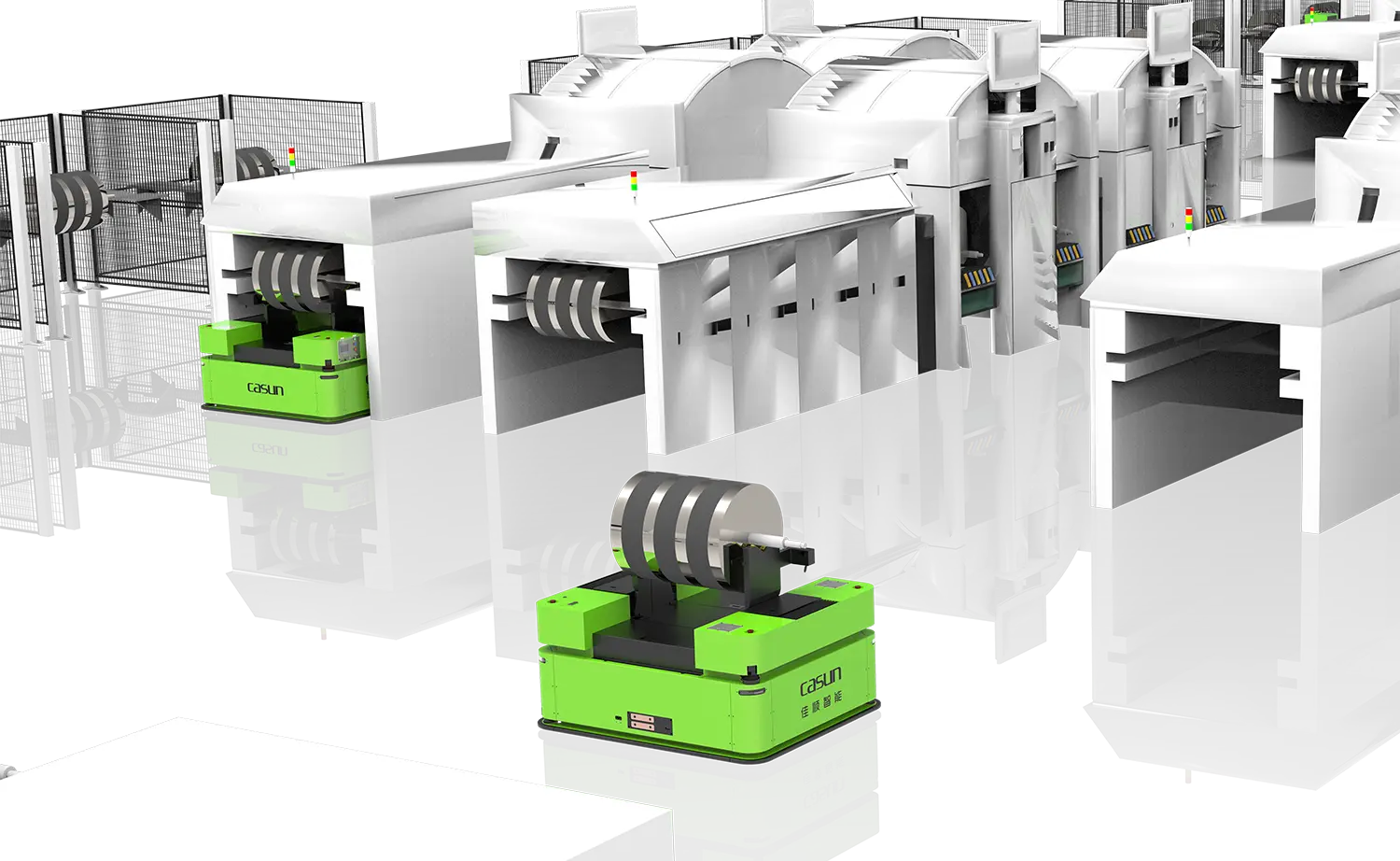

Working method: AGV carries a full roll of material or an empty roll to automatically connect with the connection port to realize automatic loading and unloading of materials.
| Basic parameters | Dimensions | L1800*W1500*H1200mm |
| maximum load | 1800kg | |
| Rotation diameter | 2220mm | |
| docking height | 1300~1800mm | |
| Navigation performance | Navigation | Laser SLAM / QR code navigation |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±3mm | |
| Docking accuracy | ±2mm | |
| athletic performance | walking direction | Forward, backward, turn, rotate, traverse |
| drive mode | Steering wheel drive | |
| maximum walking speed | 1.0 m/s | |
| battery performance | Battery Type | lithium battery |
| charging method | Ground charging / Side charging | |
| charging time | After full discharge, the charging time is less than or equal to 1H | |
| Rated battery life | 6H | |
| network performance | communication method | WiFi/5G |
| Protection performance | Safety Alert | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m adjustable | |

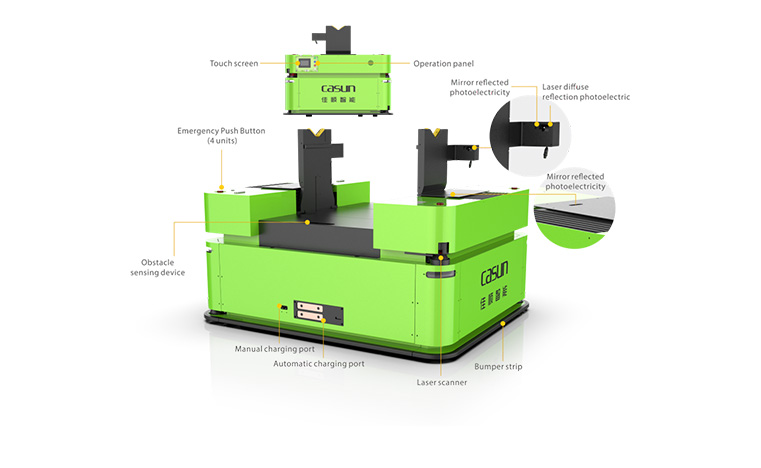

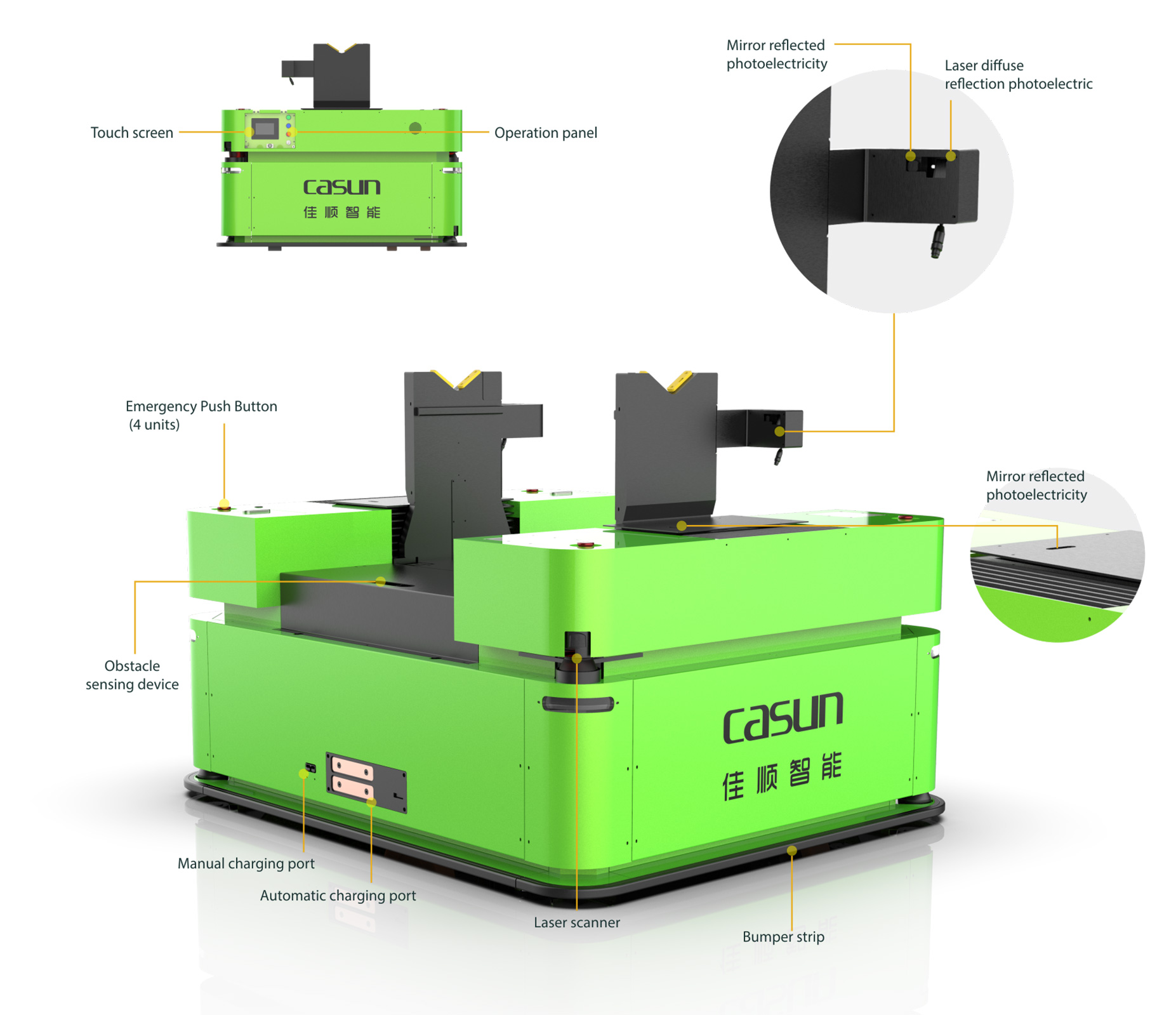

| Security | ● 4 Obstacle Detection Sensors; ● Mechanical Anti-collision Structure; ● Emergency Stop Switch |
SLAM navigation or QR code navigation can be used;
automatic docking with line-side equipment to realize unmanned operation of the process;
double-pronged design is adopted to complete the exchange of empty and full, improve work efficiency and reduce equipment downtime waiting time;
high-precision control, the docking accuracy with the equipment is ±2mm.
