C3 Unit Load Carrier AGV Trolley

Load shifting series AGV trolley can autonomously navigate to the docking terminal according to the scheduling task, realizing the fully automated transfer of materials. This series unit load carrier AGV is divided into the single station and multi-station according to the number of AGV stations. The navigation method can choose magnetic navigation, QR code navigation, and SLAM navigation. The load capacity of the unit load carrier AGV can reach 1200kg. This series of AGV equipment has a wide range of applications, compact structure, flexible operation and a high degree of automation. The unit load AGV is widely used in many industries such as flat panel display, new energy lithium battery, automobile and spare parts, food and beverage, 3C electronics, home appliances and so on.

CASUN C3 Unit Load Carrier AGV Trolley Series

A unit load carrier AGV/AMR is the most efficient and flexible way to deliver material from a fixed conveyor to a fixed conveyor. Generally, the unit load carrier AGV/AMR is available to be equipped with different transferring devices to transfer and transport the cargo. It typically has a built-in conveyor belt to move the material from the pallet onto the AGV/AMR trolley's deck or elevator deck unit.

CASUN provides various types of this unit load carrier AGV/AMR trolley to satisfy different requests for our customers.


C3-11 Single Conveyor Deck Load AGV

Guidance
Guidance

QR code navigation/Laser navigation/SLAM navigation


Dimensions
Dimensions

L1660*W1600*H1900(mm)


Load Capacity
Load Capacity

1000KG


Travel Speed
Travel Speed

0~60m/min


Conveyor Deck Number
Conveyor Deck Number

Single


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Differential drive


C3-12 Single Conveyor Deck Load AGV

Guidance
Guidance

Magnetic navigation/QR code navigation


Dimensions
Dimensions

L2200*W1376*H760(mm)(Docking height is 180mm)


Load Capacity
Load Capacity

1000KG


Travel Speed
Travel Speed

0~45m/min(Magnetic navigation),0~60m/min(QR code navigation)


Conveyor Deck Number
Conveyor Deck Number

Single


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Steering wheel


C3-13 Single Conveyor Deck Load AGV

Guidance
Guidance

QR code navigation/Laser navigation


Dimensions
Dimensions

L3500XW2150XH2785mm(Docking height is 1300mm)


Load Capacity
Load Capacity

1000KG


Travel Speed
Travel Speed

0~60m/min


Conveyor Deck Number
Conveyor Deck Number

Single


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Steering wheel

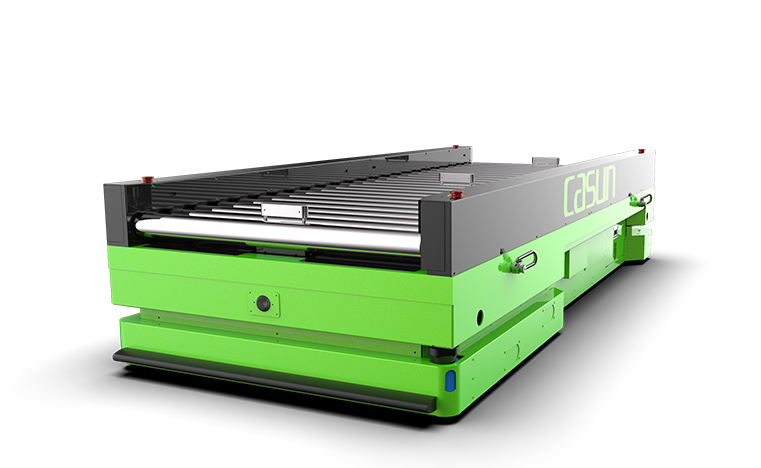

C3-14 Single conveyor deck load AGV

Guidance
Guidance

Magnetic navigation/QR code navigation/SLAM navigation


Dimensions
Dimensions

L2000xW800xH650(mm)(Docking height is 600mm)


Load Capacity
Load Capacity

1000KG


Travel Speed
Travel Speed

0~45m/min(Magnetic navigation),0~60m/min(QR code navigation/SLAM navigation)


Conveyor Deck Number
Conveyor Deck Number

Single


Guidance Accuracy
Guidance Accuracy

±10mm


Driving Method
Driving Method

Steering wheel


C3-15 Single Conveyor Deck Load AGV

Guidance
Guidance

QR code navigation/Laser navigation


Dimensions
Dimensions

L940xW650xH1900(mm)(Docking height is 600mm)


Load Capacity
Load Capacity

200KG/500KG


Travel Speed
Travel Speed

0~60m/min


Conveyor Deck Number
Conveyor Deck Number

Single


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Differential drive


Charging Method
Charging Method

Auto charger(Bumping type)

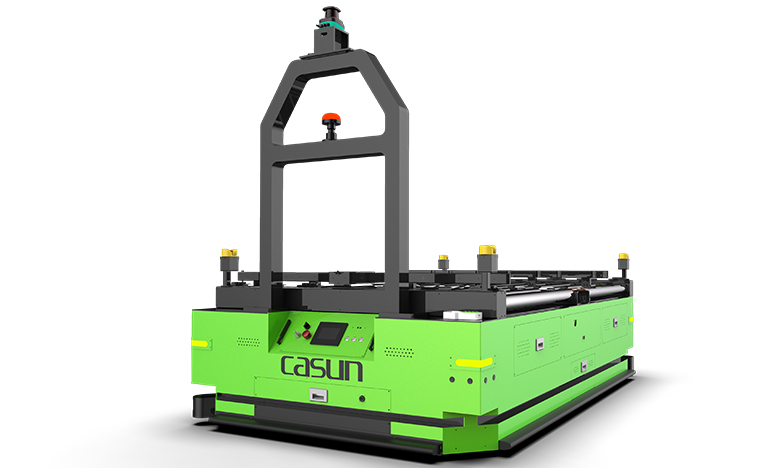

C-21 Dual Conveyor Deck Load AGV

Guidance
Guidance

QR code navigation/Laser navigation


Dimensions
Dimensions

L2000*W1250*H1800mm(Docking height is 650mm)


Load Capacity
Load Capacity

1000KG


Travel Speed
Travel Speed

0~60m/min


Conveyor Deck Number
Conveyor Deck Number

Dual


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Steering wheel

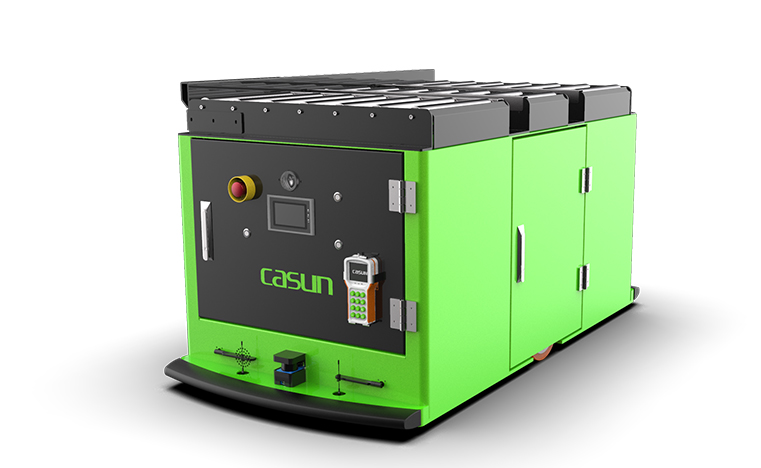

C3-31 Three Conveyor Deck Load AGV

Guidance
Guidance

Magnetic navigation/QR code navigation


Dimensions
Dimensions

L1700xW800xH900(mm)(Docking height is 800mm)


Load Capacity
Load Capacity

500KG


Travel Speed
Travel Speed

0~45m/min(Magnetic navigation), 0~60m/min(QR code navigation)


Conveyor Deck Number
Conveyor Deck Number

Three


Guidance Accuracy
Guidance Accuracy

±10mm


Driving Method
Driving Method

Differential drive


C3-41 Dual Layer-dual Conveyor Deck Load AGV

Guidance
Guidance

Magnetic navigation/QR code navigation


Dimensions
Dimensions

L1800xW680xH1200(mm)(Docking height is 500/800mm)


Load Capacity
Load Capacity

500KG


Travel Speed
Travel Speed

0~45m/min(Magnetic navigation), 0~60m/min(QR code navigation)


Turning Radius
Turning Radius

900mm (Magnetic navigation)


Conveyor Deck Number
Conveyor Deck Number

Four


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Dual-steering wheel

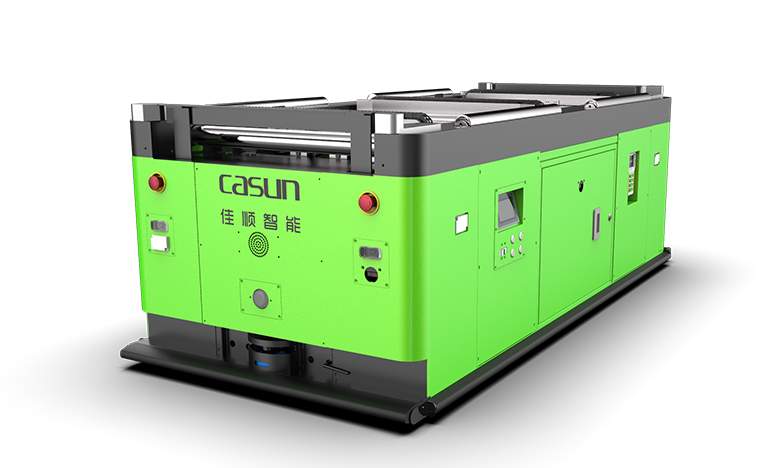

C3-42 Single Layer-four Conveyor Deck Load AGV

Guidance
Guidance

Magnetic navigation


Dimensions
Dimensions

L2240xW1060xH700(mm)(Docking height is 600mm)


Load Capacity
Load Capacity

500KG


Travel Speed
Travel Speed

0~45m/min


Turning Radius
Turning Radius

1100mm


Conveyor Deck Number
Conveyor Deck Number

Four


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Method
Driving Method

Steering wheel


Benefits of C3 Unit Load Carrier AGV Trolley

Benefits of C3 Unit Load Carrier AGV Trolley
Benefits of C3 Unit Load Carrier AGV Trolley
01
Multiple navigation options
Benefits of C3 Unit Load Carrier AGV Trolley
Benefits of C3 Unit Load Carrier AGV Trolley
02
Automatic transfer
Benefits of C3 Unit Load Carrier AGV Trolley
Benefits of C3 Unit Load Carrier AGV Trolley
03
Flexible docking
Benefits of C3 Unit Load Carrier AGV Trolley
Benefits of C3 Unit Load Carrier AGV Trolley
04
Widely used in industry

1. Adapt to multiple navigation methods

The Load shifting AGV/AMR is adapted to four types of navigation methods, including SLAM navigation, laser navigation, QR code robot navigation and magnetic tape navigation. Customers could choose the most suitable navigation method according to the on-site needs, thus making the best solution.

2. Automatic transport

The unit load carrier AGV/AMR trolley can pick or deliver the material automatically from the production line.

3. Flexible docking

We have four types of roller decks: single deck, one layer double-deck, one layer triple deck and two-layer double-deck to dock with different docking mechanisms. The docking unit can lift and adjust its height automatically to dock with the assembly stand.

4. Several  communication methods with assembly stand

The unit load carrier AGV/AMR can communicate with machines with wireless communication, optical data communication or software communication. The transporting device can be equipped with a code reading function to upload the code data it has scanned to the MES or WMS system.


Applications of C3 Unit Load Carrier AGV Trolley

Compatible to transport pallet or box

The conveyor of the load shifting AGV/AMR could be roller, chain, belt or customized for material characteristics to transport pallet, box or tray.

Loading mechanism with strong adaptability

We provide different types of loading mechanisms, including roller, chain, belt and customized type according to material characteristics.

Wide range of applications

The Load shifting series could be applied in various industries because it includes multiple AGV types, thus they has been widely applied in LCD panel, lithium battery,  3C electronics, automotive, warehousing and logistics, semi-conductor, and home appliances industry.
