Unit Load Carrier AGV Trolley

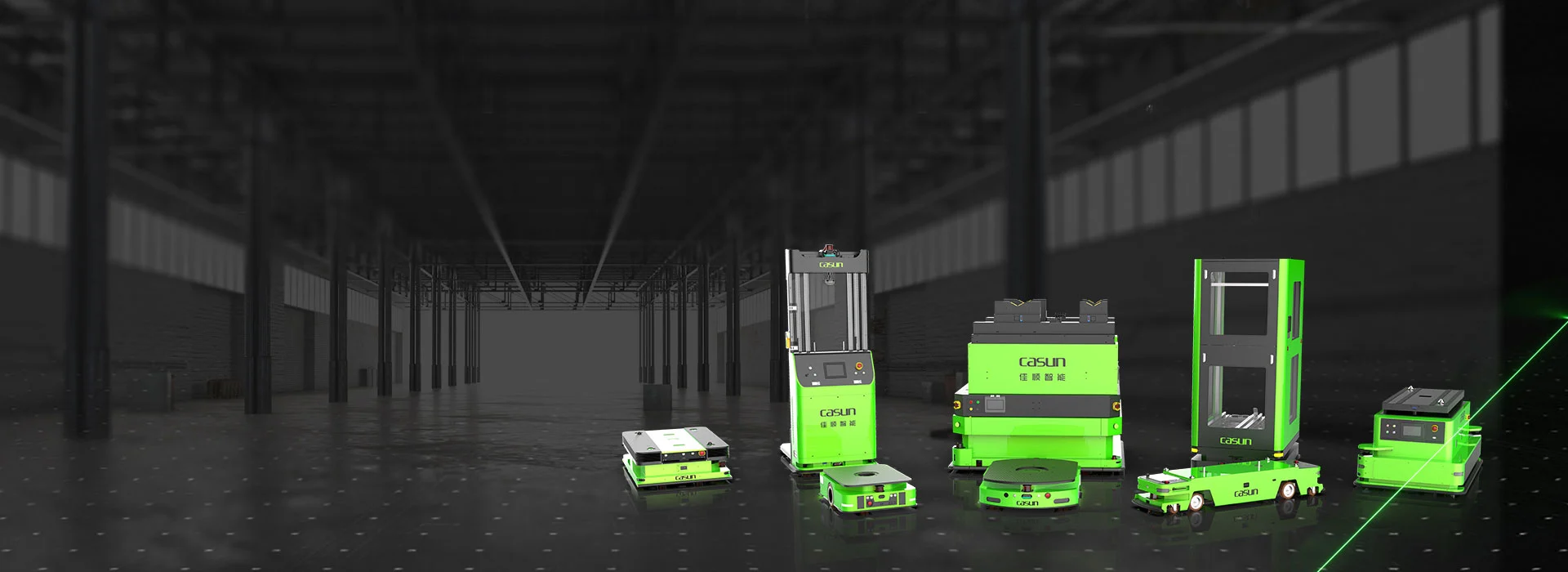

CASUN C3 Latent Lifting AGVs Series

The mobile robot ofthe load transfer series can autonomously navigate to the docking body according to the dispatching task,so as to realize the fully automatic transfer of materials, This series is divided into single station and multi-station according to the number of 0roduct stations.The navigation method can choose QR code navigation , aser positioning navigation,and SLAM navigation.This series of mobile robots are widely used, compact in structure,flexible in operation and high in automation.

C3-01

Vehicle Dimensions
Vehicle Dimensions

L940*W680*H755 (mm)

Load Capacity
Load Capacity

100kg

Navigation mode
Navigation mode

QR Code /  Laser / SLAM navigation

Navigation Accuracy
Navigation Accuracy

±10mm  /  ±10mm  / ±15mm

Stop Accuracy
Stop Accuracy

±5mm  / ±10mm   /  ±10mm

Traveling Direction
Traveling Direction

Forward, backward,、rotation

Drive Mode
Drive Mode

Dual-steering wheel

Rated Speed
Rated Speed

1.5m/s

C3-03

Vehicle Dimensions
Vehicle Dimensions

L1154*W694*H1490 (mm)

Load Capacity
Load Capacity

300kg

Navigation Mode
Navigation Mode

QR code/ laser / SLAM navigation

Navigation Accuracy
Navigation Accuracy

±10mm   /   ±10mm   /     ±15mm

Stop Accuracy
Stop Accuracy

±5mm    /    ±10mm   /    ±10mm

Traveling Direction
Traveling Direction

Forward, backward, rotation and sideway

Drive Mode
Drive Mode

Wheel drive

Rated Speed
Rated Speed

1.0m/s

C3-04

Vehicle Dimensions
Vehicle Dimensions

L1550*W950*H2150 (mm)

Load Capacity
Load Capacity

300kg

Navigation
Navigation

SLAM Navigation


Navigation Accuracy
Navigation Accuracy

±10mm

Stop Accuracy
Stop Accuracy

±5mm

Traveling Direction
Traveling Direction

Forward, backward, rotating


Driving Mode
Driving Mode

Two-wheel differential drive


Rated Speed
Rated Speed

1.2m/s

C3-05

Vehicle Dimensions
Vehicle Dimensions

L1550*W950*H1500 (mm)

Load Capacity
Load Capacity

300kg

Navigation
Navigation

SLAM Navigation


Navigation Accuracy
Navigation Accuracy

±10mm

Stop Accuracy
Stop Accuracy

±5mm

Traveling Direction
Traveling Direction

Forward, backward, rotating


Driving Mode
Driving Mode

Two-wheel differential drive

Rated Speed
Rated Speed

1.2m/s
