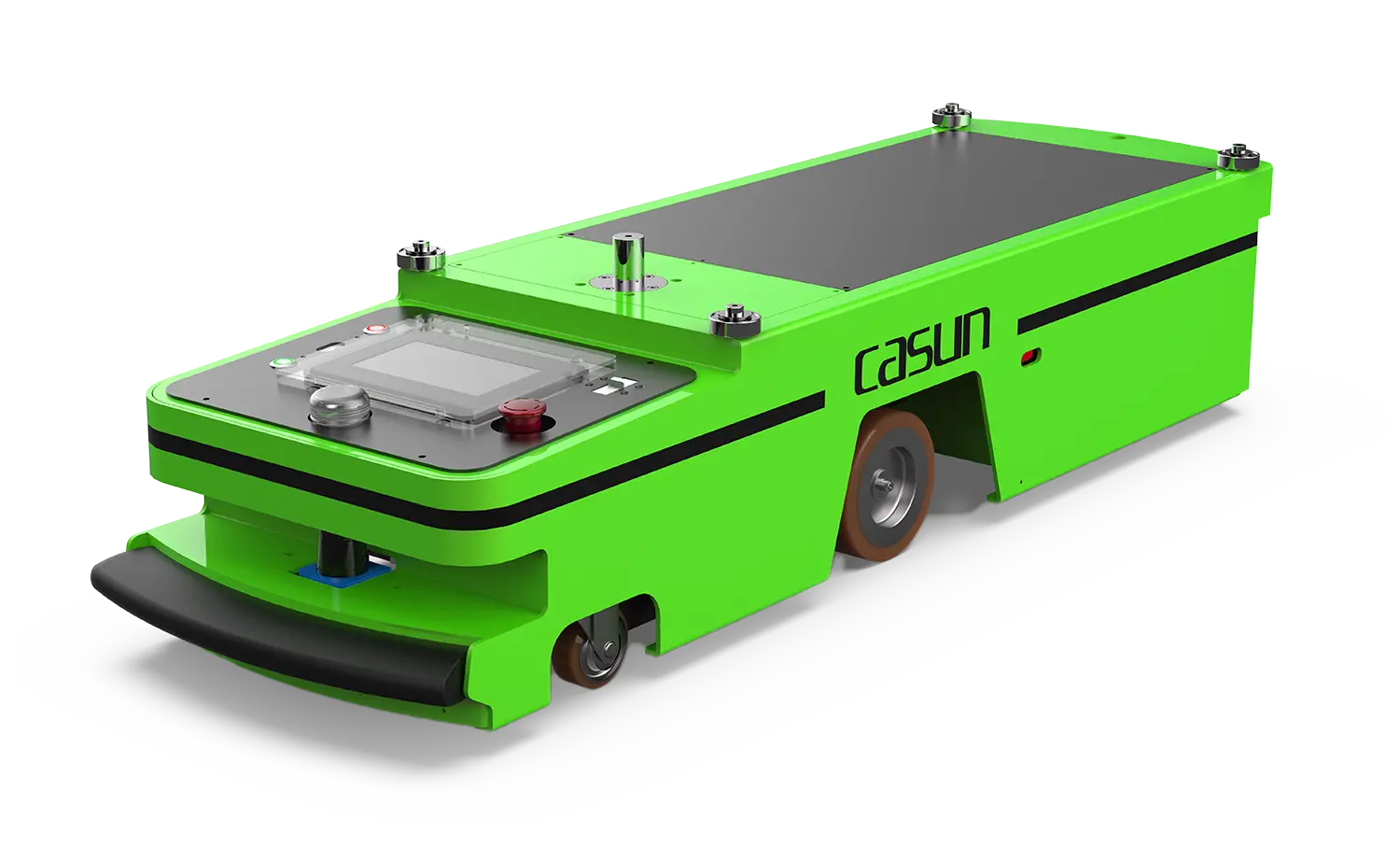

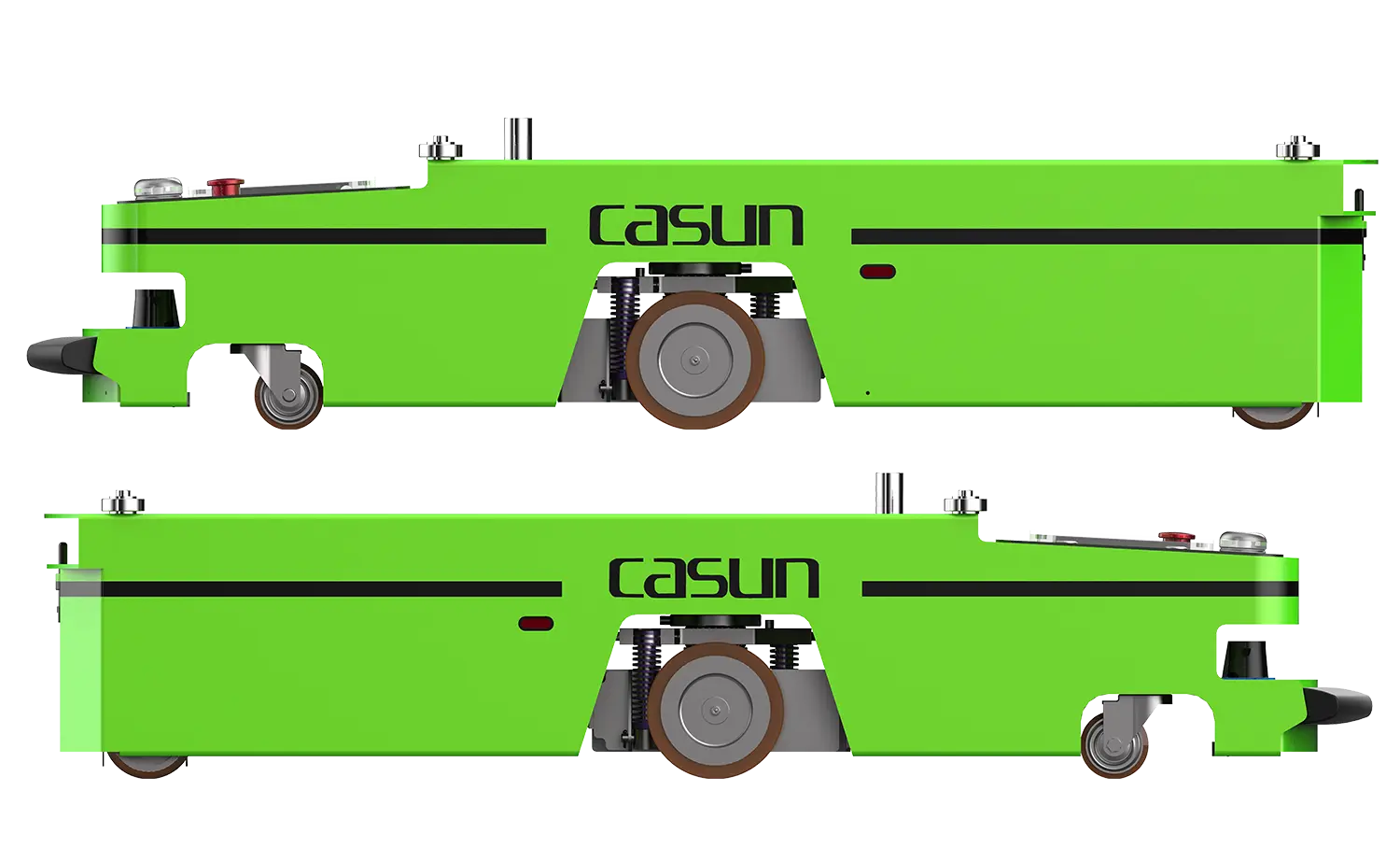

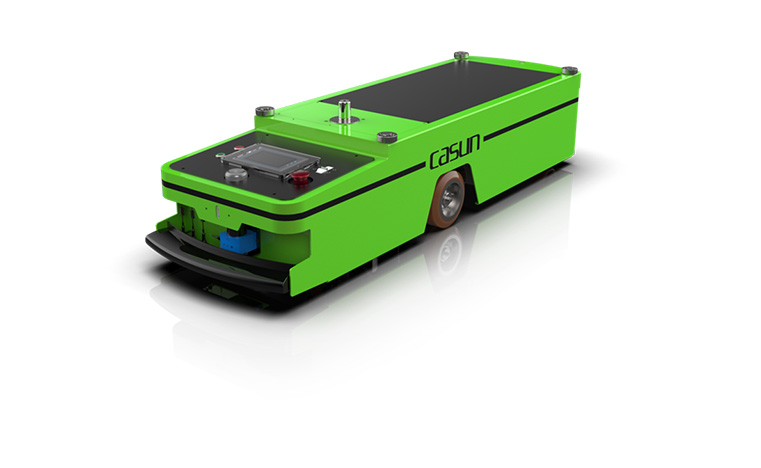

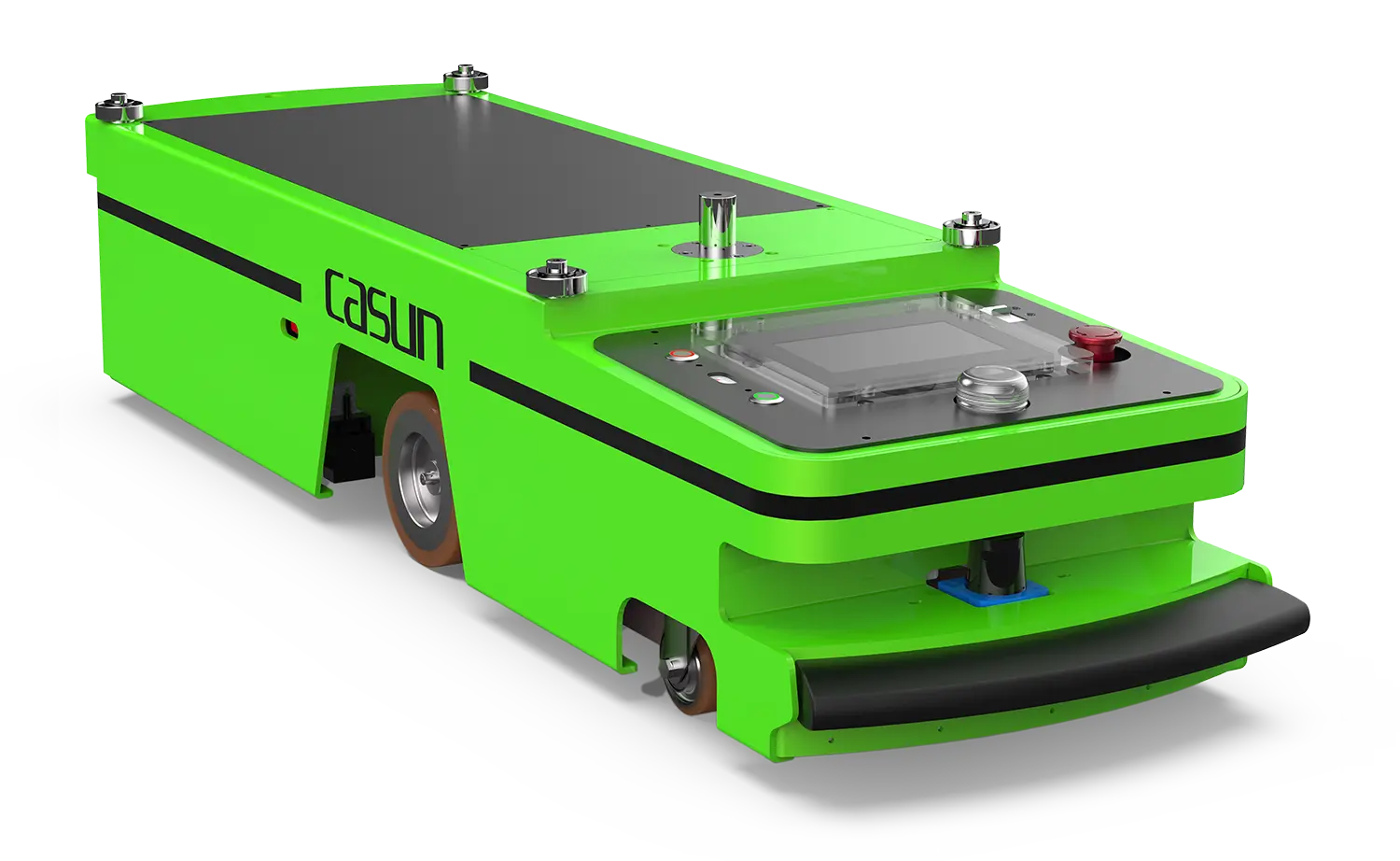

C1-11B Unidirectional Latent Towing AGV

Based on magnetic navigation, the model C1-11B AGV guided vehicle is a unidirectional Latent Towing AGV, mainly applied in manufacturing workshop with fixed production procedures.

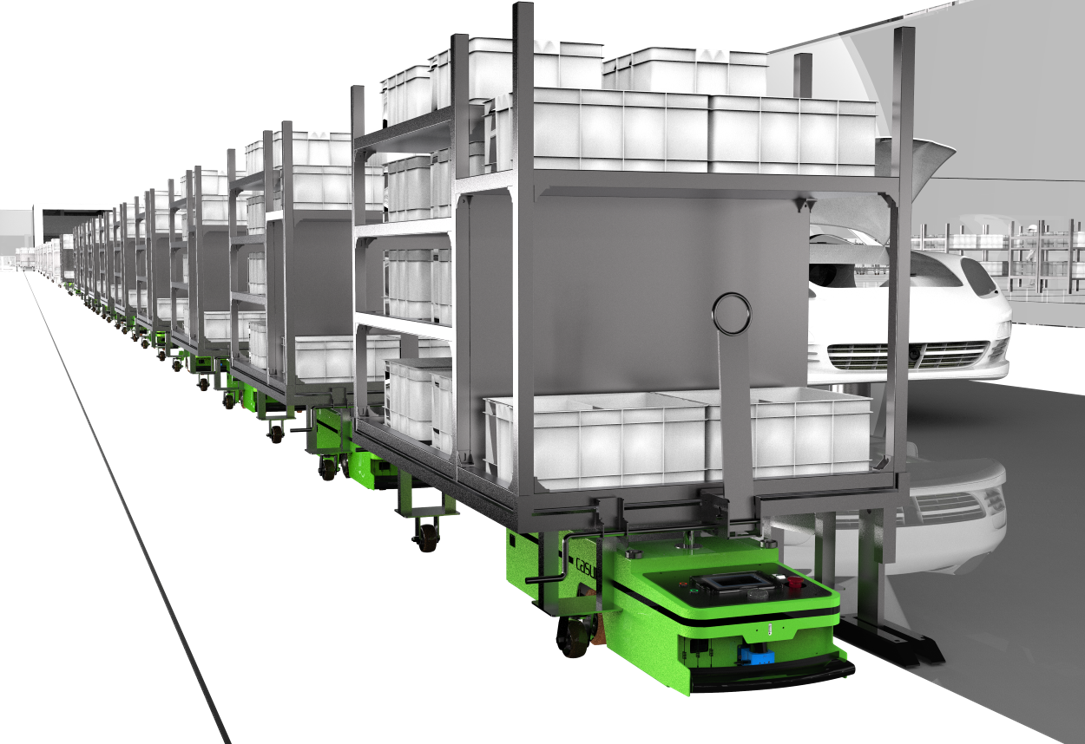

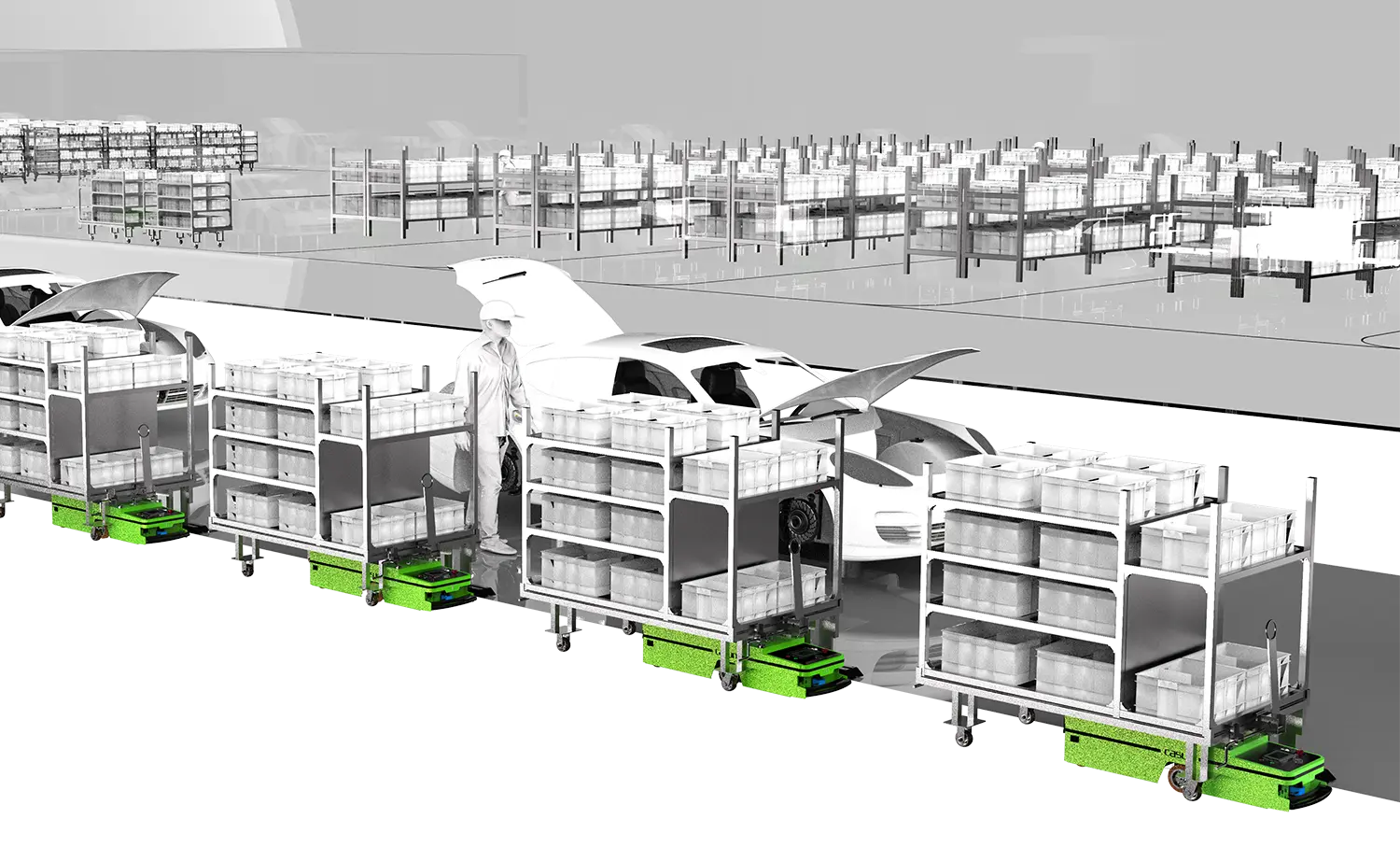

Working mode: After receiving system instructions, AGV autonomous guided vehicles will automatically move to the bottom side of material vehicles, and rise the towing rod to hook material vehicles, so as to achieve end-to-end material transfer.

c1 11b 1
c1 11b 2
c1 11b 3
c1 11b 4

Parameters of C1-11B Unidirectional Latent Traction AGV


Basic parametersDimensions L1450*W420*H290 (mm)
Maximum load 500kg / 1000kg
Body weight 200kg
Turning radius 650mm
Navigation   performanceNavigation Magnetic Navigation
Navigation accuracy ±10mm
Stopping accuracy ±10mm
athletic   performanceWalking direction forward, turn left and right
Drive mode differential drive
Acceleration 0.2m/s²
Maximum walking speed no-load 45m/min full load 35m/min
Maximum gradeability ≤3°
battery   performanceBattery type Lithium battery
Charging method side charge/ground charge
Charging time After full discharge, the charging time is   less than or equal to 1H
Rated battery life 8H
network performanceCommunication method RF / WiFi / 5G
Protection   performanceSafety warning ●Light warning ●Voice broadcast
Safe sensing range ≤3m adjustable

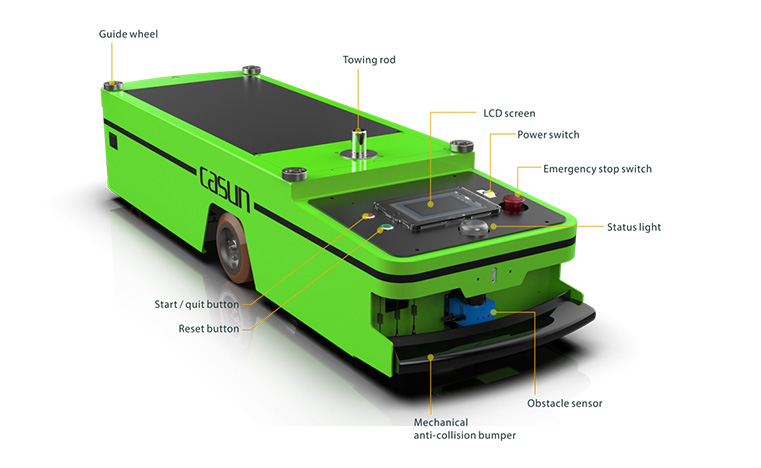

Safety protection ●Front obstacle detection sensor ●Mechanical   anti-collision mechanism ●Emergency stop switch
Application EnvironmentOperating ambient temperature -10℃ ~ 45℃
Operating environment no dust, flammable, explosive and corrosive   gases


Core Advantages of C1-11B Unidirectional Latent Traction AGV

Core Advantages of C1-11B Unidirectional Latent Traction AGV

01
Compact design

The vehicle's length is 1400mm and width is 420mm, workable in narrow space.

02
Stable operation

Mature rail navigation technology, acurate positioning and reliable working.

03
Multiple security protection

Equipped laser obstacle sensor / mechanical anti-collision bumper / acousto-optic alarm to ensure safe working environment.

04
Intelligent dispatching

CASUN's self-developed Central Management Systems integrate high-frequency wireless communication technology, high-speed database analysis and processing technology, AGV digital control technology, combining on-site requirements to achieve intelligent scheduling of multiple AGVs.

05
Automatic battery charging

AGVs will move to charge station and do charging job automatically when they are detected to be in low power status,response time can be 24 hours per day so as to increase productivity.

06
Cost-effective

Standard models, batch delivery, cost-effective, short delivery time.
