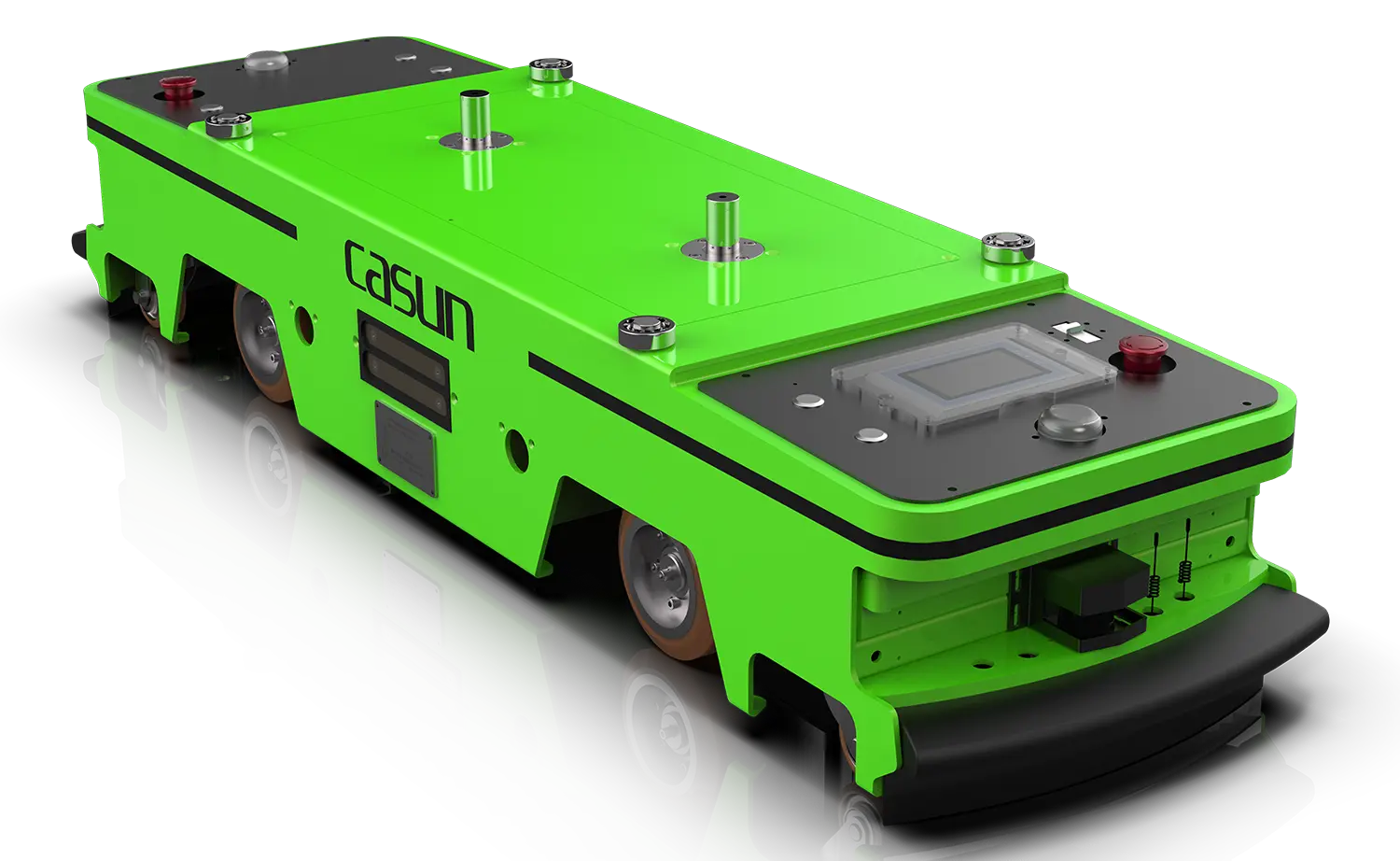

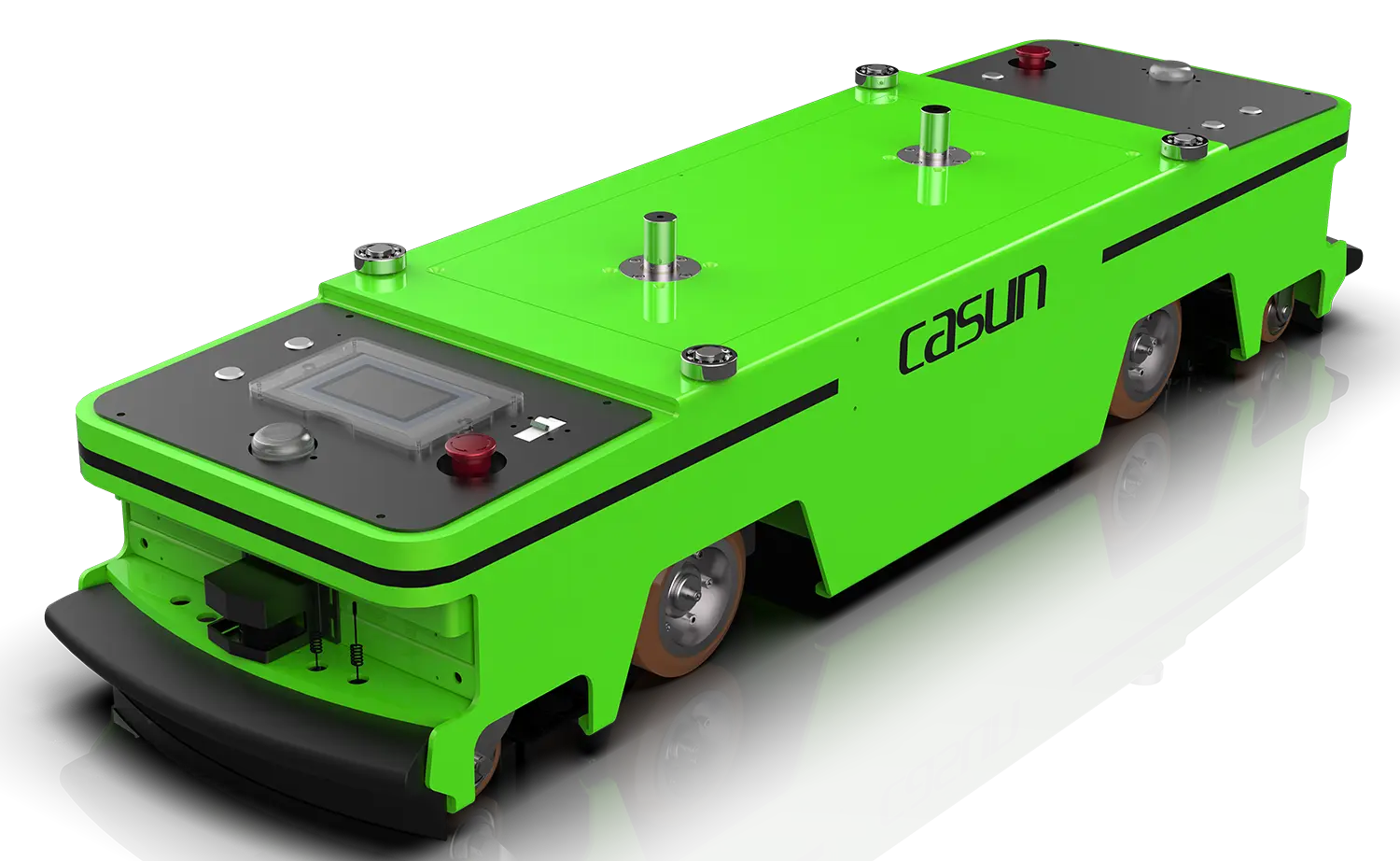

C1-21 Bidirectional Latent Towing AGV

Based on magnetic-navigation, model C1-21 AGV vehicle is a bidirectional Latent Towing AGV, mainly applied to manufacturing workshop with fixed production procedures.

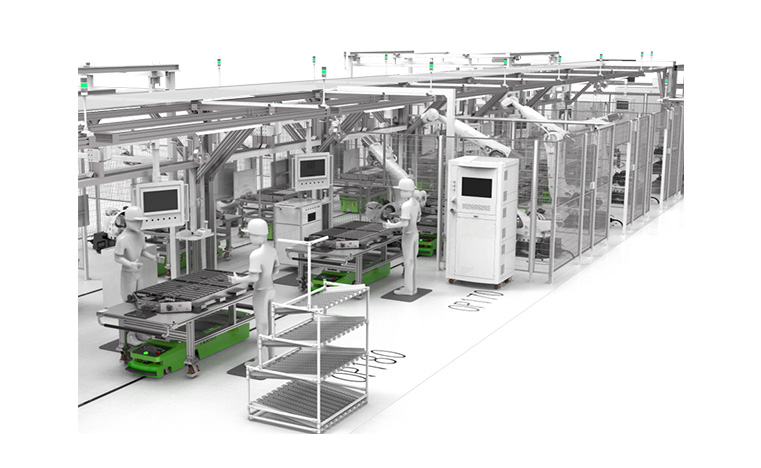

Working mode: After receiving system instructions, AGV automated guided vehicles will automatically move to the bottom side of material vehicles, and rise the towing rod to hook material vehicles, so as to achieve end-to-end material transfer. Besides, With compact design, C1-21 can move bidirectionally and work in narrow space.


C1-21 Bidirectional Latent Towing AGV

Parameters of C1-21 Bidirectional Latent Traction AGV


NavigationMagnetic tape
Vehicle dimensionsL1500*W420*H290(mm)
Moving directionMove forward/backward, turn left/right, move into a branch
Load capacity800KG
Rated speed0~35m/min
Turning radius800mm
Guidance accuracy±10mm
Stopping accuracy±10mm
Driving modeDifferential drive
Charging modeSide/ground charging
BatteryLithium battery
CommunicationRF/WiFi/5G
Safety warningLight + Audio
Safety sensing range≤3m(adjustable)

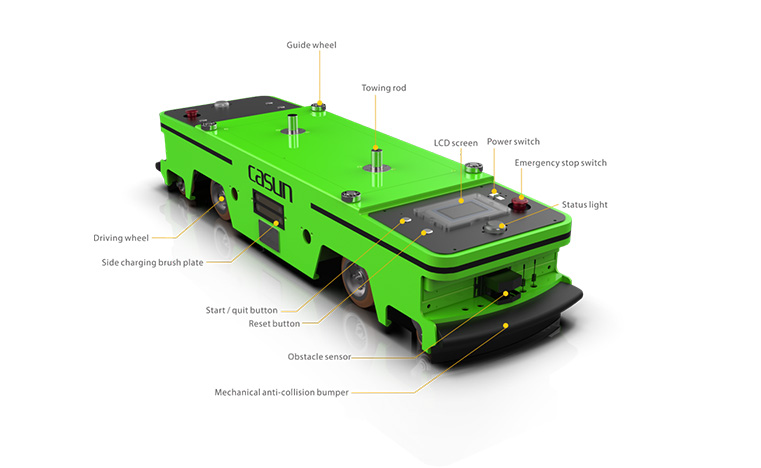

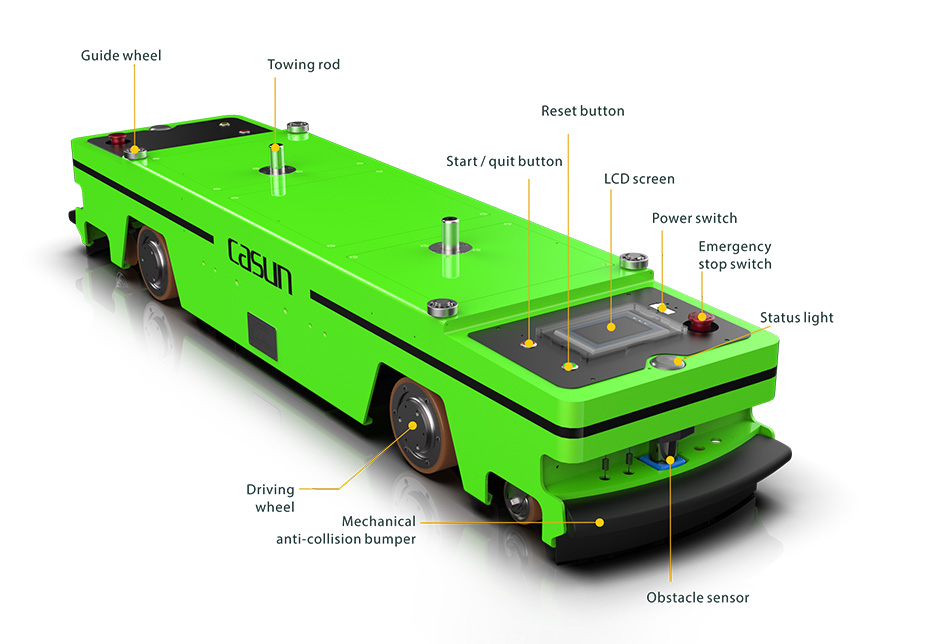

Safety protectionFront obstacle detecting sensor+mechanical anti-collision bumper


Core Advantages of C1-21 Bidirectional Latent Traction AGV

Core Advantages of C1-21 Bidirectional Latent Traction AGV

01
Moving flexibly

Moving directions can be switched,more flexible and efficient operation.

02
Stable working

With mature rail navigation technology/acurate positioning /reliable working.

03
Multiple protection

Built-in laser obstacle sensor / mechanical anti-collision bumper / acousto-optic alarm and they ensure safe working environment.

04
Smart dispatching

Self-developed CMS integrates high-frequency wireless communication technology, high-speed database analysis and processing technology, AGV digital control technology, combining on-site requirements to achieve intelligent scheduling of multiple AGVs.

05
Auto charging

AGVs move to charge automatically at charging station when they are detected to be in low power status,in order to increase productivity,response time can be 24 hours per day.
