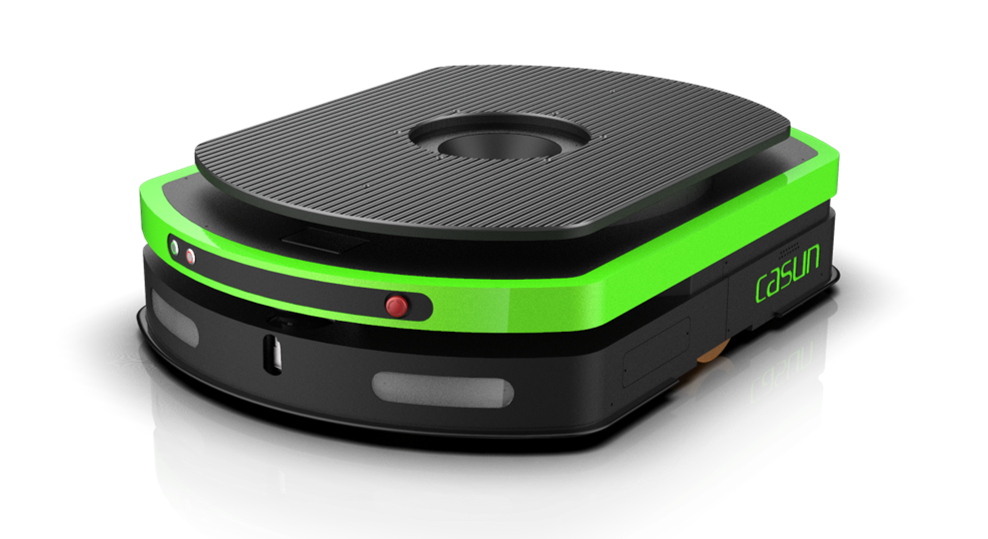

C2-23C Latent Lifting AGV

C2-23C performs precise positioning according to scheduling tasks, and independently completes a series of operations of lifting, transportation and unloading. It can choose material sorting system, platform and body relative rotation configuration, etc. This series is divided into one-way, two-way and omni-directional according to the running direction of the mobile robot. The navigation mode can be selected from QR code navigation and SLAM navigation, and the load capacity is up to 1500kg. At present, it has been widely used in new energy lithium battery, automobile and parts, flat panel display, food and beverage, 3C and semiconductor, household appliances and many other industries.

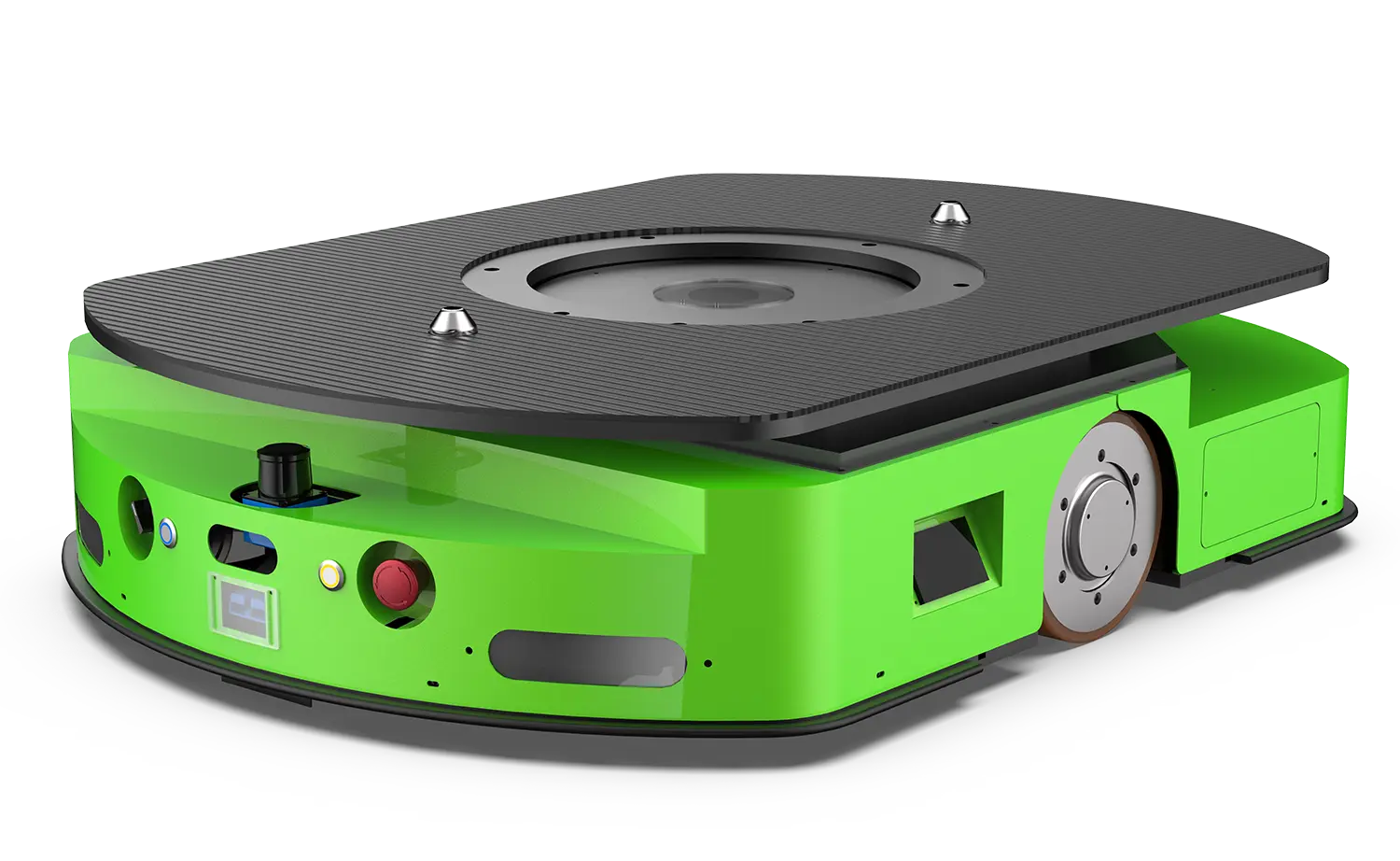

c2 23c 15

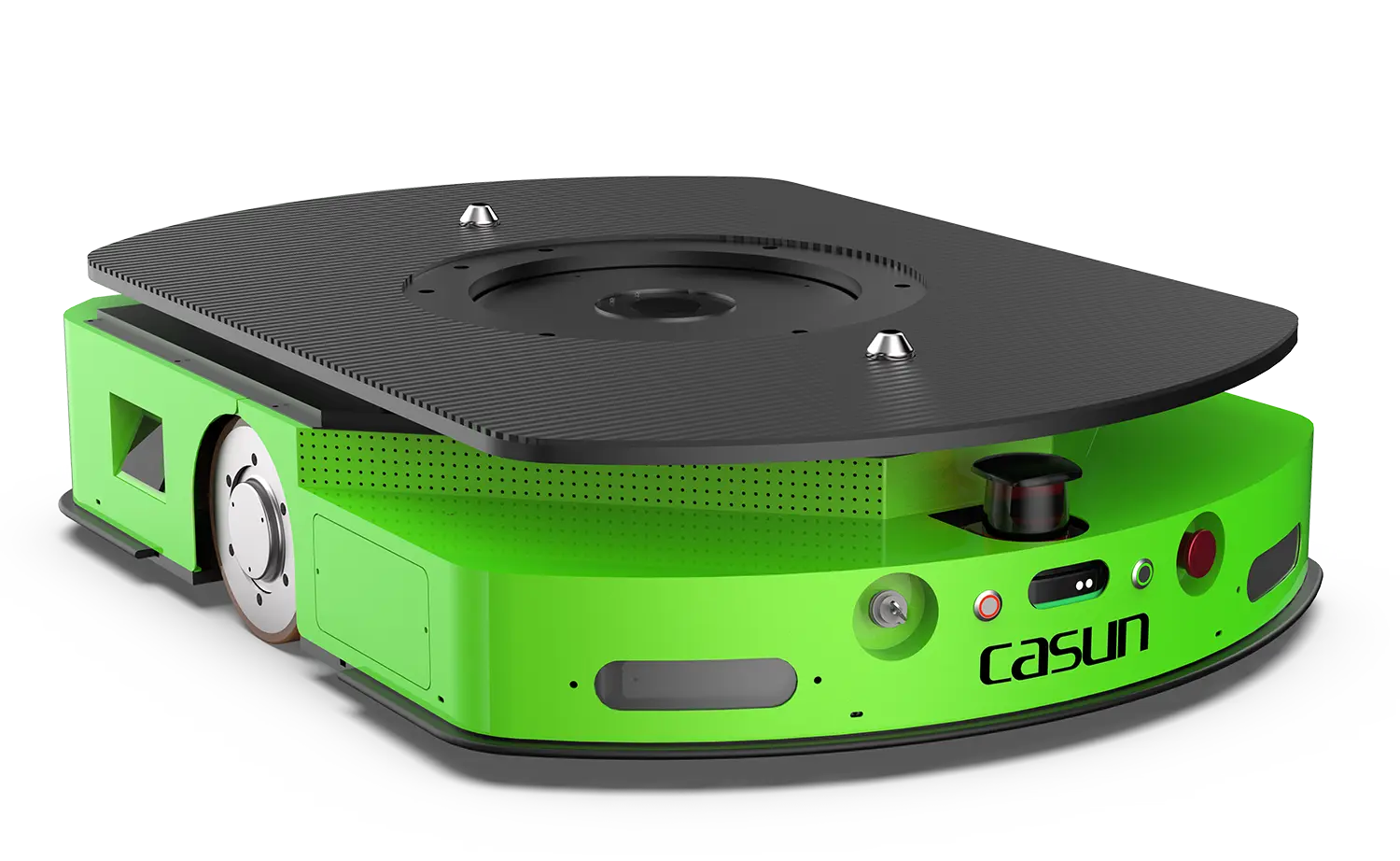

c2 23c 12

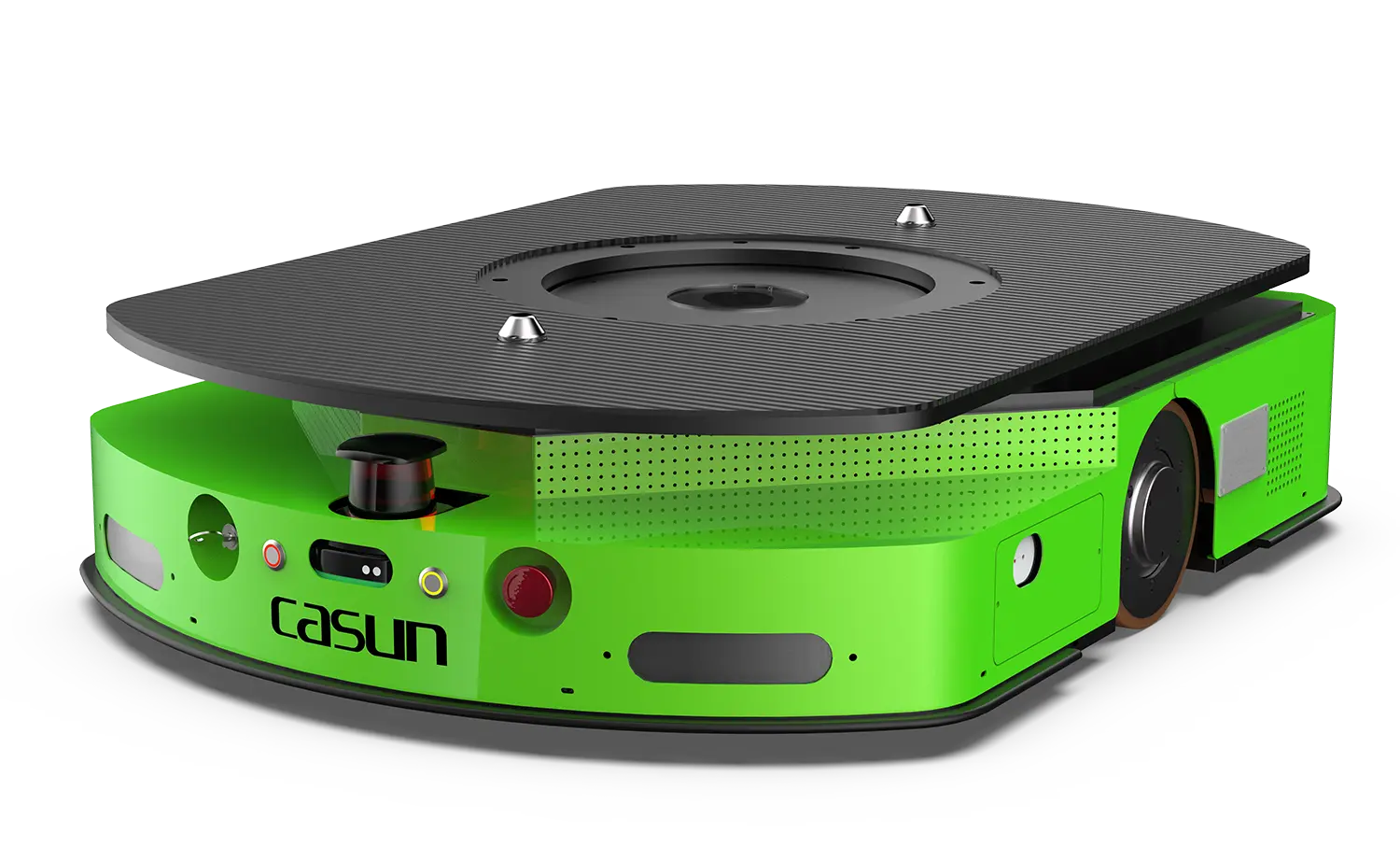

c2 23c 14

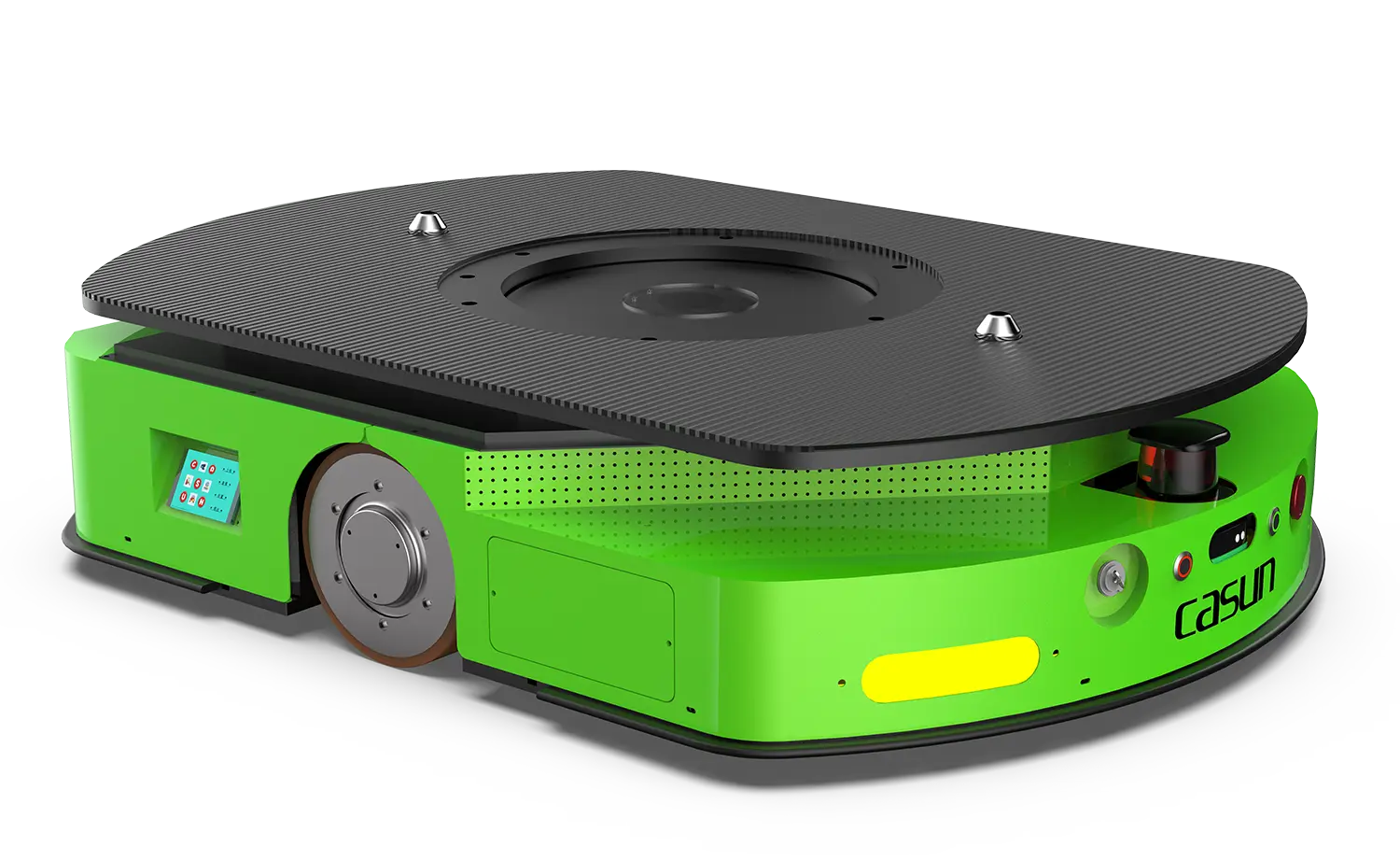

c2 23c 13

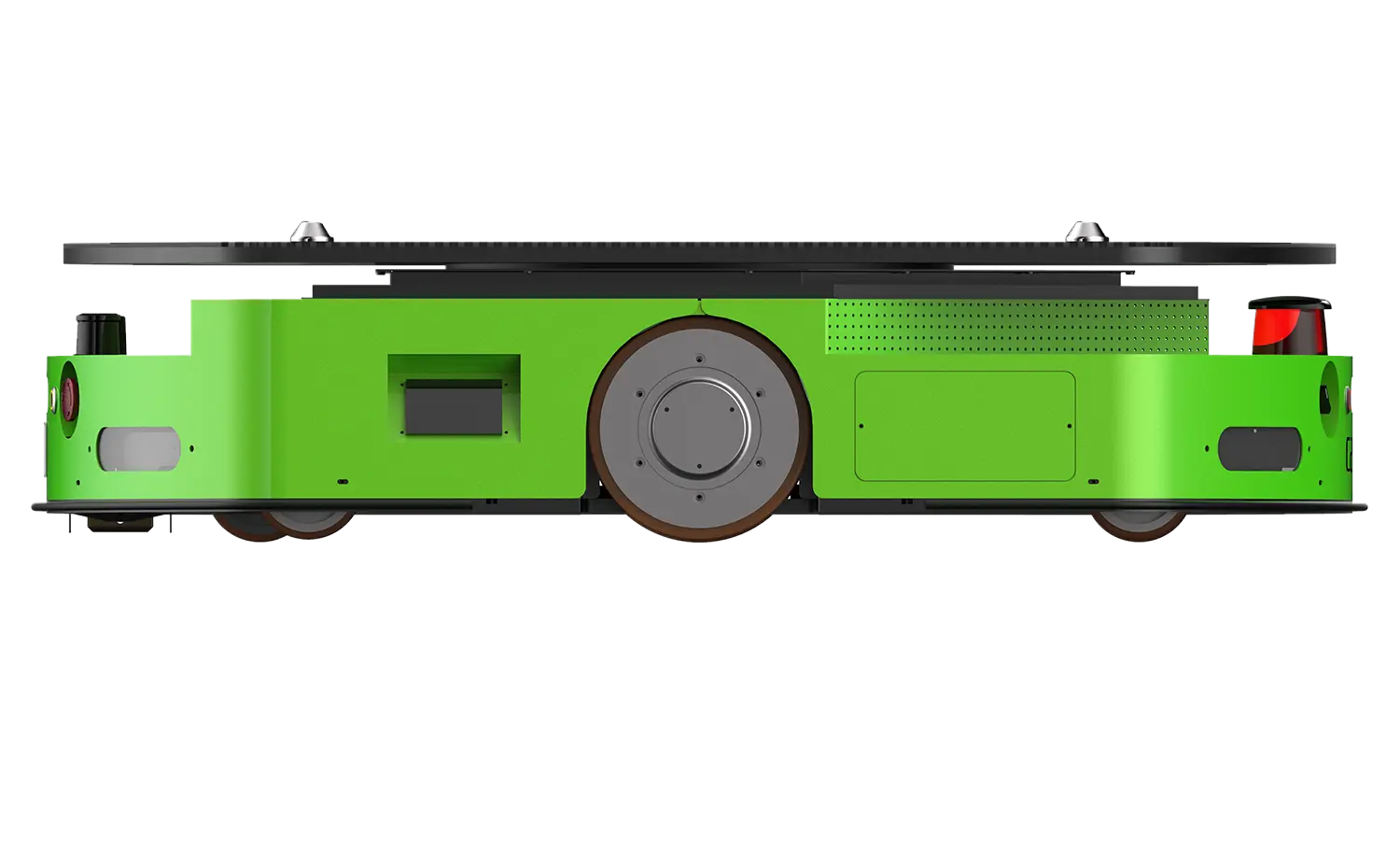

c2 23c 10

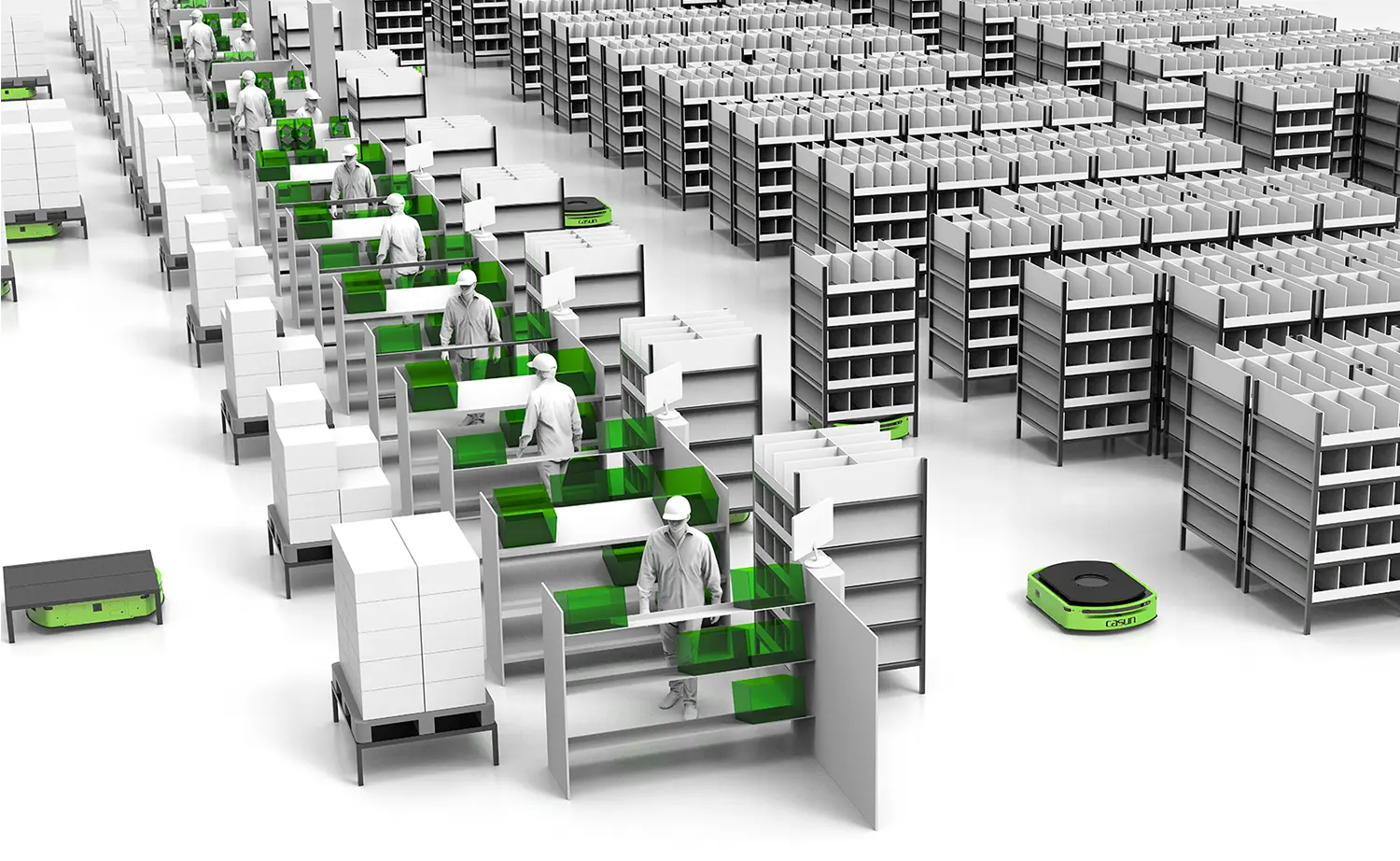

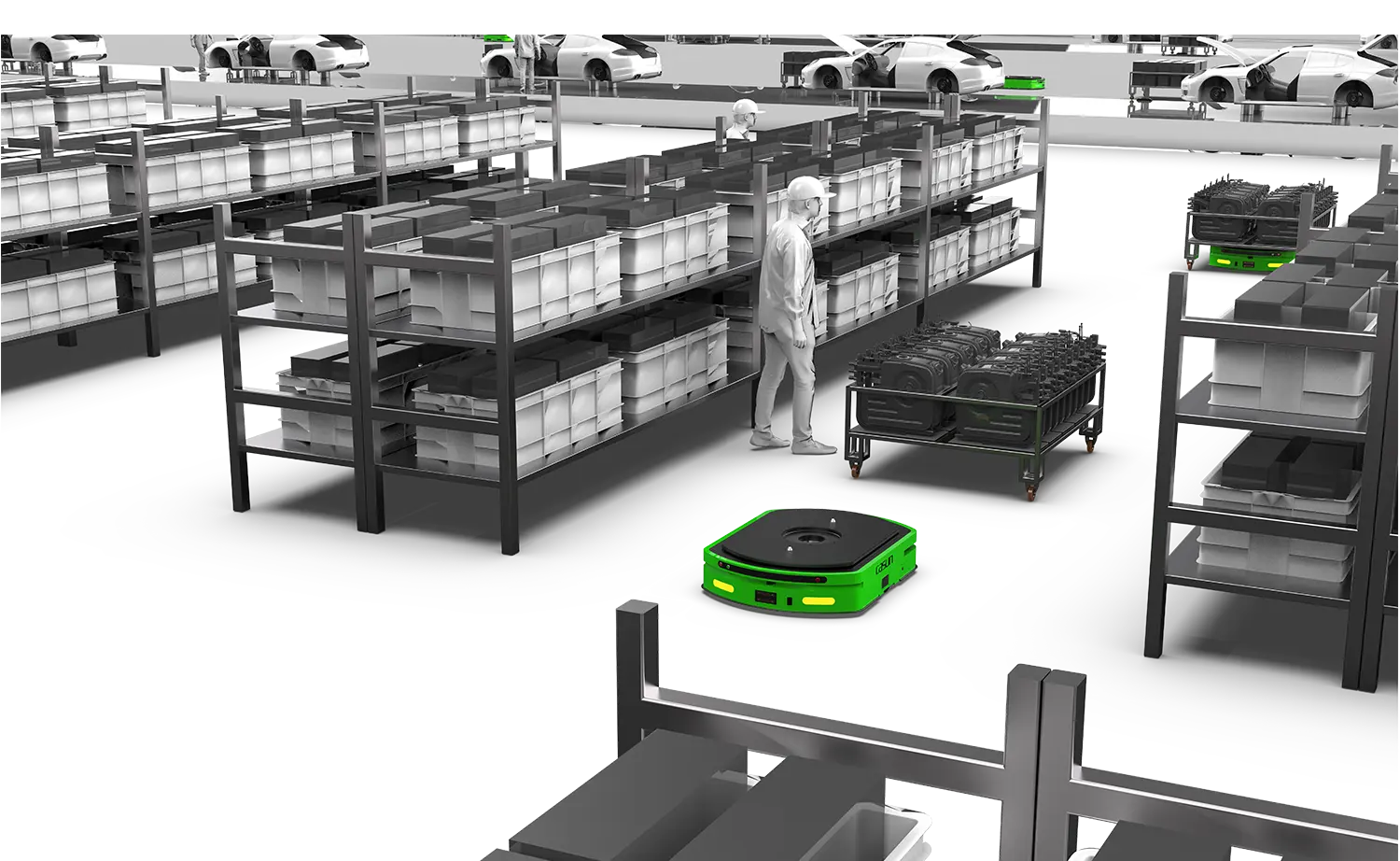

c2 23c 4
c2 23c 5

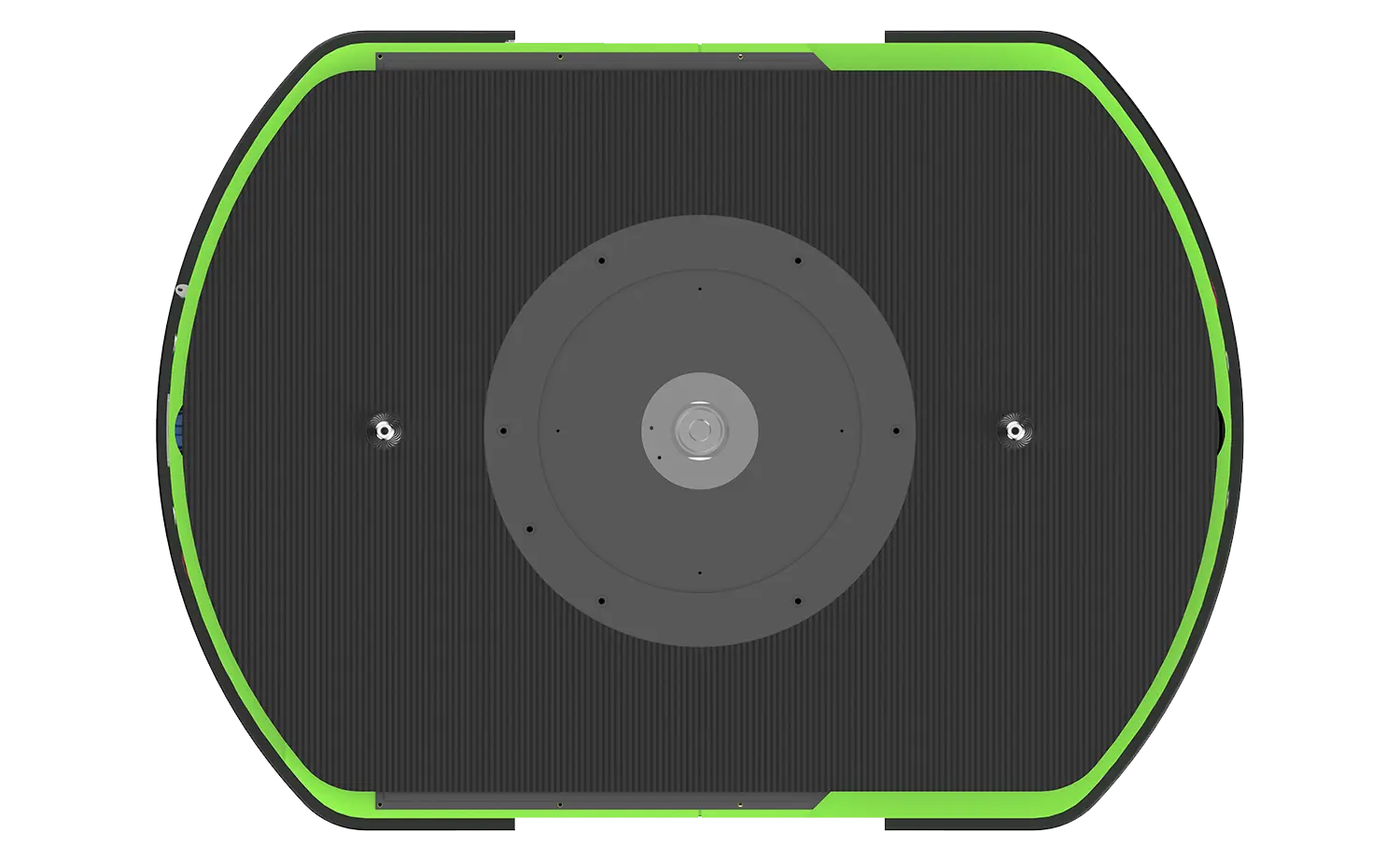

c2 23c 1

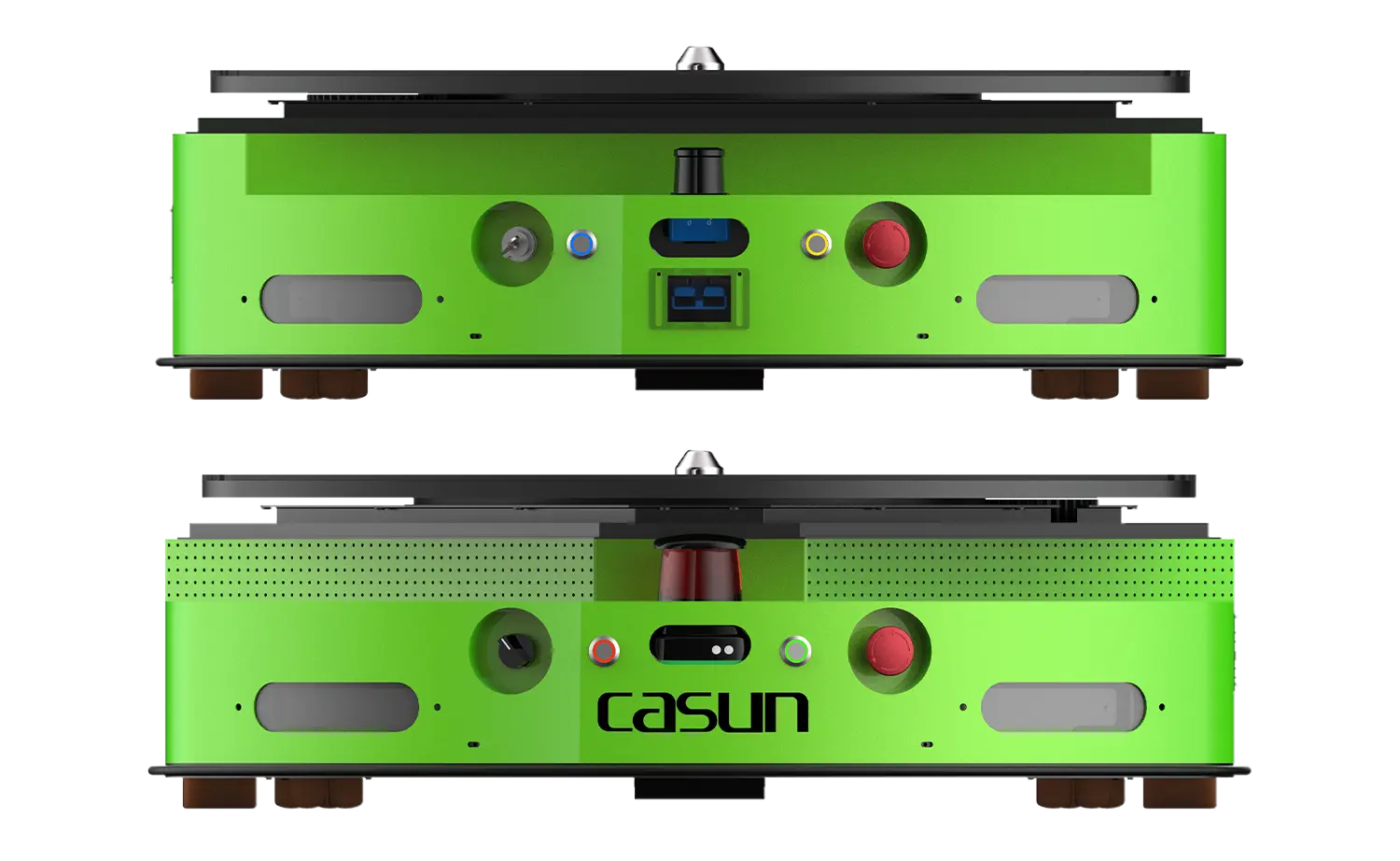

c2 23c 11

Parameters of C2-23C Latent Lift AGV


Basic parametersDimensionsL1180*W860*H253(mm)
maximum load1500kg
body weight365kg
Rotation diameter1210mm
relative rotationHave
Jacking Platform Dimensions1150*800(mm)
Max jacking stroke60mm
Navigation performanceNavigationQR code navigation / SLAM navigation
Navigation accuracy±10mm / ±15mm
Stop accuracy±5mm / ±10mm
Stop angle accuracy±1°
athletic performancewalking directionforward, backward, rotate
drive modeTwo-wheel differential drive
acceleration0.5m/s²
maximum walking speed1.5m/s
Maximum gradeability≤3°
battery performanceBattery TypeLithium battery
charging methodGround charging / Collision charging
charging timeAfter full discharge, the charging time is less than or equal to 1H
Rated battery life8H
network performancecommunication methodWiFi / 5G
Protection performanceSafety Alert●Light warning ●Voice broadcast
Safe sensing range≤3m adjustable
Security●Front and rear bostacle detection sensor  ●Mechanical anti-collision mechanism ●Emergency stop switch
Application EnvironmentOperating ambient temperature-10℃ ~ 45℃
Operating environmentNo dust, flammable, explosive and corrosive gases


Core Advantages of C2-23C Latent Lift AGV

Core Advantages of C2-23C Latent Lift AGV

01
Strong carrying capacity

The carrying capacity can reach 1500KG, and the full-load moving speed can reach 72m/min.

02
Strong adaptability to the environment

The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.

03
Lifting control

The lifting AGV can interact with the elevator to complete the operation of automatically going up and down floors.

04
High positioning accuracy

The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm

05
High work efficiency

Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)

06
Multi-AGV linkage

Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.

07
Automation and labor saving

No manual intervention is required in the production process, and the scheduling system is fully automatic.

08
Fault self-check

With fault self-checking function, remote fault diagnosis and self-recovery function.

09
Automatic battery charging

When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
