CCM Latent Traction AGV

L5 Mini Forklift AGV Material Handling

Navigation
Navigation

Magnetic tape

Vehicle Dimensions
Vehicle Dimensions

L1400*W420*H290(mm)

Moving direction
Moving direction

Move forward, turn left/right, move into a branch.

Load Capacity
Load Capacity

500KG/1000KG

Rated Speed
Rated Speed

0~45m/min


Turning Radius
Turning Radius

650mm


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Mode
Driving Mode

Differential drive


Charging mode
Charging mode

Side/ground charging

Battery
Battery

Lithium battery

Communication
Communication

RF/WiFi/5G

Safety warning
Safety warning

Light + Audio

Safety sensing range
Safety sensing range

≤3m(adjustable)

Safety protection
Safety protection

Front obstacle detecting sensor+mechanical anti-collision bumper

L15 Mini Stacking Forklift AGV

Navigation
Navigation

Magnetic Tape

Vehicle Dimensions
Vehicle Dimensions

L1900*W420*H328(mm)


Load Capacity
Load Capacity

600KG/1200KG/1500KG


Rated Speed
Rated Speed

0~45m/min


Turning Radius
Turning Radius

1200mm


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Mode
Driving Mode

Differential drive

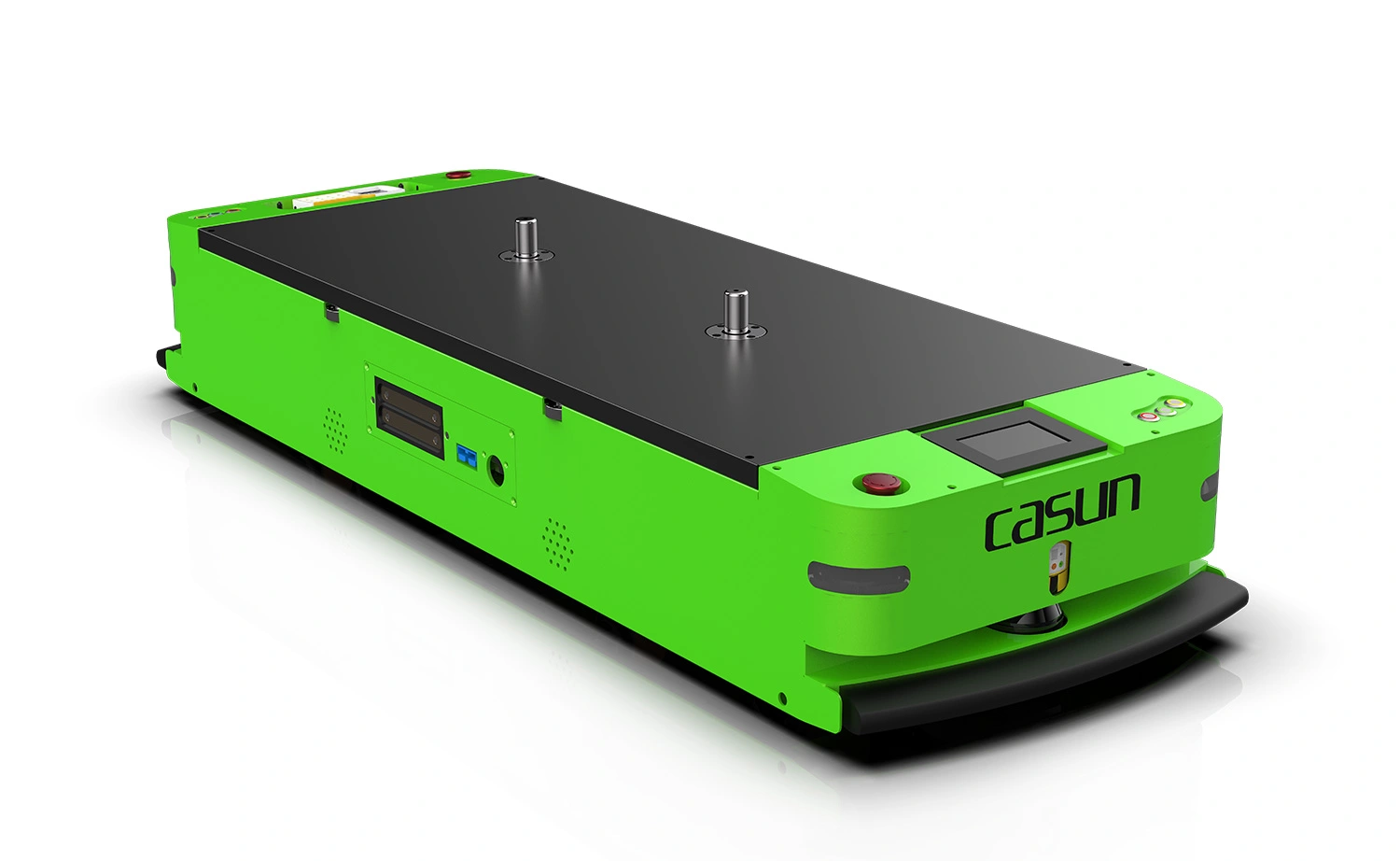

C1-31 Omni-directional Latent Towing AGV

Navigation
Navigation

Magnetic tape


Vehicle Dimensions
Vehicle Dimensions

L1900*W420*H290(mm)


Load Capacity
Load Capacity

300KG/600KG


Rated Speed
Rated Speed

0~35m/min


Turning Radius
Turning Radius

800mm


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Mode
Driving Mode

Steering wheel


C1-32 Omni-directional Latent Towing AGV

Navigation
Navigation

Magnetic tape


Vehicle Dimensions
Vehicle Dimensions

L2100*W680*H360(mm)


Load Capacity
Load Capacity

1000KG/1500KG


Rated Speed
Rated Speed

0~45m/min


Turning Radius
Turning Radius

1500mm


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Mode
Driving Mode

Steering wheel

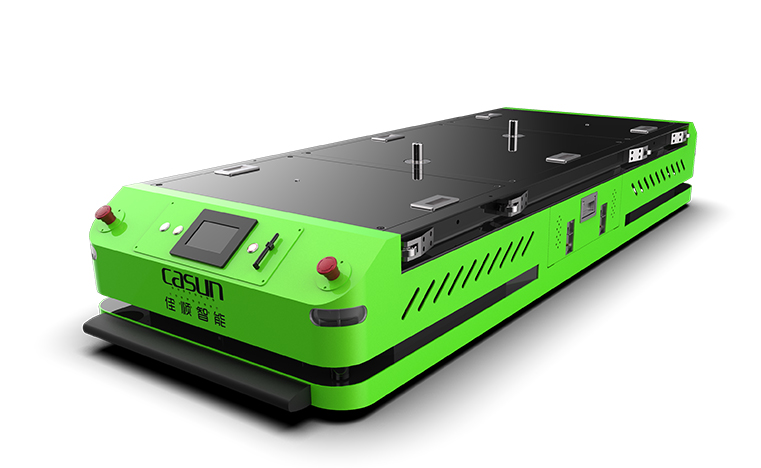

C1-33 Omni-directional Latent Towing AGV

Navigation
Navigation

Magnetic tape


Vehicle Dimensions
Vehicle Dimensions

L2260*W800*H340(mm)


Load Capacity
Load Capacity

2000 / 2500KG


Rated Speed
Rated Speed

0~35m/min


Turning Radius
Turning Radius

1500mm


Guidance Accuracy
Guidance Accuracy

±10mm


Stopping Accuracy
Stopping Accuracy

±10mm


Driving Mode
Driving Mode

Steering wheel
