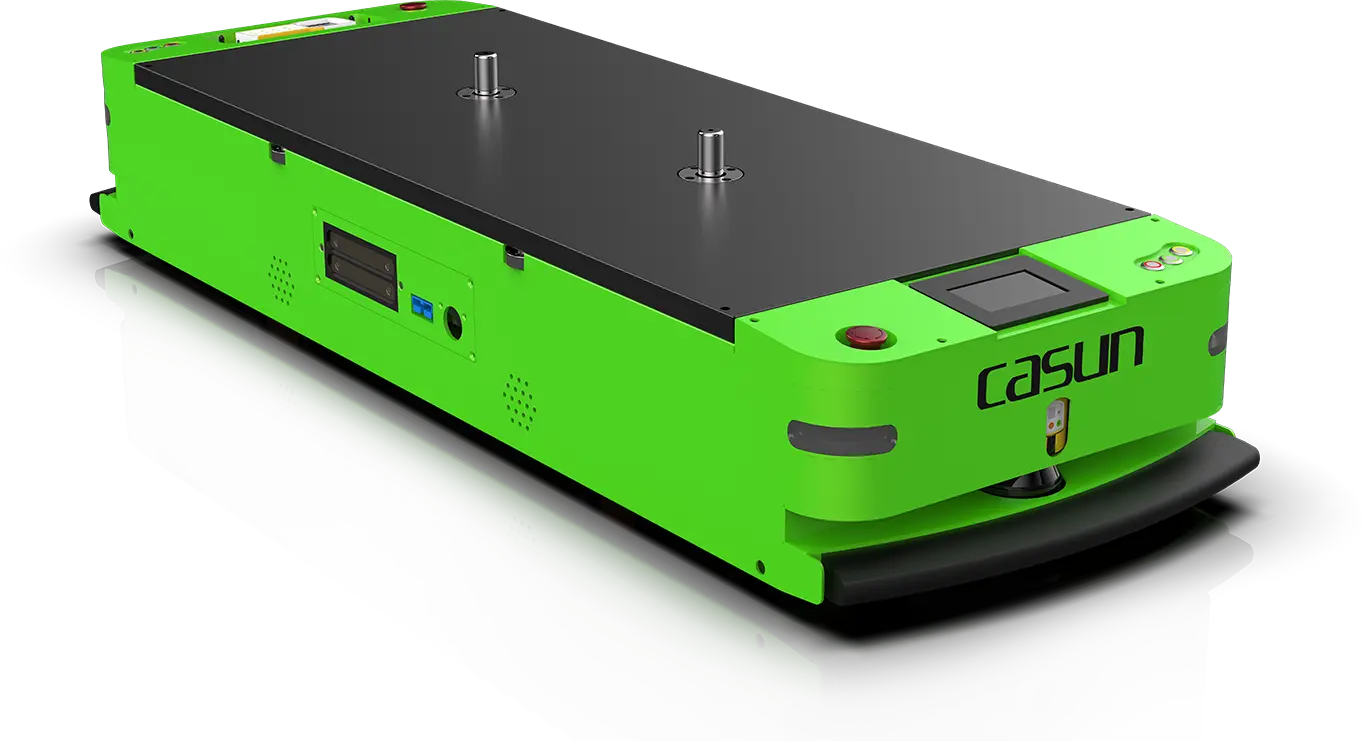

C1-31 Omni-directional Latent Towing AGV

With magnetic navigation, model C1-31 AGV vehicle types are bidirectional Latent Towing AGVs, mainly applied to manufacturing workshop where are with fixed production procedures.

Omnidirectional AGVs can automatically move to connect material vehicles and achieve end-to-end material transfer. With compact design, C1-31 can move omnidirectionally or rotate or move sideway in limited space.

C1-31 Omni-directional Latent Towing AGV

Parameters of C1-31 Omnidirectional Latent Traction AGV

NavigationMagnetic tapeDriving modeSteering wheel
Vehicle dimensionsL1900*W420*H290(mm)Charging modeSide/ground charging
Moving directionMove forward/backward, move into a branch, rotate, move sidewaysBatteryLithium battery
Load capacity300KG/600KGCommunicationRF/WiFi/5G
Rated speed0~35m/minSafety warningLight + Audio
Turning radius800mmSafety sensing range≤3m(adjustable)
Guidance accuracy±10mmSafety protectionFront obstacle detecting sensor+mechanical anti-collision bumper
Stopping accuracy±10mm

Core Advantages of C1-31 Omnidirectional Latent Traction AGV

Core Advantages of C1-31 Omnidirectional Latent Traction AGV

Moving flexibly

Support rotating and sideway moving, forward/backward moving directions can be switched, more flexible and efficient operation.

Stable operation

Mature rail navigation technology, acurate positioning and reliable working.

Multiple security protection

Equipped laser obstacle sensor / mechanical anti-collision bumper / acousto-optic alarm to ensure safe working environment.

Intelligent dispatching

CASUN's self-developed Central Management Systems integrate high-frequency wireless communication technology, high-speed database analysis and processing technology, AGV digital control technology, combining on-site requirements to achieve intelligent scheduling of multiple AGVs.

Automatic battery charging

AGVs will move to charge station and do charging job automatically when they are detected to be in low power status, response time can be 24 hours per day so as to increase productivity.
