C3-05 Unit Load Carrier AGV

C3-05, is mainly used for photovoltaic industry cell production workshop, BIN box automatic loading and unloading.


The navigation mode is SLAM+ visual navigation, the loading capacity is 300kg, and the maximum speed is 1.2m/s.After receiving the system instruction, the AGV automatically interconnects and transports the BIN box.

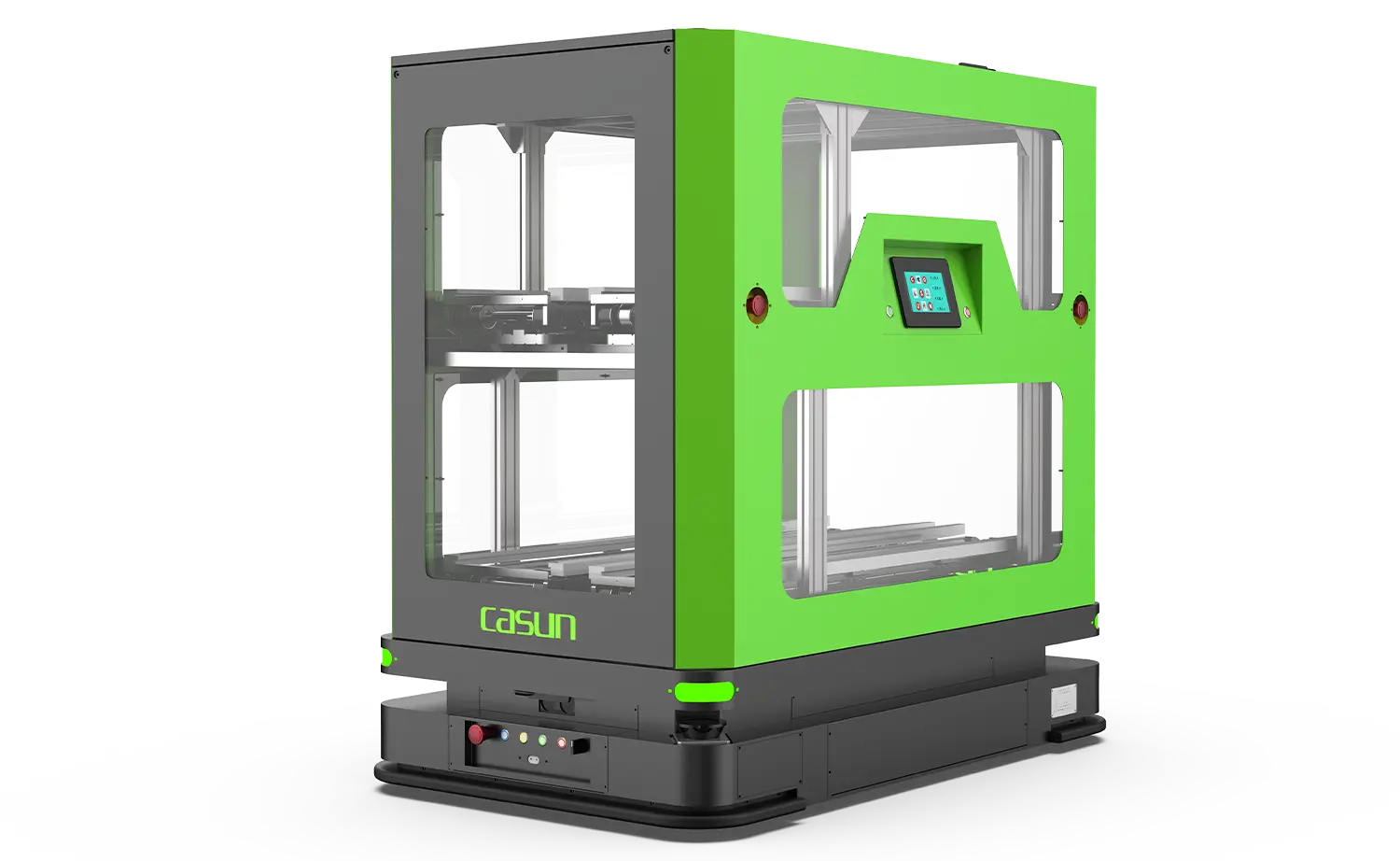

c3 05 8

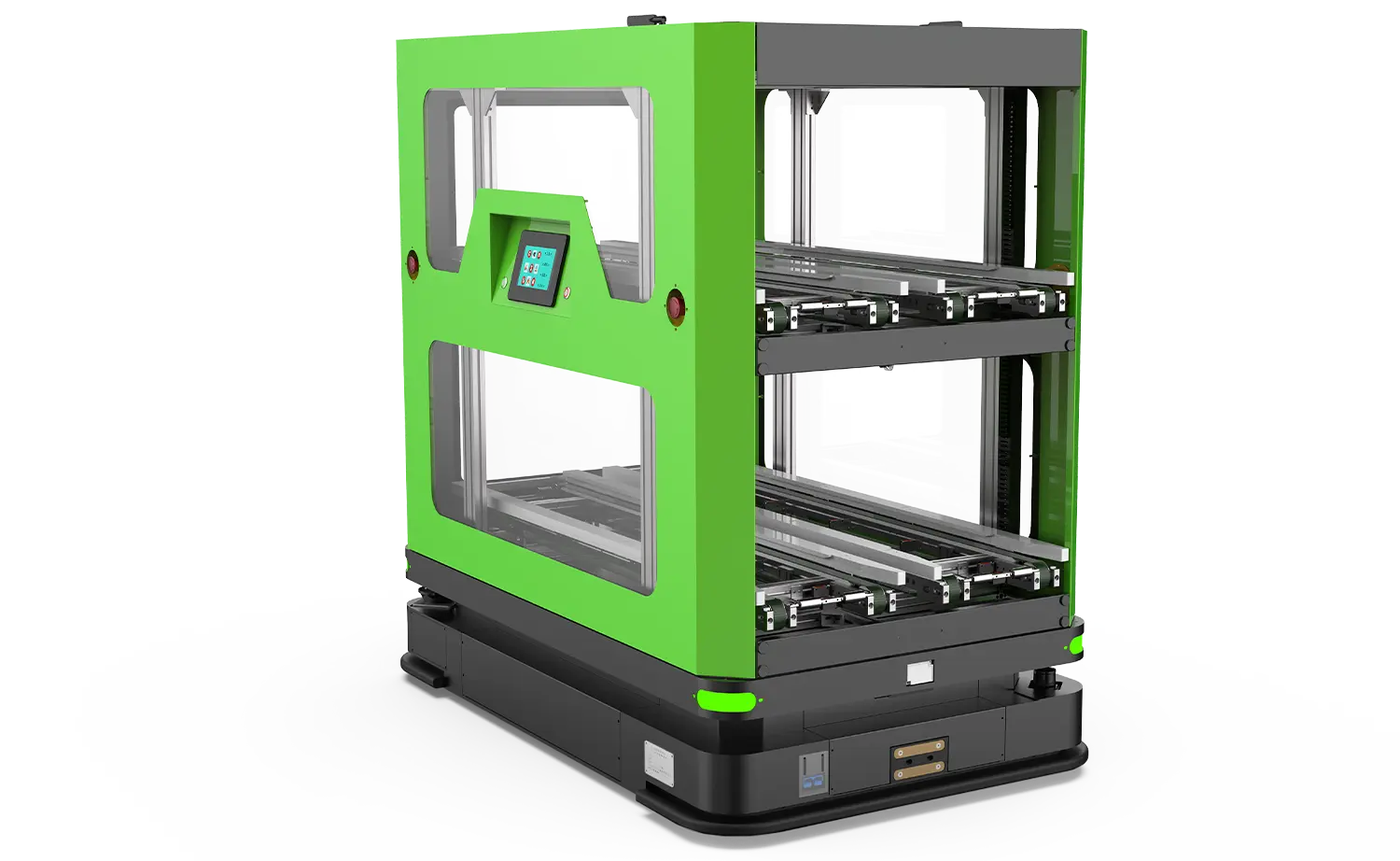

c3 05 9

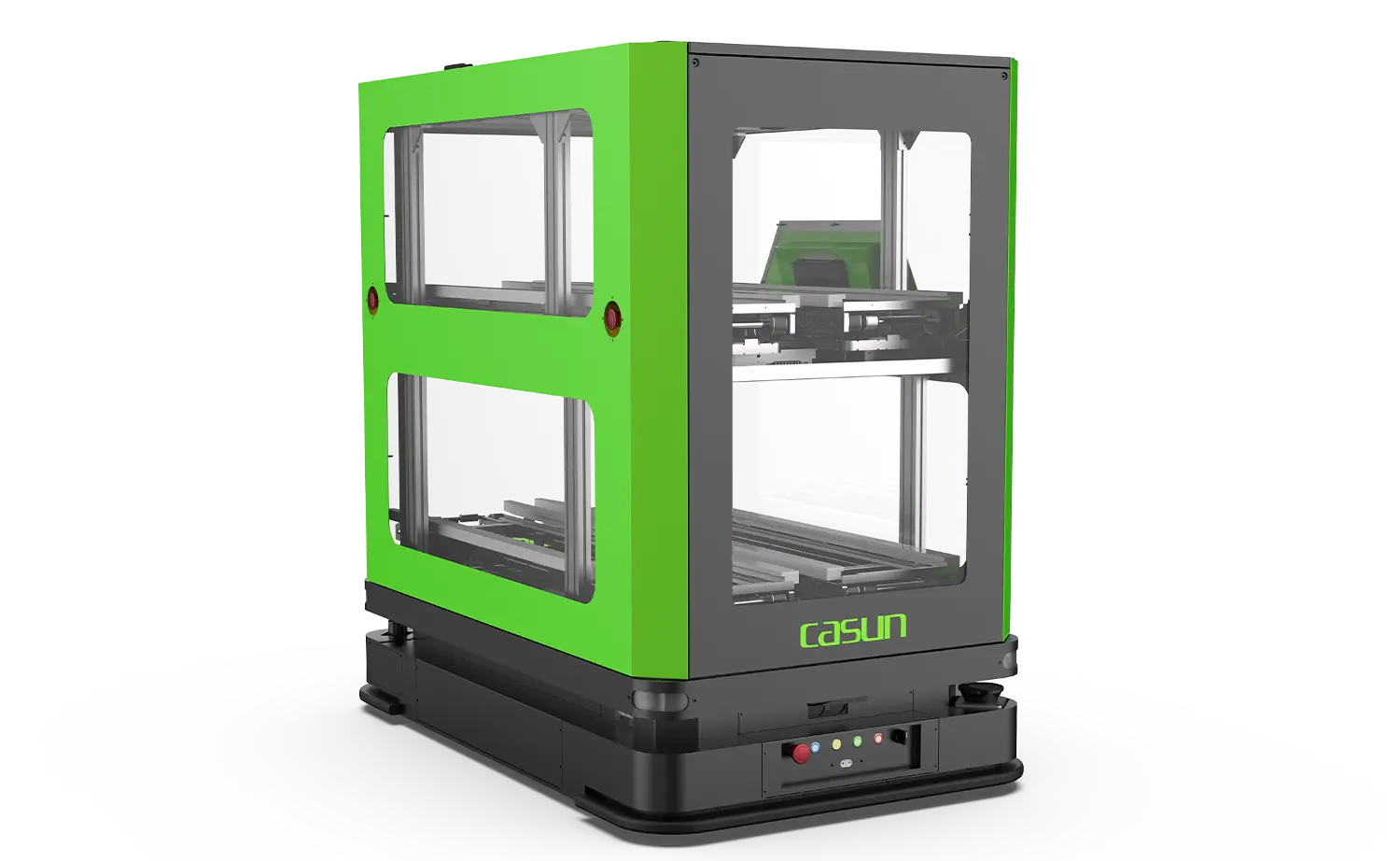

c3 05 2
c3 05 1

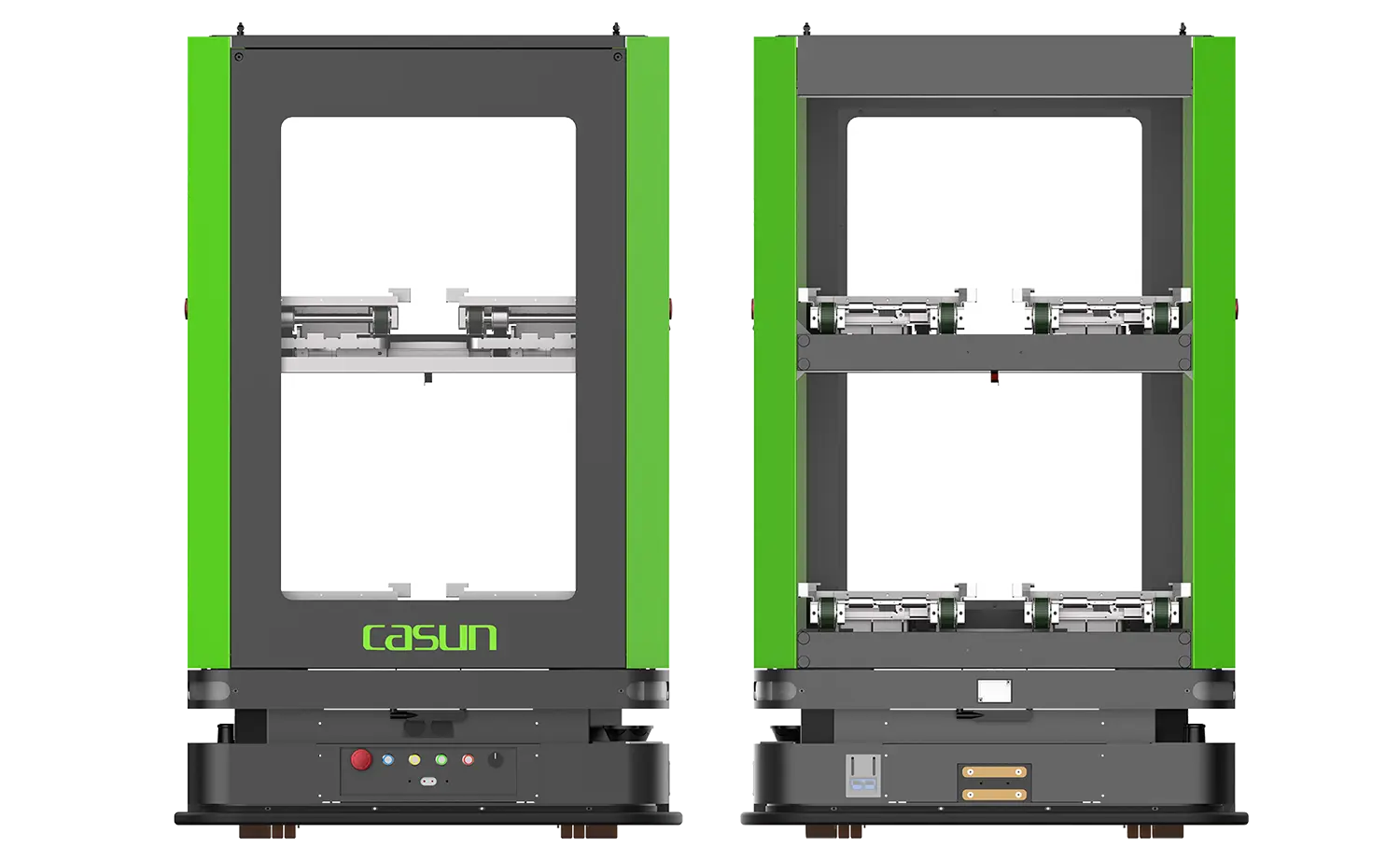

c3 05 6

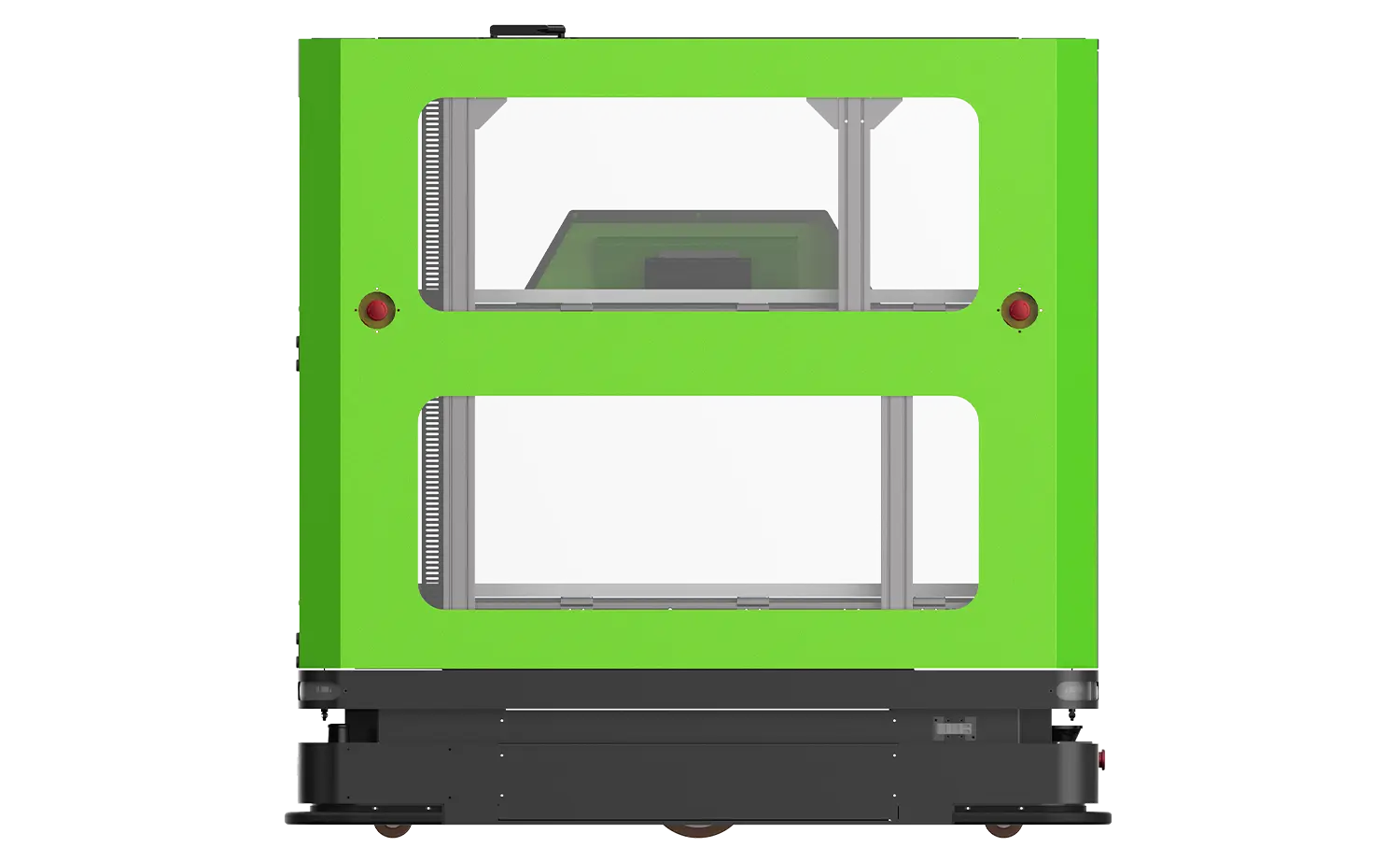

c3 05 5

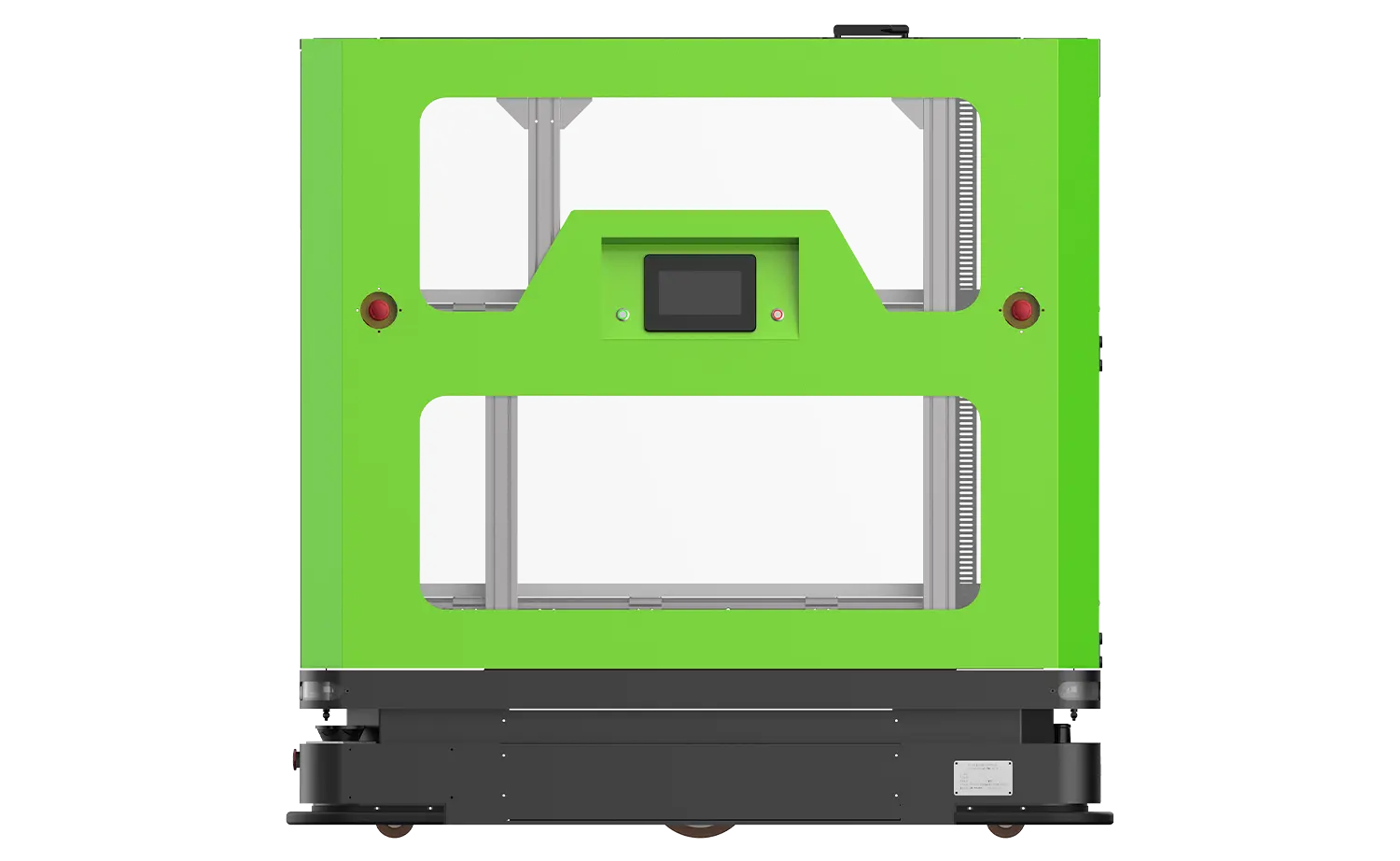

c3 05 4

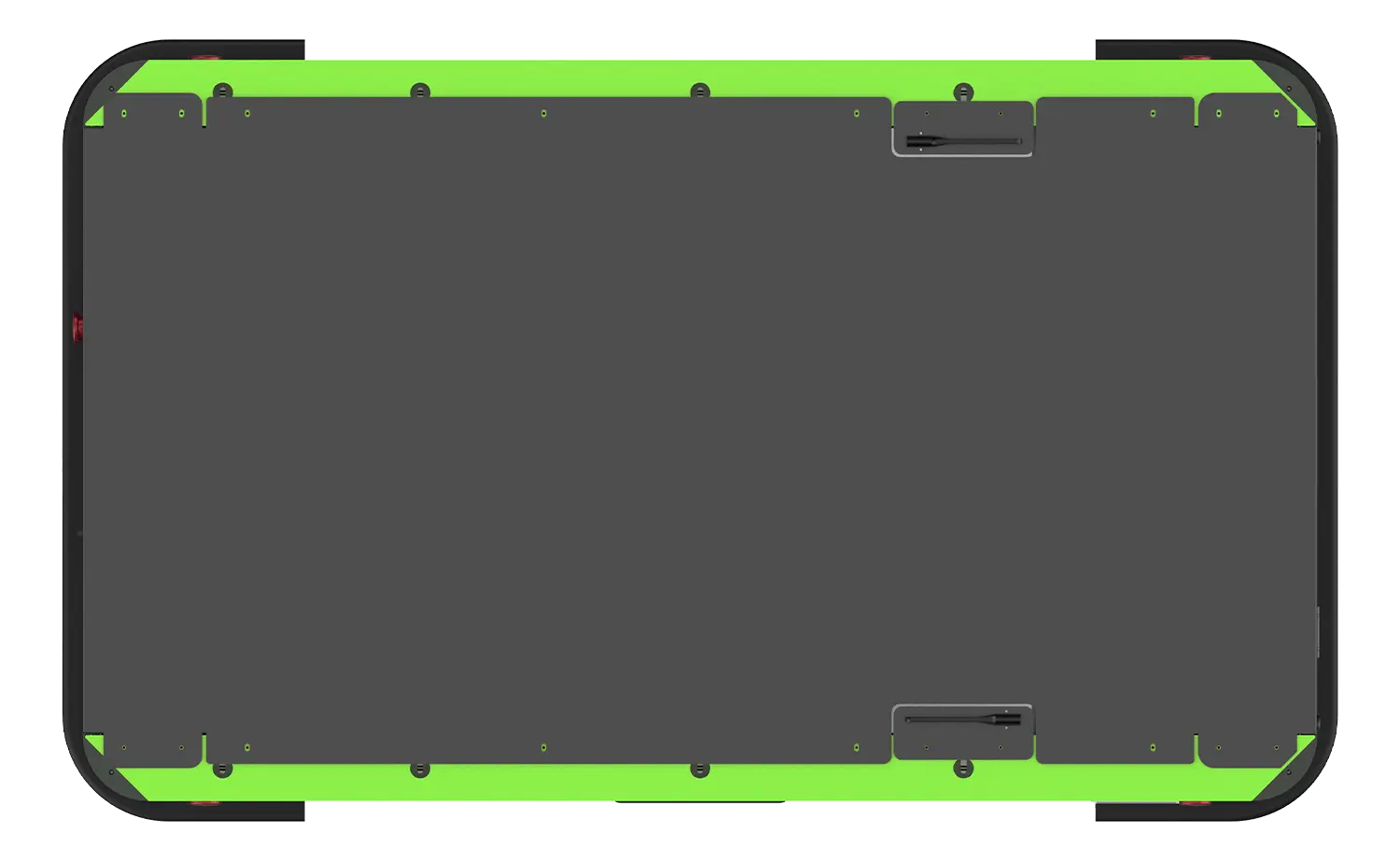

c3 05 7

Parameters of  C3-04 Load And Transferring Mobile Robot

ParameterDimensionL1550*W950*H1500 (mm)
Max load capacity 300kg
Vehicle weight300kg
Rotation Diameter1725mm
Docking heightthe lower layer is 450mm; the upper layer is 1000mm
Support material quantitySingle 5, maximum 10 full 10 empty
Docking directionBackward direction
Material transfer modeSynchronous belt
Navigation   performanceNavigate mode SLAM Navigation
navigation accuracy±10mm
Stop accuracy±5mm
Stop Angle accuracy±1°
Movenent   performanceTraveling directionForward, backward, rotating
Drive modeTwo-wheel differential drive
Acceleration0.3m/s²
Max travelling speed1.2m/s
Maximum climbing capacity (no load/full   load≤3°
Battery   performanceBattery modeLithium battery
Charging modeCollision charging
Charging timeCharge time after full discharge: side charge ≤1H
Rated endurance8H
Network performanceCommunciation modeWiFi / 5G
Protective   performanceSafety warningLight warning      ●Voice broadcast
Safe sensing range≤3m Adjustable
Safety protection

● Front and rear diagonal obstacle detection sensors

● Mechanical anti-collision mechanism

● emergency stop switch

Application   environmentOperating ambient temperature-10℃  ~ 45℃
Operating environmentNo dust, inflammable, explosive and corrosive gases

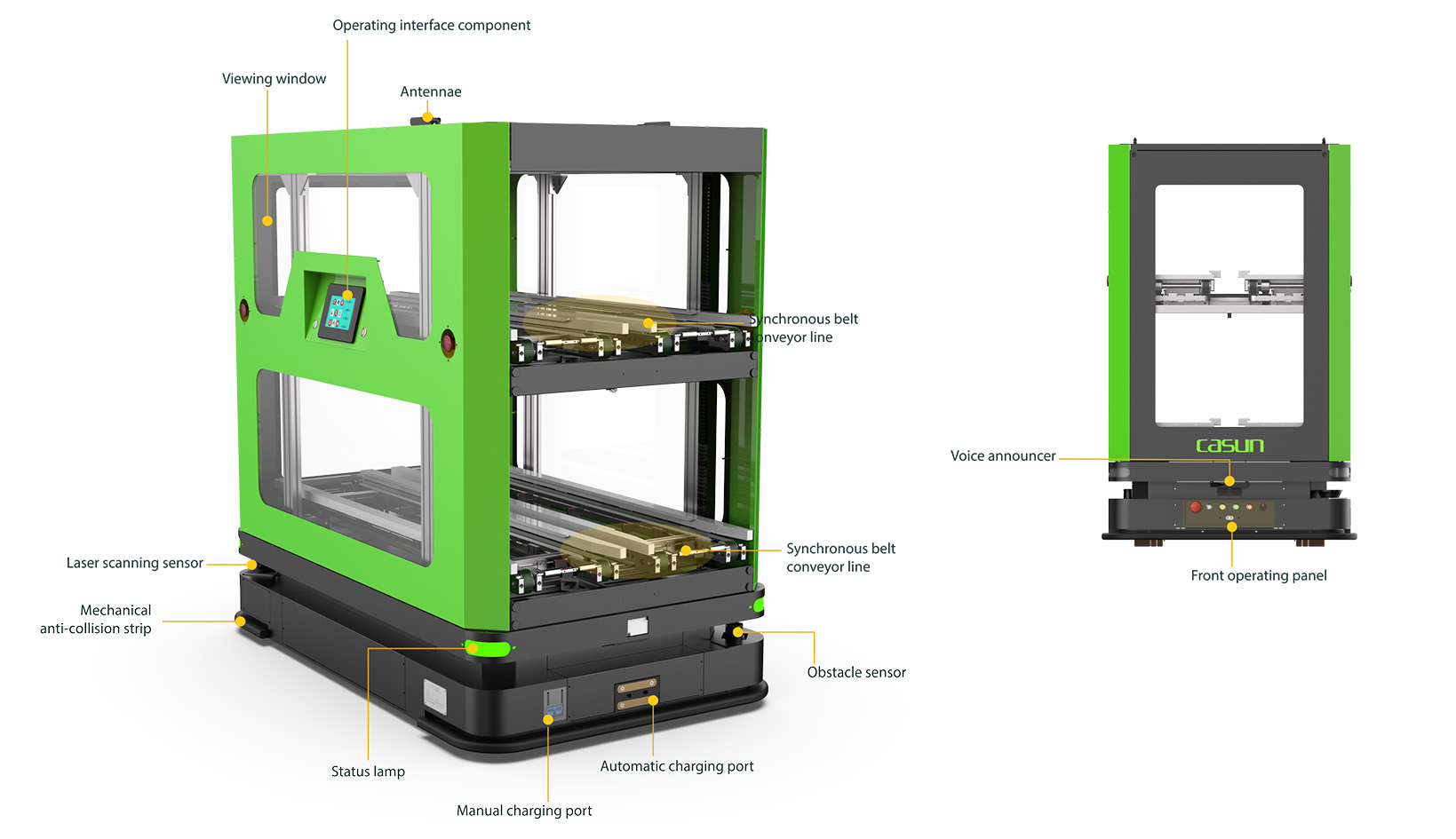

Core Advantages of C3-05 Load And Transferring Mobile Robot

Core Advantages of C3-05 Load And Transferring Mobile Robot

01
Double-layer Drum Design

The body is flexible and the turning radius is small;It adopts double-layer drum design, which matches with the double-layer drum line of the injection molding machine, and automatically completes the exchange of empty and full;

02
Replace Artificial, Intelligent and Efficient

Equipped with an intelligent navigation system, AGV transfers between different production lines, greatly improving the operation efficiency of the workshop.

03
Intelligent Control, Universal Scheduling

The intelligent management system which is independently developed by Casun can realize the task of management, delivery and traffic control of all AGVs connected within the network; end customer can increase or decrease the number of AGVs at any time and support many types of AGVs in the same scenario.

04
Auto-charging

When the power is going to the low level, AGV will directly go to the charging station for automatic charging; and it can achieve all-weather response, and improve production efficiency.
