|Jacking Platform Dimensions
|Max jacking stroke
|QR code navigation / SLAM navigation
|±10mm / ±15mm
|±5mm / ±10mm
|Stop angle accuracy
|Forward, backward, sideways, rotating
|Two-wheel differential drive
|maximum walking speed

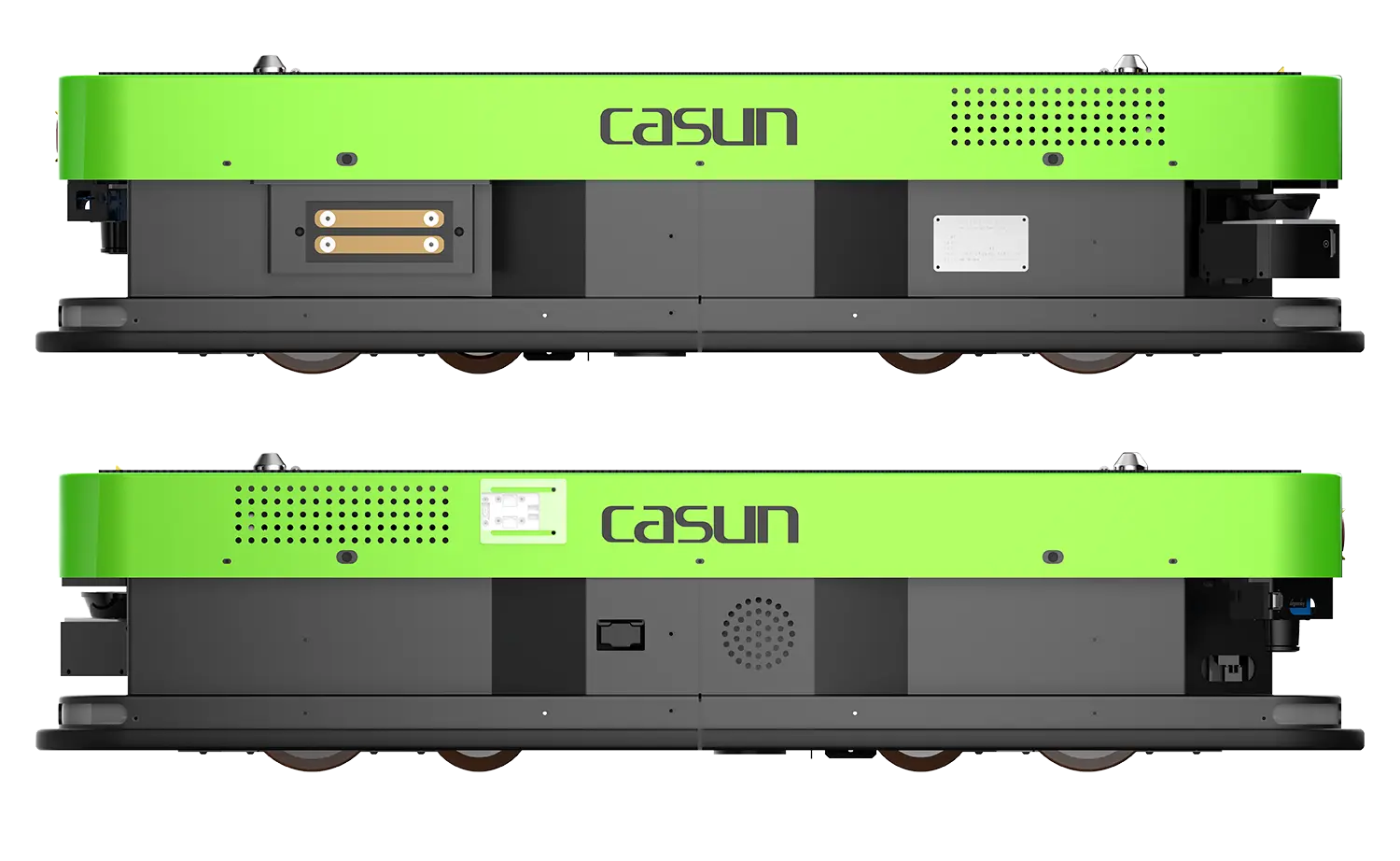

|Ground charging / Side charging
|Charge time ≤1H after complete discharge
|Rated battery life
|WiFi / 5G

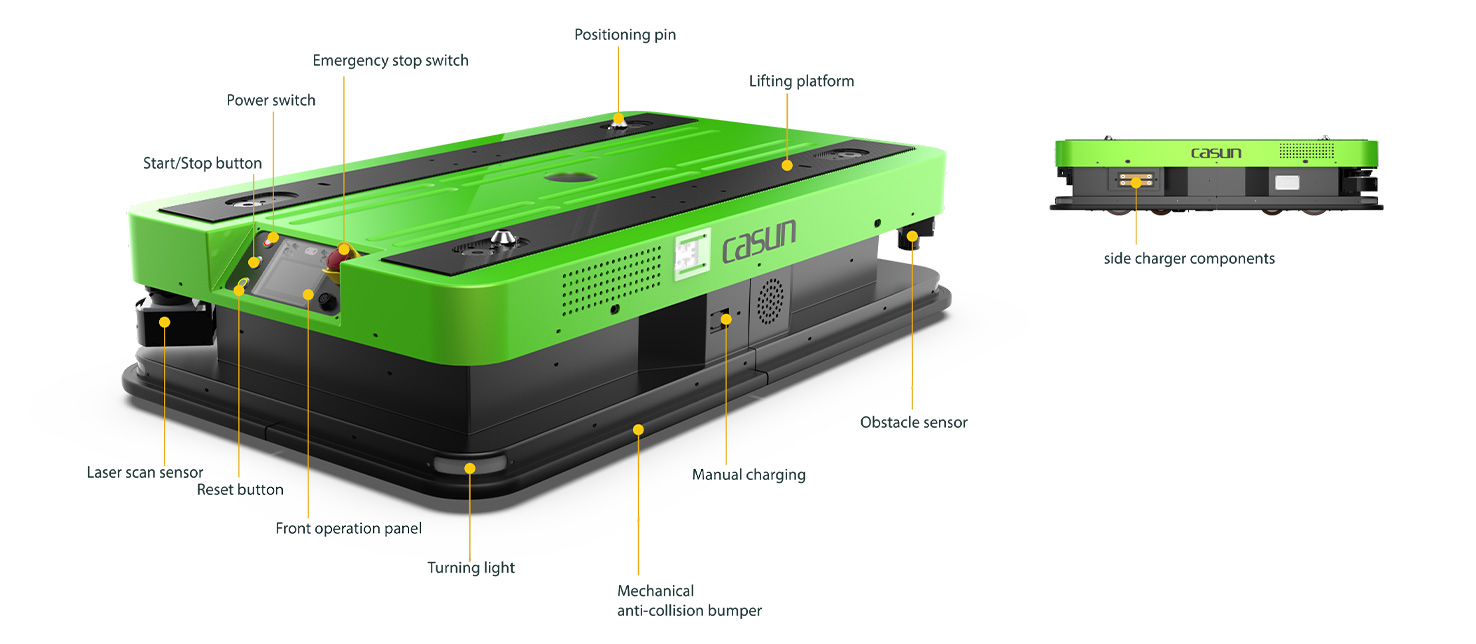

|●Light warning ●Voice broadcast
|Safe sensing range
● Front and rear diagonal obstacle detection sensors
● Mechanical anti-collision mechanism
● emergency stop switch
|Operating ambient temperature
|-10℃ ~ 45℃
|No dust, flammable, explosive and corrosive gases

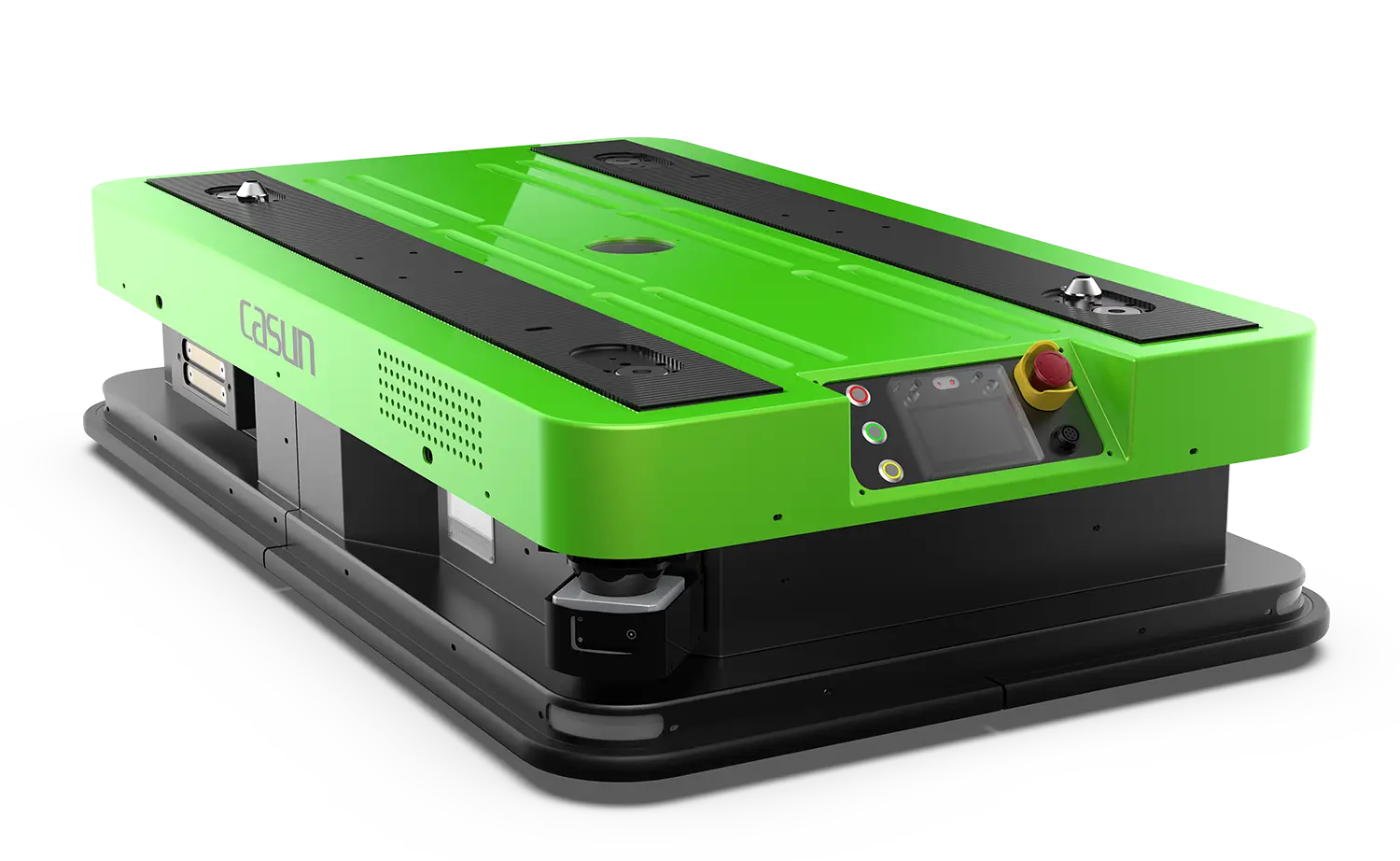

The carrying capacity can reach 1500KG, and the full-load moving speed can reach 60m/min.
The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.
The lifting AGV can interact with the elevator to complete the operation of automatically going up and down floors.
The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm
Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)

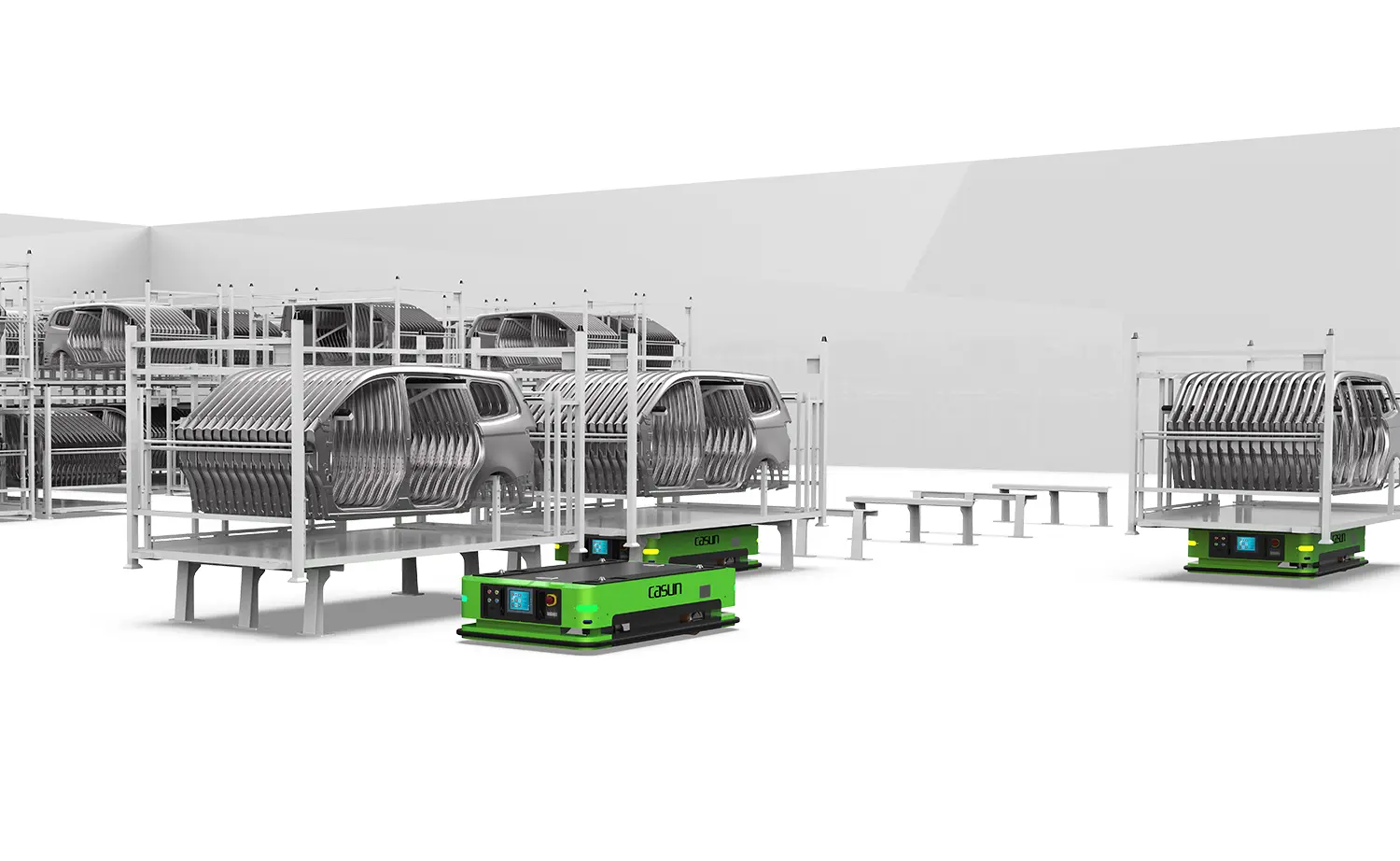

Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.
No manual intervention is required in the production process, and the scheduling system is fully automatic.
With fault self-checking function, remote fault diagnosis and self-recovery function.
When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.
Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
