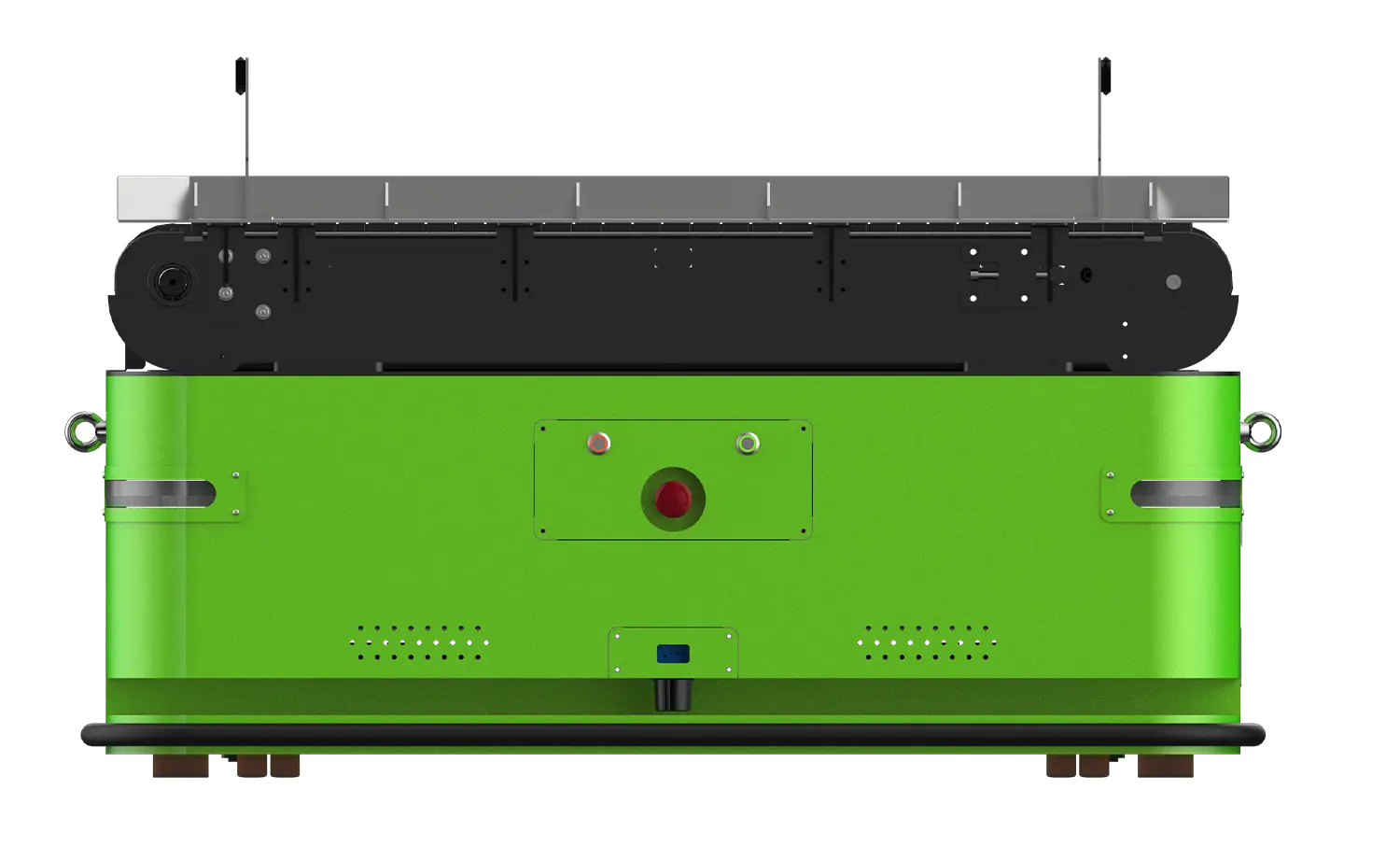

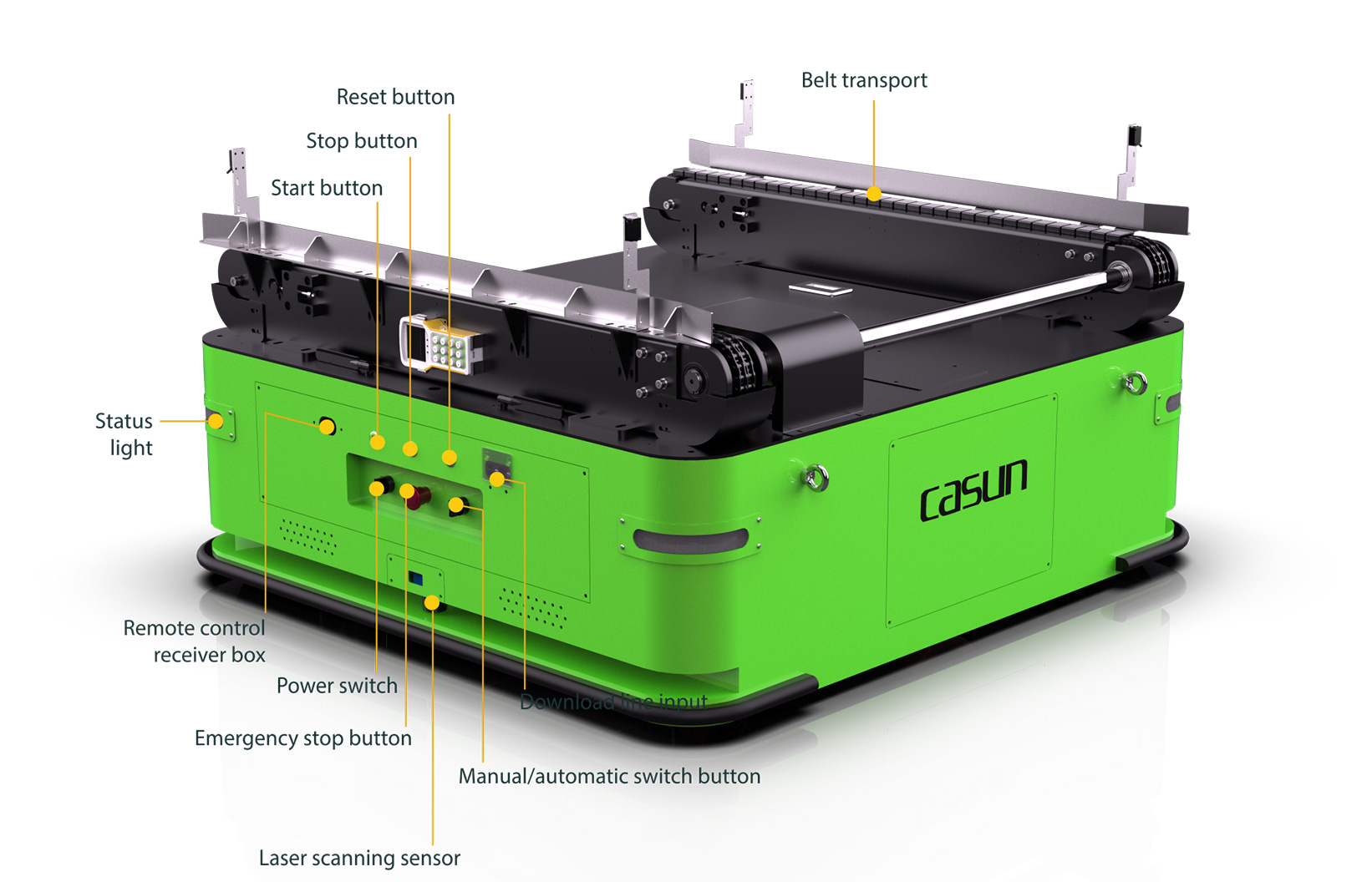

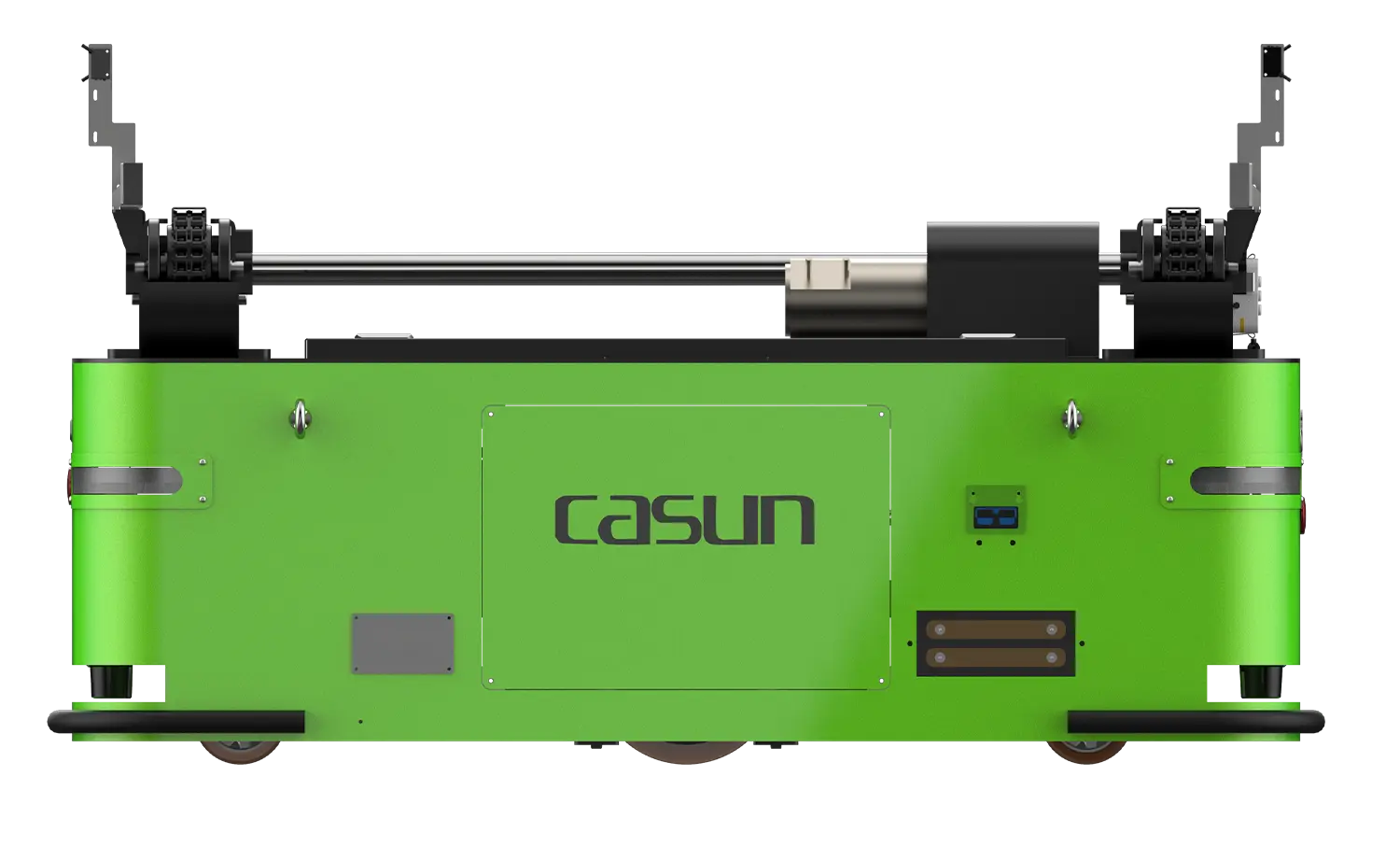

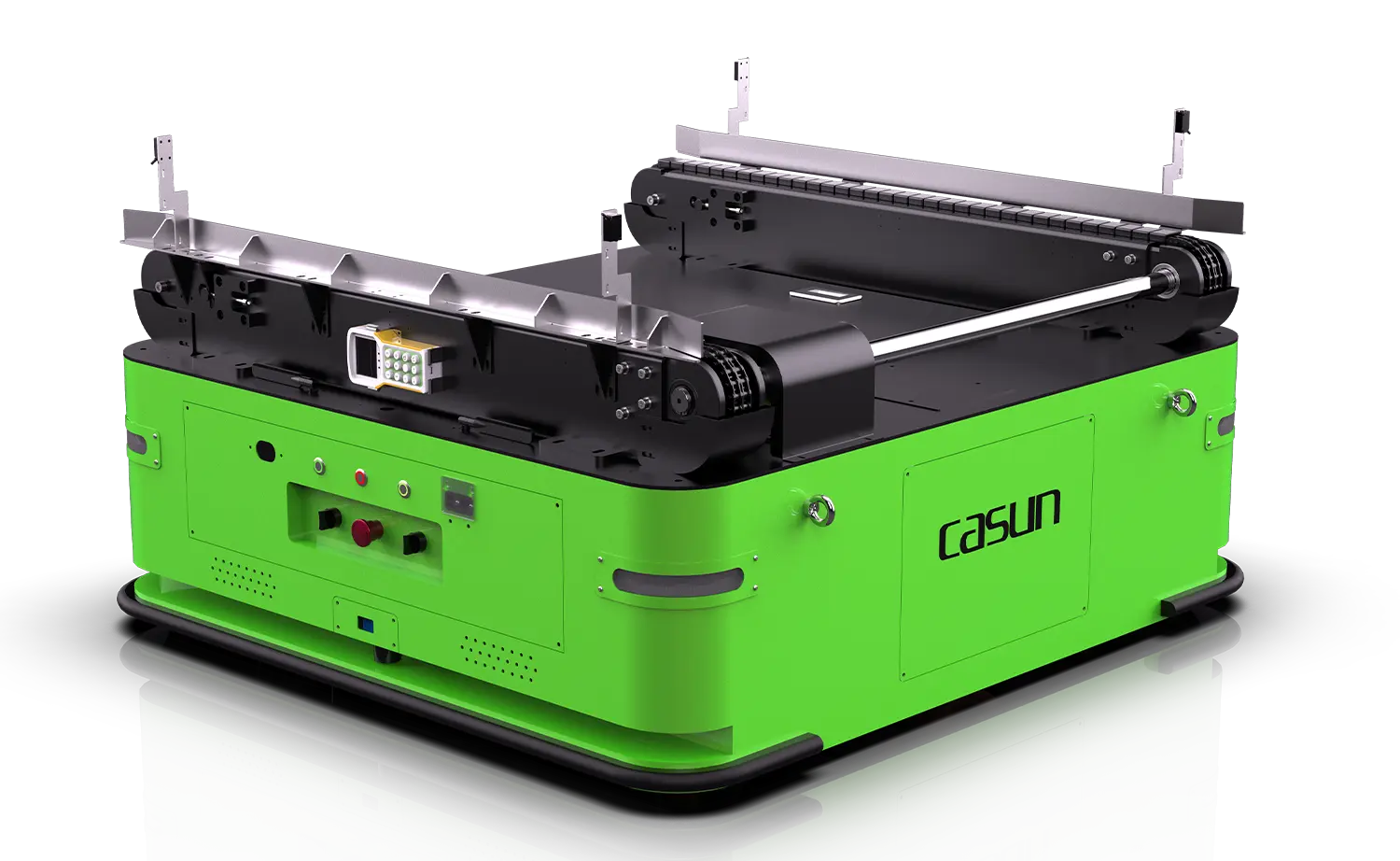

C3-16 is a back-mounted plate chain AGV that can use QR code navigation and SLAM navigation technology, with a load capacity of 1000KG. It can be widely used in automobiles and parts, lithium batteries, 3C semiconductors, home appliances and other industries.
| Basic performance | Dimension | L1374*W1274*H775 (mm) |
| Max load capacity | 1000kg | |
| Vehicle weight | 400kg | |
| Rotation Diameter | 1780mm | |
| Docking height | 600mm | |
| Support material quantity | 1200*1000(mm) | |
| Docking direction | Anterior-posterior | |
| Material transfer mode | Belt | |
| Navigation performance | Navigate mode | QR code navigation / Laser positioning navigation / SLAM navigation |
| Navigation accuracy | ±10mm / ±10mm / ±15mm | |
| Stop accuracy | ±5mm / ±10mm / ±10mm | |
| Stop Angle accuracy | ±1° | |
| Movenent performance | Traveling direction | Forward, backward, rotating |
| Drive mode | Two-wheel differential drive | |
| Acceleration | 0.35m/s² | |
| Max travelling speed | 1.2m/s | |
| Maximum climbing capacity | ≤3° | |
| Battery performance | Battery mode | Lithium battery |
| Charging mode | Side charging | |
| Charging time | Charge time after full discharge≤1H | |
| Rated endurance | 8H | |
| Network performance | Communciation mode | WiFi / 5G |
| Protective performance | Safety warning | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m Adjustable | |
| Safety protection | ● Front and rear obstacle detection sensor ● Mechanical anti-collision mechanism ● Emergency stop switch | |
| Application environment | Operating ambient temperature | -10℃ ~ 45℃ |
| Operating environment | No dust, inflammable, explosive and corrosive gases |
QR code navigation, laser navigation, SLAM navigation are optional;
Accurate positioning and high operating efficiency;
Space saving and small requirements for operating channels.
