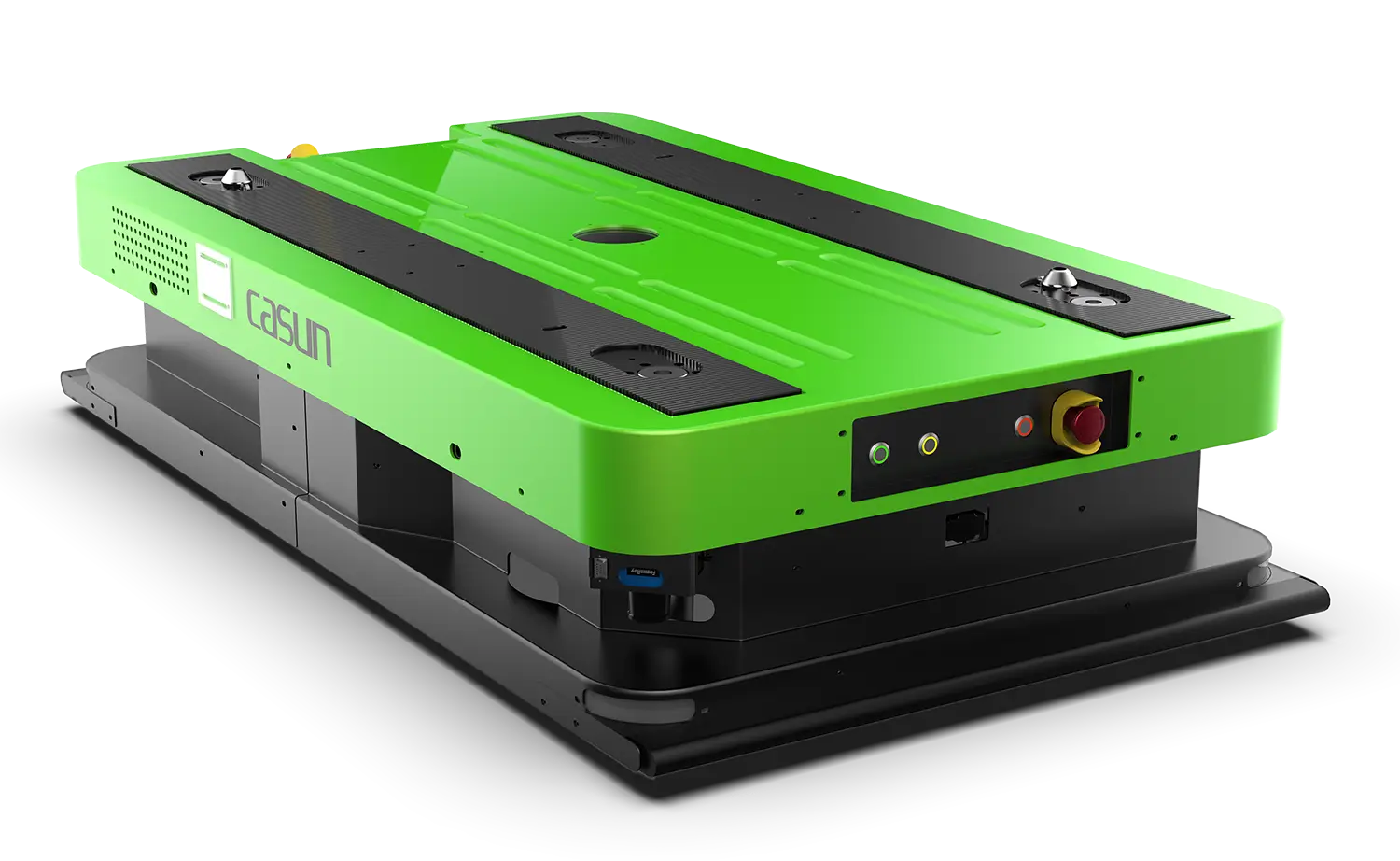

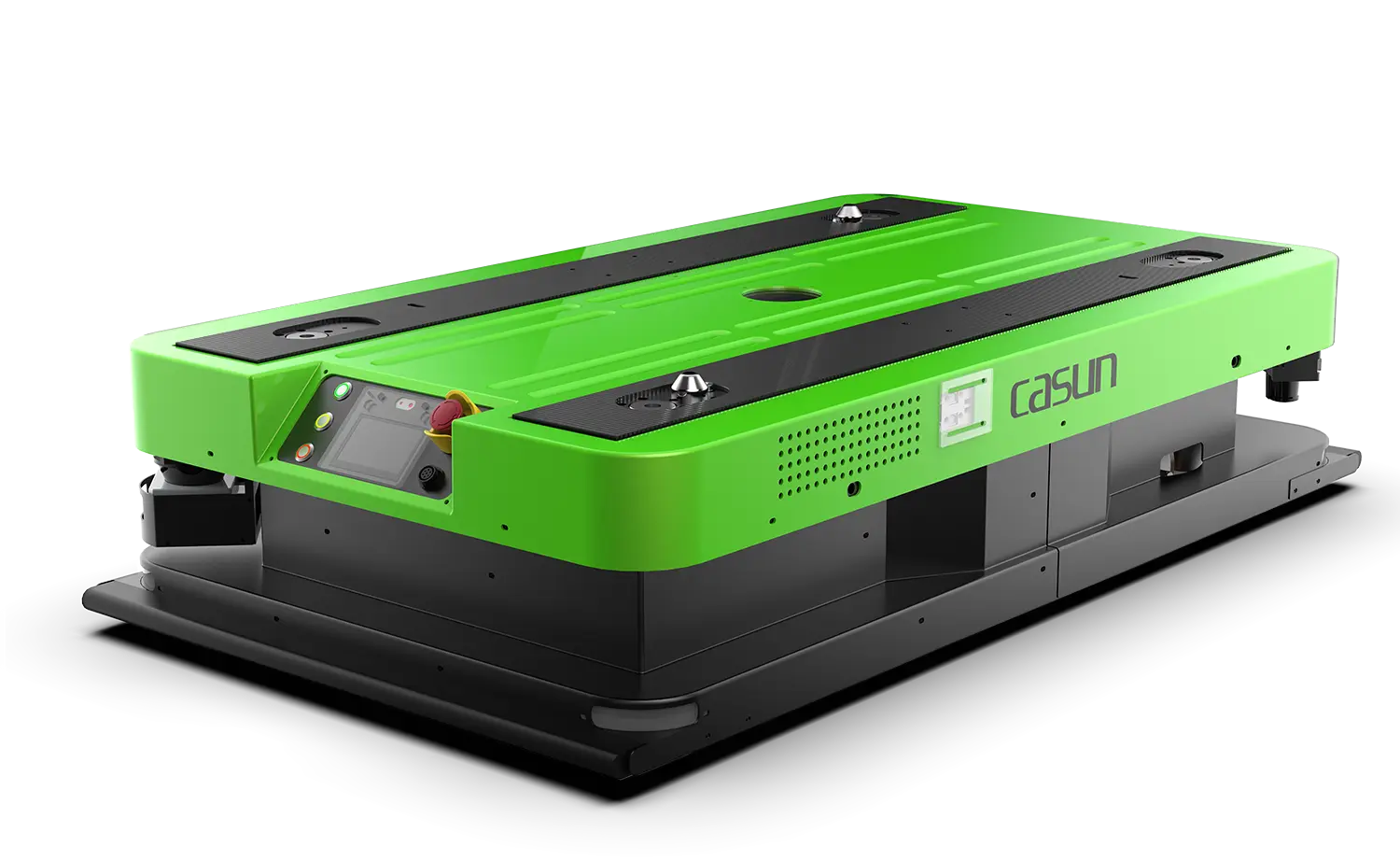

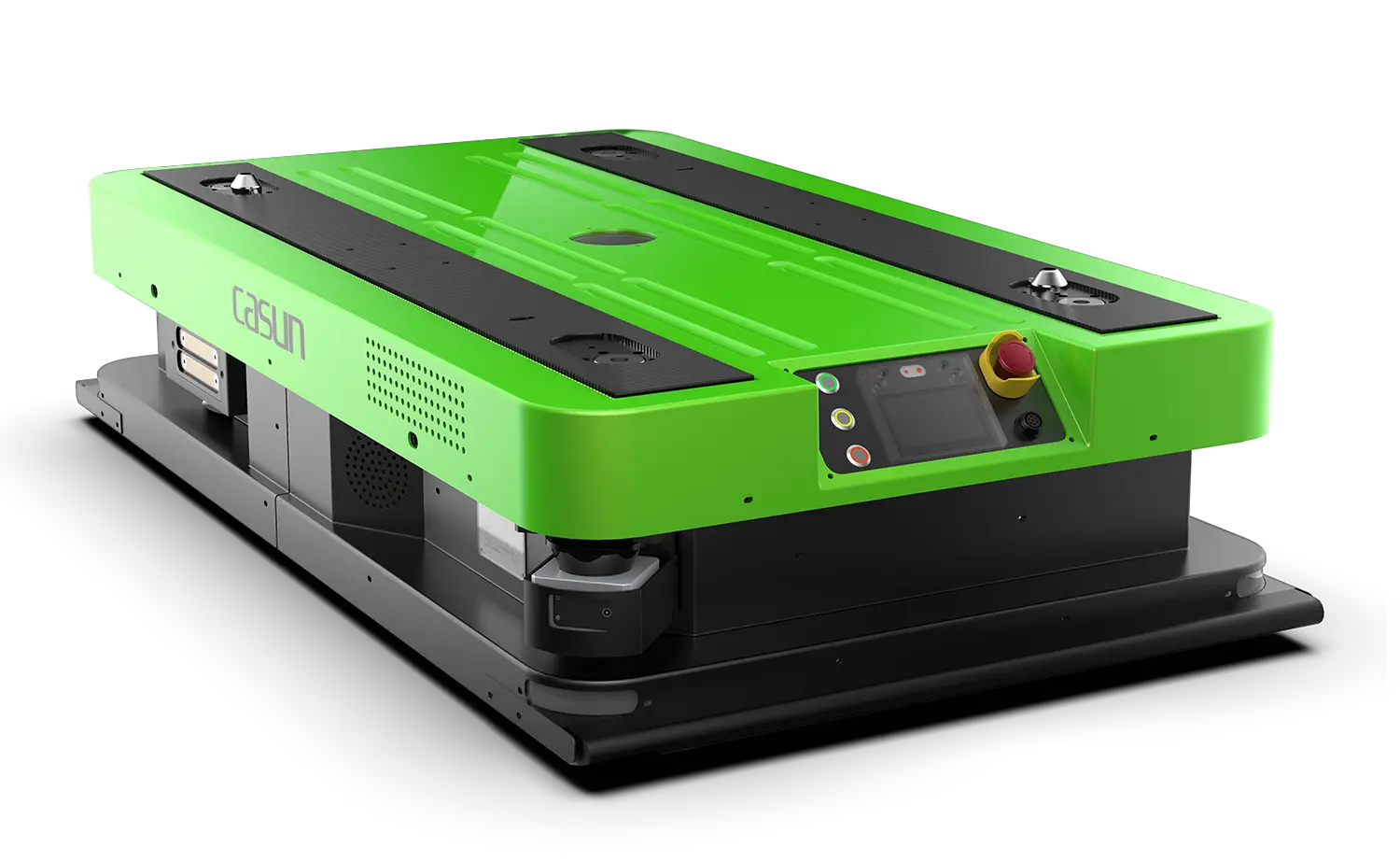

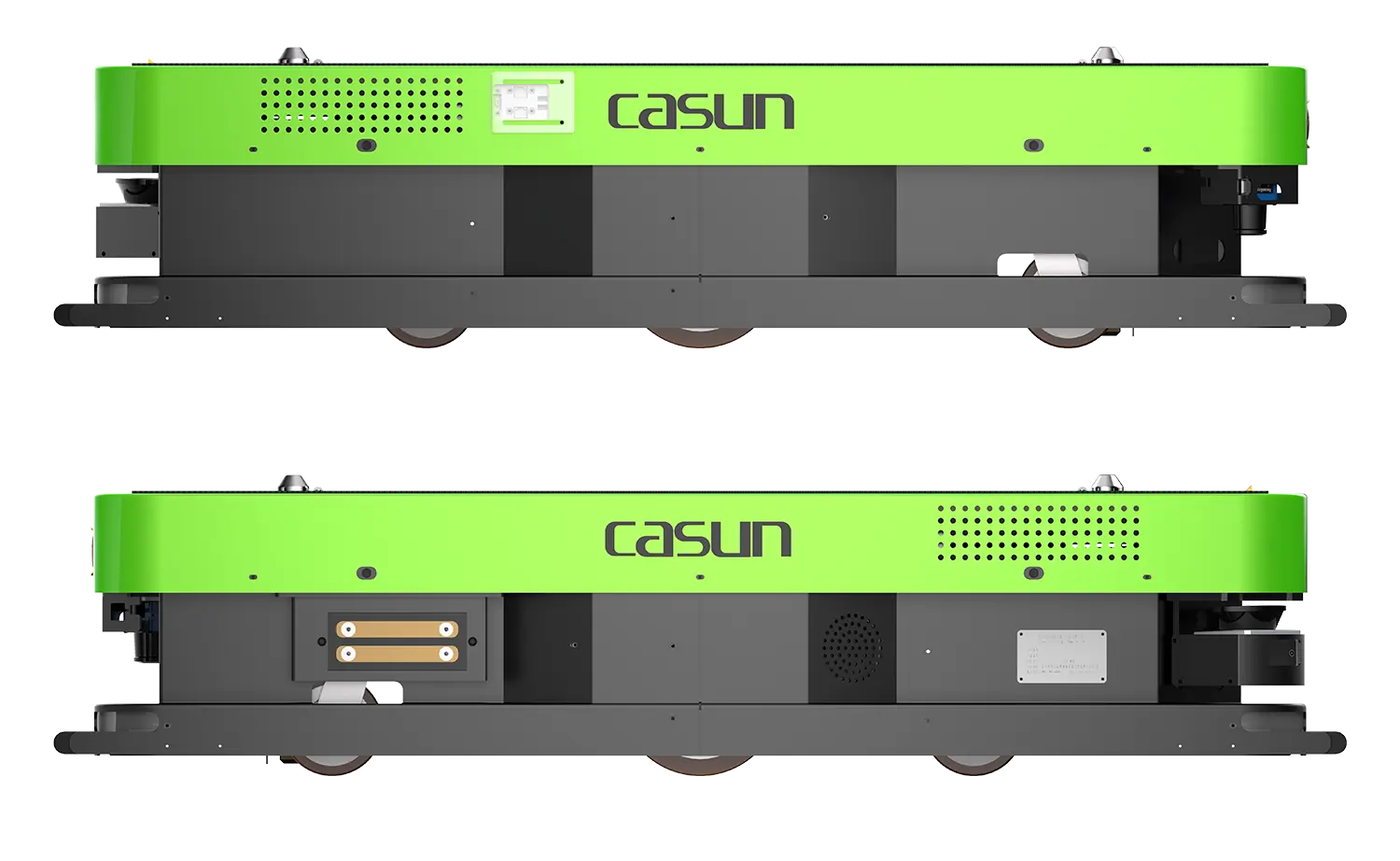

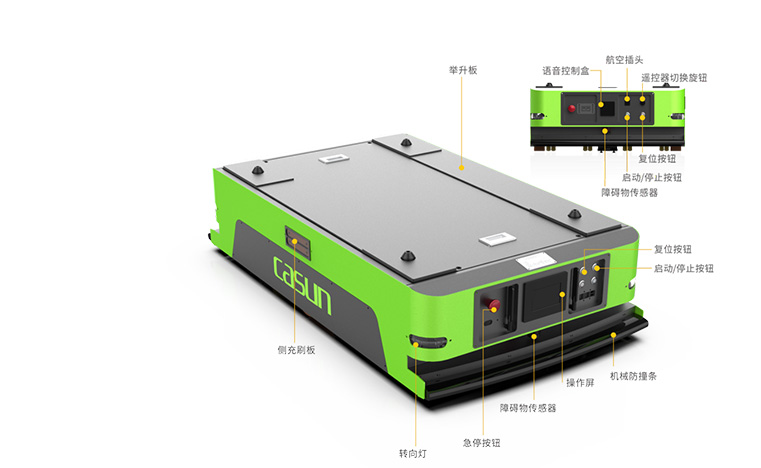

C2-26C Latent Lifting AGV

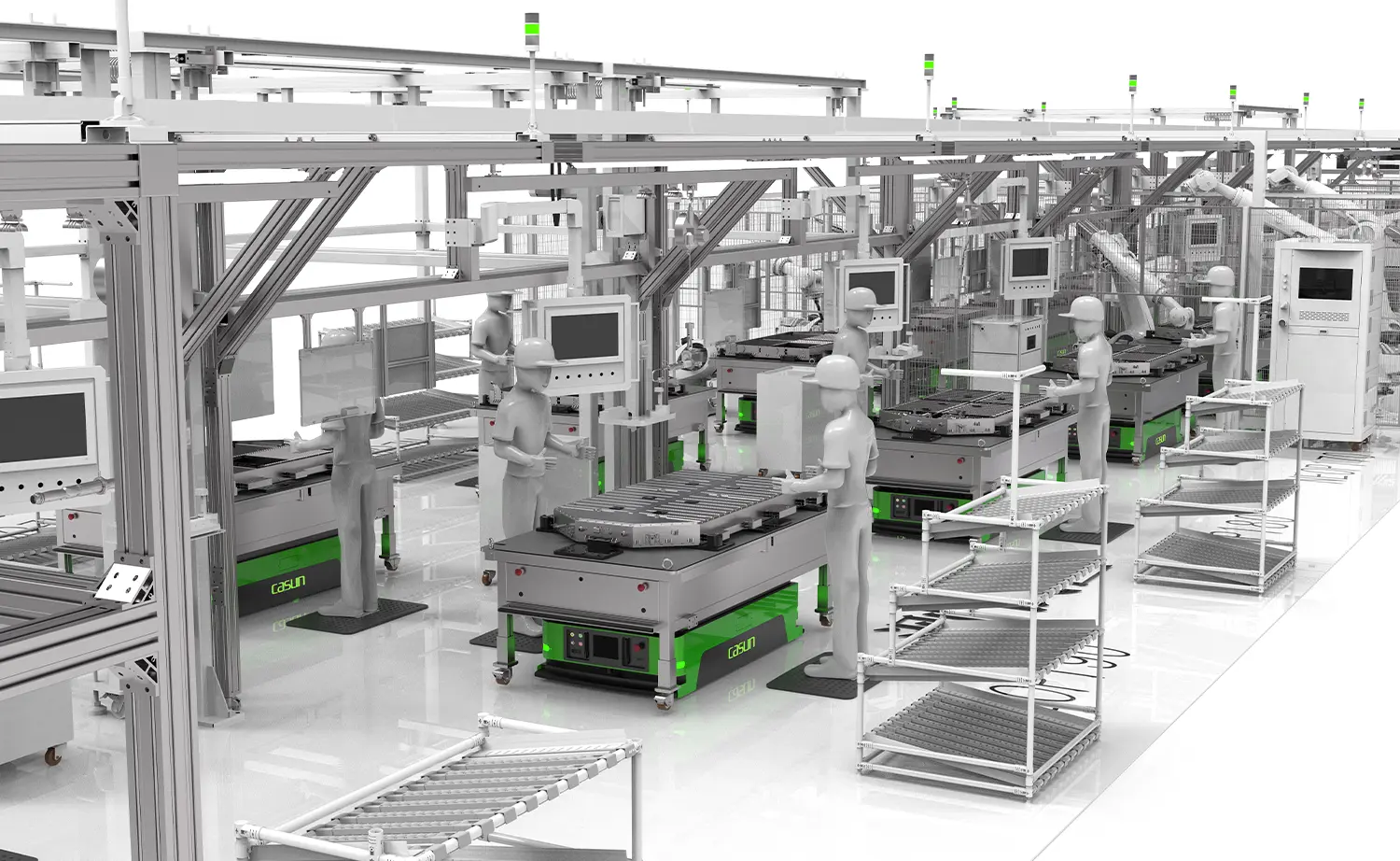

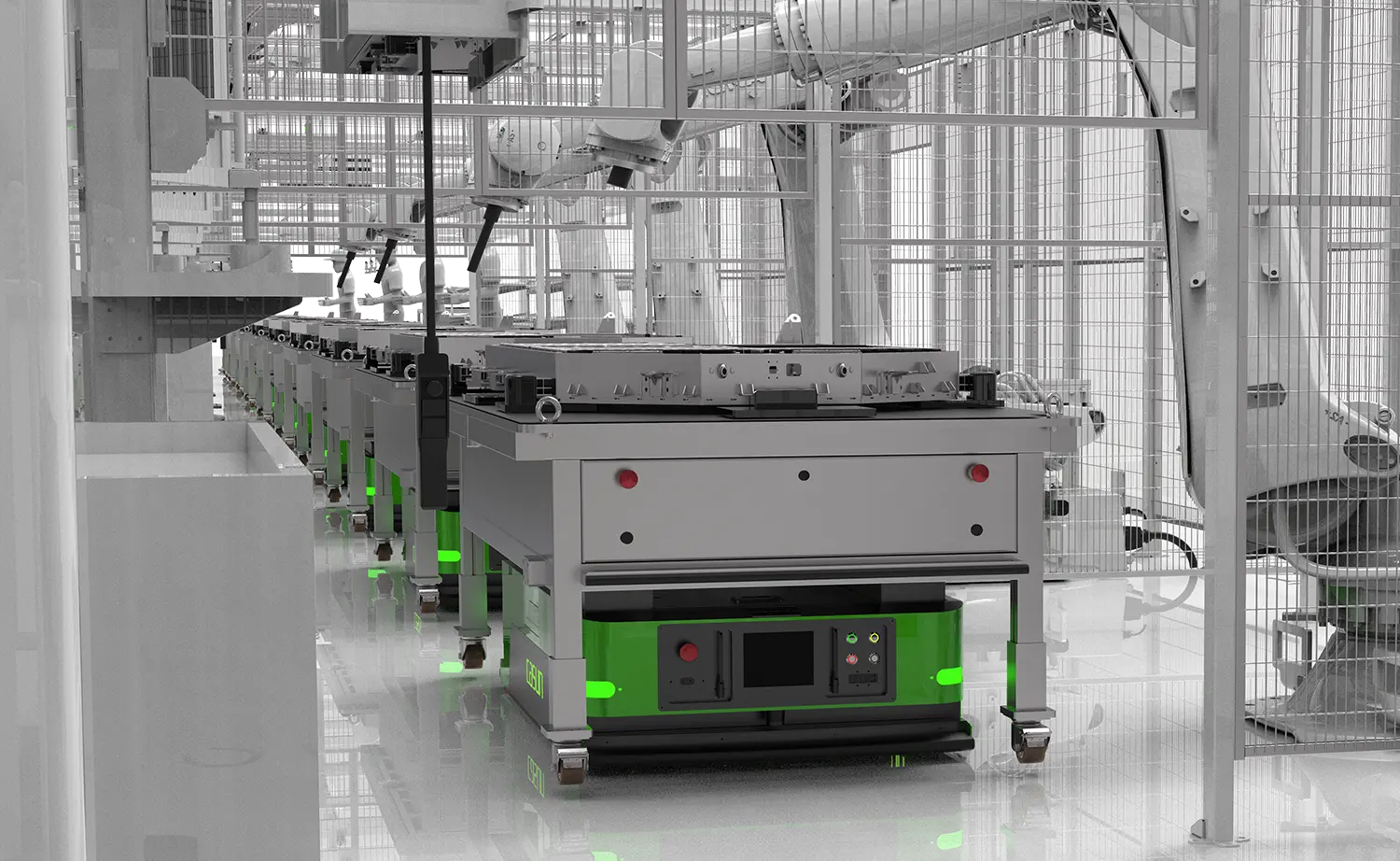

C2-26C is a bidirectional latent lifting AGV which is applicable for factories with fixed production flow.Working mode: After receiving system instructions, AGVs will automatically move to the bottom side of trolleys, and dock with trolleys by lifting platform, so as to achieve end-to-end material transfer.Multi AGVs can also compose a flow production line for flexible production.This type AGVs are widely used in the pack line of new energy lithium battery area.

c2 26c 7
c2 26c 6
c2 26c 5
c2 26c 4
c2 26c 5
c2 26c 8

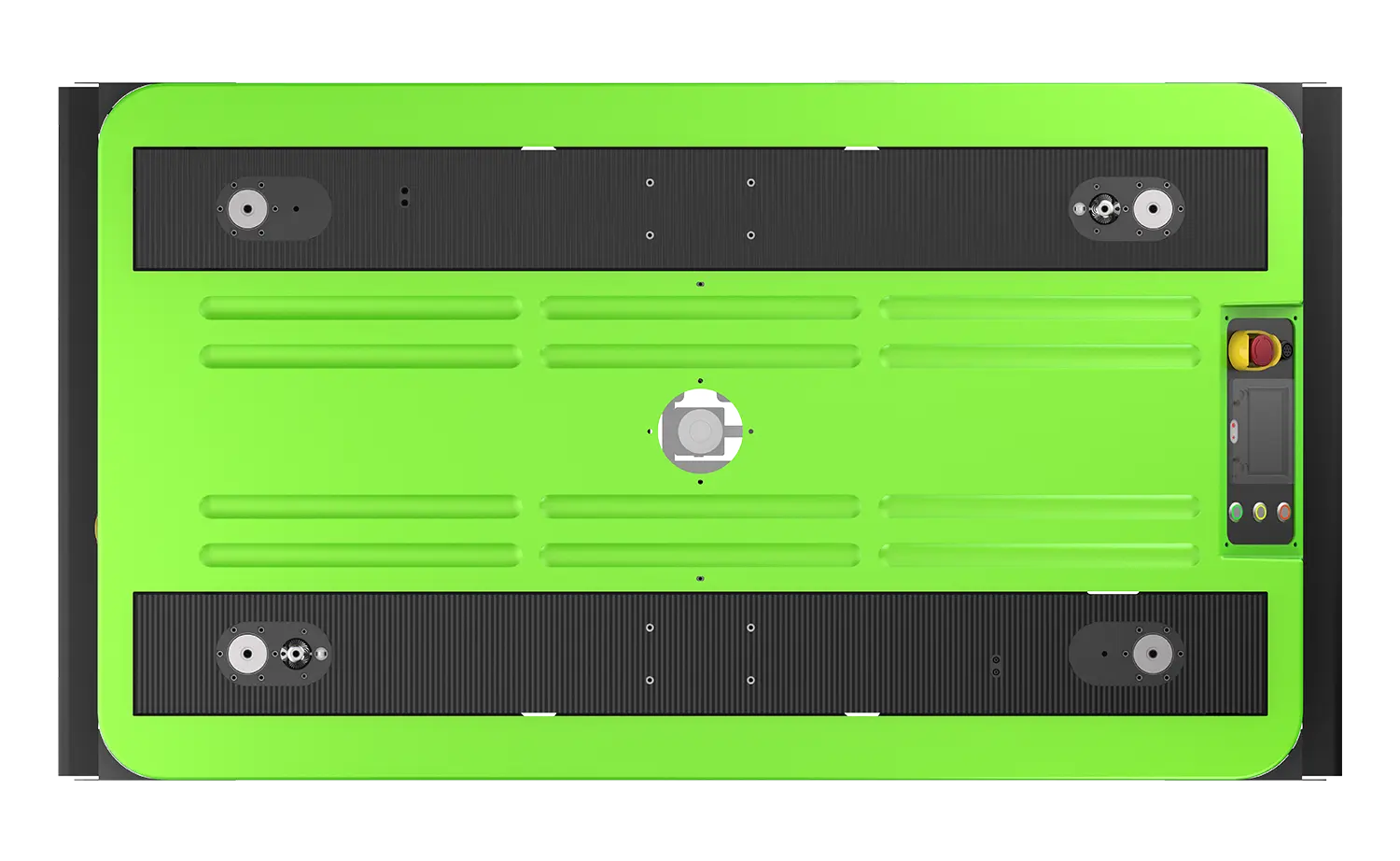

c2 26c 9

Parameters of C2-26C Latent Lift AGV

Basic ParametersDimensionL1600*W860*H350   (mm)
Max Load Capacity1000kg / 1500kg
Weight410kg
Rotation Diameter1820mm
Relative RotationNO
Size of Lifting Platform1396*696(mm)
Max Lifting Distance60mm
Navigation   PerformanceNavigation Mode QR Code Navigation/SLAM Navigation
Navigation Accuracy±10mm / ±15mm
Stop Accuracy±5mm / ±10mm
Stop Angle Accuracy±1°
Movement   PerformanceMoving DirectionForward、Backward、Rotate
Drive ModeTwo-wheel differential drive
Accelerated Speed0.5m/s²
Max Moving Speed1.0m/s
Max Climbing Capacity≤3°
Battery   PerformanceBatteryLithium battery
Charging ModeGround charging  / Side charging
Charging timeCharging time after full discharge≤1H
Rated Duration8H
NetworkCommunicationWiFi / 5G
Protective   PerformanceSecurity Alarm●Light alarming         ●Voice broadcast
Security Sensing Range≤3m adjustable

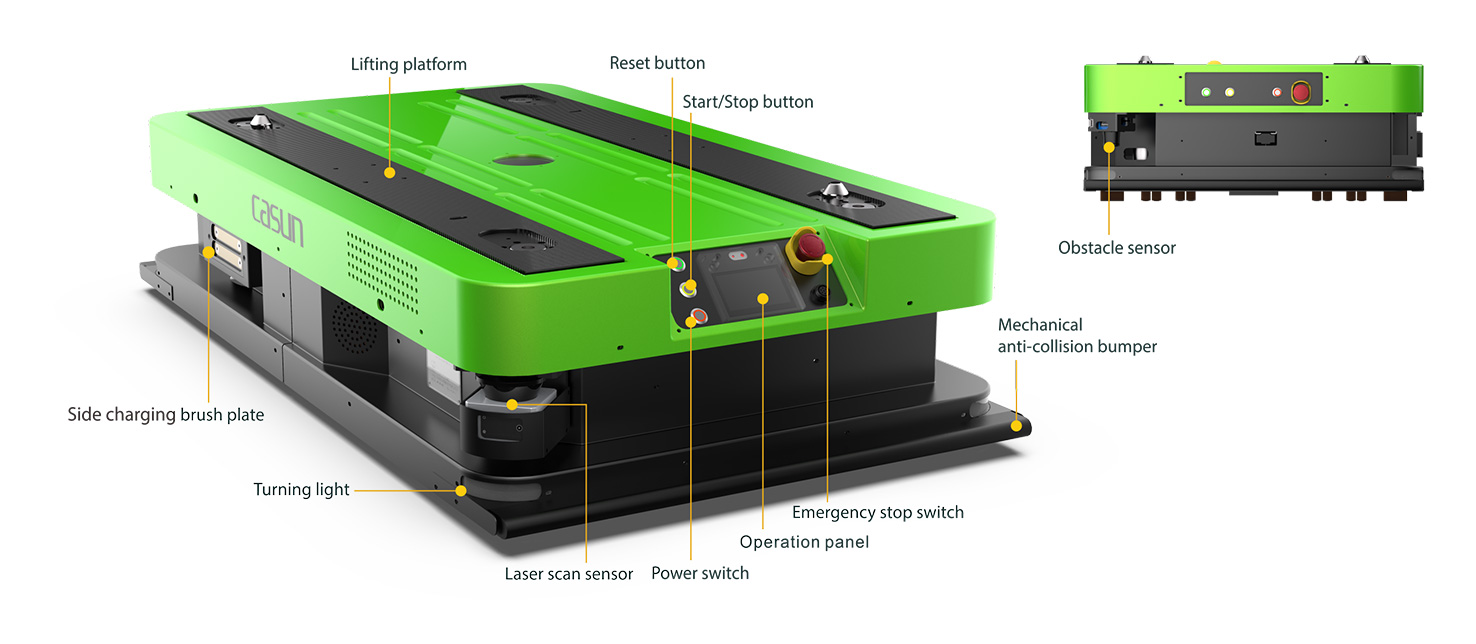

Safety Protection

● Front and rear diagonal obstacle detection sensors

● Mechanical anti-collision mechanism

● emergency stop switch

Application   EnvironmentWorking Temperature-10℃  ~ 45℃
Working EnvironmentNo dust, no flammable/explosive/corrosive gases


Core Advantages of C2-26C Latent Lift AGV

Core Advantages of C2-26C Latent Lift AGV

01
End-to-end Transport

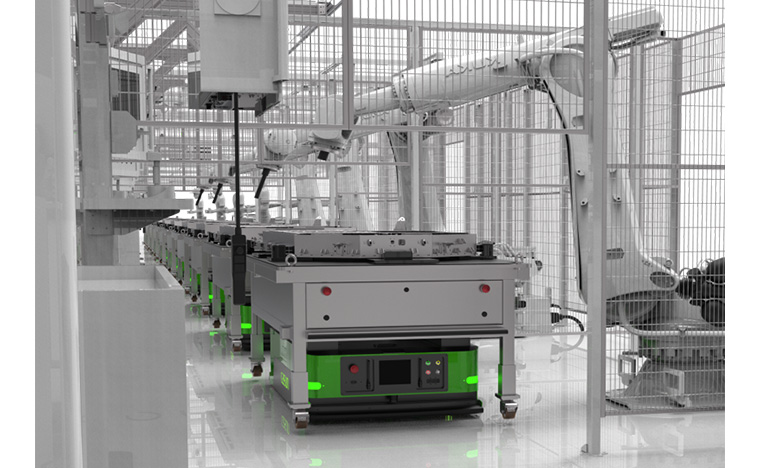

SMT customized AGV can connect production lines at different heights to realize intelligent distribution, turnover and warehousing of products, semi-finished products and finished products.

02
Replace Artificial Intelligent and Efficient

Equipped with intelligent navigation system, AGV transfers between different production lines, greatly improving the operation efficiency of the workshop.

03
Intelligent Control, Universal Scheduling

The intelligent management system which is independently developed by Casun can realize the task of management, delivery and traffic control of all AGVs connected within the network; end customer can increase or decrease the number of AGVs at any time and support many types of AGVs in the same scenario.

04
Auto-charging

When the power is going to the low level, AGV will directly go to the charging station for automatic charging; and it can achieve all-weather response, and improve production efficiency.
