C1-14 Unidirectional Latent Towing AGV

C1-14 one-way latent traction AGV is suitable for sites with relatively fixed environmental contours. The navigation mode is SLAM navigation.

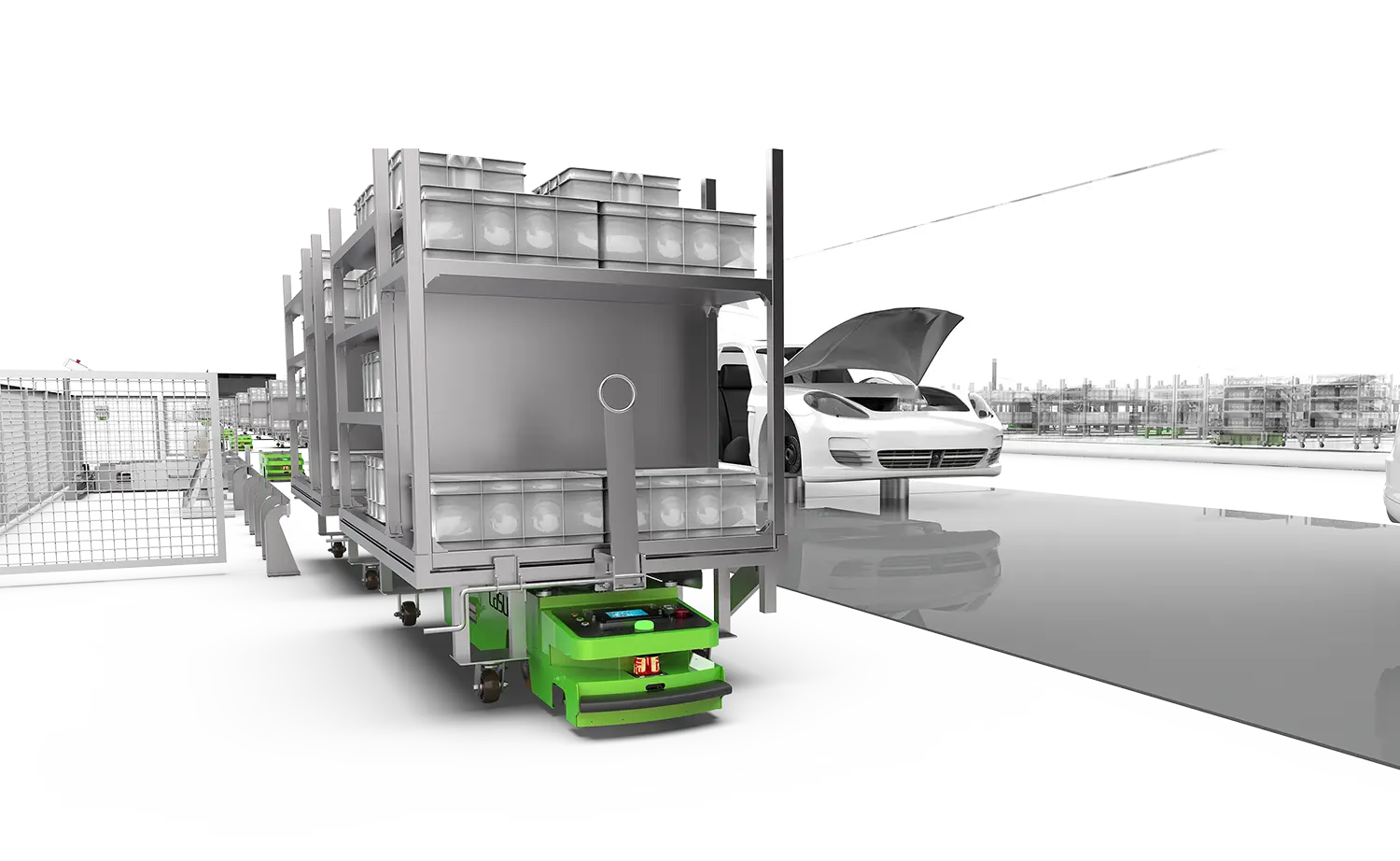

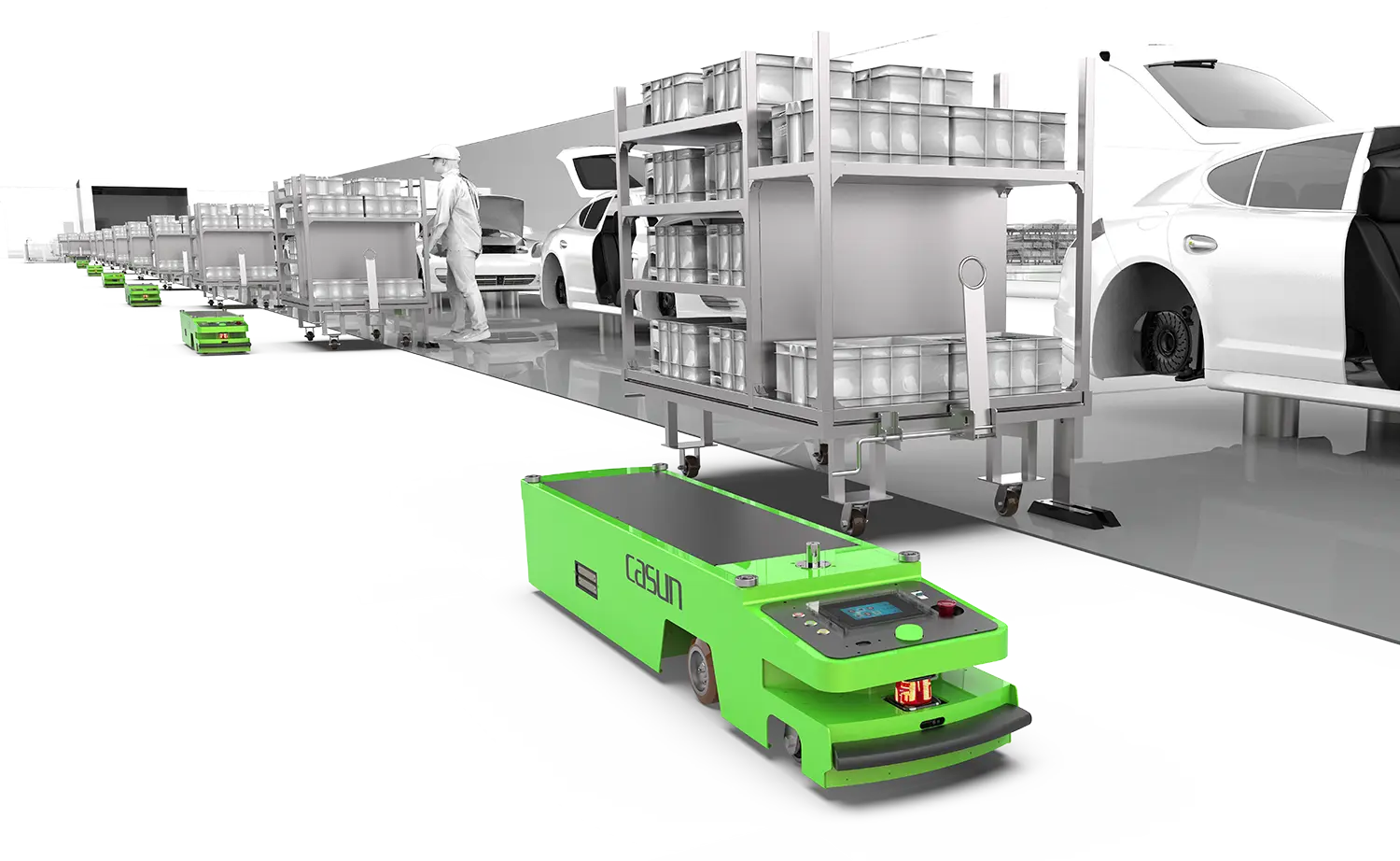

The working mode is that the AGV automatically lurks to the bottom of the material truck after receiving system instructions, and is automatically hung by the traction bar. Pick-up trucks realize end-to-end transfer. A flow production line can also be composed of multiple AGVs to realize flexible production in the factory. At present, it is mostly used in SPS of automobile assembly workshop.

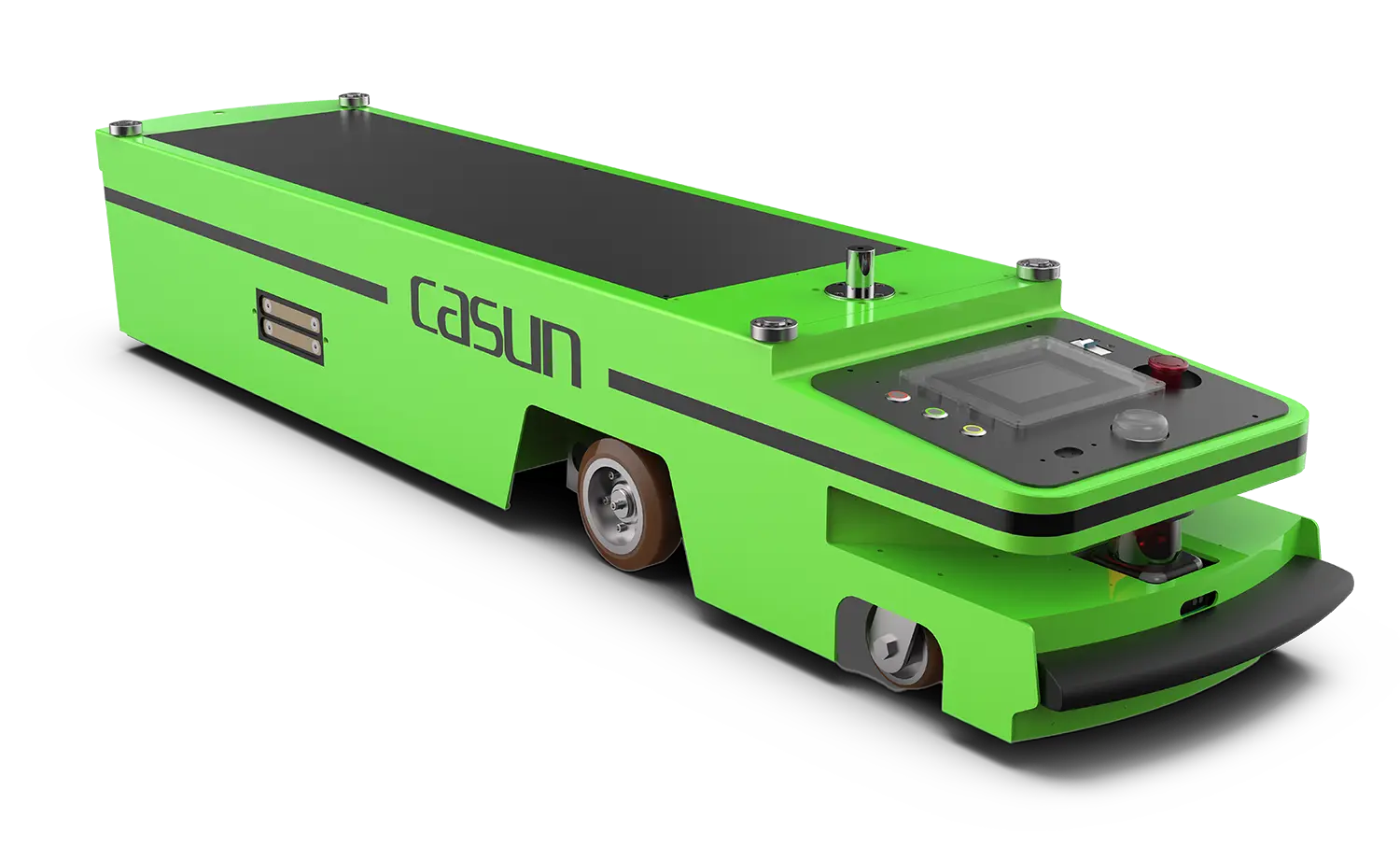

c1 14 1

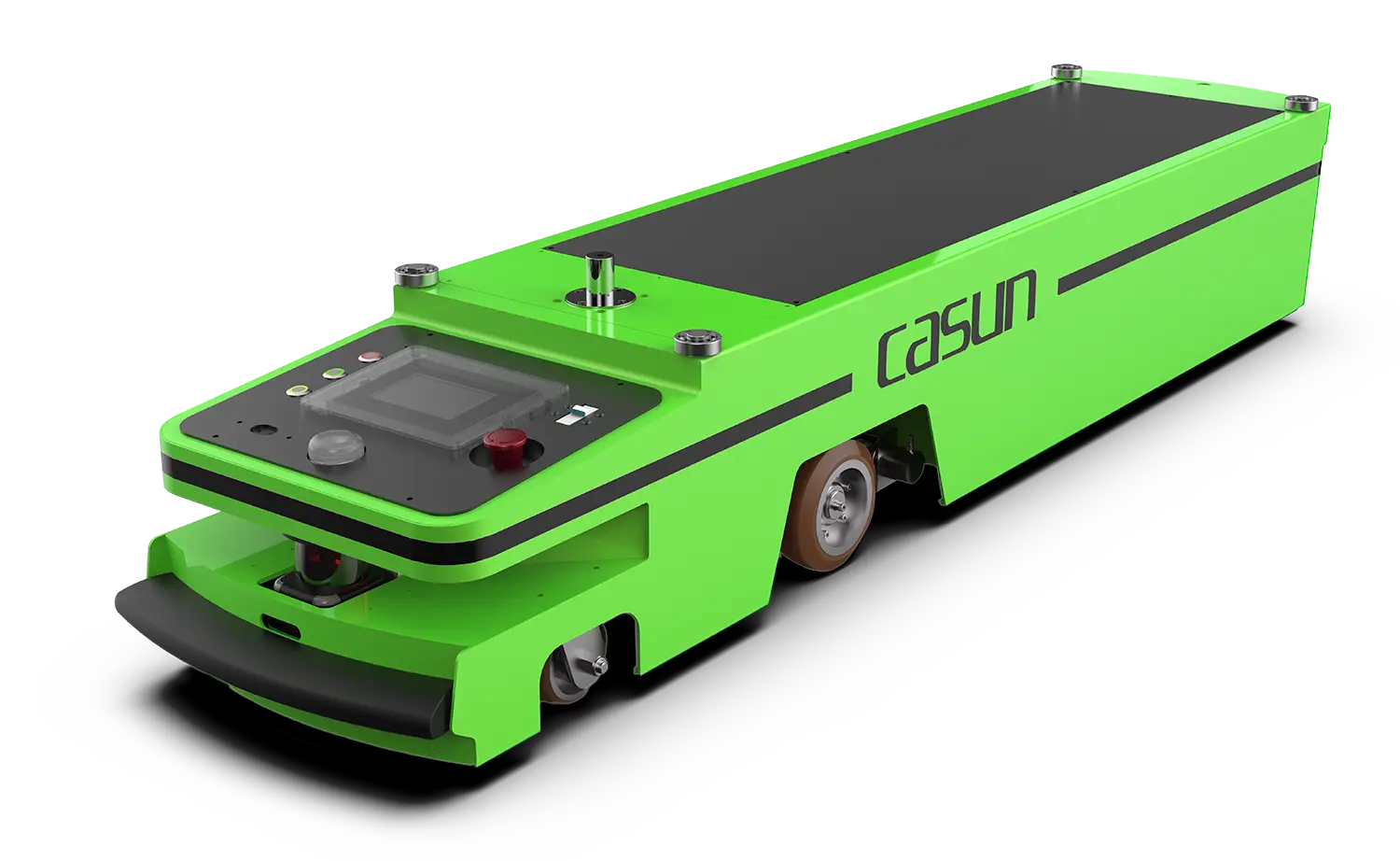

c1 14 2
c1 14 3
c1 14 4

Parameters of C1-14 Unidirectional Latent Traction AGV

Basic ParametersDimensionL1965*W500*H330(mm)
Max payload1500kg
Weight220kg
Turning radius1500mm
Navigation  PerformanceNavigation mode SLAM Navigation
Navigation accuracy±10mm
Stop accuracy±10mm
Movement  PerformanceMoving directionForward, turn left and right
Drive modeDifferential driving
Acceleration0.2m/s²
Max moving speedNon-loading 45m/min     Full-loading 35m/min
Max climbing capability≤3°
Battery  PerformanceBattery typeLithium battery
Charging modeSide charging/Ground charging
Charging timeCharging time after full discharging≤1H
Rated endurance8H
NetworkCommunicationWiFi / 5G
Protective  PerformanceSafety warningLight warning      ●Voice broadcast
Safe sensing range≤3m adjustable

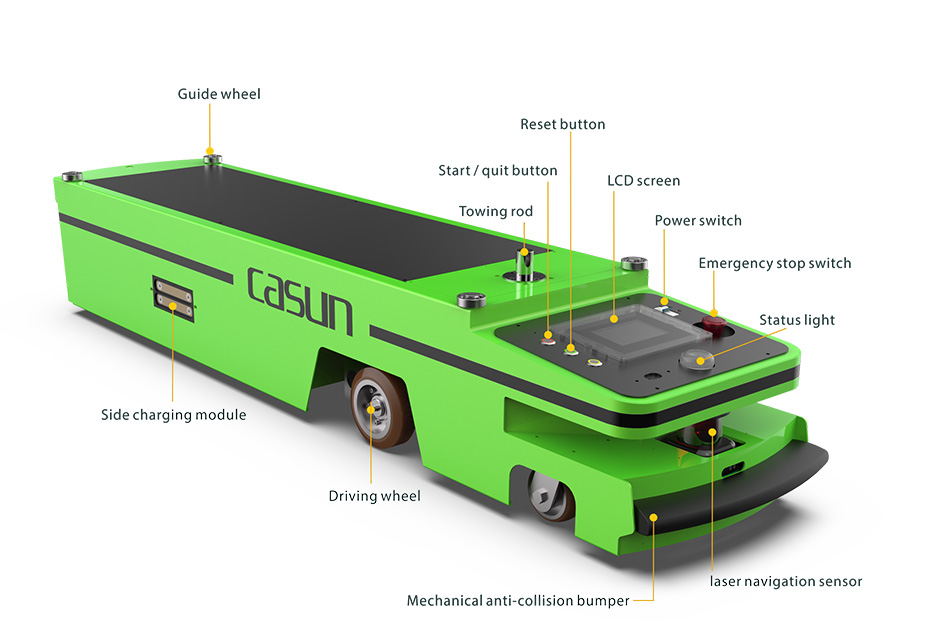

Safety protection

● Front obstacle detection sensor

● Mechanical anti-collision mechanism

● emergency stop switch

Application EnvironmentWorking temperature-10℃  ~ 45℃
Working EnvironmentNo dust, no flammable/explosive/corrosive gases




Core Advantages of C1-14 Unidirectional Latent Traction AGV

Core Advantages of C1-14 Unidirectional Latent Traction AGV

01
Compact design

Compact design with different load capactiy for option.

02
SLAM navigation

Adopt advanced SLAM navigation technology;


03
Multiple security protection

Equipped laser obstacle sensor / mechanical anti-collision bumper / acousto-optic alarm to ensure safe working environment.

04
Intelligent dispatching

CASUN's self-developed Central Management Systems integrate high-frequency wireless communication technology, high-speed database analysis and processing technology, AGV digital control technology, combining on-site requirements to achieve intelligent scheduling of multiple AGVs.

05
Automatic battery charging

AGVs will move to charge station and do charging job automatically when they are detected to be in low power status, response time can be 24 hours per day so as to increase productivity.
