C1-12 Unidirectional Latent Towing AGV

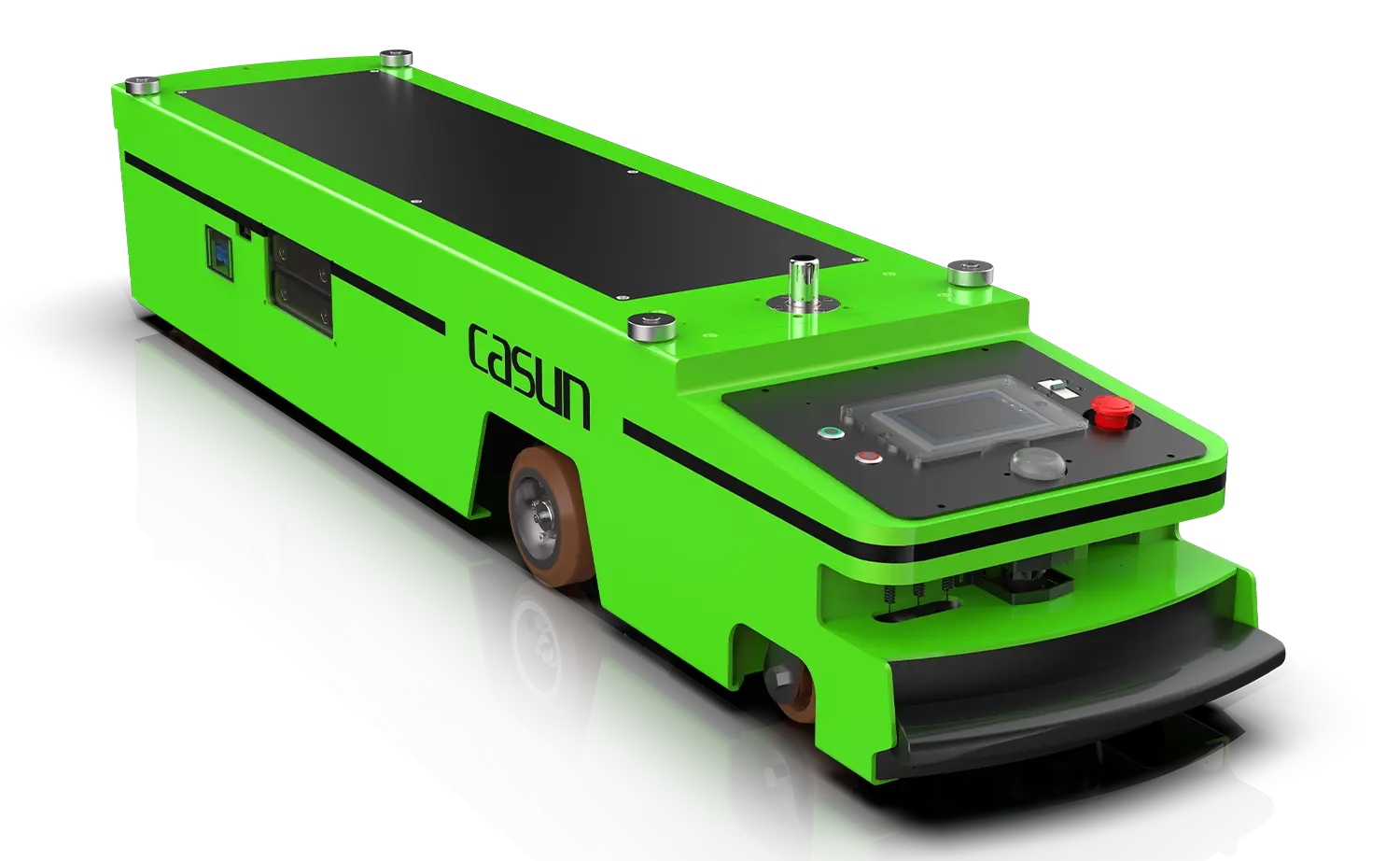

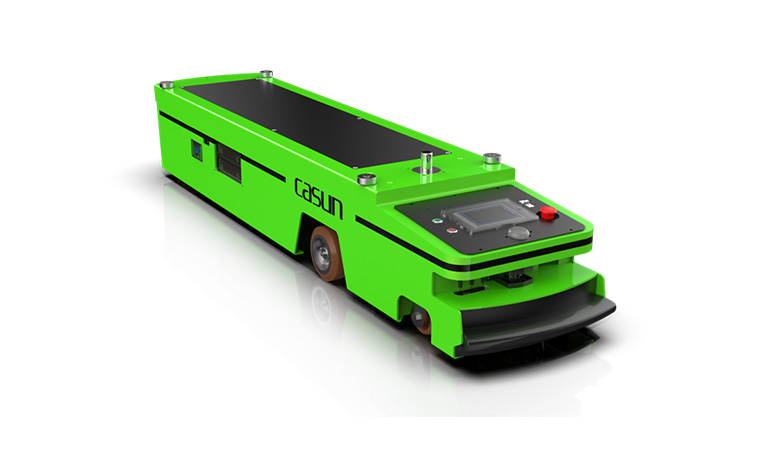

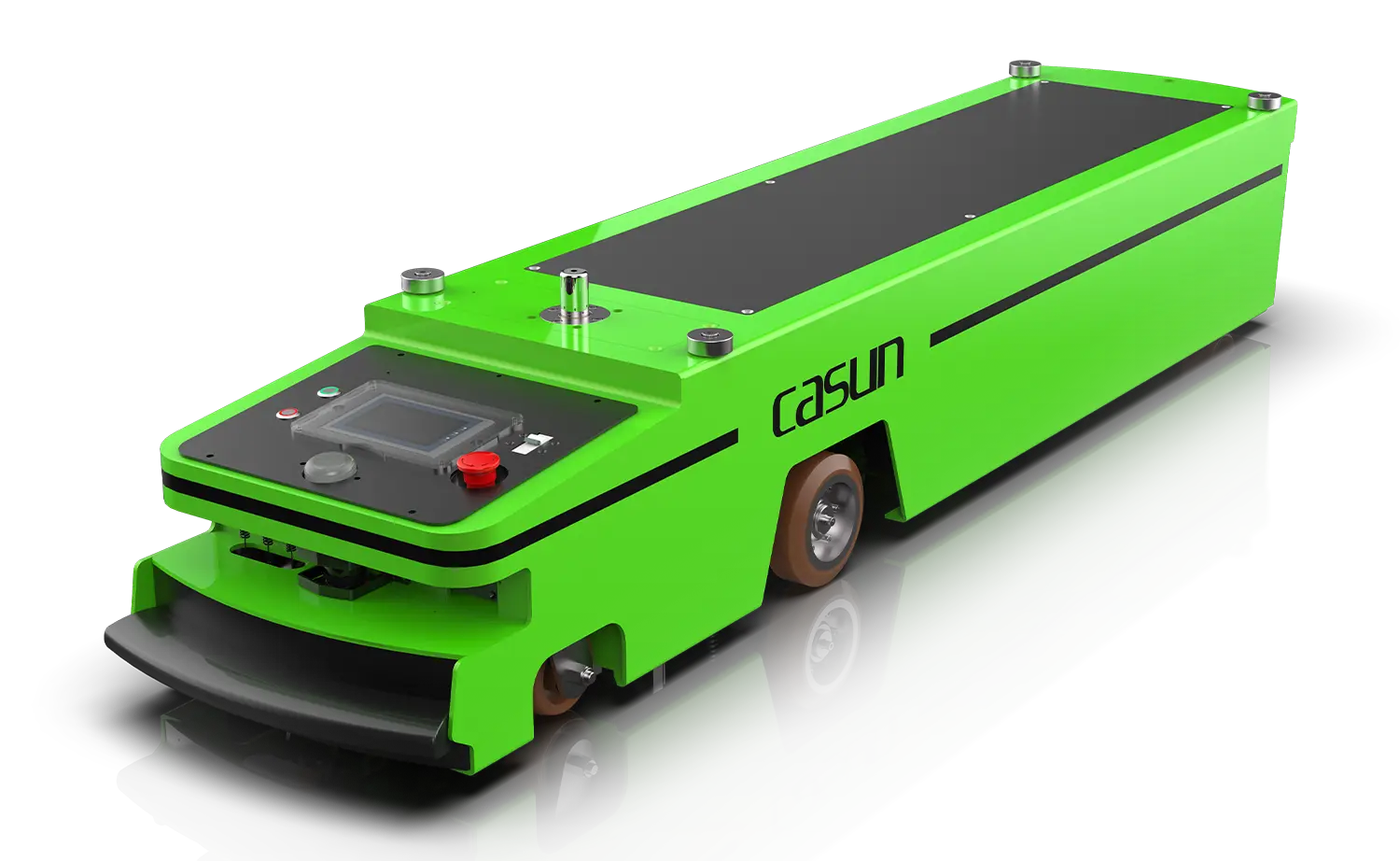

C1-12 is a unidirectional Latent Towing autonomous AGV vehicles equipped magnetic-navigation, mainly applied to fixed manufacturing workshop.

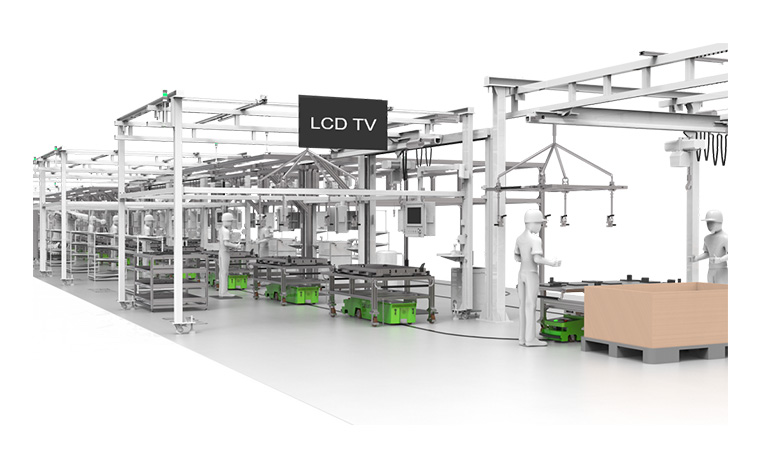

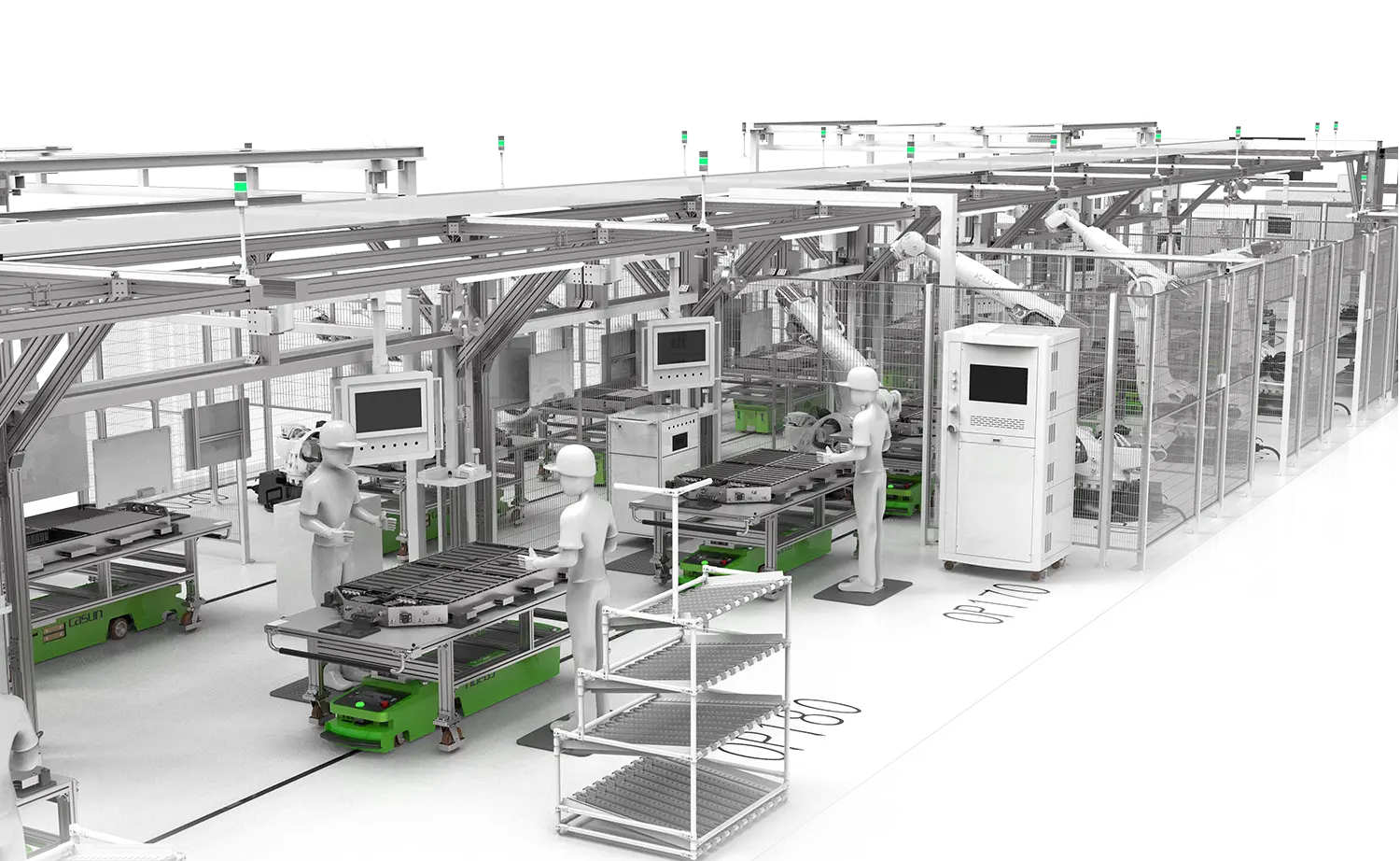

C1-12's Working mode: AGV automation will move automatically to the bottom of material vehicles and rise to connect hook material vehicles after receiving system instructions and achieve end-to-end material transfer. Besides, AGV autonomous can work as a production line in a group to realize flexible production.


c1 12 1
c1 12 1
c1 12 2
c1 12 3
c1 12 4

Parameters of C1-12 Unidirectional Latent Traction AGV

Basic

Parameters

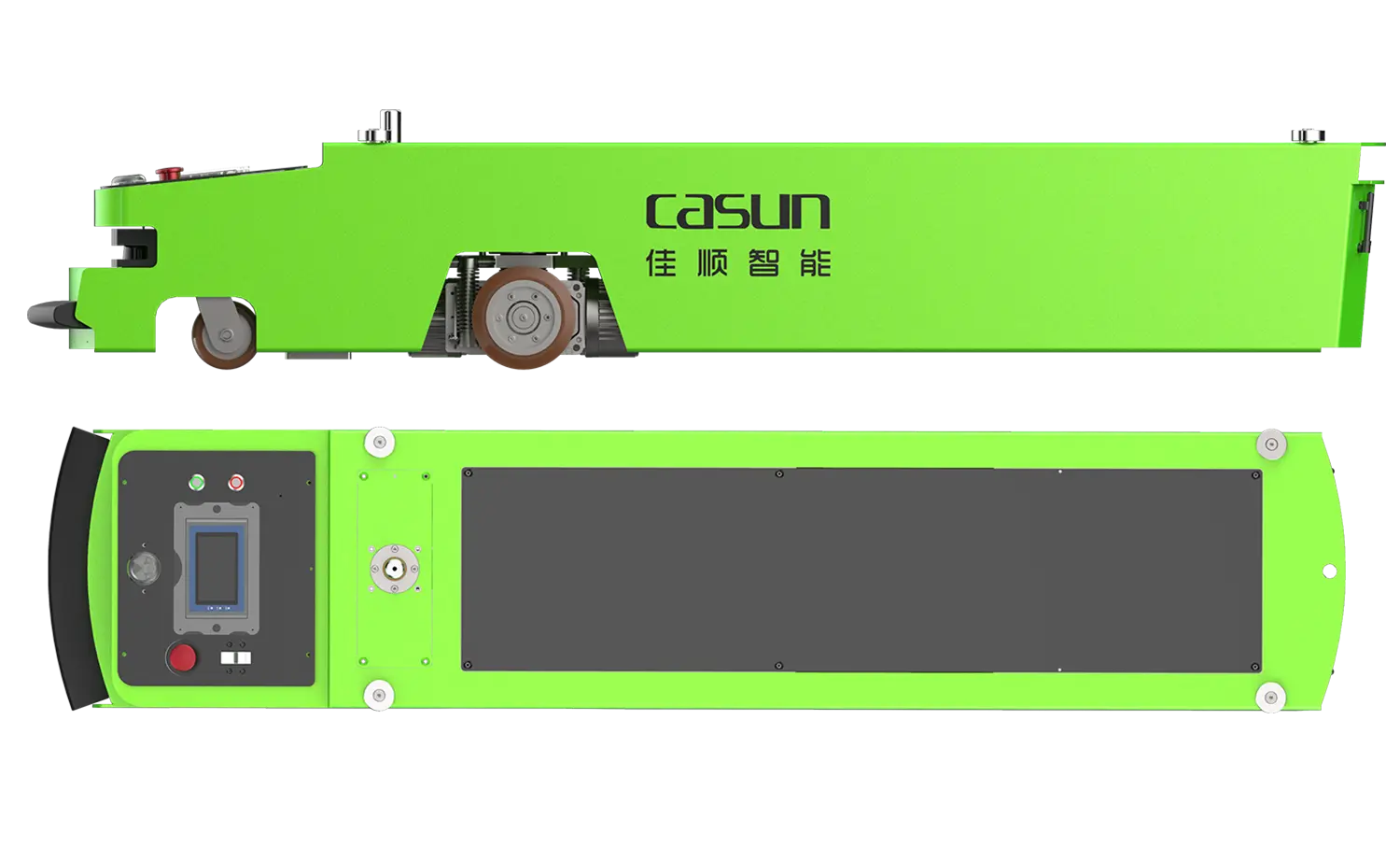

DimensionL1965*W420*H328(mm)
Max payload1000kg / 1500kg
Weight320kg
Turning radius1200mm

Navigation

Performance

Navigation mode Magnetic
Navigation accuracy±10mm
Stop accuracy±10mm

Movement

Performance

Moving directionForward,turn left/right
Drive modeDifferential driving
Acceleration0.2m/s²
Max moving speedNon-loading 45m/min     Full-loading 35m/min
Max climbing capability≤3°

Battery

Performance

Battery typeLithium battery
Charging modeSide charging/Ground charging
Charging timeCharging time after full discharging≤1H
Rated endurance8H
NetworkCommunicationRF / WiFi / 5G

Protective

Performance

Safety warningLight warning      ●Voice broadcast
Safe sensing range≤3m adjustable
Safety protectionFront obstacle detection     ●Mechanical anti-collision design     ●Emergency stop switch

Application

Environment

Working temperature-10℃  ~ 45℃
Working EnvironmentNo dust, no flammable/explosive/corrosive gases


Core Advantages of C1-12 Unidirectional Latent Traction AGV

Core Advantages of C1-12 Unidirectional Latent Traction AGV

01
Compact design

Compact design with different load capactiy for option.

02
Stable operation

Mature rail navigation technology, acurate positioning and reliable working.

03
Multiple security protection

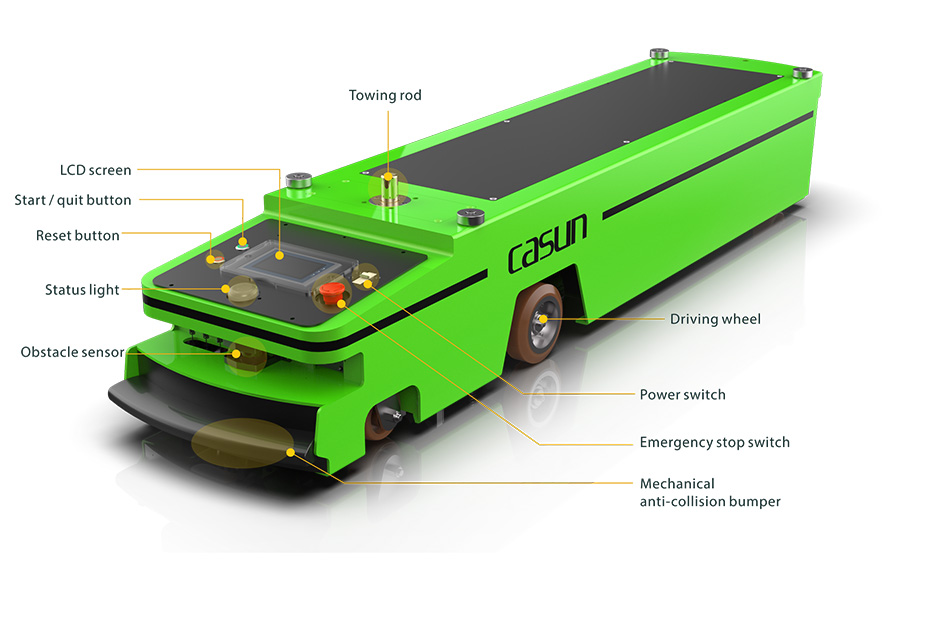

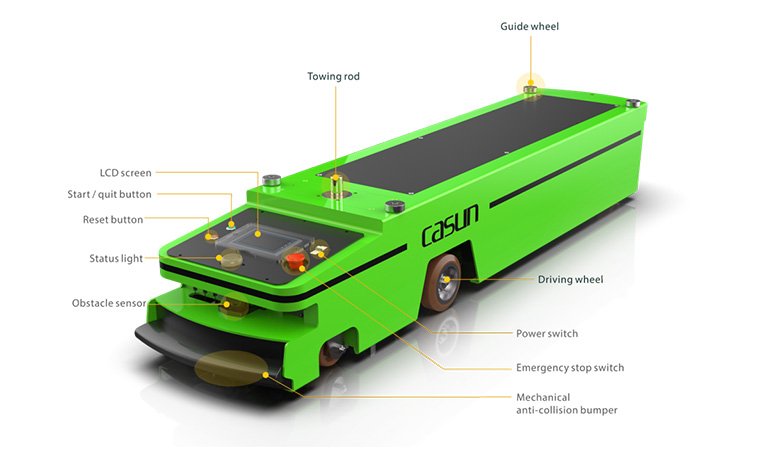

Equipped laser obstacle sensor / mechanical anti-collision bumper / acousto-optic alarm to ensure safe working environment.

04
Intelligent dispatching

CASUN's self-developed Central Management Systems integrate high-frequency wireless communication technology, high-speed database analysis and processing technology, AGV digital control technology, combining on-site requirements to achieve intelligent scheduling of multiple AGVs.

05
Automatic battery charging

AGVs will move to charge station and do charging job automatically when they are detected to be in low power status, response time can be 24 hours per day so as to increase productivity.
