C2-22C

C2-22C is a latent lift AGV. It uses trackless navigation and can change the route according to on-site production changes. The model is small and the upgraded load can reach 1000KG. The body and the lift plate can be rotated relative to each other. A mobile production line can be formed by multiple AGVs to achieve flexible production. It has been widely used in the automotive and parts industry, photovoltaic industry, 3C and semiconductor industries.

Working method: After the AGV receives the system command, the AGV lurks to the bottom of the material rack, lifts the material rack, and carries out material transportation;

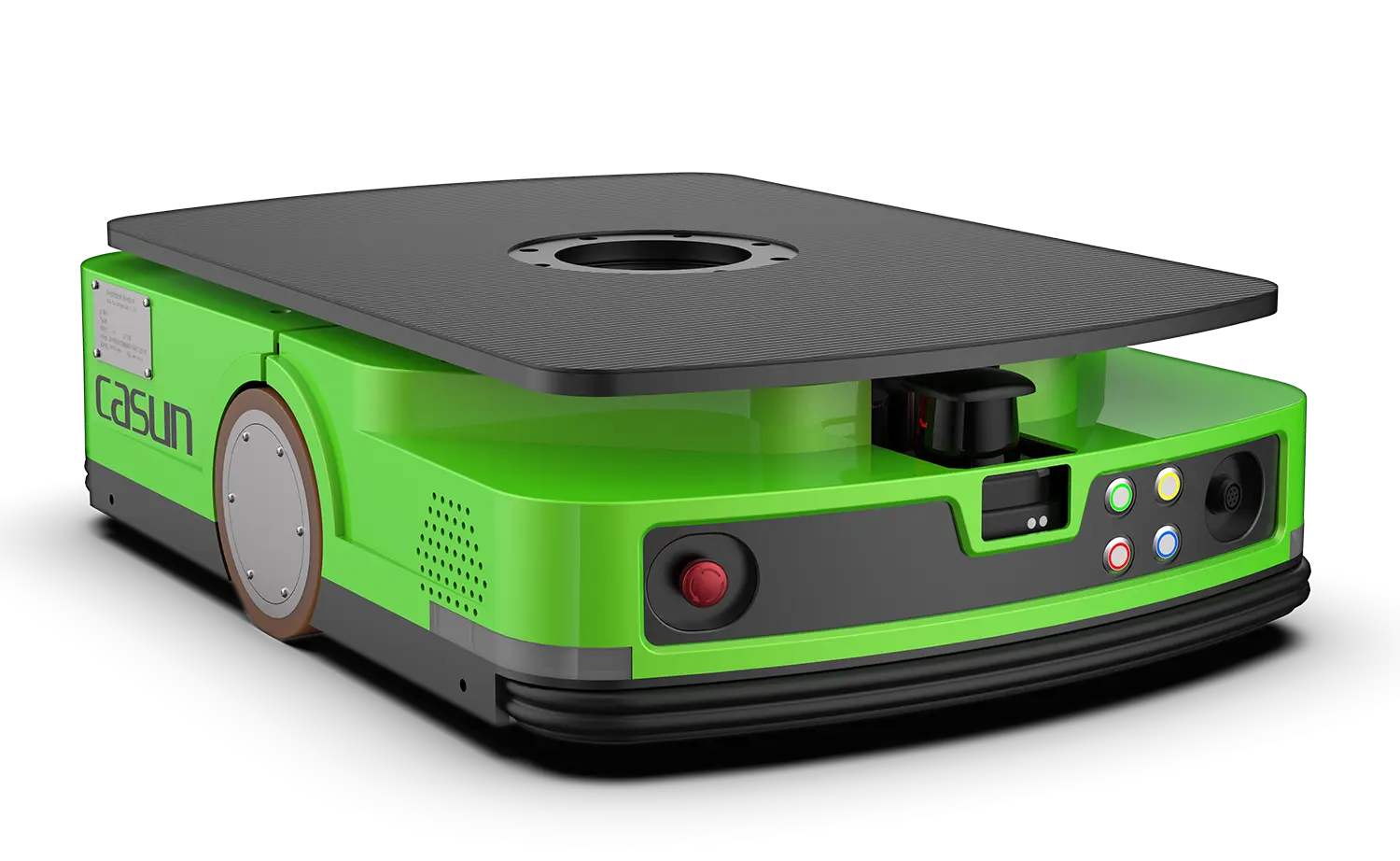

c2 22c 4

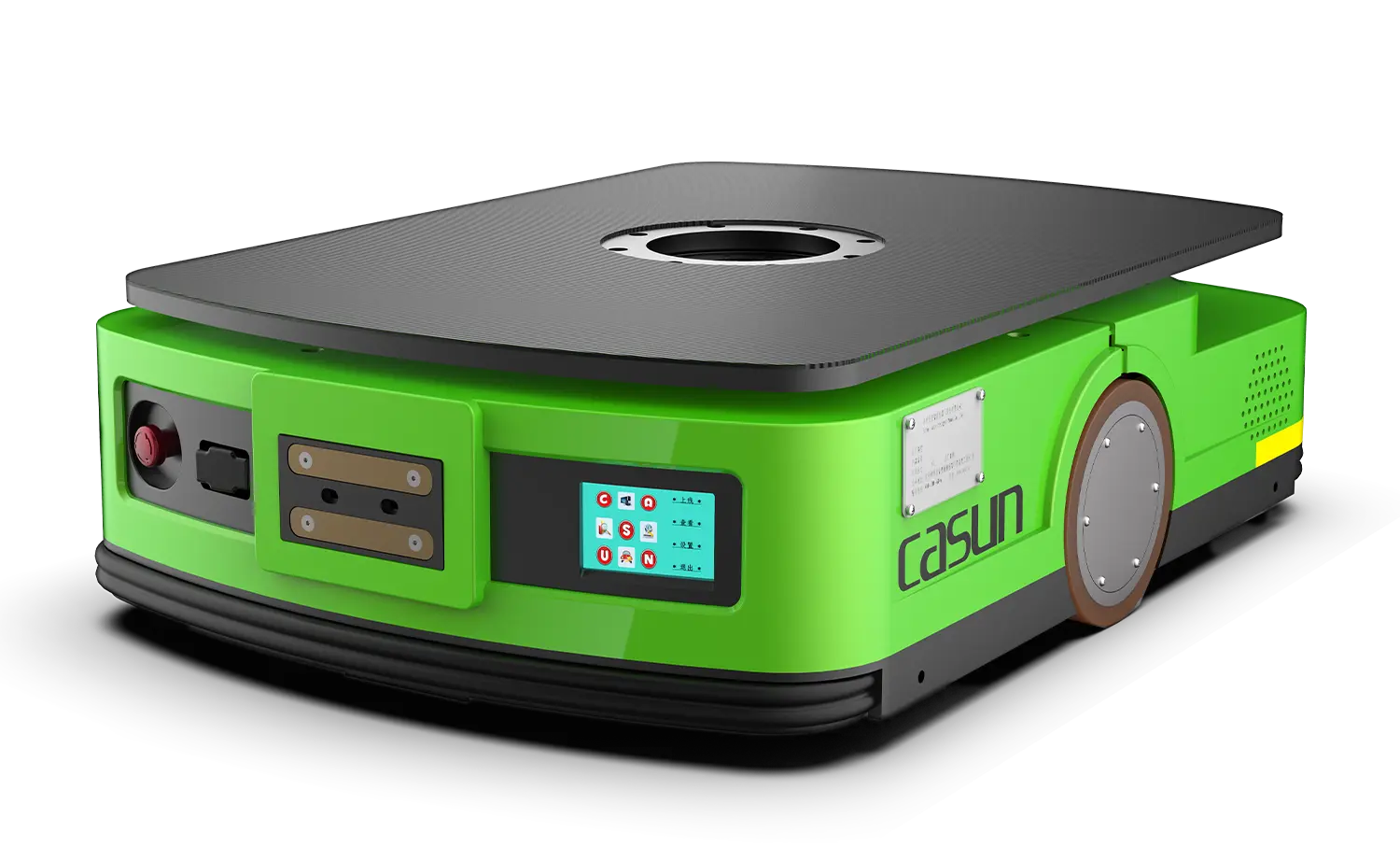

c2 22c 3

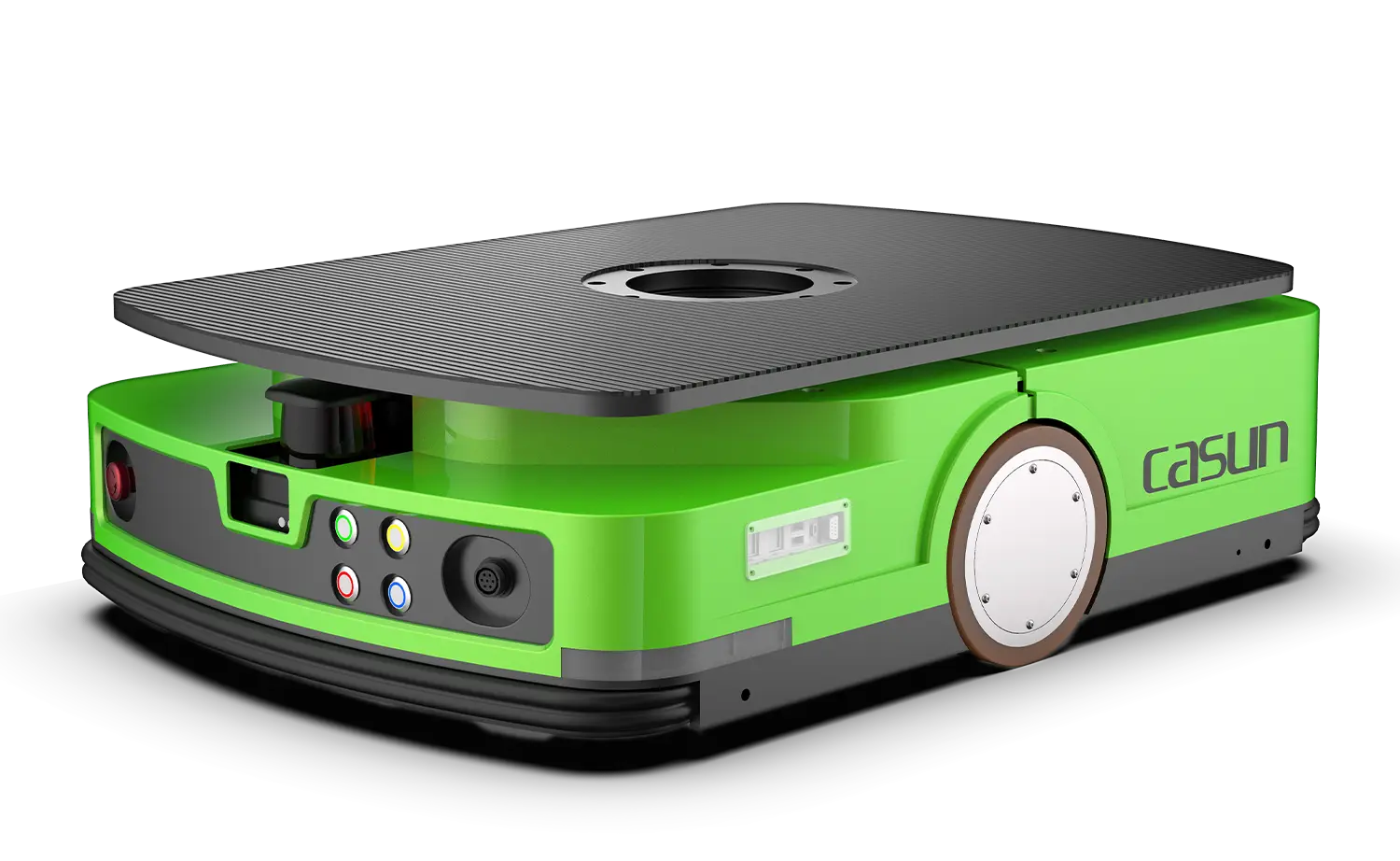

c2 22c 2

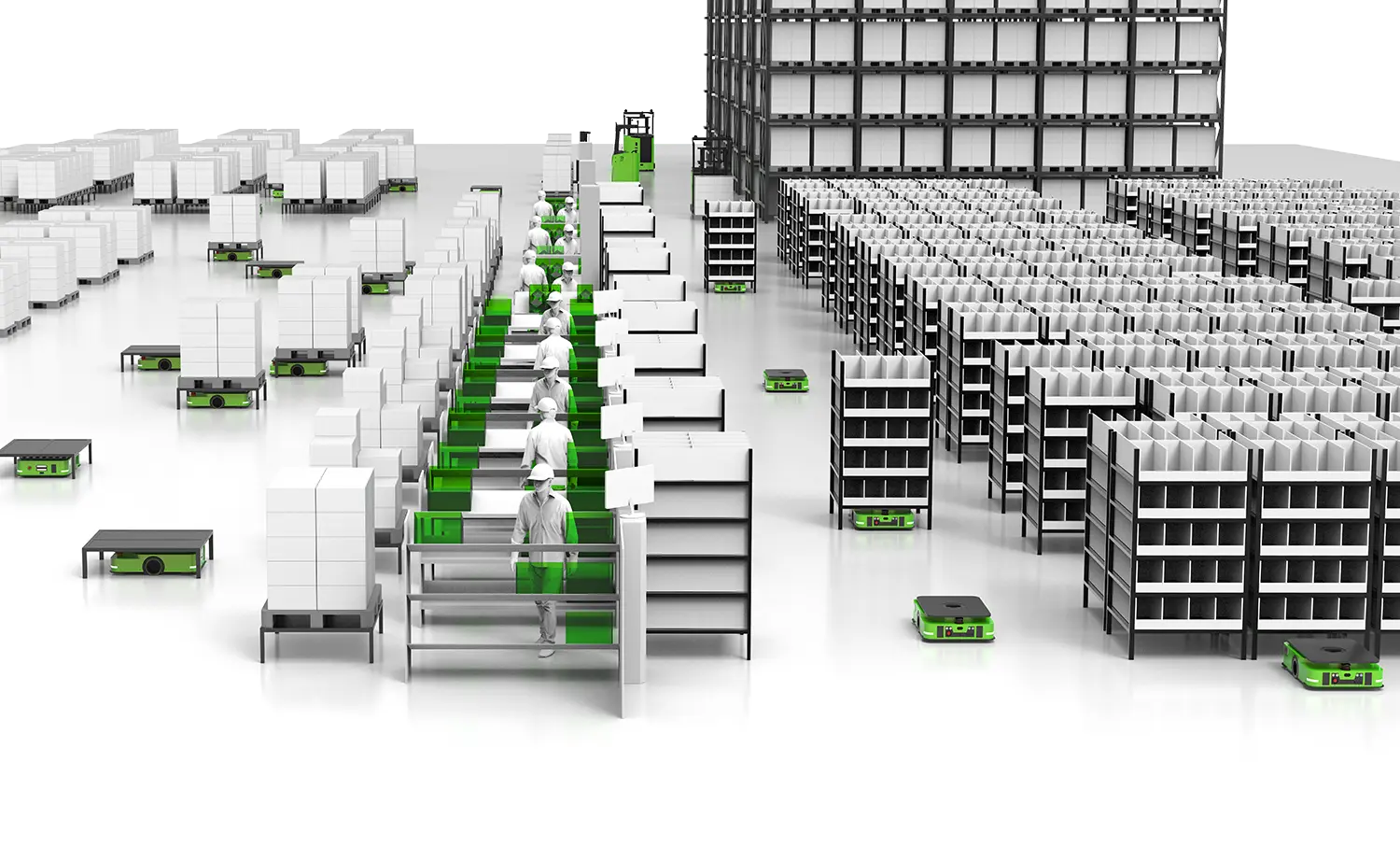

c2 22b 6

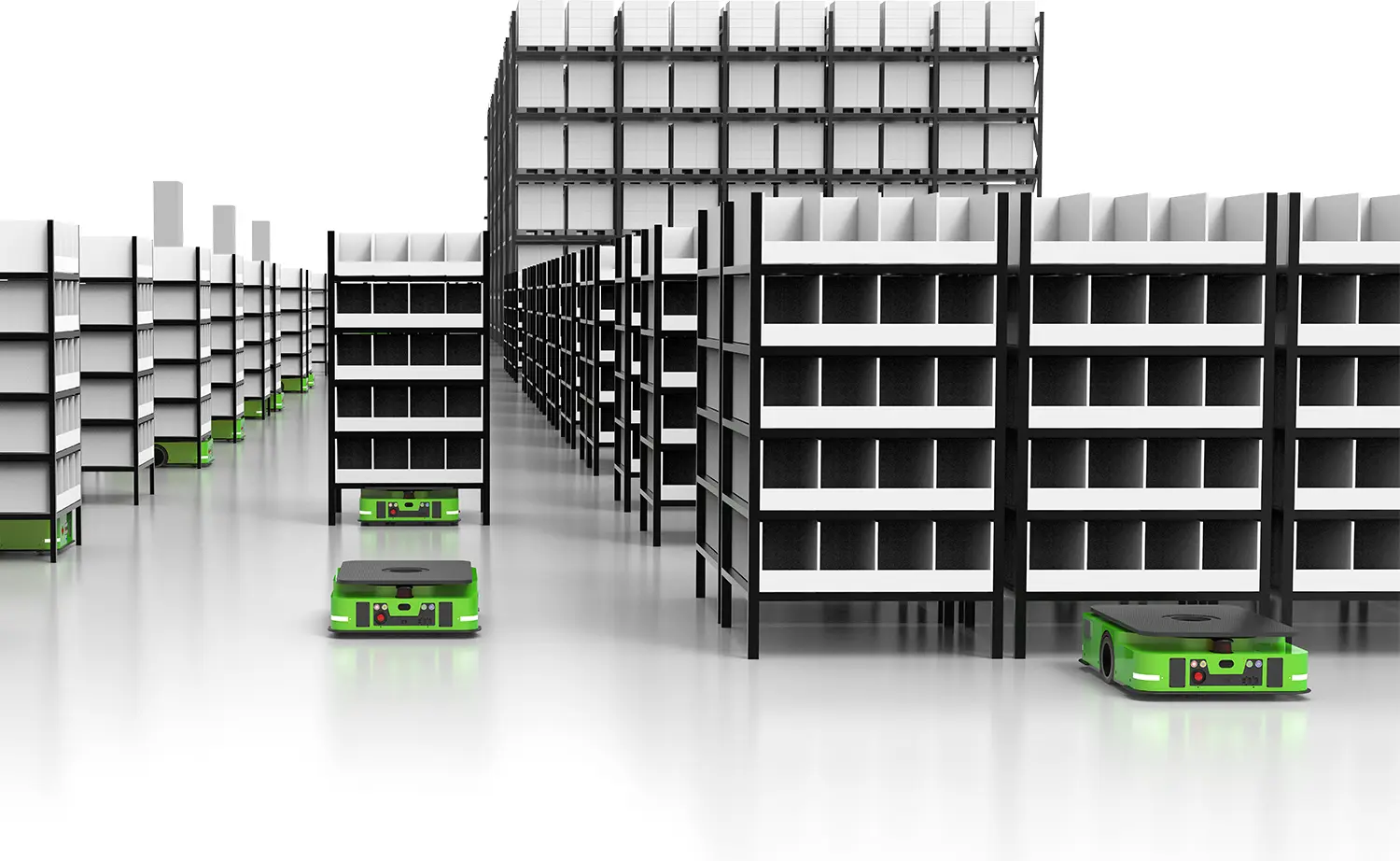

c2 22b 5

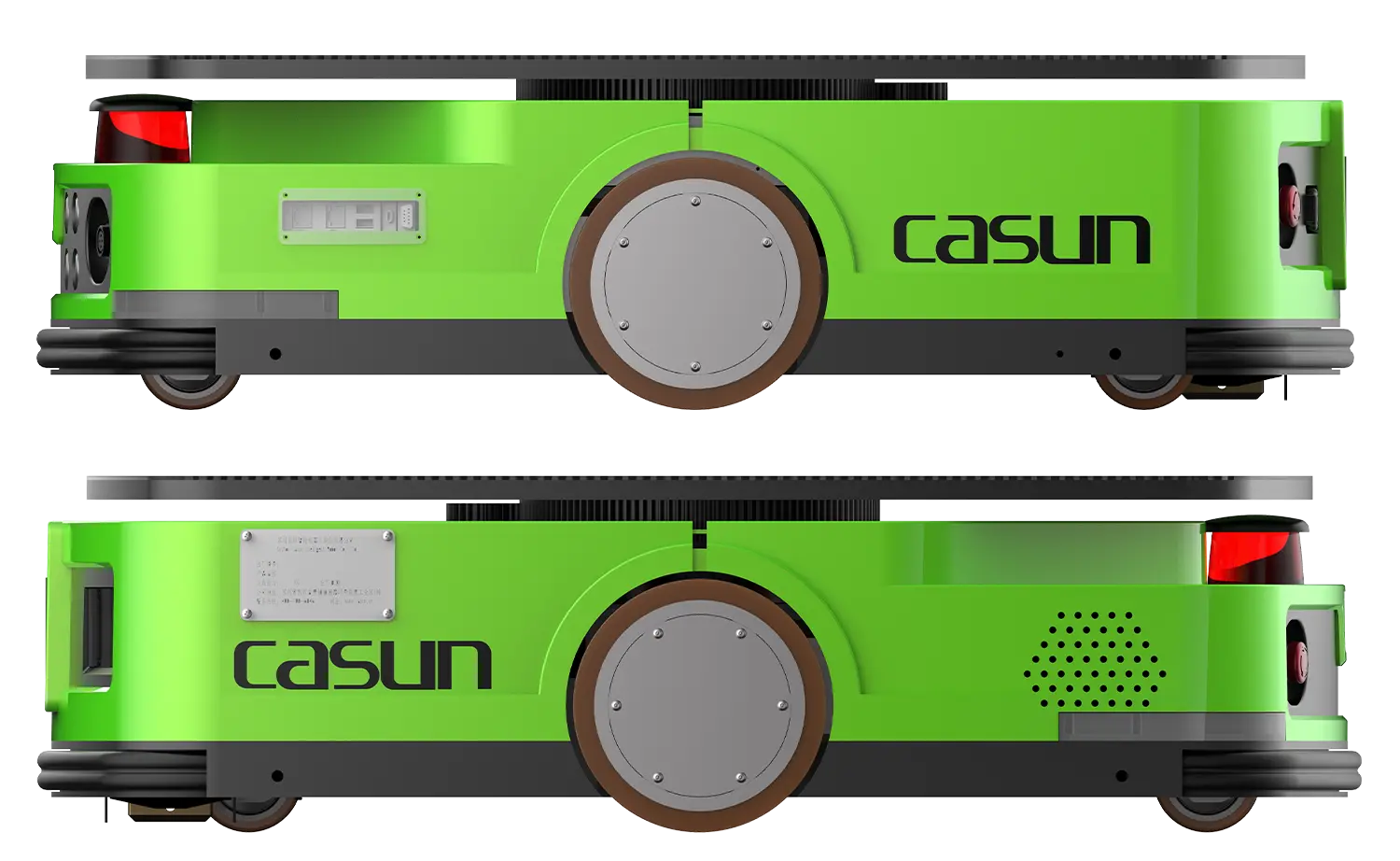

c2 22c 5

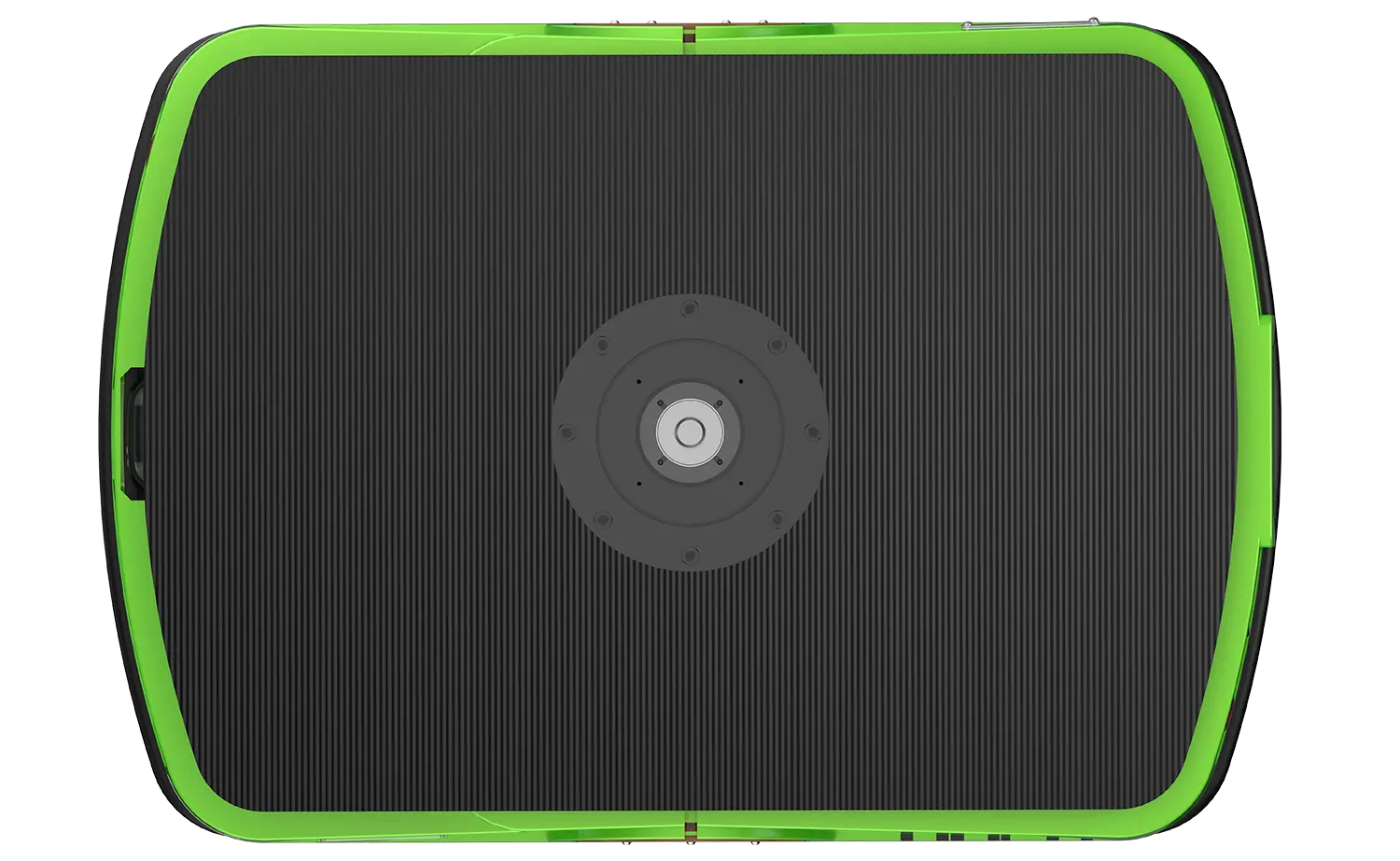

c2 22c 1

Parameters of C2-22C Latent Lift AGV

Basic parametersDimensionsL940*W650*H253 (mm)
maximum load1000kg
body weight136kg
Rotation diameter1014mm
relative rotationYES
Jacking Platform Dimensions860*600mm
Max jacking stroke60mm
Navigation performanceNavigationQR code navigation / SLAM navigation
Navigation accuracy±10mm / ±15mm
Stop accuracy±5mm / ±10mm
Stop angle accuracy±1°
athletic performancewalking directionforward, backward, rotate
drive modeTwo-wheel differential drive
acceleration0.5m/s²
maximum walking speed1.5m/s
Maximum gradeability≤3°
battery performanceBattery Typelithium battery
charging methodCollision charge  /  Collision charging
charging timeAfter full discharge, the charging time is less than or equal to 1H
Rated battery life4H(can be expanded)
network performancecommunication methodWiFi/5G
Protection performanceSafety Alert●Light warning ●Voice broadcast
Safe sensing range≤3m adjustable

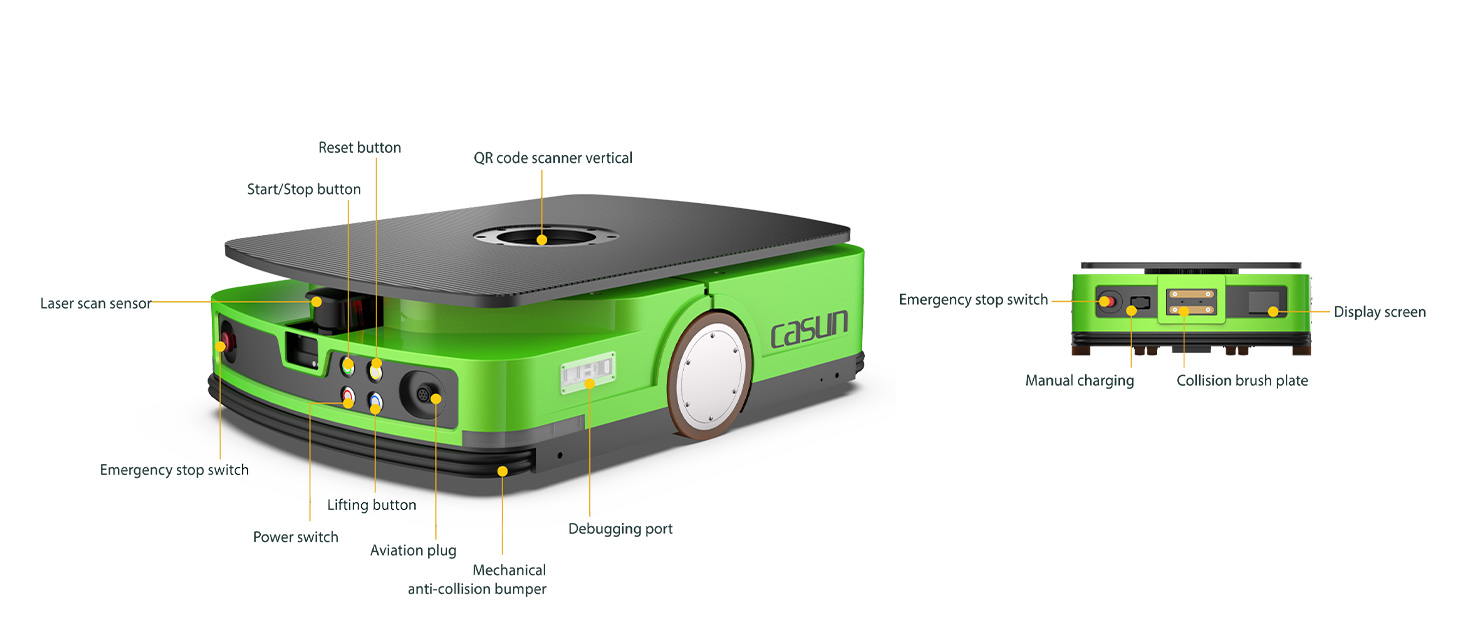

Security●Front obstacle detection sensor ●Mechanical anti-collision mechanism ●Emergency stop switch
Application EnvironmentOperating ambient temperature-10℃ ~ 45℃
Operating environmentNo dust, flammable, explosive and corrosive gases


Core Advantages of C2-22B Latent Lift AGV

Core Advantages of C2-22B Latent Lift AGV

01
Flexible mobility

90-degree corner or 180-degree in-situ rotating turn, can run in a narrow space.

02
Strong adaptability to the environment

The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.

03
Lifting control

It can interact with the elevator to complete the operation of automatically going up and down floors.

04
High positioning accuracy

The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm

05
High work efficiency

Equipped with a full servo drive, which can increase the speed quickly (0-72 meters per min in only 3 seconds), and has a fast rotation function (in-situ rotation in only 3 seconds)

06
Multi-AGV linkage

Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.

07
Automation and labor saving

No manual intervention is required during the production process, and the dispatching system controls fully automatic operation.

08
Fault self-check

With fault self-checking function, remote fault diagnosis and self-recovery function.

09
Automatic battery charging

When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
