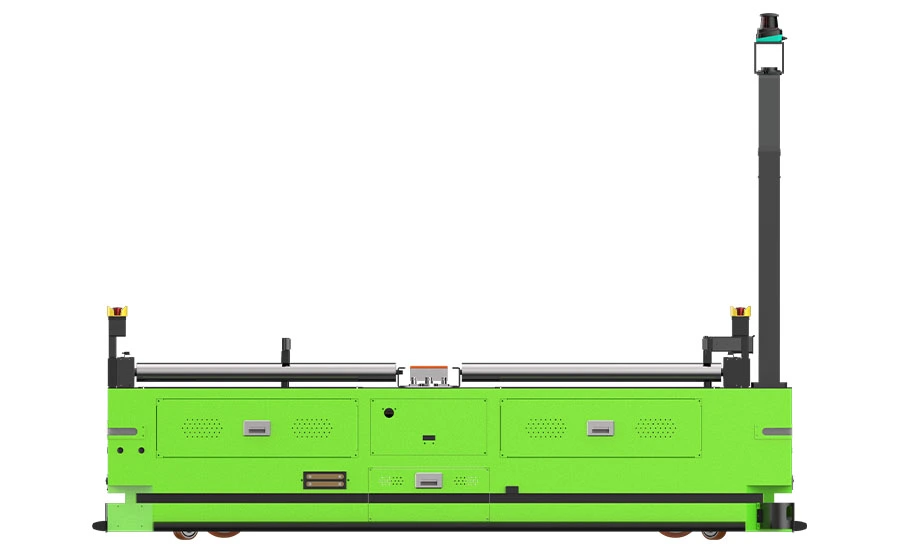

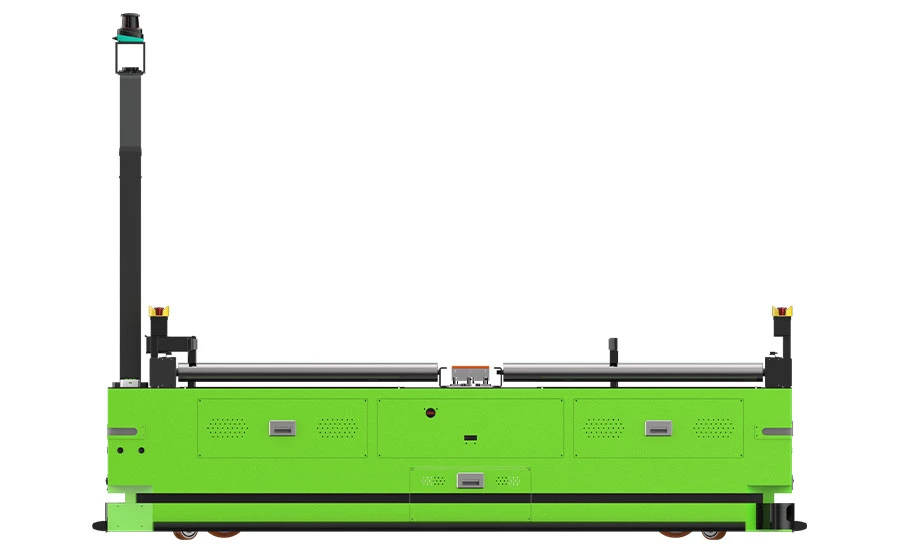

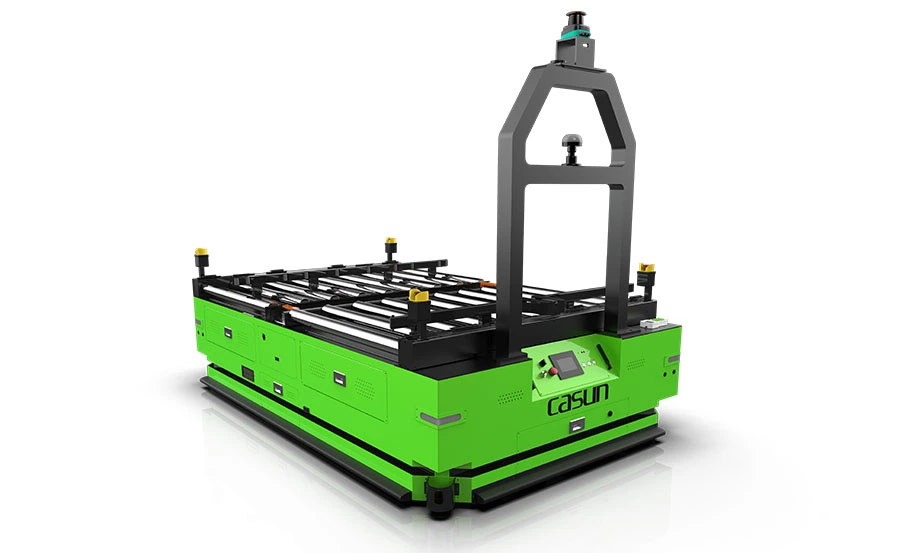

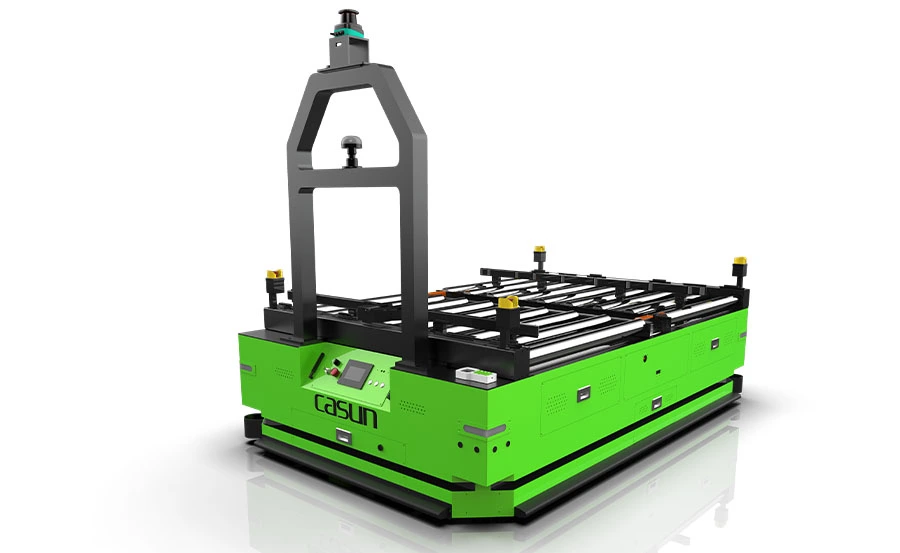

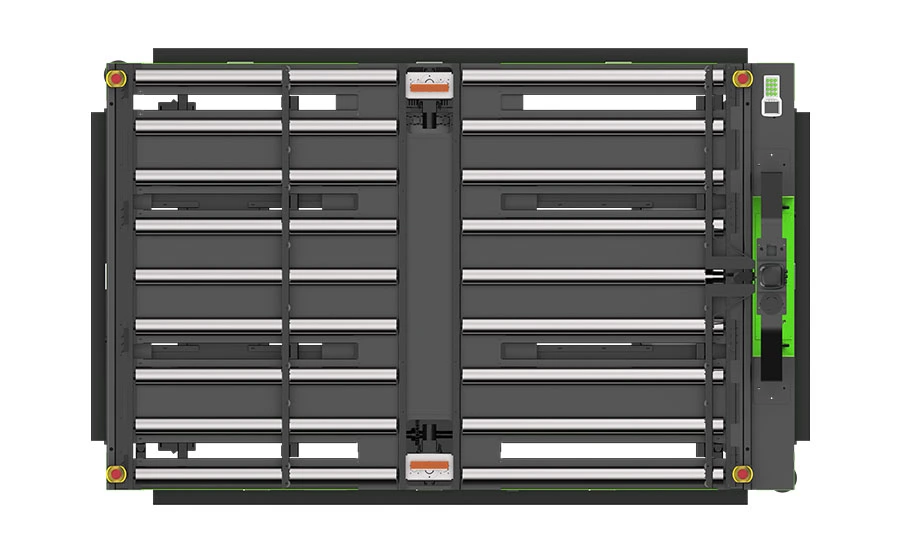

C-21 Dual Conveyor Deck Load AGV

C-21 dual conveyor deck load AGV is a single-layer double-station roller AGV, which automatically connects the load-bearing roller platform with the connection platform of the production line or conveyor line for material transportation. This unit load AGV can deliver two baskets of materials at the same time or one-to-one-to-receive empty-full exchange. It can rotate in place and move horizontally. Two-dimensional code navigation or laser navigation can be used according to different scenarios.


C-21 Dual Conveyor Deck Load AGV

Parameters of C3-21 Monolayer Double Station Load Shifting AGV


GuidanceQR code navigation/Laser navigationDriving methodSteering wheel
DimensionsL2000*W1250*H1800mm(Docking height is 650mm)Charging methodAuto charger(Side /ground type)
Traveling directionForward, backward and rotationBatteryLithium battery
Load capacity1000KGCommunicationWiFi/5G
Travel speed0~60m/minSafety alarmSound and visual warning
Conveyor deck numberDualSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper+emergency stop switch
Stopping accuracy±10mm


Core Advantages of C3-21 Monolayer Double Station Load Shifting AGV

Core Advantages of C3-21 Monolayer Double Station Load Shifting AGV

01
Flexible operation

At the same time, it has the functions of 90-degree turning, 180-degree turning and lateral movement.

02
Multi-station, more efficient

The dual station supports simultaneous transfer of two baskets of materials or one-for-one-receiving empty-to-full exchange.

03
Get up and down the elevator

It can communicate and interact with ordinary elevators, and use elevators to complete up and down stairs.

04
Easy to use

Operate independently according to scheduling instructions, without manual intervention in the production process.

05
Fault self-check

It has perfect fault self-checking function, and has remote fault diagnosis and self-recovery function.

06
Linkage of multiple devices

Synchronous scheduling of multiple AGVs is suitable for complex material handling scenarios.

07
Automatic charging

When the battery is low, go to the charging station to automatically charge; it can achieve all-weather response and improve production efficiency.

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice alarm to ensure safe operation.
