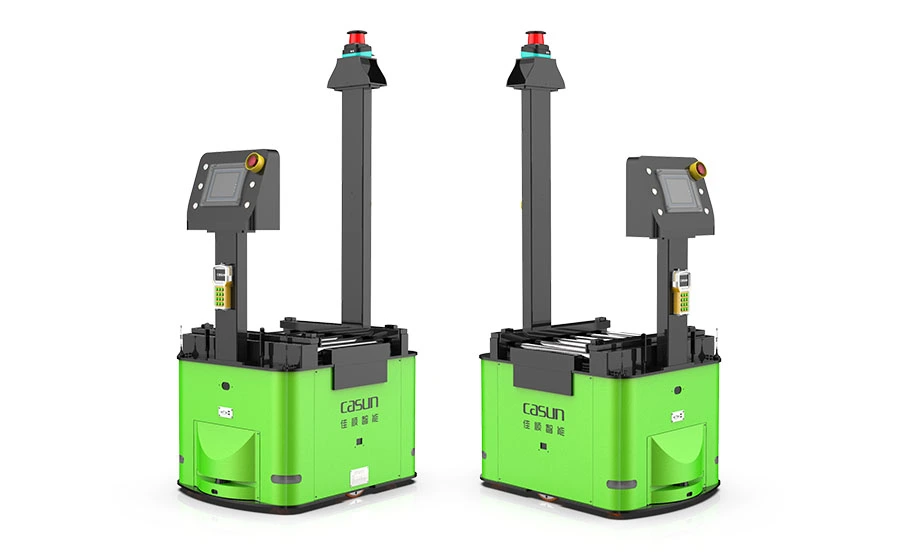

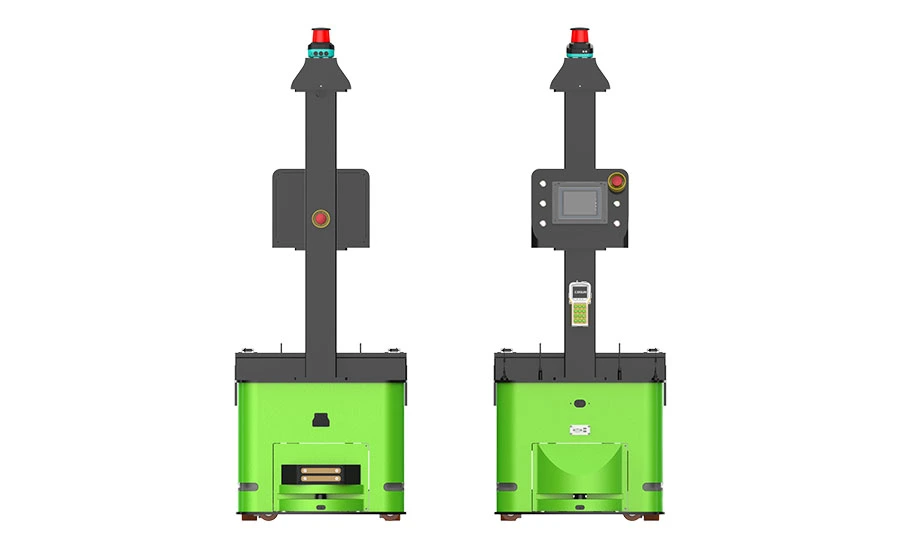

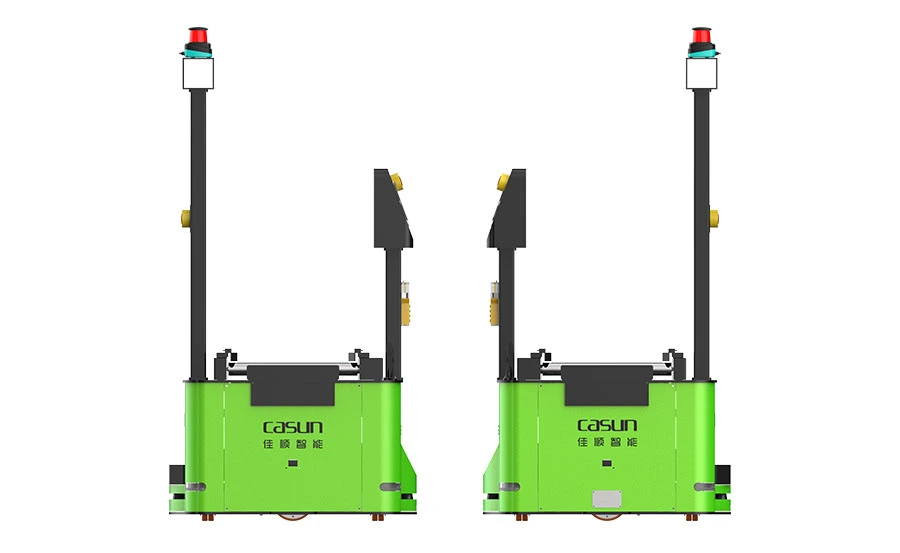

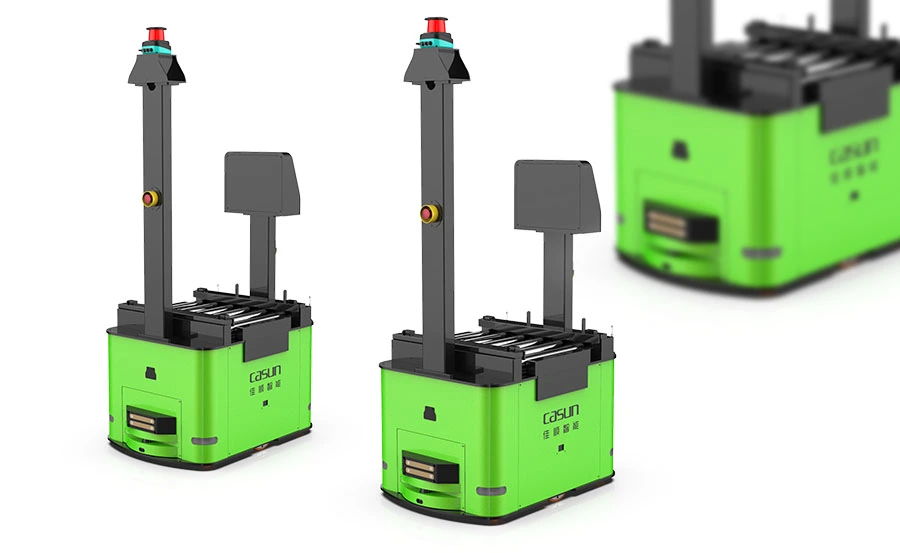

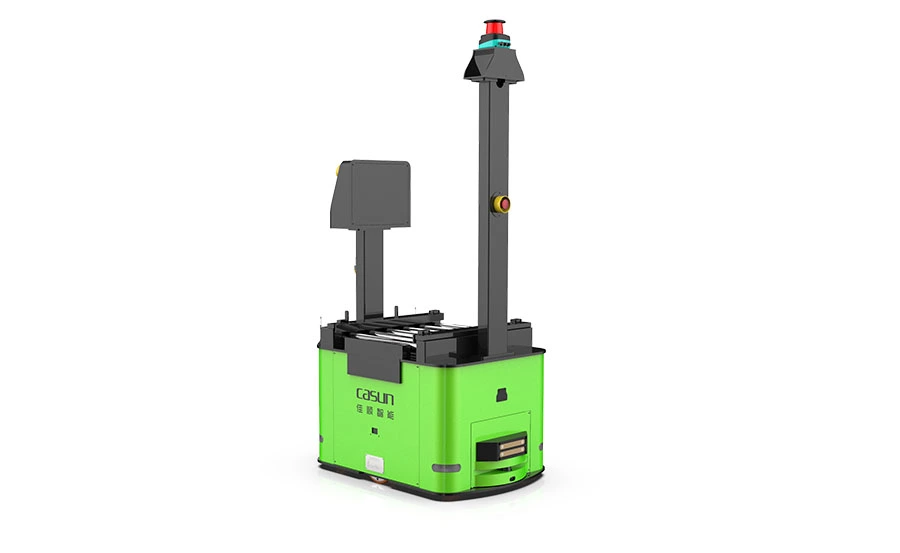

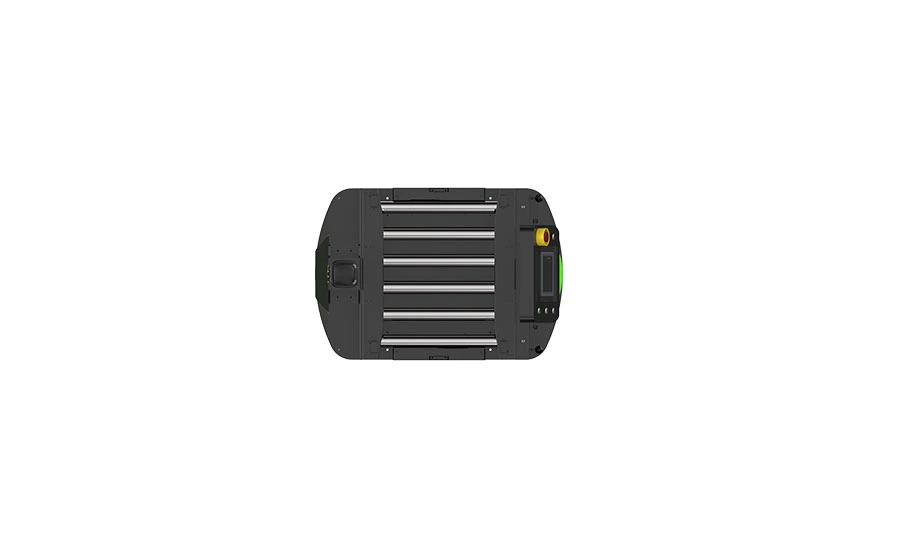

C3-15 Single Conveyor Deck Load AGV

C3-15 single conveyor deck load AGV uses the load shifting roller platform to automatically dock with the conveyor line or machine for material shifting. You can choose two-dimensional code navigation or laser navigation, with in-situ turning and rotation functions. This unit load AGV is suitable for the narrow logistics channel environment of 3C electronics industry and other project sites.

C3-15 Single Conveyor Deck Load AGV

Parameters of C3-15 Monolayer Sigle Station Load Shifting AGV


GuidanceQR code navigation/Laser navigationDriving methodDifferential drive
DimensionsL940xW650xH1900(mm)(Docking height is 600mm)Charging methodAuto charger(Bumping type)
Traveling directionForward, backward and rotationBatteryLithium battery
Load capacity200KG/500KGCommunicationWiFi/5G
Travel speed0~60m/minSafety alarmSound and visual warning
Conveyor deck numberSingleSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper+emergency stop switch
Stopping accuracy±10mm


Core Advantages of C3-15 Monolayer Sigle Station Load Shifting AGV

Core Advantages of C3-15 Monolayer Sigle Station Load Shifting AGV

01
Low requirements for venue space

The width of the AGV is only 650mm, and narrow lanes can also pass. At the same time, it has the functions of 90-degree turning and 180-degree in-situ rotation turning, which can be used in small space occasions.

02
Flexible docking

Both sides of the AGV can be connected to the wiring side equipment, which makes the transportation more flexible.

03
Small design

The compact design is very suitable for space-constrained scenes.

04
Strong environmental adaptability

It has a self-learning map function, which can automatically update the running map according to the changes in the running scene, which greatly improves the applicability of the environment.

05
Go up and down the elevator

It can communicate and interact with ordinary elevators, and use elevators to complete up and down stairs.

06
Linkage of multiple devices

Synchronous scheduling of multiple AGVs is suitable for complex material handling scenarios.

07
Easy to use

Operate independently according to scheduling instructions, without manual intervention in the production process.

08
Fault self-check

It has perfect fault self-checking function, and has remote fault diagnosis and self-recovery function.

09
Automatic charging

When the battery is low, it can be automatically charged at the charging station. No manual intervention is required to achieve 24-hour uninterrupted operation.
