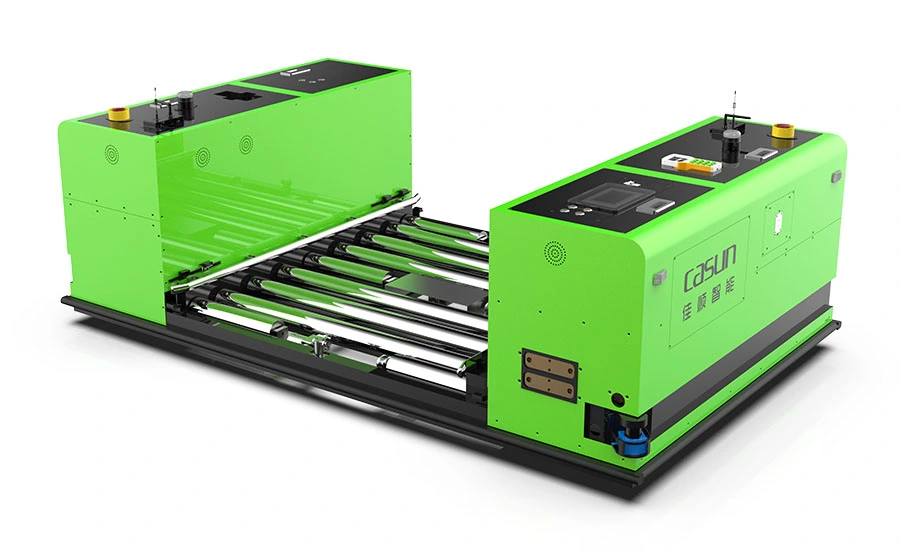

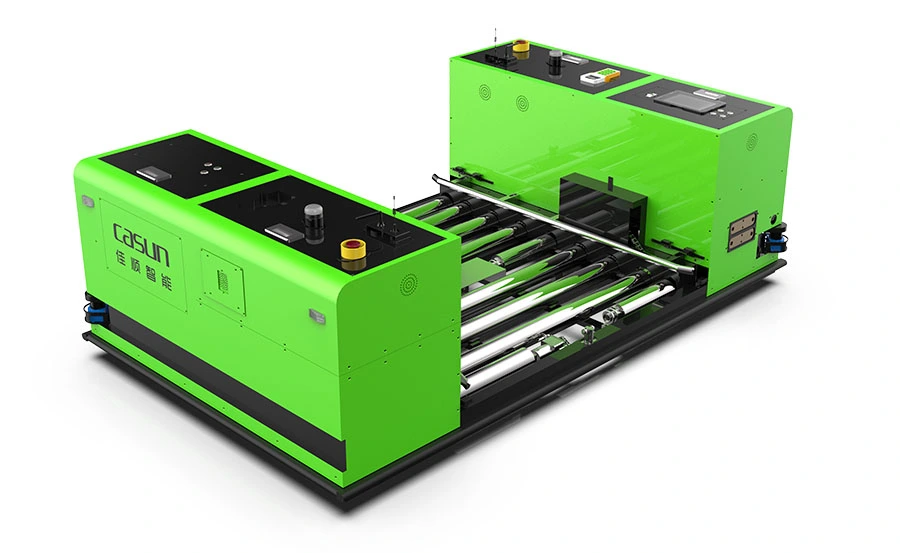

C3-12 Single Conveyor Deck Load AGV

C3-12 single conveyor deck load AGV Trolley adopts loading rollers to connect the wiring edge equipment, and has the functions of in-situ rotation and lateral movement. You can choose magnetic stripe navigation or QR code navigation according to the project site environment.

C3-12 Single Conveyor Deck Load AGV

Parameters of C3-12 Monolayer Sigle Station Load Shifting AGV


GuidanceMagnetic navigation/QR code navigationDriving methodSteering wheel
DimensionsL2200*W1376*H760(mm)(Docking height is 180mm)Charging methodAuto charger(Side type)
Traveling directionForward, backward, rotation and lateralBatteryLithium battery
Load capacity1000KGCommunicationWiFi/5G
Travel speed0~45m/min(Magnetic navigation),0~60m/min(QR code navigation)Safety alarmSound and visual warning
Conveyor deck numberSingleSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper+emergency stop switch
Stopping accuracy±10mm


Core Advantages of C3-12 Monolayer Sigle Station Load Shifting AGV

Core Advantages of C3-12 Monolayer Sigle Station Load Shifting AGV

01
Flexible operation

At the same time, it has the functions of 90-degree turn, 180-degree turn and side shift.

02
Flexible docking

Both sides of the AGV can be connected to the wiring side equipment, the transportation is more flexible, and the docking height only needs 180mm.

03
Get up and down the elevator

It can communicate and interact with ordinary elevators, and use elevators to complete up and down stairs.

04
Linkage of multiple devices

Synchronous scheduling of multiple AGVs is suitable for complex material handling scenarios.

05
Easy to use

Operate independently according to scheduling instructions, without manual intervention in the production process.

06
Fault self-check

It has perfect fault self-checking function, and has remote fault diagnosis and self-recovery function.

07
Automatic charging

When the battery is low, it can be automatically charged at the charging station. And can realize 24 hours of uninterrupted operation, without manual intervention.

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice alarm to ensure safe operation.
