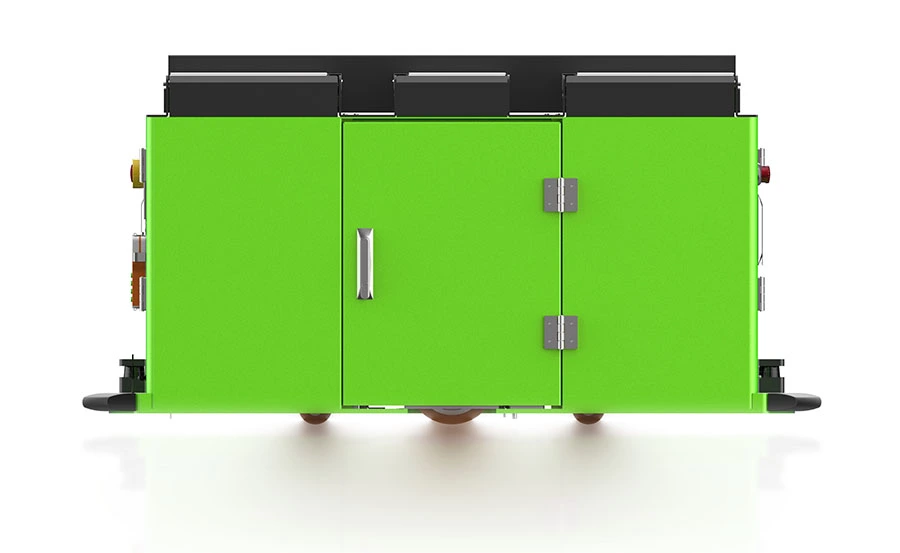

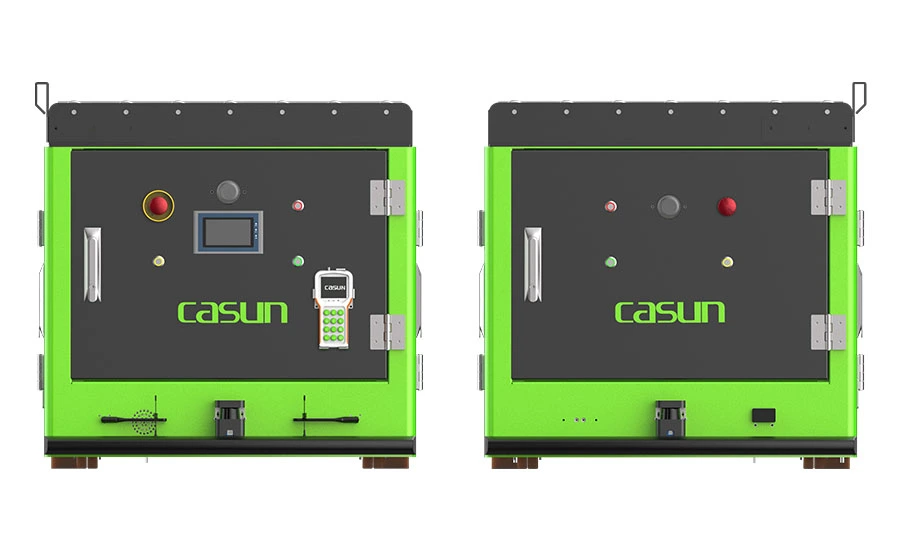

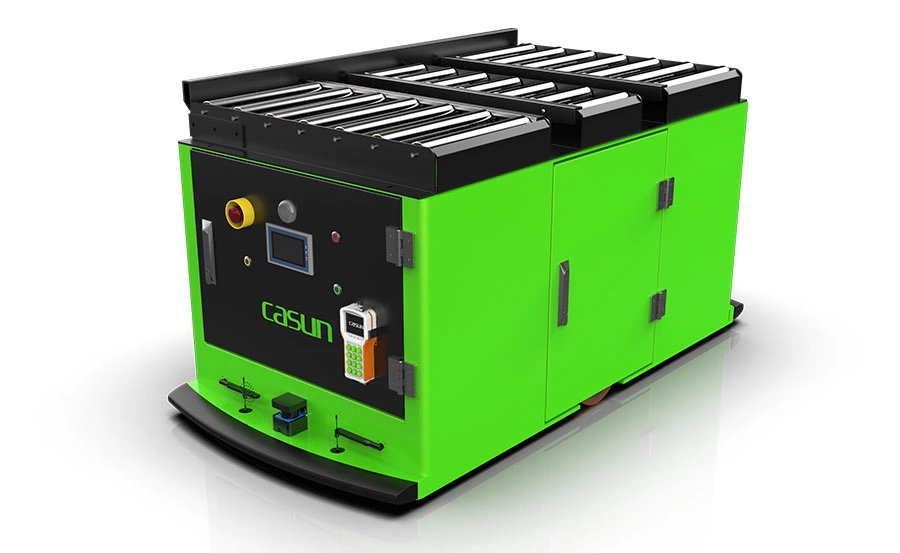

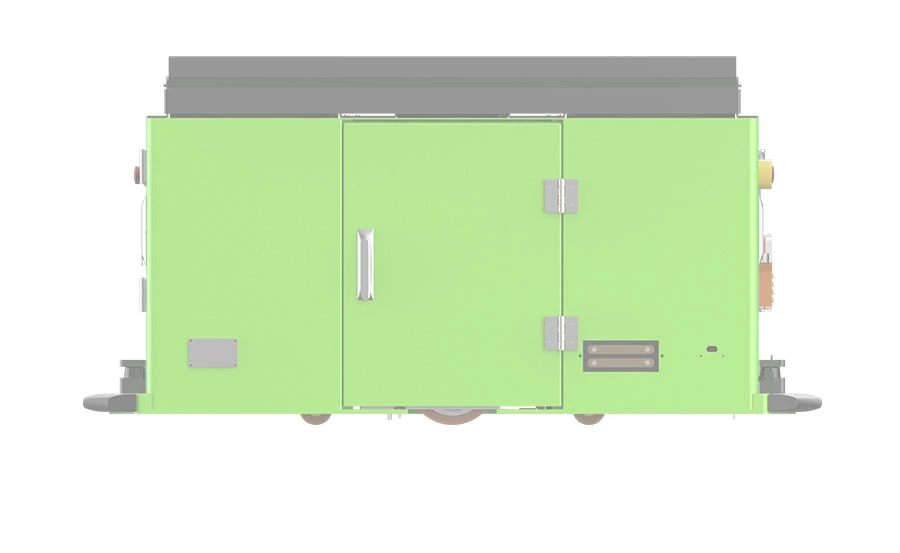

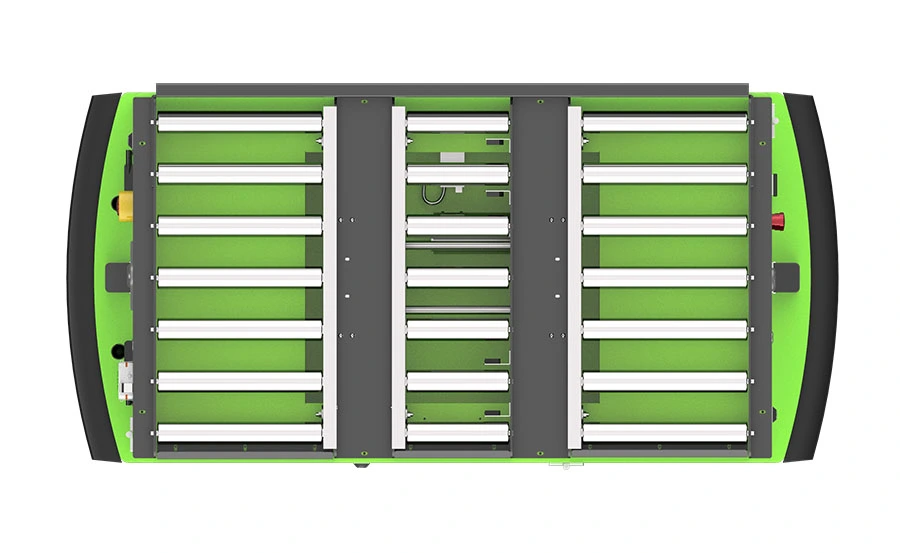

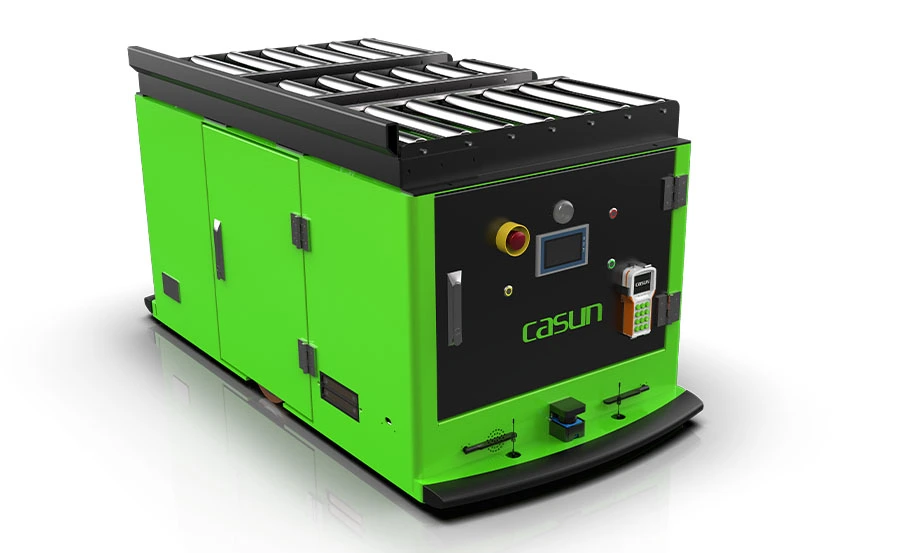

C3-31 Three Conveyor Deck Load AGV

C3-31 three conveyor deck unit load carrier AGV is a single-layer three-station roller AGV. The roller platform and the production line or transmission line connection platform seamlessly and automatically dock for material transfer. The three groups of rollers are controlled separately, and the receiving and sending actions can be completed at the same time or separately. You can use magnetic navigation or QR code navigation according to different scenarios.


C3-31 Three Conveyor Deck Load AGV

Parameters of C3-31 Monolayer Three Station Load Shifting AGV


GuidanceMagnetic navigation/QR code navigationDriving methodDifferential drive
DimensionsL1700xW800xH900(mm)(Docking height is 800mm)Charging methodAuto charger(Side /ground type)
Traveling directionForward, backward, rotation and lateralBatteryLithium battery
Load capacity500KGCommunicationWiFi/5G
Travel speed0~45m/min(Magnetic navigation),0~60m/min(QR code navigation)Safety alarmSound and visual warning
Conveyor deck numberThreeSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper+emergency stop switch
Stopping accuracy±10mm


Core Advantages of C3-31 Monolayer Three Station Load Shifting AGV

Core Advantages of C3-31 Monolayer Three Station Load Shifting AGV

01
Flexible operation

With 90-degree turn and 180-degree turn function.

02
Multi-station, more efficient

The dual station supports simultaneous transfer of two baskets of materials or one-for-one-receiving empty-to-full exchange.

03
Get up and down the elevator

It can communicate and interact with ordinary elevators, and use elevators to complete up and down stairs.

04
Easy to use

Operate independently according to scheduling instructions, without manual intervention in the production process.

05
Fault self-check

It has perfect fault self-checking function, and has remote fault diagnosis and self-recovery function.

06
Linkage of multiple devices

Synchronous scheduling of multiple AGVs is suitable for complex material handling scenarios.

07
Automatic charging

When the battery is low, go to the charging station to automatically charge; it can achieve all-weather response and improve production efficiency.

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice alarm to ensure safe operation.

Application Cases From CASUN

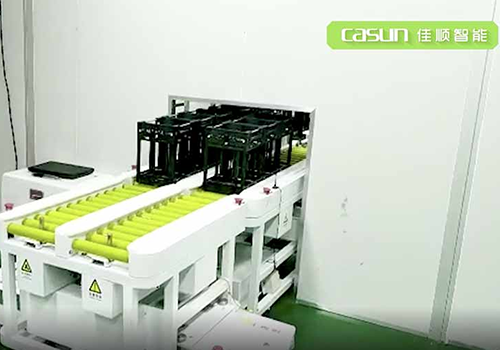

CBAK Battery / New Energy Transshipment Project
CBAK Battery / New Energy Transshipment Project

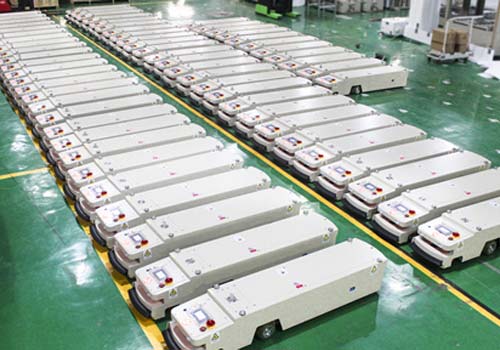

Lithium Battery Industries-LEAD INTELLIGENT-Lead Intelligent Transport Project
Lithium Battery Industries-LEAD INTELLIGENT-Lead Intelligent Transport Project
Lithium Battery Industries-hunan Niushun-intelligent Transport Project
Lithium Battery Industries-hunan Niushun-intelligent Transport Project

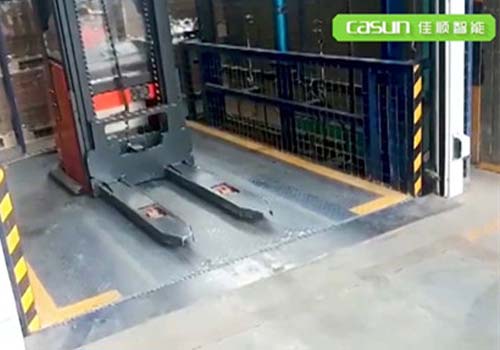

New Energy Industries-yongxiang Polysilicon-yongxiang Polysilicon AGV Project
New Energy Industries-yongxiang Polysilicon-yongxiang Polysilicon AGV Project

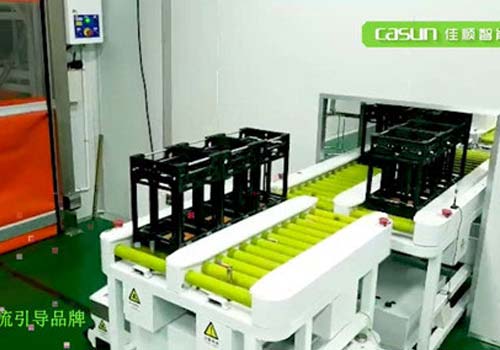

New Energy Industries-BAK Battery-transfer Project of a Workshop
New Energy Industries-BAK Battery-transfer Project of a Workshop

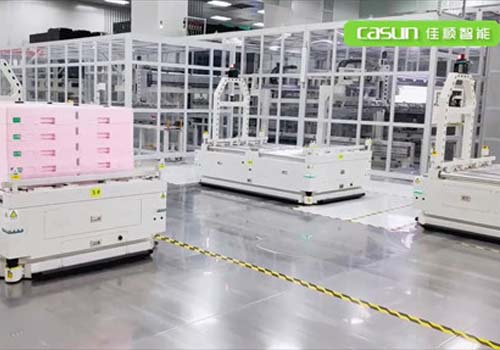

Flat Panel Display-CSOT-Huizhou Factory M6A CST Transshipment Project
Flat Panel Display-CSOT-Huizhou Factory M6A CST Transshipment Project

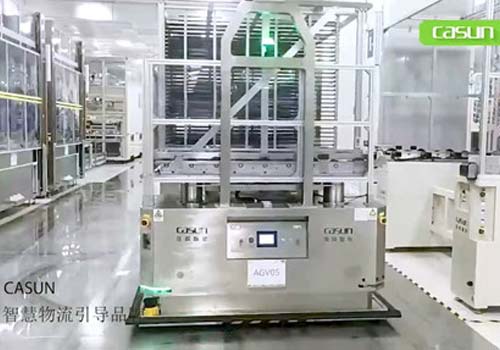

Flat Panel Display-BOE Hefei Plant B5 AGV Transshipment Project
Flat Panel Display-BOE Hefei Plant B5 AGV Transshipment Project

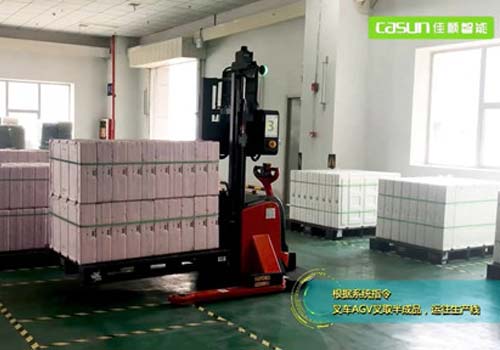

Flat Panel Display-Huike Co., Ltd. (HKC)-New Factory Automatic Storage Material Delivery Project
Flat Panel Display-Huike Co., Ltd. (HKC)-New Factory Automatic Storage Material Delivery Project

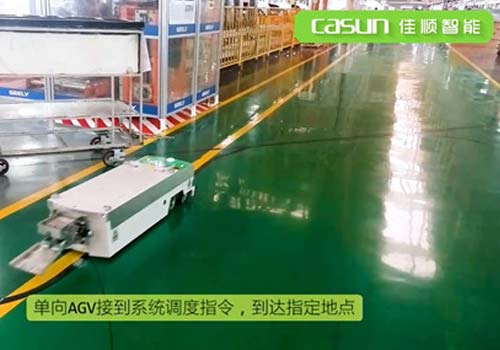

Automobile Industry + Geely Automobile Xiangtan Assembly Workshop AGV Project
Automobile Industry + Geely Automobile Xiangtan Assembly Workshop AGV Project

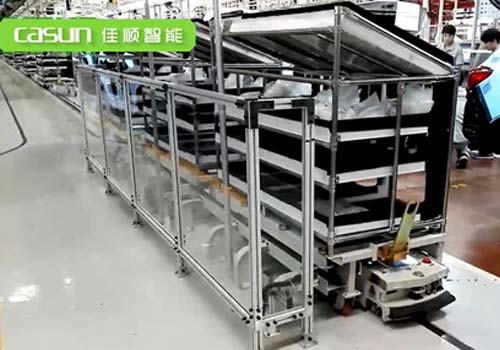

Automobile industry + AGV project of Hanteng Automobile Jiangxi Assembly Workshop
Automobile industry + AGV project of Hanteng Automobile Jiangxi Assembly Workshop

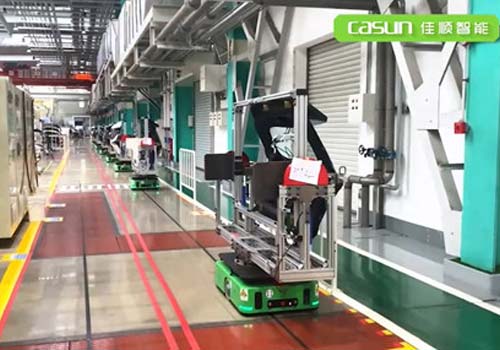

Automotive Industry + Toyota Motor Tianjin Assembly Workshop AGV Project
Automotive Industry + Toyota Motor Tianjin Assembly Workshop AGV Project

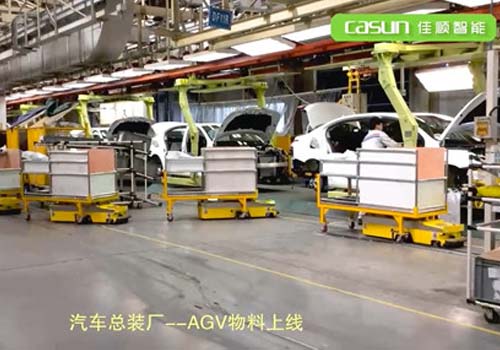

Automobile industry + AGV project of Shenlong Automobile Wuhan Assembly Workshop
Automobile industry + AGV project of Shenlong Automobile Wuhan Assembly Workshop

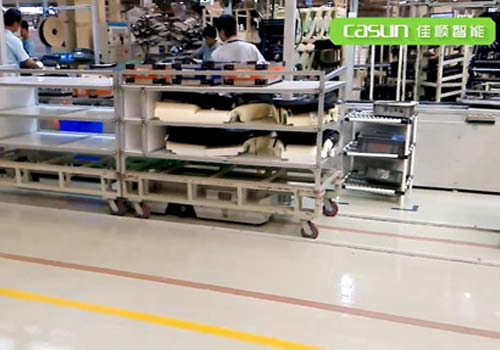

Auto Parts + Lear Seat Guangzhou Assembly Workshop AGV Projec
Auto Parts + Lear Seat Guangzhou Assembly Workshop AGV Projec

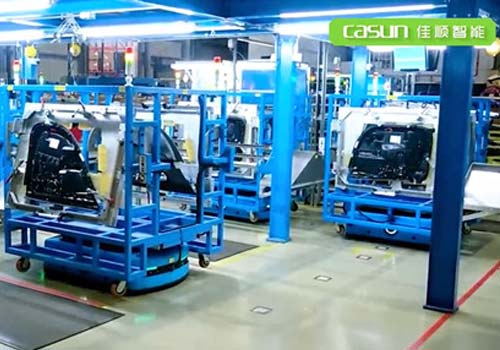

Auto Parts + Yanfeng Johnson + Ningbo Yanfeng Johnson Seat Assembly Workshp AGV Project
Auto Parts + Yanfeng Johnson + Ningbo Yanfeng Johnson Seat Assembly Workshp AGV Project
3C Electronics-Huawei Shenzhen SMT Workshop PCBA Transfer Project
3C Electronics-Huawei Shenzhen SMT Workshop PCBA Transfer Project

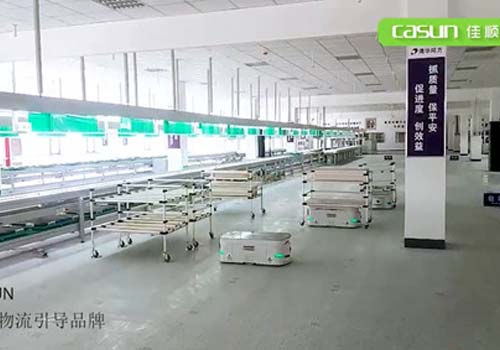

3C Electronics-Tsinghua Tongfang-Transfer Project
3C Electronics-Tsinghua Tongfang-Transfer Project

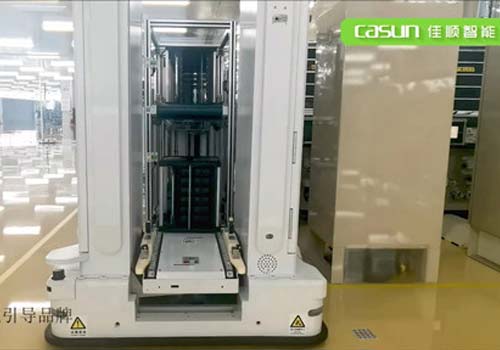

3C Electronics-Tianjin Denso-Tianjin Denso Transshipment Project
3C Electronics-Tianjin Denso-Tianjin Denso Transshipment Project

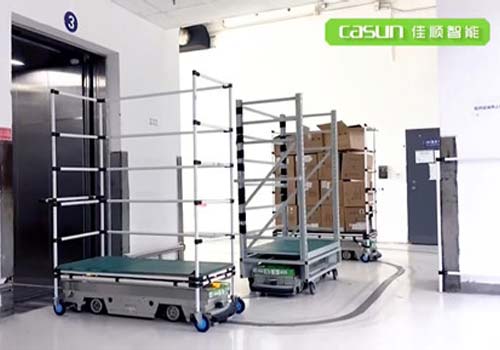

3C Electronics-Chongqing Xushuo-Chongqing Yubei Xushuo (Raw Material Transportation) Project
3C Electronics-Chongqing Xushuo-Chongqing Yubei Xushuo (Raw Material Transportation) Project

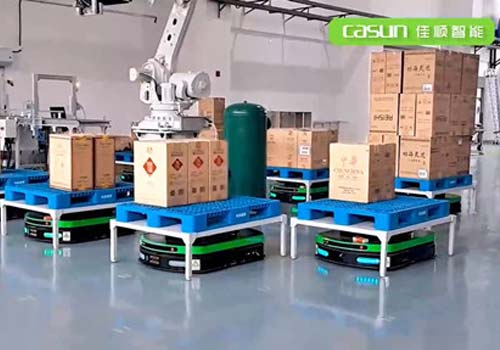

Finished Product Warehouse Intelligent Sorting Project of China Tobacco Logistics in Jixi City, Heilongjiang Province
Finished Product Warehouse Intelligent Sorting Project of China Tobacco Logistics in Jixi City, Heilongjiang Province

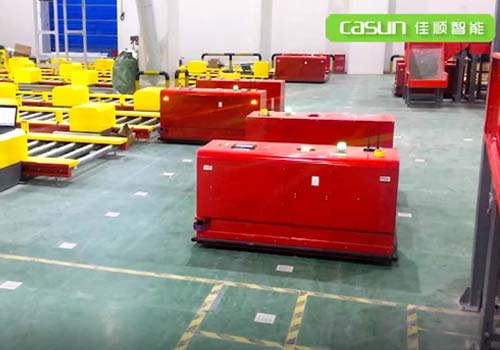

Jingdong Logistics Beijing Cold Storage Food Transfer Project
Jingdong Logistics Beijing Cold Storage Food Transfer Project

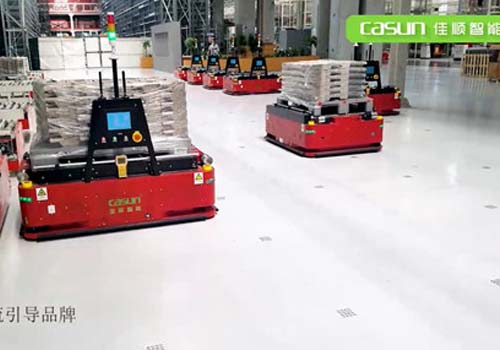

Household Appliance Industry-Romanian Lighthouse Factory-Intelligent Logistics Project
Household Appliance Industry-Romanian Lighthouse Factory-Intelligent Logistics Project

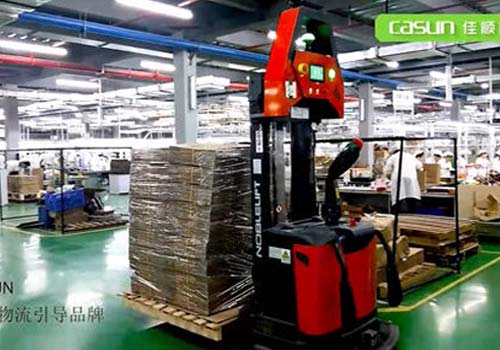

Home Appliance & Lighting - Opple lighting - Intelligent logistics AGV Project in Suzhou Factory Site
Home Appliance & Lighting - Opple lighting - Intelligent logistics AGV Project in Suzhou Factory Site
Home Appliance Industry - Midea - Intelligent Logistics Project in Hefei Factory
Home Appliance Industry - Midea - Intelligent Logistics Project in Hefei Factory
Home Appliance Industry - Gree Factory Intelligent Logistics Project
Home Appliance Industry - Gree Factory Intelligent Logistics Project

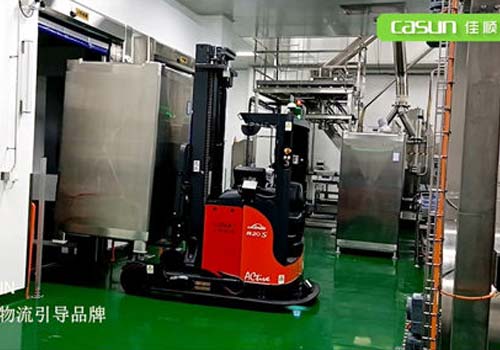

Food & Beverage Industry - Flying Crane Longjiang Milk Company - Heilongjiang Flying Crane Longjiang AGV project
Food & Beverage Industry - Flying Crane Longjiang Milk Company - Heilongjiang Flying Crane Longjiang AGV project
Distiller's Yeast Transfering Project Of Shanxi Fen Wine Factory
Distiller's Yeast Transfering Project Of Shanxi Fen Wine Factory

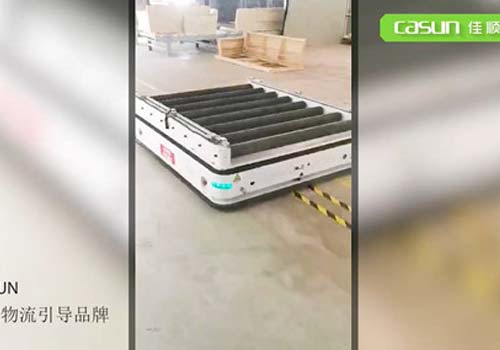

Furniture Industry - Aiyi Intelligent - Jiangsu Pizhou Furniture Materials Transferring Project
Furniture Industry - Aiyi Intelligent - Jiangsu Pizhou Furniture Materials Transferring Project
Furniture Industry - Zhejiang Zhichang Group - Transferring Project of Nankang Zhikang Group
Furniture Industry - Zhejiang Zhichang Group - Transferring Project of Nankang Zhikang Group

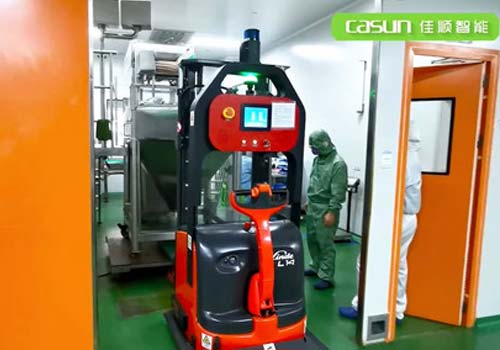

Pharmaceutical Industry-CR SANJIU Shenzhen Factory Production Line Logistics Project
Pharmaceutical Industry-CR SANJIU Shenzhen Factory Production Line Logistics Project
Pharmaceutical Industry-Shanghai Jia Tian Pharmaceutical Packaging Line AGV Project
Pharmaceutical Industry-Shanghai Jia Tian Pharmaceutical Packaging Line AGV Project

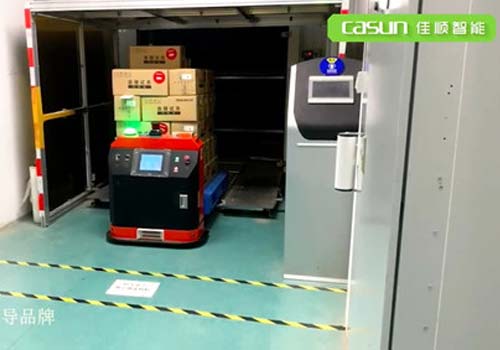

Pharmaceutical Industry-SINOCARE Biosensor Hunan Plant Material Transfer Project
Pharmaceutical Industry-SINOCARE Biosensor Hunan Plant Material Transfer Project

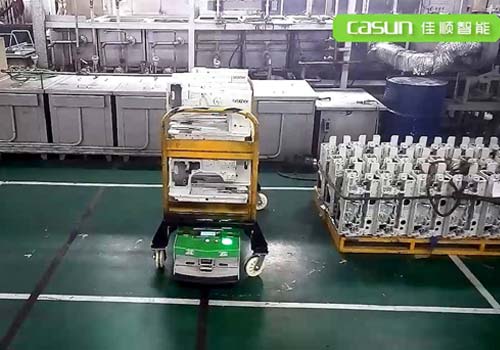

Footwear Industry-jack Sewing Machine Gathering Area Factory Production Line Logistics Project
Footwear Industry-jack Sewing Machine Gathering Area Factory Production Line Logistics Project

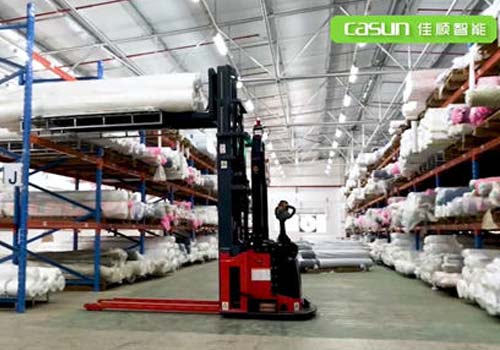

Shoes and Apparel Industry-Heshan Beifeng Home Textiles Co., Ltd. + Heshan City, Jiangmen City, Guangdong Province
Shoes and Apparel Industry-Heshan Beifeng Home Textiles Co., Ltd. + Heshan City, Jiangmen City, Guangdong Province
Petrochemical Industry-Anshun Intelligent Storage Project of Southwest Branch of China Petroleum Engineering Construction Co., Ltd.
Petrochemical Industry-Anshun Intelligent Storage Project of Southwest Branch of China Petroleum Engineering Construction Co., Ltd.

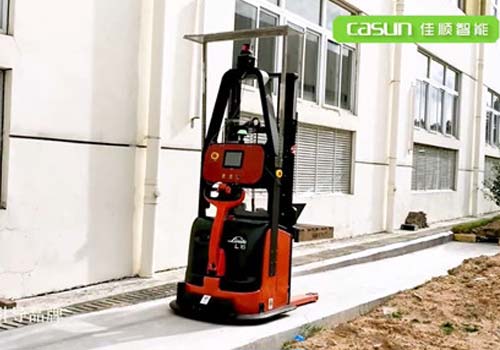

Others-Golden Dragon Rare Earth-Fujian XX Transshipment Project
Others-Golden Dragon Rare Earth-Fujian XX Transshipment Project

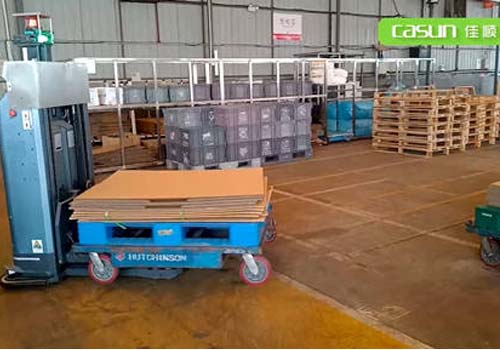

Others-Hutchinson-Hutchinson Wuhan Public Forklift AGV Project
