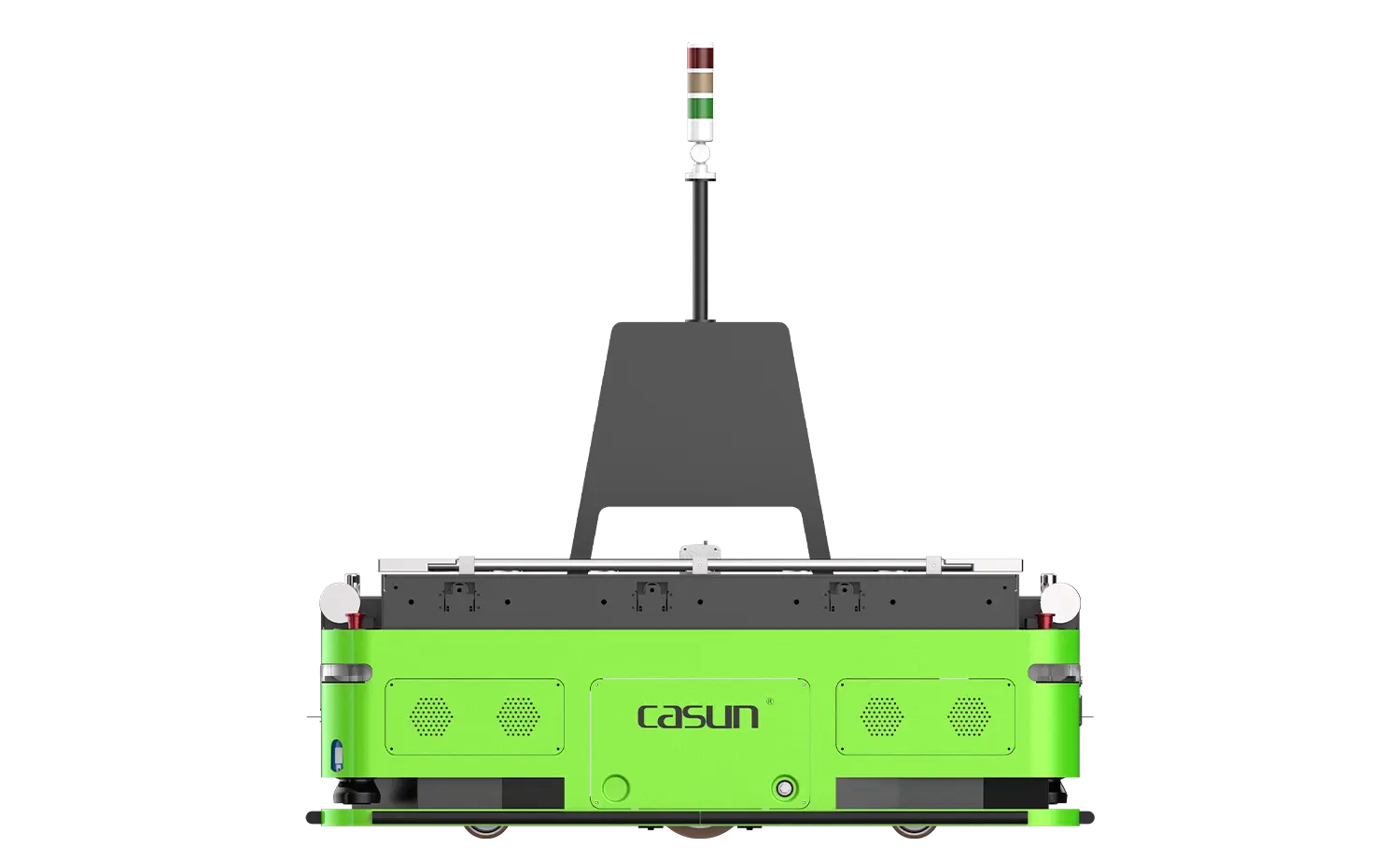

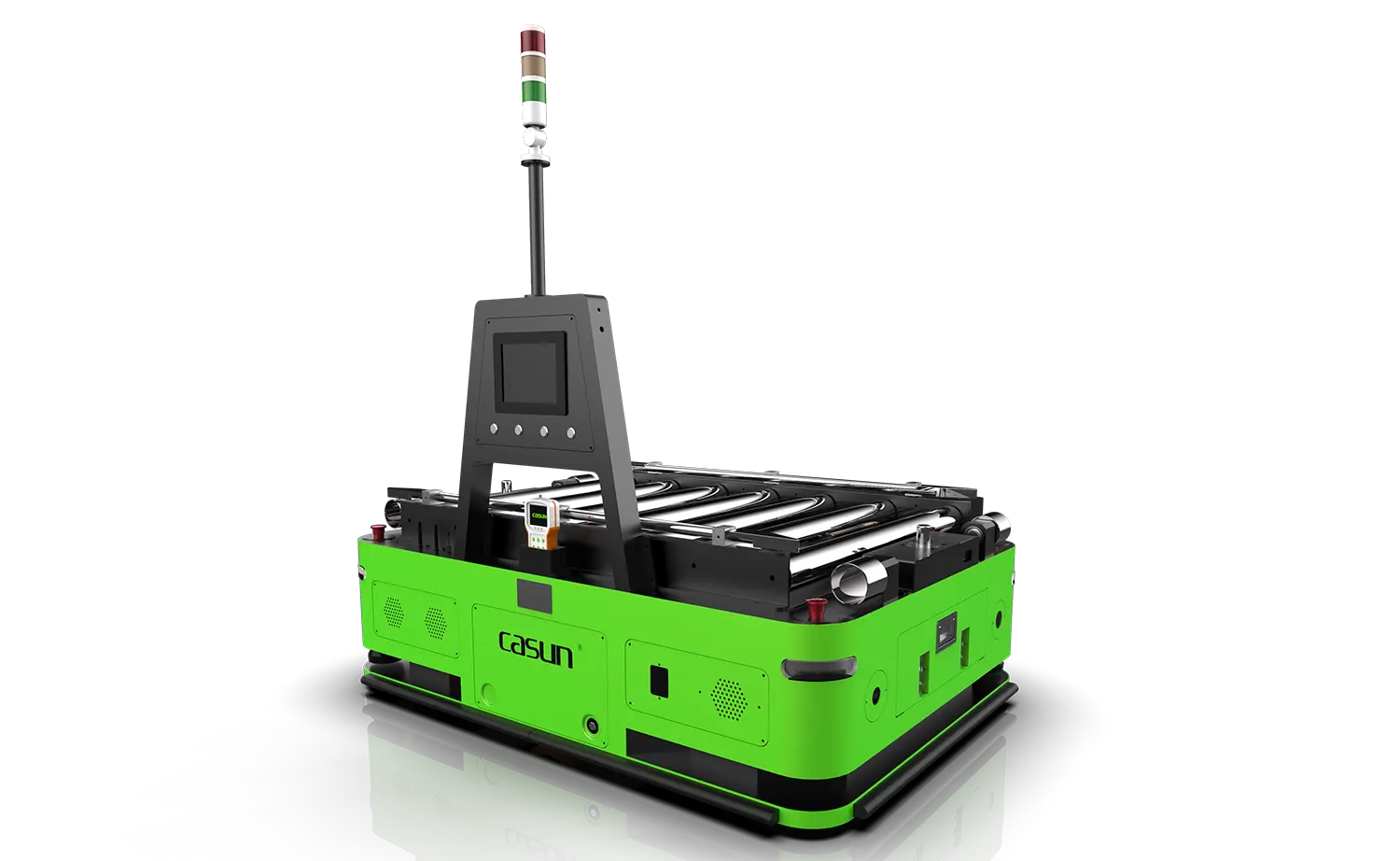

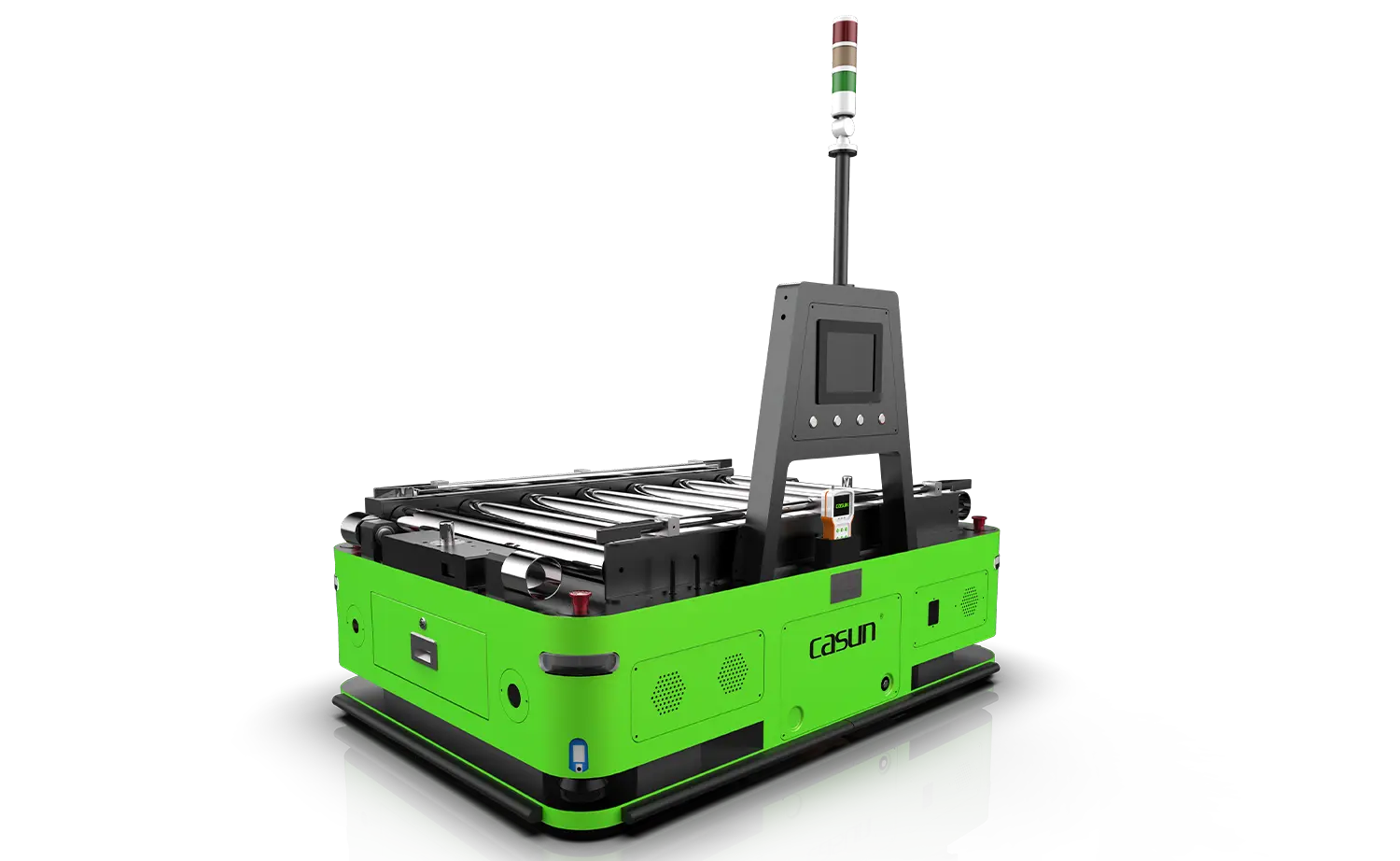

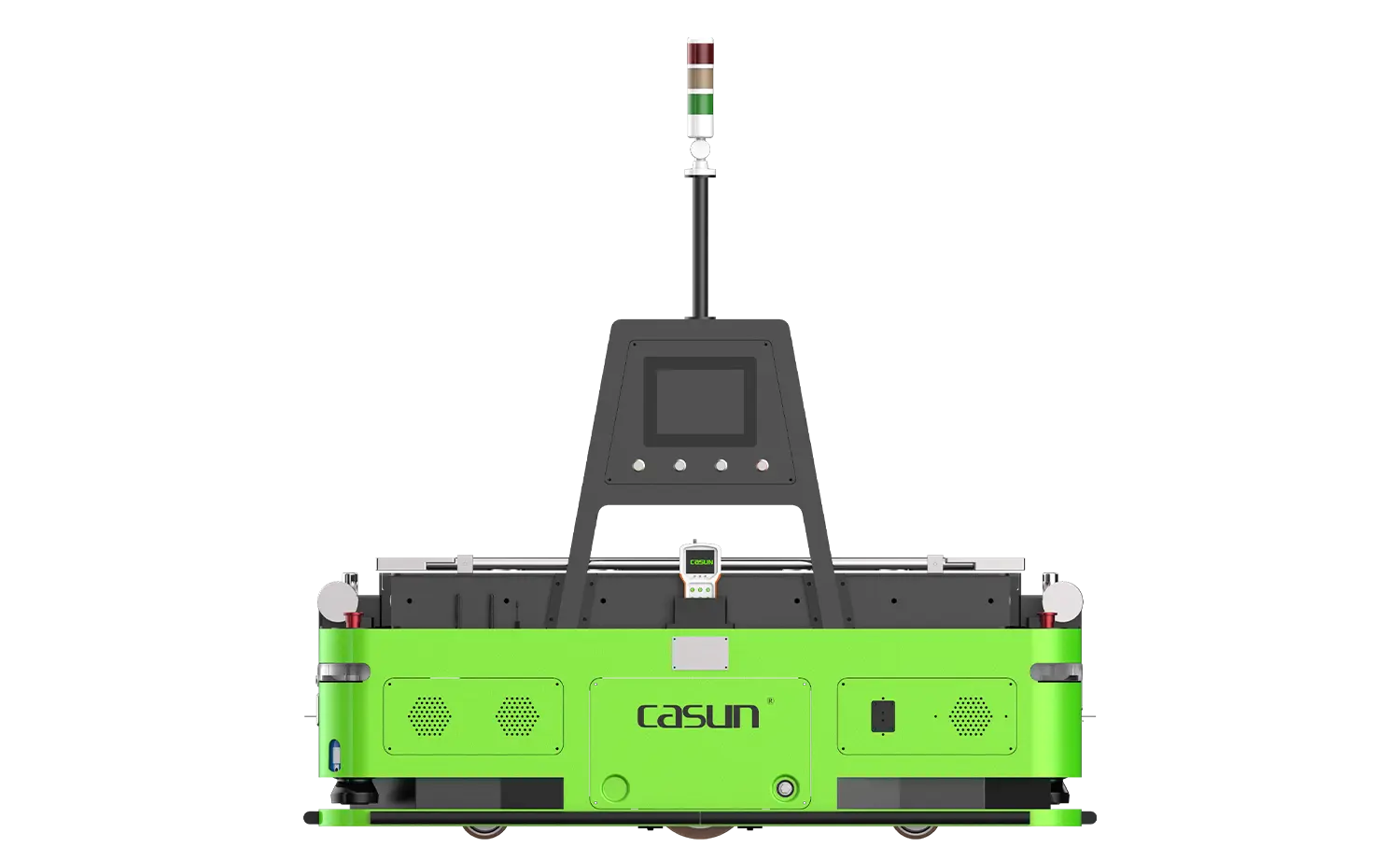

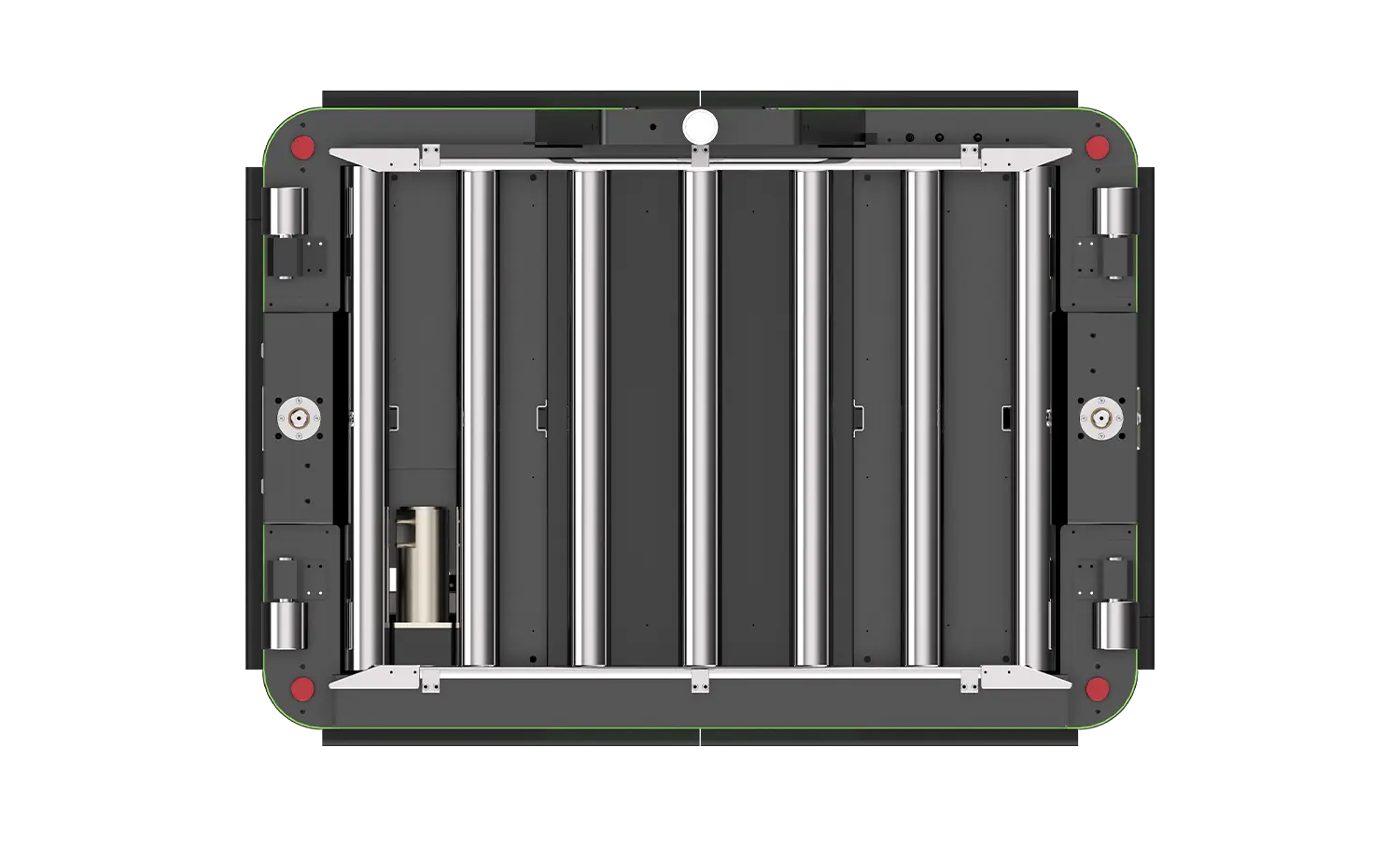

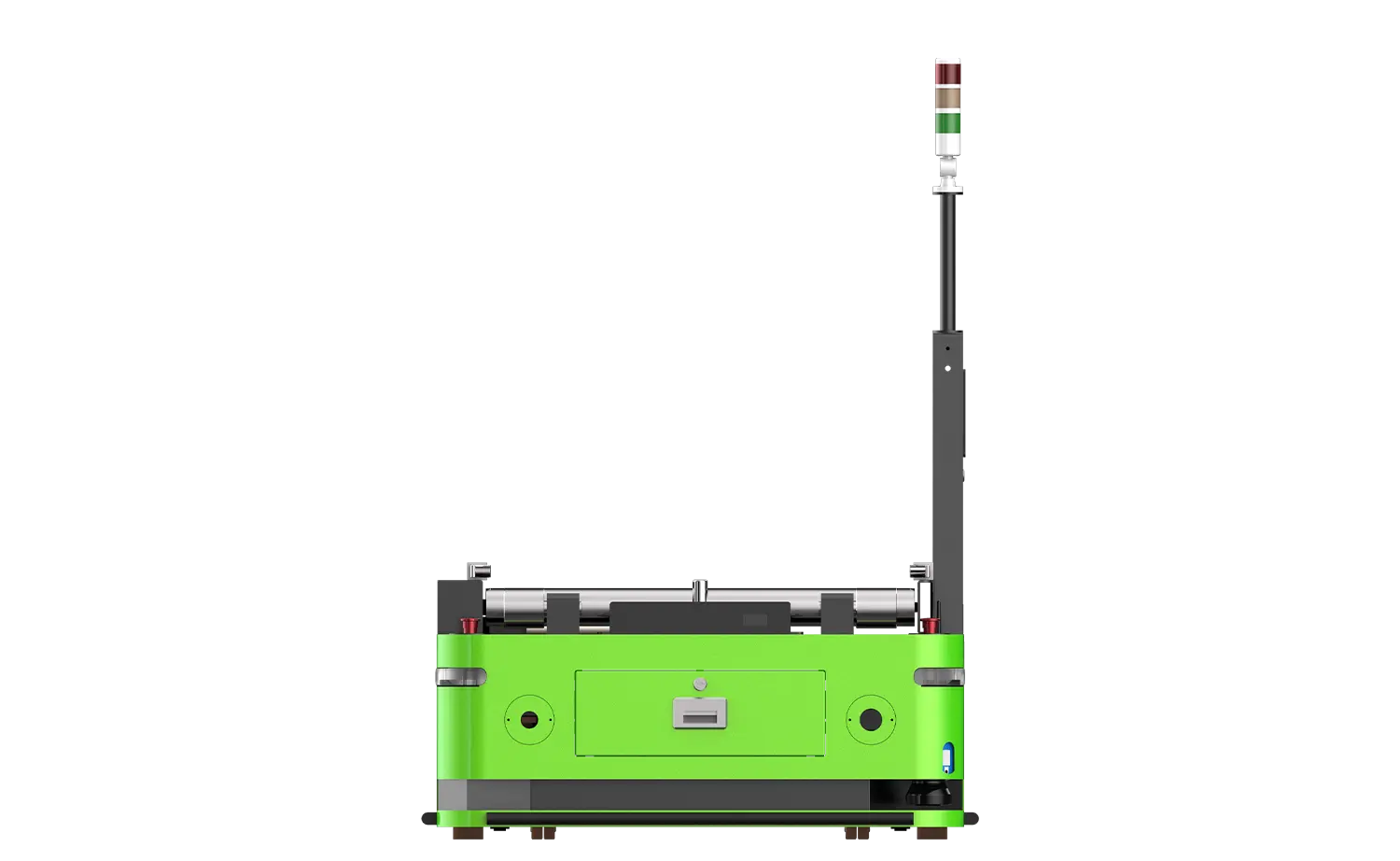

C3-11 Single Conveyor Deck Load AGV

C3-11 single conveyor deck load AGV Trolley is a trackless navigation AGV, which uses shoulder-mounted roller to connect production line or transport connection platform, and has the function of in-situ rotation. Two-dimensional code navigation, laser navigation or SLAM navigation can be adopted according to different scenarios.

C3-11 Single Conveyor Deck Load AGV

Parameters of C3-11 Monolayer Sigle Station Load Shifting AGV


GuidanceQR code navigation/Laser navigation/SLAM navigationDriving methodDifferential drive
DimensionsL1660*W1600*H1900(mm)(Docking height is 400mm)Charging methodAuto charger(Side type)
Traveling directionForward, backward and rotationBatteryLithium battery
Load capacity1000KGCommunicationWiFi/5G
Travel speed0~60m/minSafety alarmSound and visual warning
Conveyor deck numberSingleSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper+emergency stop switch
Stopping accuracy±10mm


Core Advantages of C3-11 Monolayer Sigle Station Load Shifting AGV

Core Advantages of C3-11 Monolayer Sigle Station Load Shifting AGV

01
Flexible operation

It has 90 degree turn and 180 degree turn function.

02
Flexible docking

Both sides of the AGV can be connected to the wiring side equipment for more flexible transportation.

03
Up and down the elevator

It can be linked with ordinary elevator, with cross-floor operation function.

04
Multiple devices linked

Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.

05
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

06
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

07
Auto-charging

When the power is low, it can go to the charging station for automatic charging. And it can achieve 24 hours of operation without manual intervention

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
