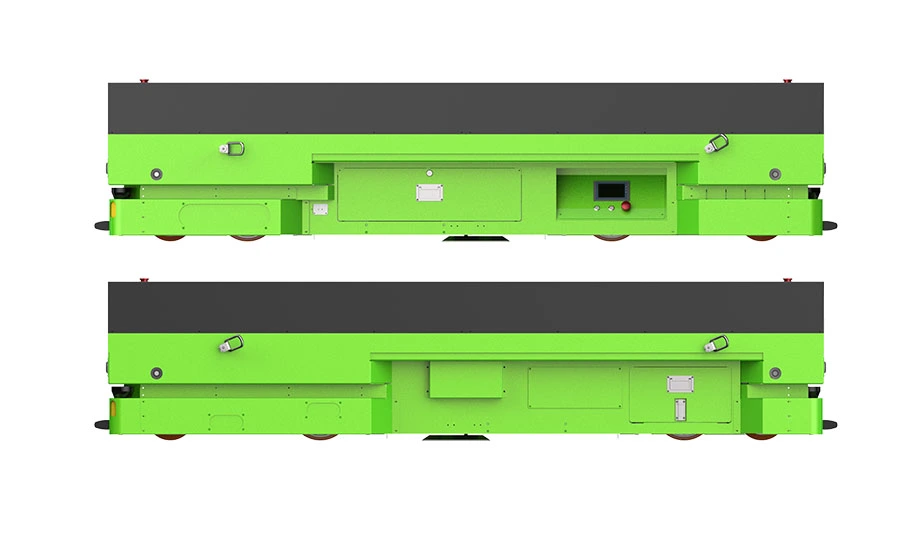

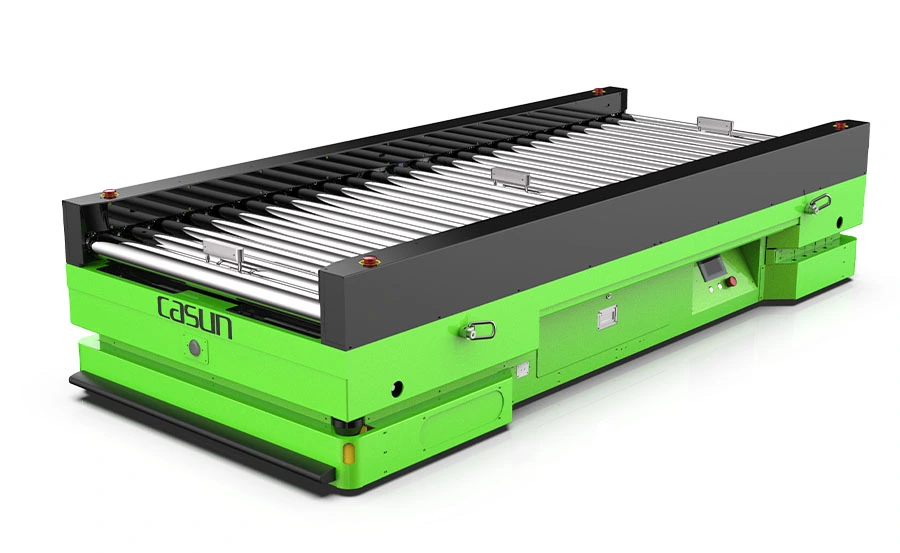

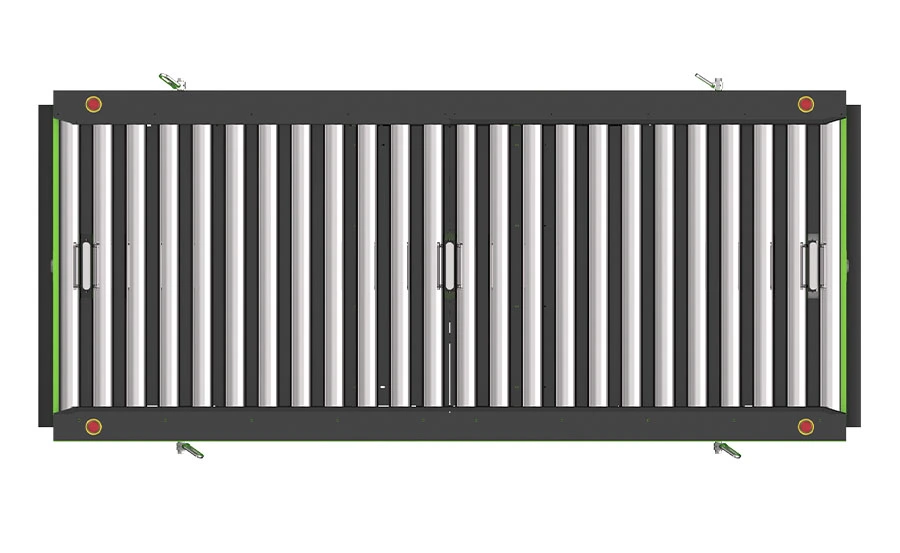

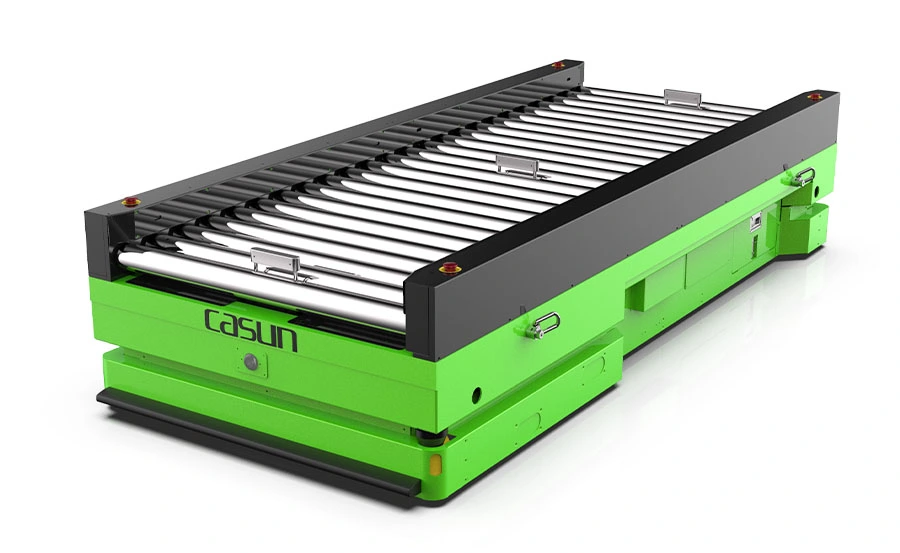

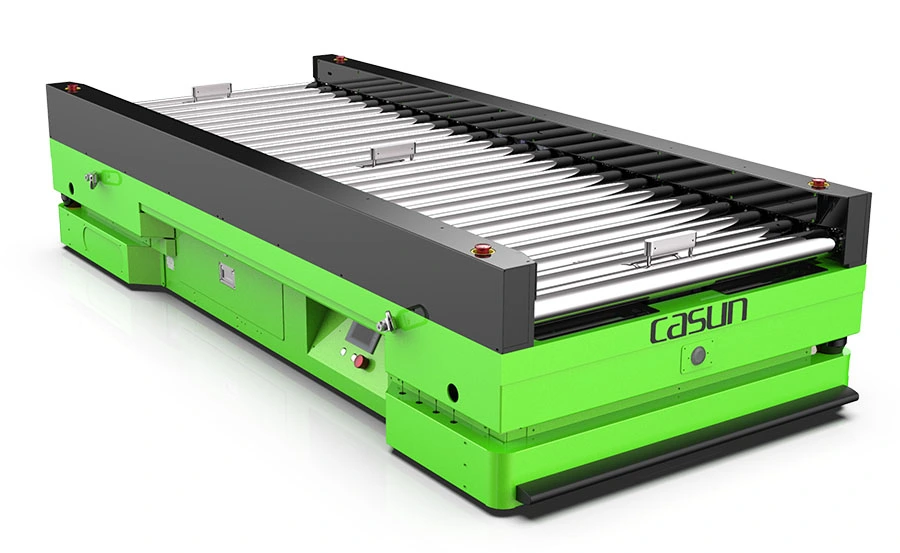

C3-14 Single conveyor deck load AGV

C3-14 single conveyor deck load AGV is a standard single-station single-station roller AGV, which uses the bearing roller platform to automatically dock the conveyor line or machine for material handling. This unit load AGV has the functions of in-situ rotation and lateral movement, and can choose magnetic stripe navigation, QR code navigation or SLAM navigation according to the project site.

C3-14 Single conveyor deck load AGV

Parameters of C3-14 Monolayer Sigle Station Load Shifting AGV


GuidanceMagnetic navigation/QR code navigation/SLAM navigationDriving methodSteering wheel
DimensionsL2000xW800xH650(mm)(Docking height is 600mm)Charging methodAuto charger(Side /ground type)
Traveling directionForward, backward, rotation and lateralBatteryLithium battery
Load capacity1000KGCommunicationWiFi/5G
Travel speed0~45m/min(Magnetic navigation),0~60m/min(QR code navigation/SLAM navigation)Safety alarmSound and visual warning
Conveyor deck numberSingleSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront safety laser scanner+mechanical anti-collision bumper
Stopping accuracy±10mm


Core Advantages of C3-14 Monolayer Sigle Station Load Shifting AGV

Core Advantages of C3-14 Monolayer Sigle Station Load Shifting AGV

01
Flexible operation

At the same time, it has the functions of 90-degree turn, 180-degree turn and side shift.

02
Flexible docking

Both sides of the AGV can be connected to the wiring side equipment, which makes the transportation more flexible.

03
Strong environmental adaptability

It has a self-learning map function, which can automatically update the running map according to the changes in the running scene, which greatly improves the applicability of the environment.

04
Go up and down the elevator

It can communicate and interact with ordinary elevators, and use elevators to complete up and down stairs.

05
Linkage of multiple devices

Synchronous scheduling of multiple AGVs is suitable for complex material handling scenarios.

06
Easy to use

Operate independently according to scheduling instructions, without manual intervention in the production process.

07
Fault self-check

It has perfect fault self-checking function, and has remote fault diagnosis and self-recovery function.

08
Automatic charging

When the battery is low, it can be automatically charged at the charging station. And can realize 24 hours of uninterrupted operation, without manual intervention.

09
Operation visualization

Equipped with an all-in-one machine, which is convenient for users to operate and control.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice alarm to ensure safe operation.
