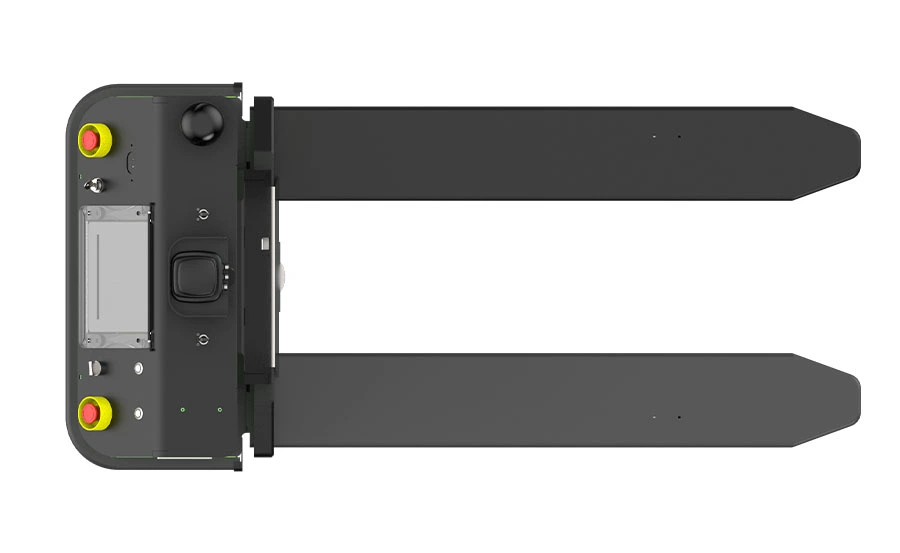

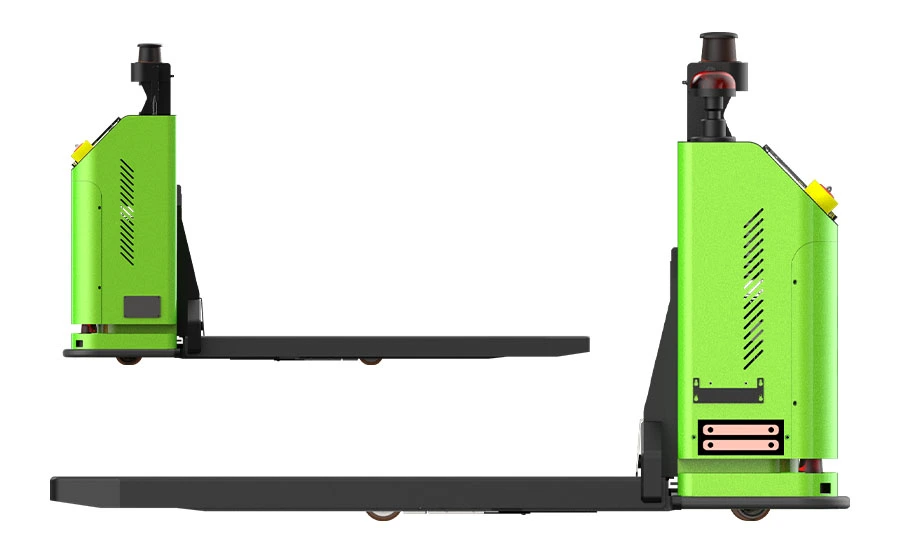

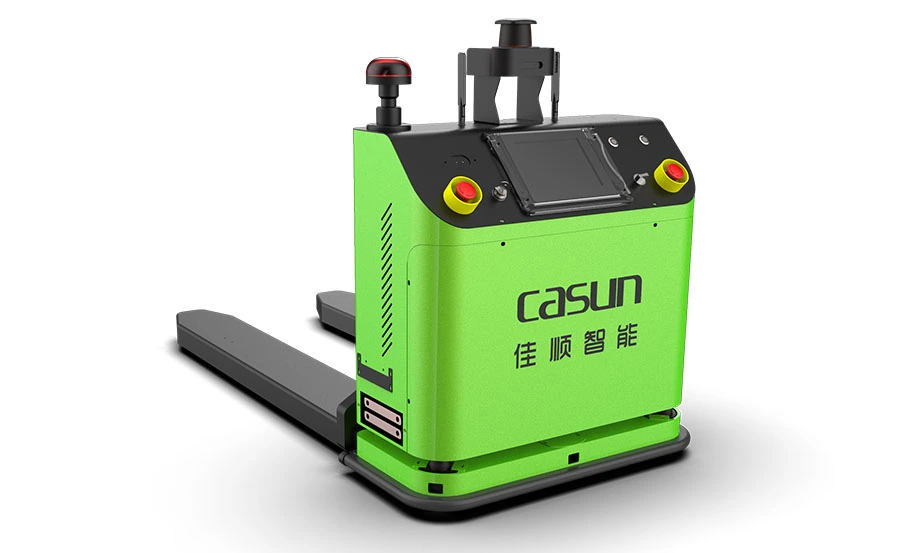

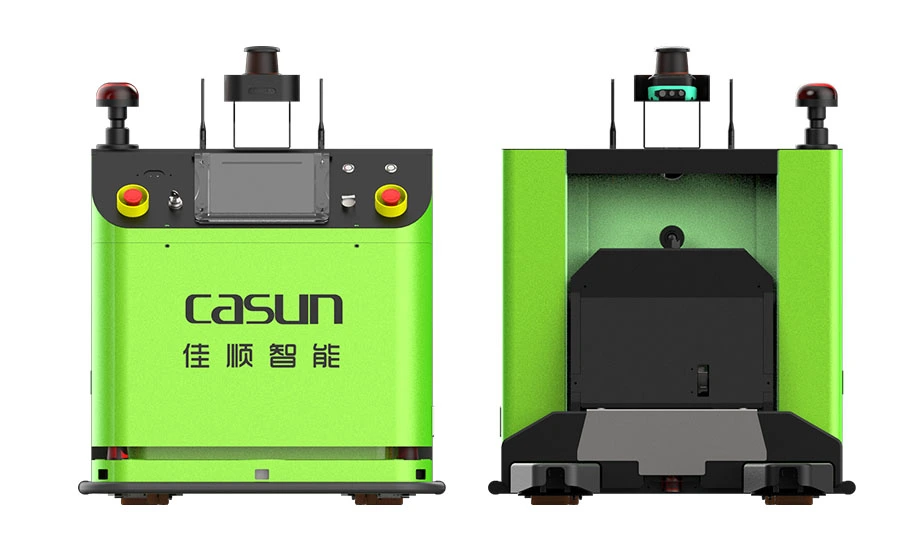

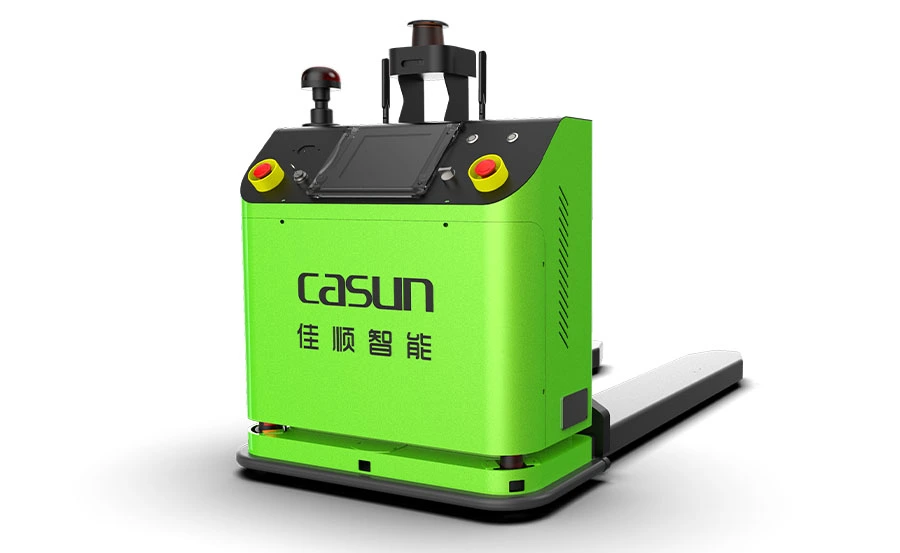

C5-B1 AGV Pallet Mover for Material Handling

C5-B1 is a SLAM navigation forklift AGV Pallet Mover for Material Handling independently developed by Casun, with a load capacity up to 800KG. Small size, small turning radius, dual wheel differential drive, flexible operation, suitable for a variety of site area limited environment.

C5-B1 AGV Pallet Mover for Material Handling

Parameters of C5-B1 AGV Pallet Mover for Material Handling


GuidanceSLAM navigationDriving methodDifferential drive
DimensionsL1585*W775*H970(mm)Charging methodAuto charger(Side type)
Traveling directionForward, backward and 0~90 degree turnBatteryLithium battery
Load capacity800KGCommunicationWiFi/5G
Travel speed0~60m/minSafety alarmSound and visual warning
Guidance accuracy±10mmSafety detecting range≤3m(adjustable)
Stopping accuracy±10mmProtectionsFront obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch
Lifting height120mm


Applications of C5-B1 AGV Pallet Truck for Material Handling

One of the most common applications for automatic guided vehicles (AGV), automated movement of pallets makes your operation run smoother. The standard design and uniformity of pallets make them a natural load for automation. Even though the exact dimensions and weights of the final pallet loads may vary, all standard sizes fall well within the capabilities of our standard forked and unit load AGVs. Many manufacturing and distribution facilities have automated their very routine, repetitive pallet movements.

Areas of application:

  • Goods receipt - transfer to a conveyor system and staging on floor positions

  • Transports from/to the automatic warehouse

  • Wide aisle warehouse

  • Block storage

  • Drive-in/drive-through racks

  • Production area

  • Outgoing goods


AGV Pallet Mover Safety

Due to market demand, CASUN has newly developed a laser navigation traction AGV car with a traction capacity of 0.5-4 .5 T.

  • Configuration And Performance;

  • Electronic power steering system, light and low noise;

  • AC Driving system, No carbon brush, maintenance free;

  • USA CURTIS driving controller;

  • Electromagnetic, regenerative braking system;

  • Safety;

  • Curve automatic deceleration devices more safe;

  • Stepless speed control system, safe and quiet;

  • Controller with Multiple automatic protection.


Core Advantages of C5-B1 AGV Pallet Mover for Material Handling

Core Advantages of C5-B1 AGV Pallet Mover for Material Handling

01
Low requirements on site space

Width with only 775MM, 800MM logistics channel can pass, at the same time with 90 degrees turn, 180 degrees in situ rotation turn function, can be applied to the occasion of small space.

02
High utilization rate for the site

Compared with ordinary forklift truck, the storage capacity of this AGV pallet truck for Material Handling can be increased by 20% when placing goods in parallel.

03
Up and down the elevator

This pallet truck AGV for Material Handling can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.

04
Run across floors

A similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.

05
High operation efficiency

Unique dual wheel differential drive, fast speed (0-60 meters only needs 3 seconds), and with fast rotation function (in situ rotation only 4 seconds) of this pallet truck AGV for Material Handling.

06
Strong environment self-applicable

The AGV pallet mover for material handling can be quickly put into use without on-site transformation of the application.

07
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

08
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function of the pallet truck AGV for Material Handling.

09
Auto-charging

When the power is low, the AGV pallet truck for Material Handling can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning of the AGV pallet mover to ensure safe operation.

FAQS Of AGV Pallet Truck for Material Handling

  • Q
    What is the AGV pallet truck for material handling load capacity?

    The load capacity of AGV pallet truck for material handling is 800KG.


  • Q
    How fast is a pallet truck AGV for material handling?

    The travel speed of a pallet truck AGV for material handling is 0~45m/min.

  • Q
    How do AGV pallet mover/truck navigate?

    AGV pallet mover/truck navigates with slam navigation.

  • Q
    What is the lifting capacity of AGV Pallet truck for material handling?

    The lift height of AGV Pallet truck for material handling 150mm.

  • Q
    What is an AGV pallet mover/truck?

    AGV pallet mover/truck is a compact type forklift truck with slam navigation. It can transfer 800KG loading.
