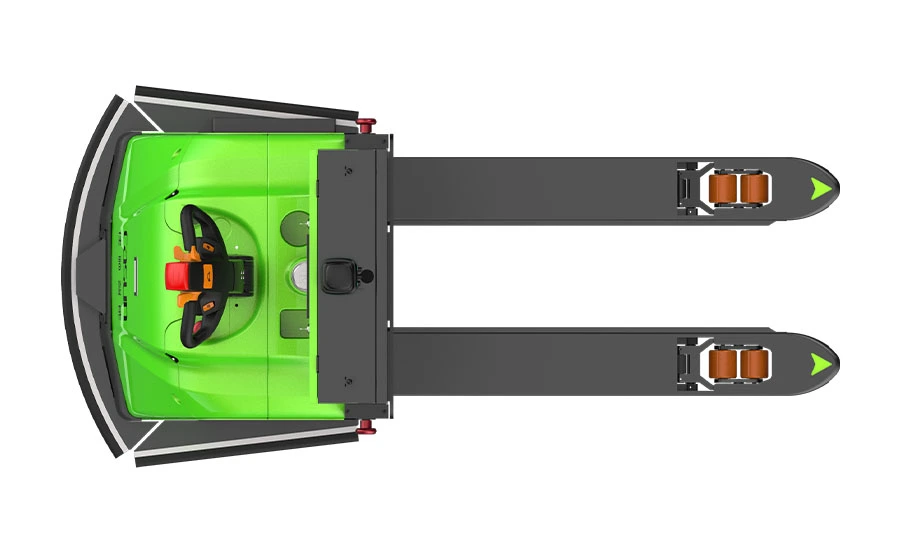

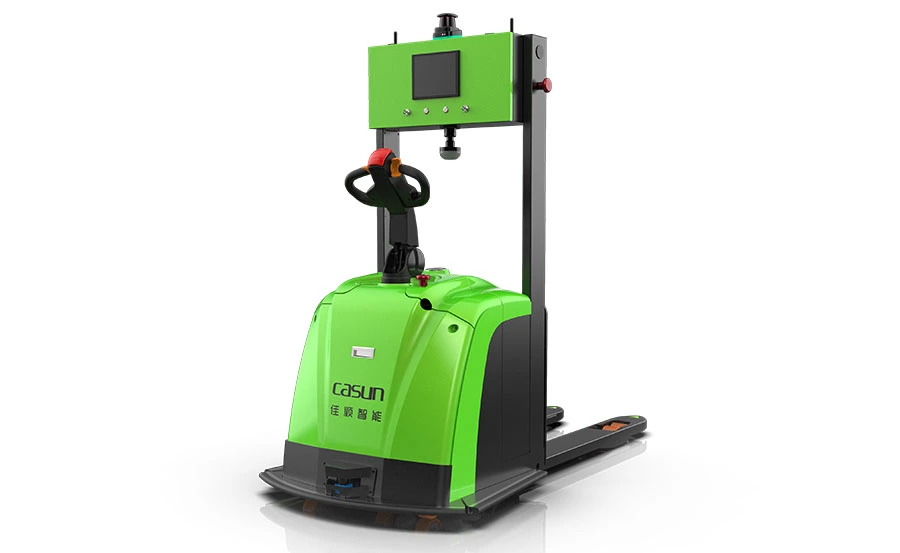

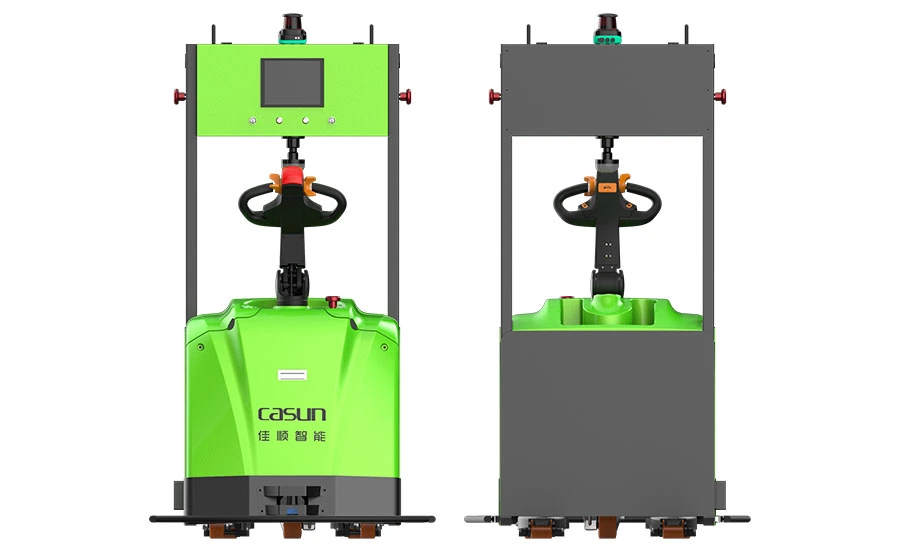

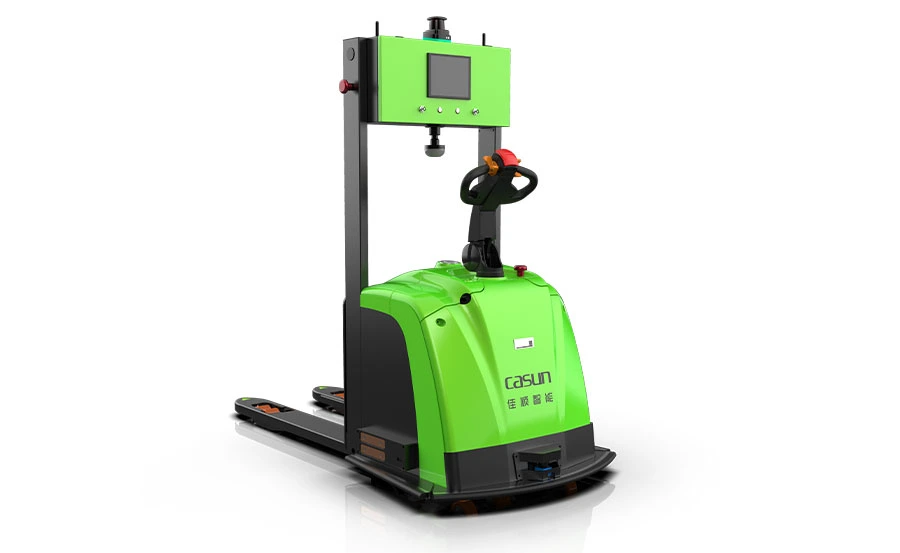

C5-B3 Pallet Mover AGV

C5-B3 is a handling laser navigation forklift AGV specially designed for heavy cargo transfer. The load capacity of the AGV laser can reach to 3000KG, which can realize automatic transfer of heavy materials.

C5-B3  Pallet Mover AGV

Parameters of C5-B3 Handling Forklift AGV


GuidanceLaser navigationLifting height120mm
DimensionsL2250*W1090*H2000(mm)Driving methodSteering drive
Traveling directionForward, backward and 0~90 degree turnCharging methodAuto charger(Side type)
Load capacity2000KG / 3000KGBatteryLithium battery
Travel speed0~72m/minCommunicationWiFi/5G
Turn radius2000mmSafety alarmSound and visual warning
Guidance accuracy±10mmSafety detecting range≤3m(adjustable)
Stopping accuracy±10mmProtectionsFront obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch


Core Advantages of C5-B3 Handling Forklift AGV

Core Advantages of C5-B3 Handling Forklift AGV

01
Large load capacity and high efficiency

Load capacity can be up to 3000KG, and can greatly improve the efficiency of material moving.

02
Flexible deployment

Laser navigation, simple and flexible site layout of the AGV pallet mover.

03
Up and down the elevator

It can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.

04
Run across floors

Similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.

05
Multiple devices linked

Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.

06
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

07
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

08
Auto-charging

When the power reduces to the low level, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

09
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
