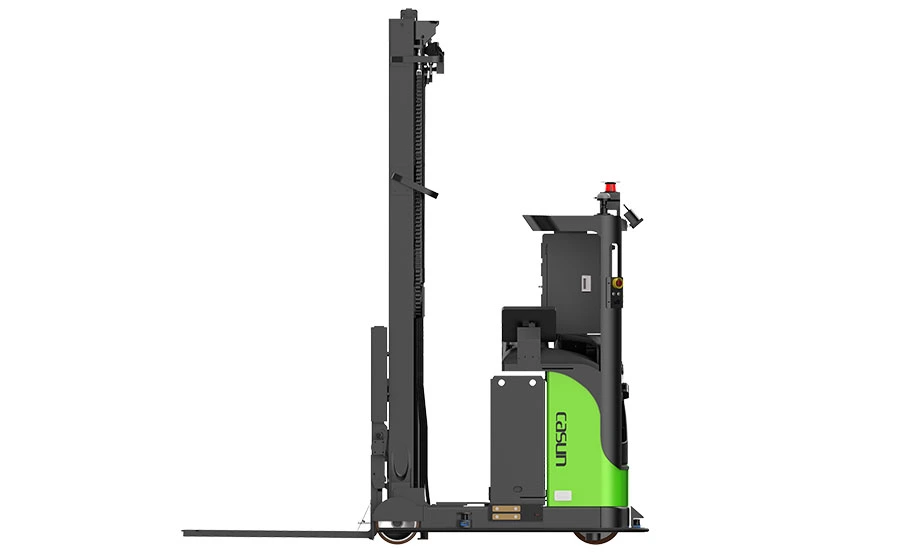

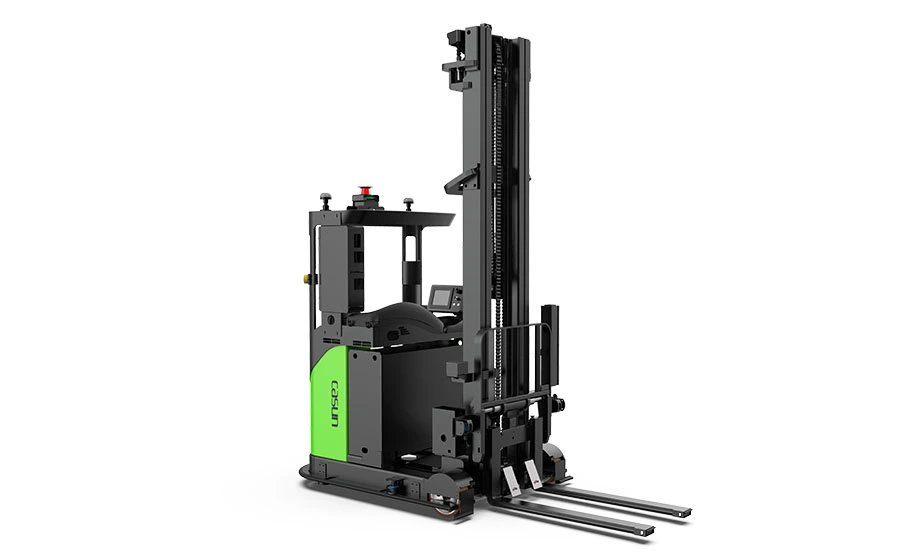

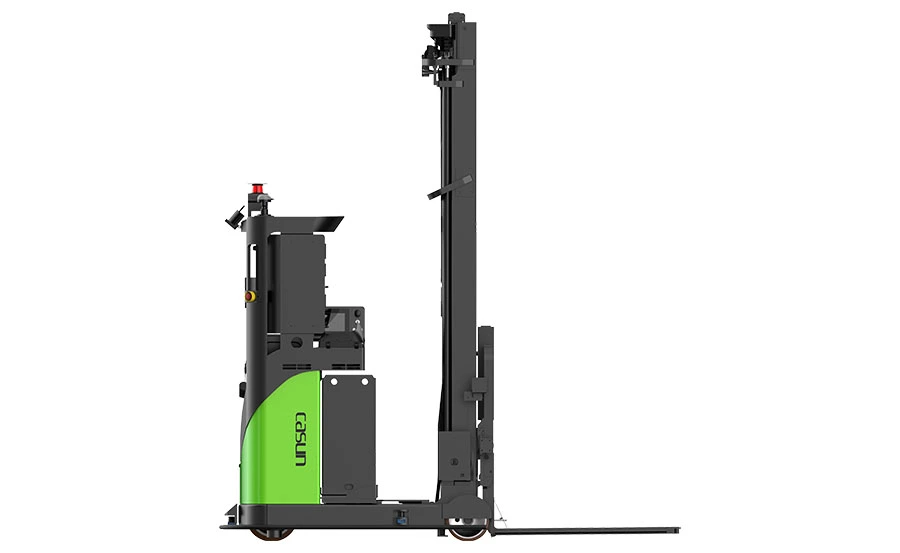

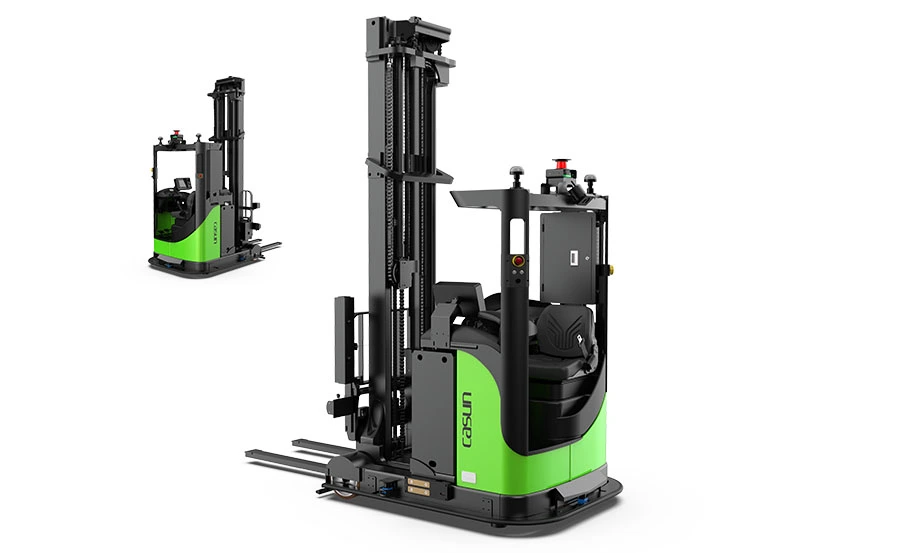

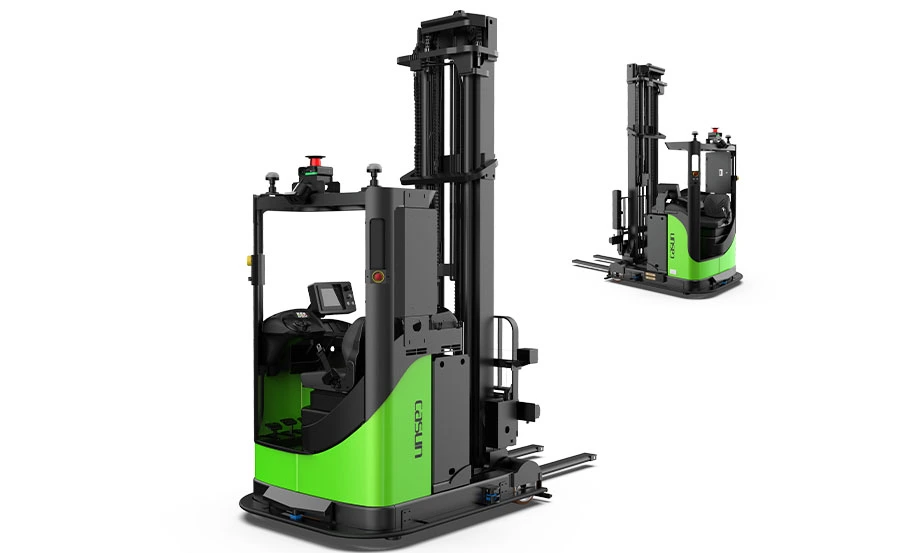

C5-Q4 Reach Forklift AGV

C5-Q4 is a forward-moving laser navigation forklift AGV. The gable fork can be telescopic to avoid the interference between the machine and the forklift legs when taking and placing materials. Manual control is supported. The lifting height can reach to 5700mm and the load capacity is 2000KG.

C5-Q4 Reach Forklift AGV

Parameters of C5-Q4 Reach Forklift AGV


GuidanceLaser navigationLifting height5700mm
DimensionsL2988*W1426*H2910(mm)Driving methodSteering drive
Traveling directionForward, backward, 0~90 degree turnCharging methodAuto charger(Side type)
Load capacity2000KGBatteryLithium battery
Travel speed0~72m/minCommunicationWiFi/5G
Turn radius2100mmSafety alarmSound and visual warning
Guidance accuracy±10mmSafety detecting range≤3m(adjustable)
Stopping accuracy±10mmProtectionsFront obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch


Core Advantages of C5-Q4 Reach Forklift AGV

Core Advantages of C5-Q4 Reach Forklift AGV

01
Flexible operation and wide application range

Fork door frame can be telescopic as a whole, wide range of application.

02
High lift height and big load capacity

The lifting height can reach 5700mm and the load can reach 2000KG.

03
Flexible deployment

Laser navigation, simple and flexible site layout.

04
Multiple devices linked

Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.

05
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

06
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

07
Auto-charging

When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
