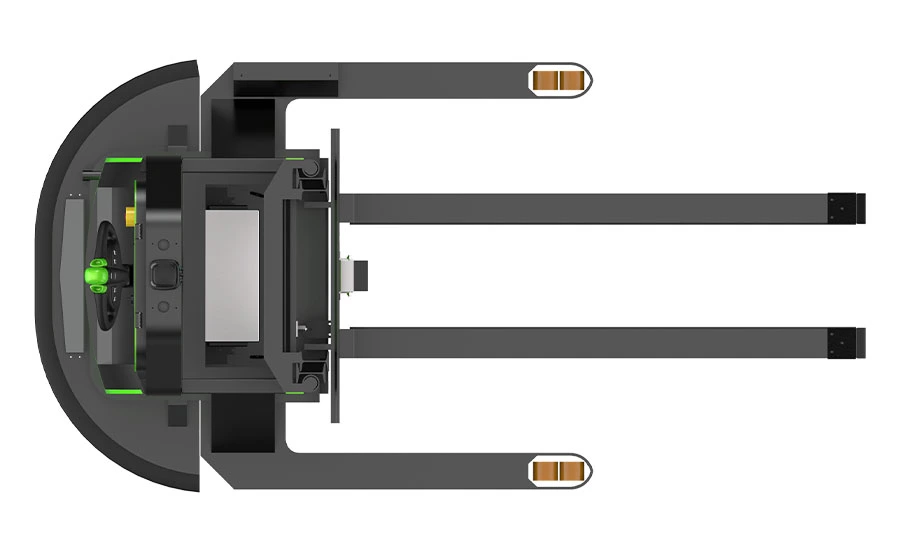

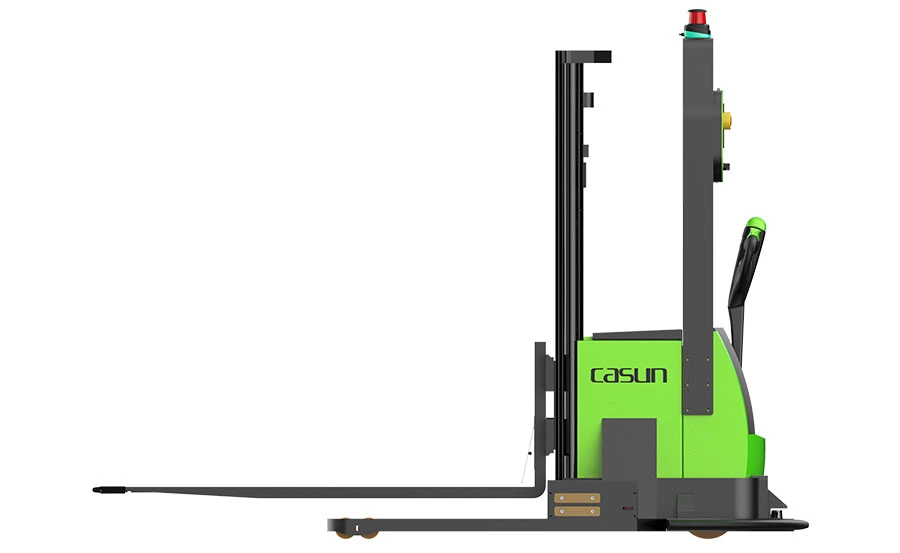

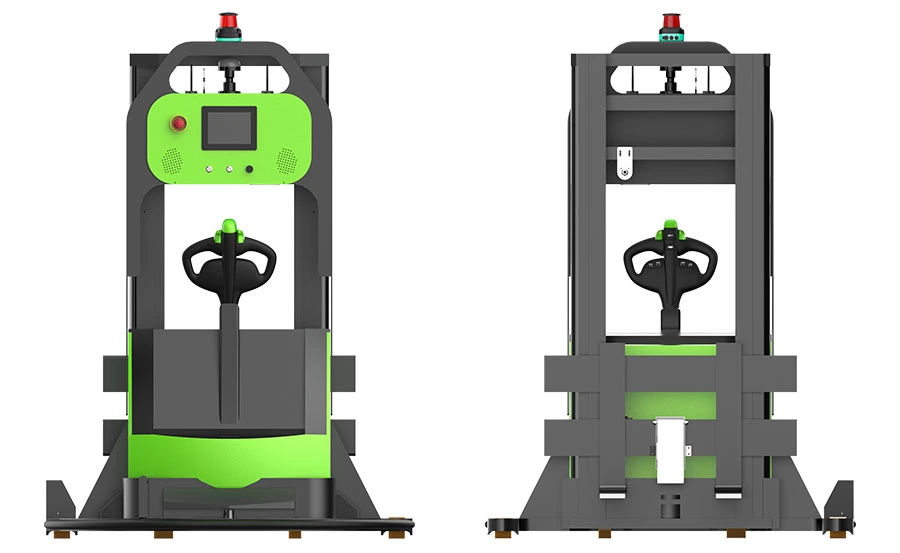

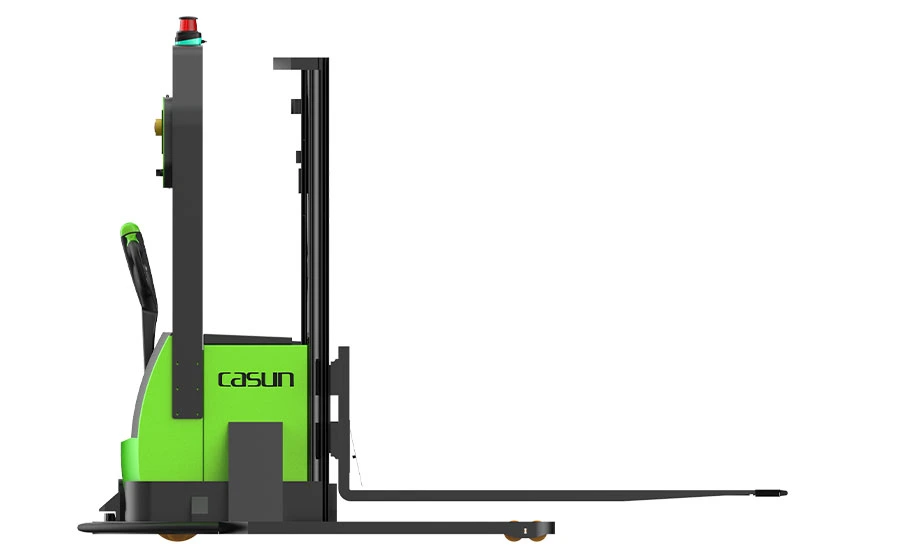

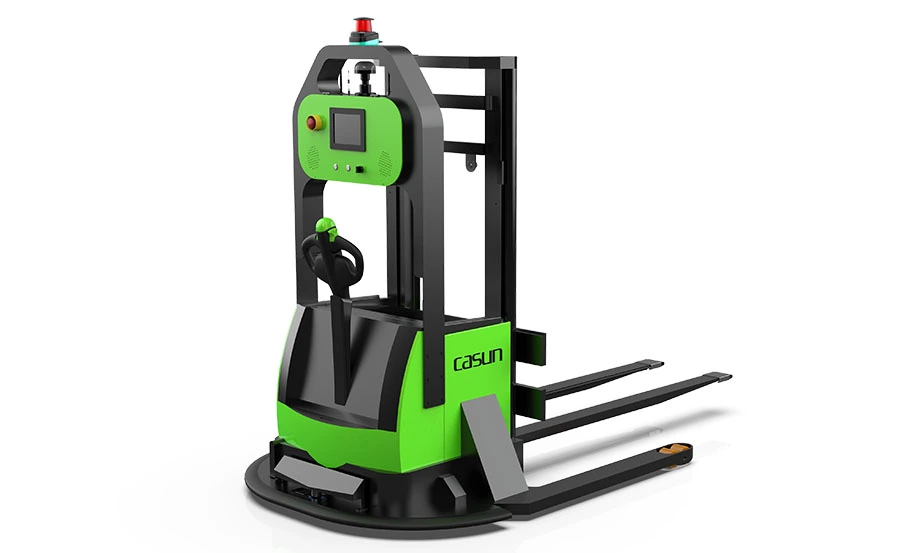

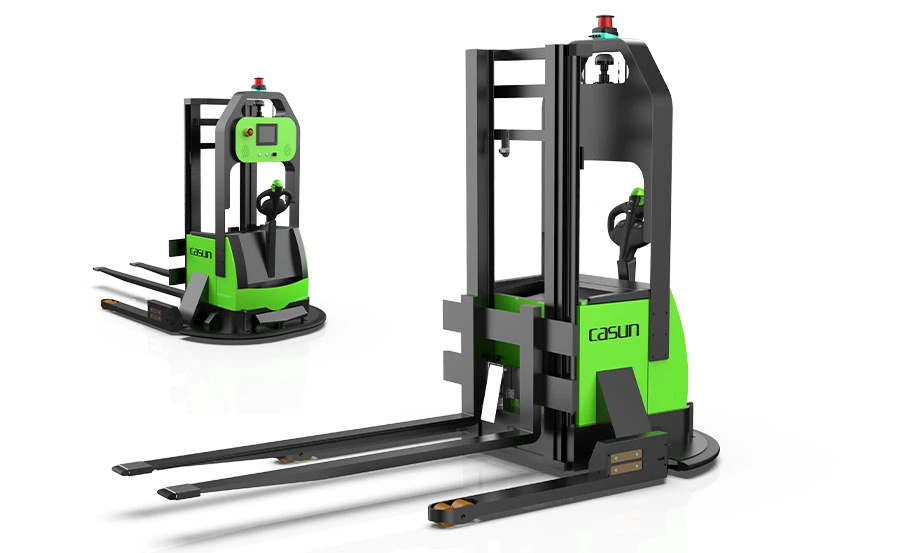

C5-D5 Straddle Forked AGV

C5-D5 is a laser guided stacking forklift truck with lifting device, which is responsible for lifting and handling of empty pallets, pallets with loads and paper rolls. The lifting height is 2900mm and the load is 1600KG. With wide legs, C5-D5 can not only fork take stream type pallet, but also fork take Tian type pallet, which is more widely applicable.

C5-D5 Straddle Forked AGV

Parameters of C5-D5 Straddle Forked AGV


GuidanceLaser navigation (Wide leg type)Lifting height2900mm
DimensionsL2450*W1450*H2300(mm)Driving methodSteering drive
Traveling directionForward, backward and 0~90 degree turnCharging methodAuto charger(Side type)
Load capacity1600KGBatteryLithium battery
Travel speed0~72m/minCommunicationWiFi/5G
Turn radius1800mmSafety alarmSound and visual warning
Guidance accuracy±10mmSafety detecting range≤3m(adjustable)
Stopping accuracy±10mmProtectionsFront obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch


Core Advantages of C5-D5 Straddle Forked AGV

Core Advantages of C5-D5 Straddle Forked AGV

01
Wide scope of application

Wide legs can not only increase balance, but also reduce the interference between truck body and pallet, suitable for a variety of pallet.

02
Highlifting height

The lifting height can be up to 2900mm, with the door frame lifting device, which can take and put materials in a higher position.

03
Flexible deployment

Laser navigation, simple and flexible site layout.

04
Up and down the elevator

It can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.

05
Run across floors

Similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transfer.

06
Multiple devices linked

Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.

07
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

08
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

09
Auto-charging

When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
