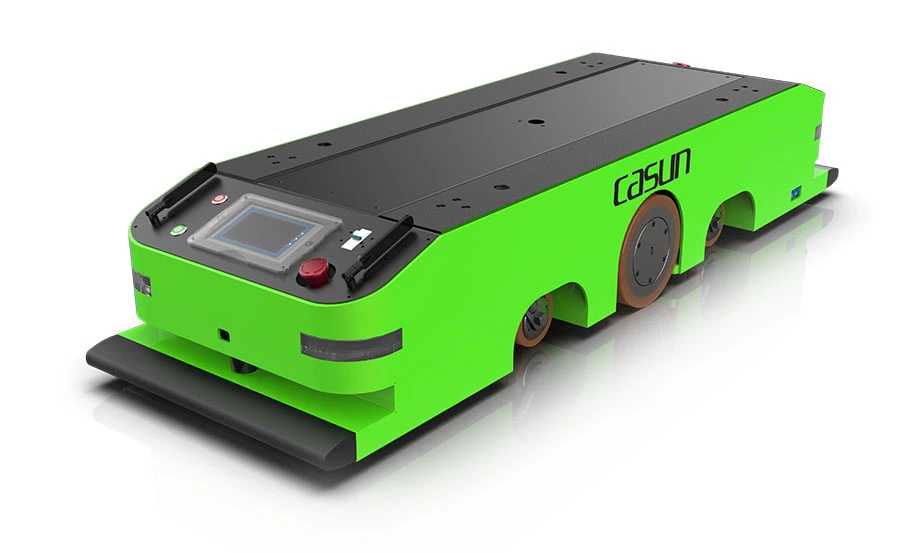

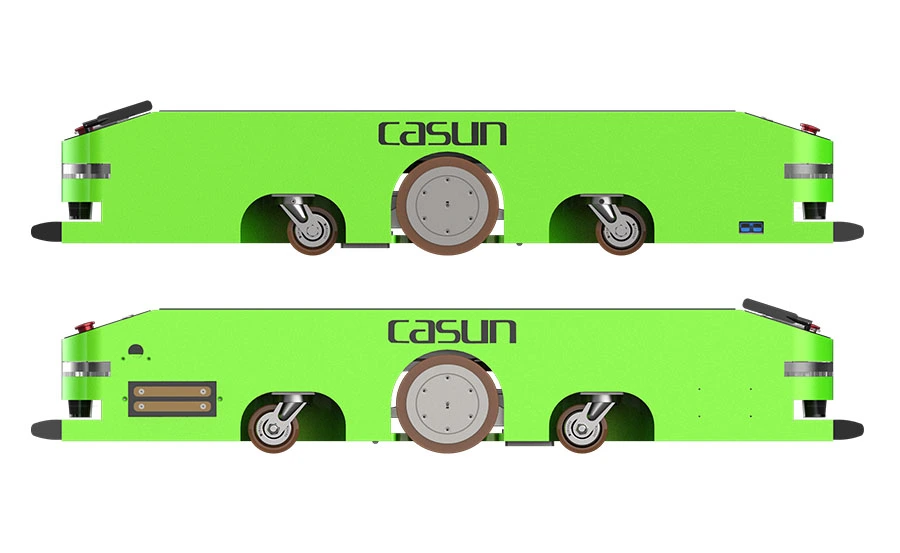

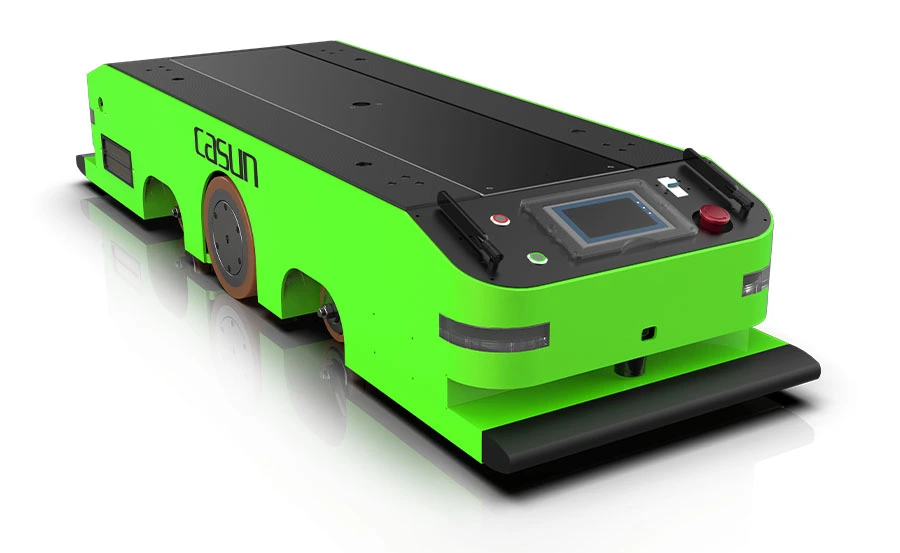

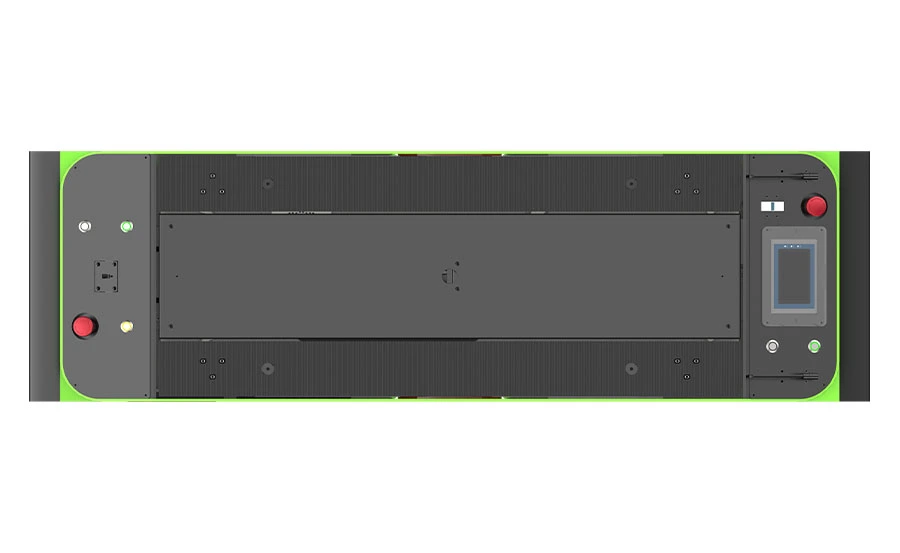

C2-25 Bidirectional Latent Lifting AGV

C2-25 Bidirectional Latent Lifting AGV can move to the bottom of the material trolley, lift the material trolley and move to the destination. In addition, the lift AGV also has an in-situ rotation function. You can choose QR code navigation or magnetic strip daohang according to the on-site environment.

C2-25 Bidirectional Latent Lifting AGV

Parameters of C2-25 Bidirectional Latent Lift AGV


NavigationMagnetic / QR codeStopping accuracy±10mm
Vehicle dimensionsL1500*W500*H290(mm)Driving modeDual-wheel differential drive
Moving directionMove forward/backward, rotateCharging modeSide/Ground charging
Load capacity800KGBatteryLithium battery
Rated speed0~45m/min(magnetic)  0-60m/min(QR code)CommunicationWiFi/5G
Lift height50mmSafety warningLight + Audio
Turning radius800mm (magnetic)Safety sensing range≤3m(adjustable)
Guidance accuracy±10mmSafety protectionFront obstacle detecting sensor+Mechanical anti-collision bumper +Emergency-stop switch


Core Advantages of C2-25 Bidirectional Latent Lift AGV

Core Advantages of C2-25 Bidirectional Latent Lift AGV

01
Flexible mobility

90-degree corners or 180-degree in-situ rotating turns can work in narrow spaces.

02
Novel design

New AGV aspect ratio design. Compact design, suitable for long and narrow material vehicles.

03
Lifting control

It can interact with the elevator to complete the operation of automatically going up and down floors.

04
High positioning accuracy

The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm

05
High work efficiency

Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)

06
Multi-AGV linkage

Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.

07
Automation and labor saving

No manual intervention is required in the production process, and the scheduling system is fully automatic.

08
Fault self-check

With fault self-checking function, remote fault diagnosis and self-recovery function.

09
Automatic battery charging

When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
