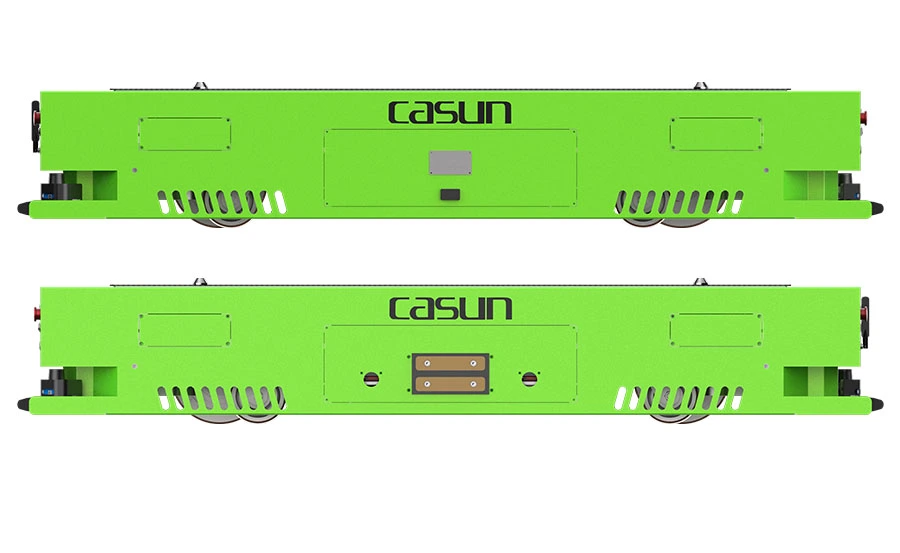

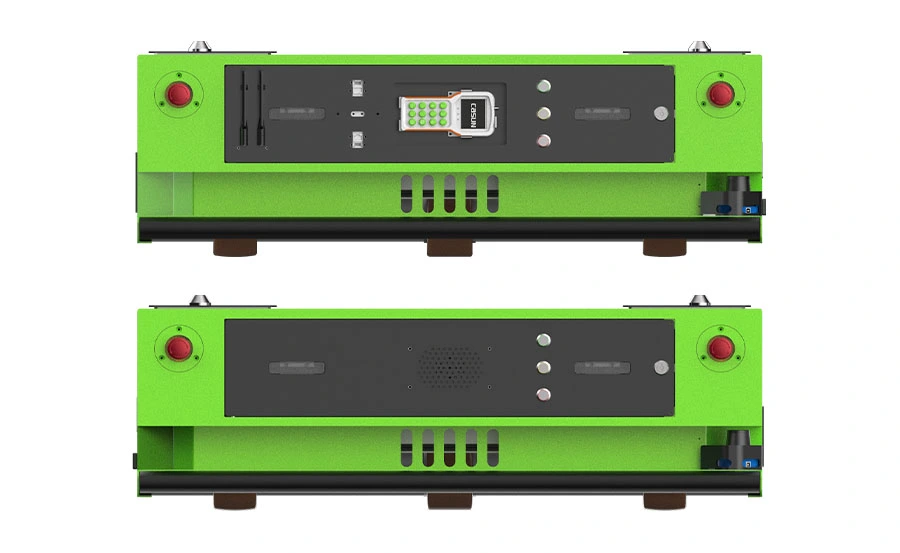

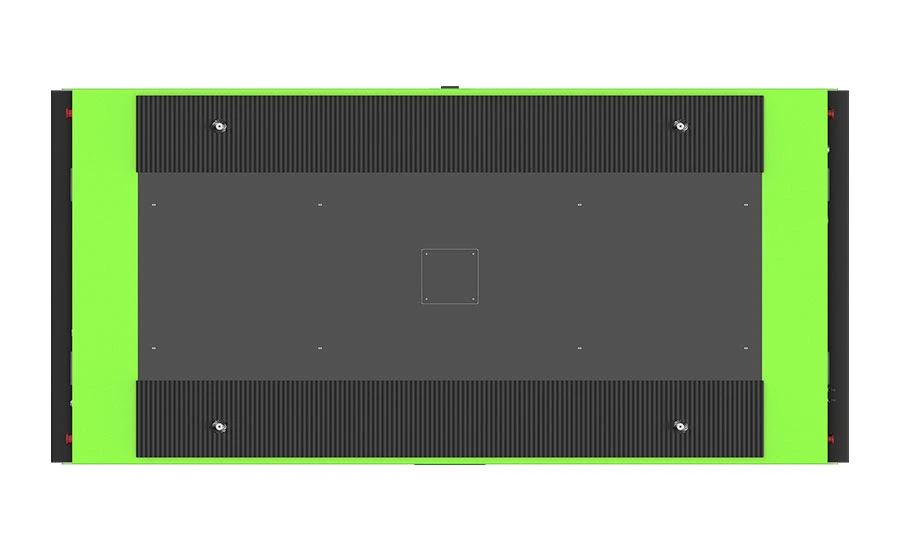

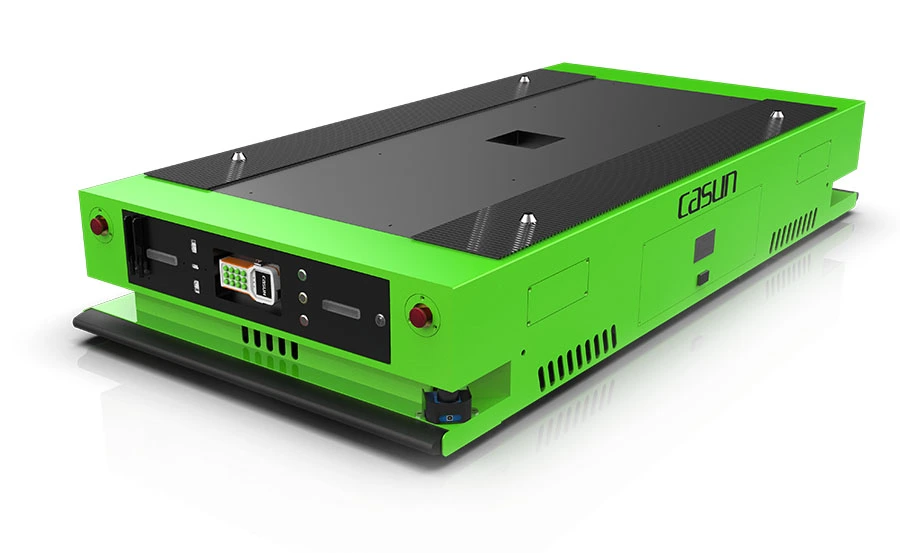

C2-33 Omni-directional Latent Lifting AGV

C2-33 Omni-directional Latent Lifting AGV can move to the bottom of the material trolley, lift the material trolley and move to the destination. In addition, the lifting AGV also has the functions of in-situ rotation and side shift, the maximum load capacity can reach 3000KG, and the moving speed can reach 45m/min when fully loaded. You can choose to use QR code navigation or magnetic stripe navigation according to the actual situation of the site.

C2-33 Omni-directional Latent Lifting AGV

Parameters of C2-33 Omnidirectional Latent Lift AGV


NavigationMagnetic / QR code robot navigation / SLAMStopping accuracy±10mm
Vehicle dimensionsL2250*W1100*H400(mm)Driving modeSteering-wheel drive
Moving directionMove forward/backward/sideways, rotateCharging modeSide/Ground charging
Load capacity2500KG / 3000KGBatteryLithium battery
Rated speed0~45m/minCommunicationWiFi/5G
Lift height50mmSafety warningLight + Audio
Turning radius1200mm (magnetic)Safety sensing range≤3m(adjustable)
Guidance accuracy±10mmSafety protectionFront obstacle detecting sensor+Mechanical anti-collision bumper +Emergency-stop switch


Core Advantages of C2-33 Omnidirectional Latent Lift AGV

Core Advantages of C2-33 Omnidirectional Latent Lift AGV

01
Strong carrying capacity

The carrying capacity can reach 3000KG, and the full load moving speed can reach 45m/min.

02
Strong adaptability to the environment

The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.

03
Lifting control

It can interact with the elevator to complete the operation of automatically going up and down floors.

04
High positioning accuracy

The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm

05
High work efficiency

Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)

06
Multi-AGV linkage

Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.

07
Automation and labor saving

No manual intervention is required in the production process, and the scheduling system is fully automatic.

08
Fault self-check

With fault self-checking function, remote fault diagnosis and self-recovery function.

09
Automatic battery charging

When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
