C2-23 Bidirectional Latent Lifting AGV

C2-23 Bidirectional Latent Lifting AGV runs to the bottom of the material trolley, lifts the material trolley and transports it to the destination. The AGV lifting mechanism has a load capacity of up to 1000KG, can identify the material trolley, and rotates synchronously when it is lifted.

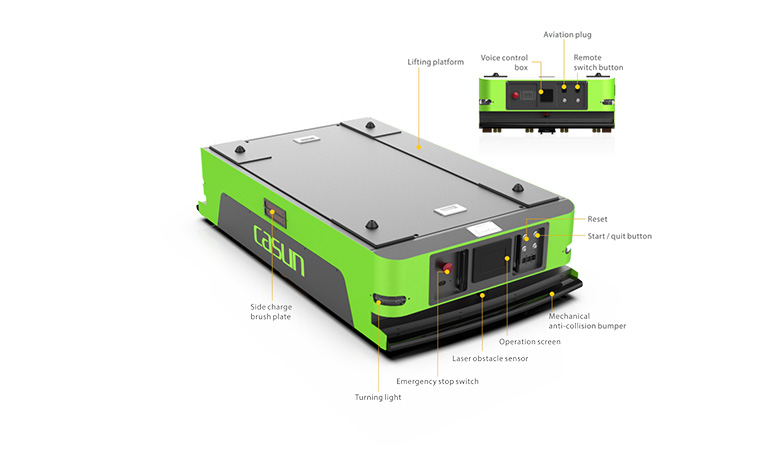

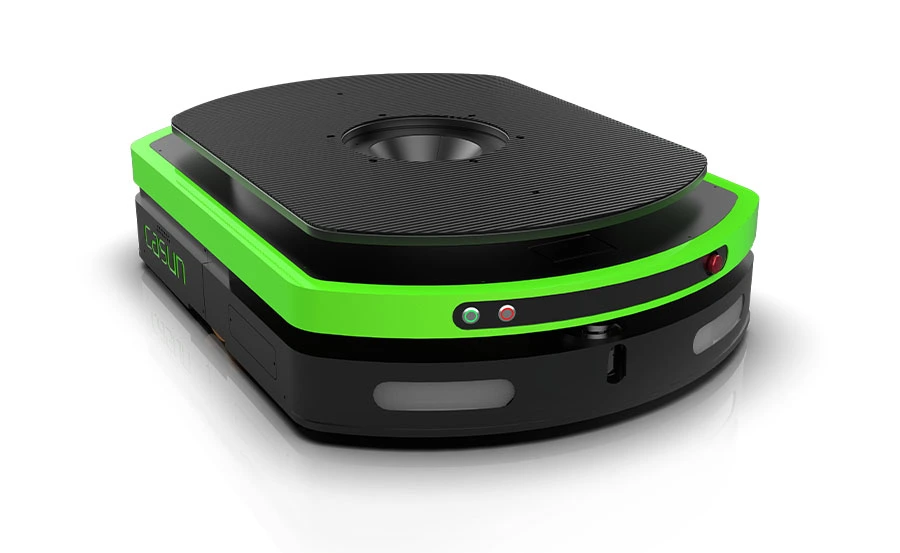

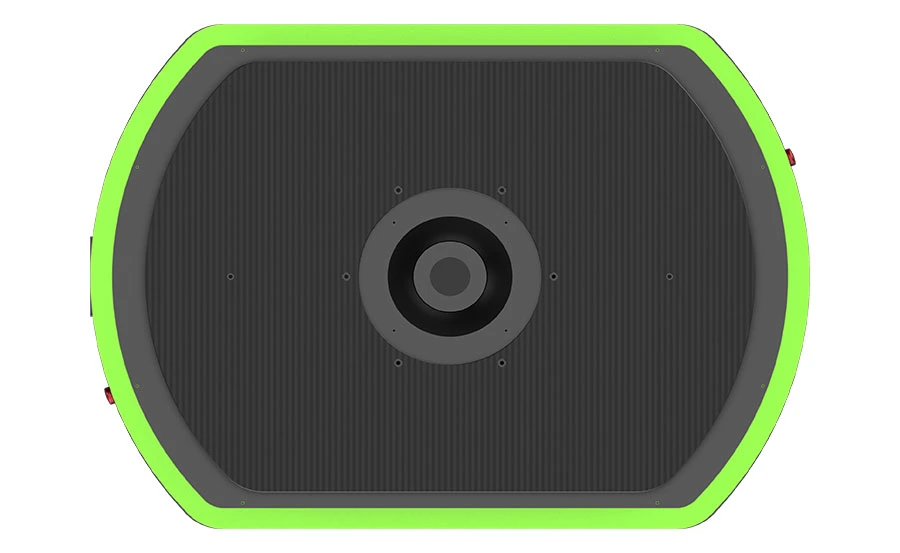

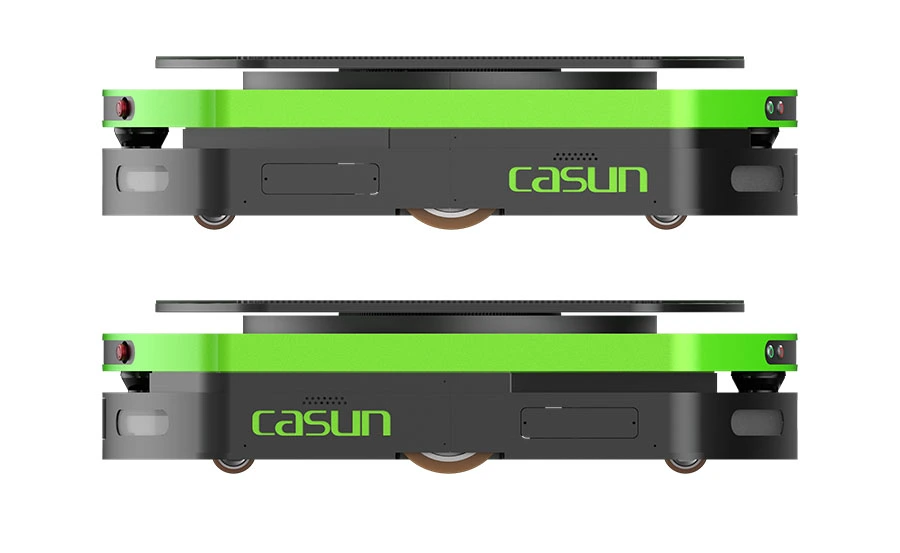

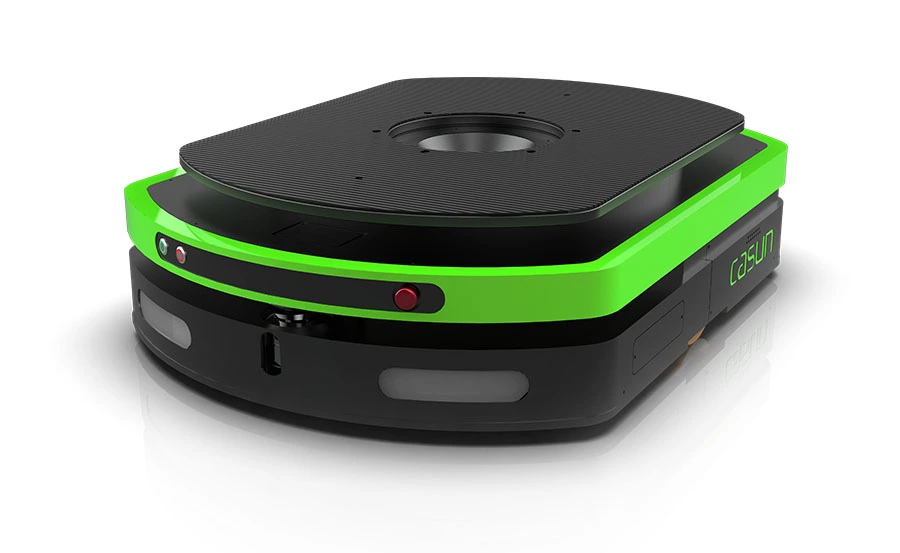

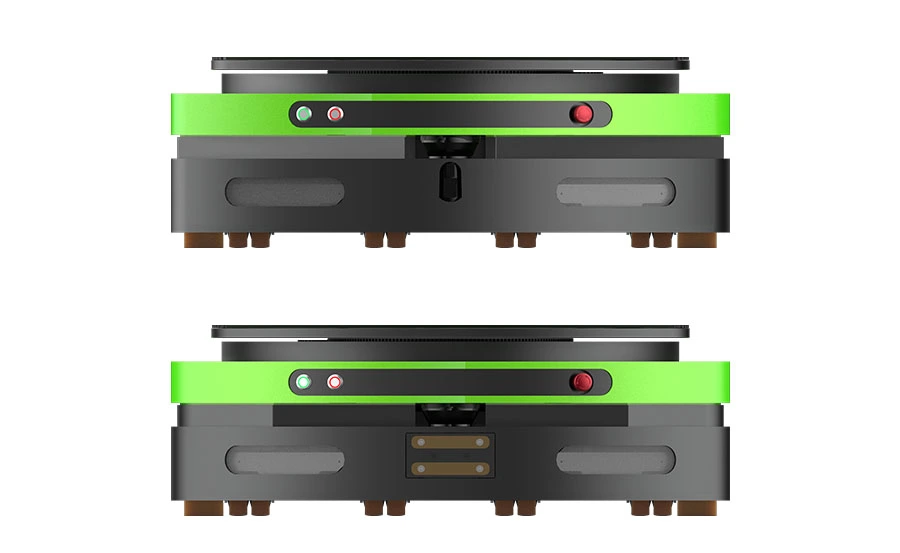

C2-23 Bidirectional Latent Lifting AGV

Parameters of C2-23 Bidirectional Latent Lift AGV


Navigation:QR code / SLAMDriving modeDual-wheel differential drive
Vehicle dimensionsL1180*W860*H300(mm)Charging modeBumping charging
Moving directionMove forward/backward, rotateBatteryLithium battery
Load capacity1000KGCommunication:WiFi/5G
Rated speed0~72m/min(QR code)  0-60m/min(SLAM)Safety warningLight + Audio
Guidance accuracy±5mm(QR code) ±10mm(SLAM)Safety sensing range≤3m(adjustable)
Stopping accuracy±5mm(QR code) ±10mm(SLAM)Safety protectionFront obstacle detecting sensor+Mechanical anti-collision bumper +Emergency-stop switch
Lift height 50mm


Core Advantages of C2-23 Bidirectional Latent Lift AGV

Core Advantages of C2-23 Bidirectional Latent Lift AGV

01
Strong carrying capacity

The carrying capacity can reach 2000KG, and the full-load moving speed can reach 72m/min.

02
Strong adaptability to the environment

The map is self-learning, and the operation map is automatically updated according to the on-site environment when working, which greatly improves the environmental adaptability.

03
Lifting control

The lifting AGV can interact with the elevator to complete the operation of automatically going up and down floors.

04
High positioning accuracy

The primary positioning accuracy can reach ±10mm, and the secondary positioning accuracy can reach ±5mm

05
High work efficiency

Equipped with a full servo drive, it can increase the speed quickly (0-72 meters per minute only takes 3 seconds), and has a fast rotation function (only 3 seconds for in-situ rotation)

06
Multi-AGV linkage

Synchronous linkage of multiple AGVs is suitable for complex material handling scenarios.

07
Automation and labor saving

No manual intervention is required in the production process, and the scheduling system is fully automatic.

08
Fault self-check

With fault self-checking function, remote fault diagnosis and self-recovery function.

09
Automatic battery charging

When the AGV detects a low battery state, it will automatically move to the charging station for charging. The online time can reach 24 hours a day to improve productivity.

10
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound and light warning to ensure safe operation.
