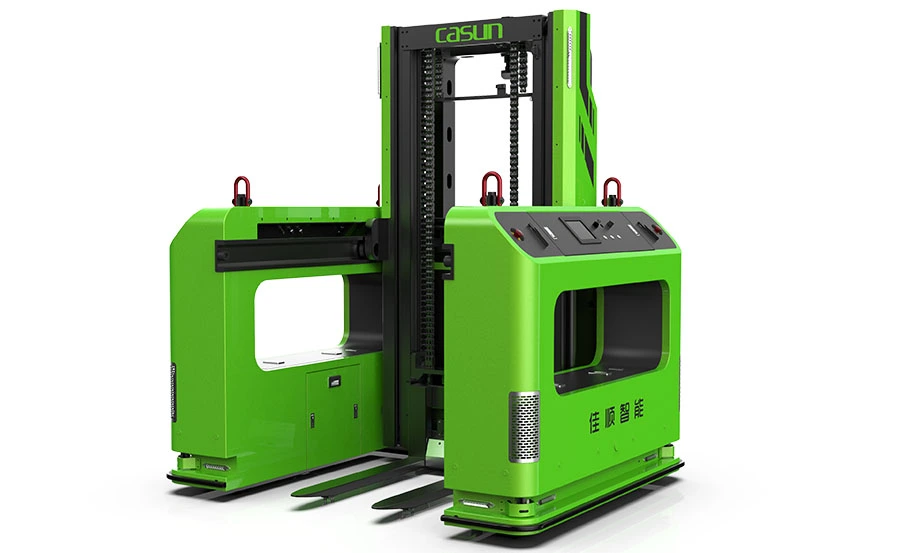

C5-Q1 Side fork AGV

C5-Q1 is a laser guided side fork AGV designed by Casun for vertical storage of roadway. Driven by dual steering wheels, it can move horizontally in vertical storage roadway and rotate in situ outside the roadway to realize reversing. Load capacity is 1000KG, and lifting height is 5000mm.

C5-Q1 Side fork AGV

Parameters of C5-Q1 Forward Forklift AGV


GuidanceLaser navigationLifting height5000mm
DimensionsL2200*W1850*H2500(mm)Driving methodSteering drive
Traveling directionForward, backward,0~90 degree turn and sidewaysCharging methodAuto charger(Side type)
Load capacity1000KGBatteryLithium battery
Travel speed0~72m/minCommunicationWiFi/5G
Turn radius1800mmSafety alarmSound and visual warning
Guidance accuracy±10mmSafety detecting range≤3m(adjustable)
Stopping accuracy±10mmProtectionsFront obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch


Core Advantages of C5-Q1 Forward Forklift AGV

Core Advantages of C5-Q1 Forward Forklift AGV

01
Flexible operation

Specially designed for stacking narrow lanes, it can walk horizontally in the liku roadway and support in-situ rotation.

02
High lifting height

The lifting height can reach 5000mm, with the door frame lifting device, which can take and put materials in a higher position.

03
Flexible deployment

Laser navigation, simple and flexible site layout.

04
Multiple devices linked

Many AGVs synchronize with each other, which applies to complex material handling scenarios.

05
Easy to use

Independent operation according to scheduling instructions, without manual intervention in the production process.

06
Fault self-test

Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

07
Auto-charging

If the power is low, the AGV can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

08
Multiple security protection

Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
