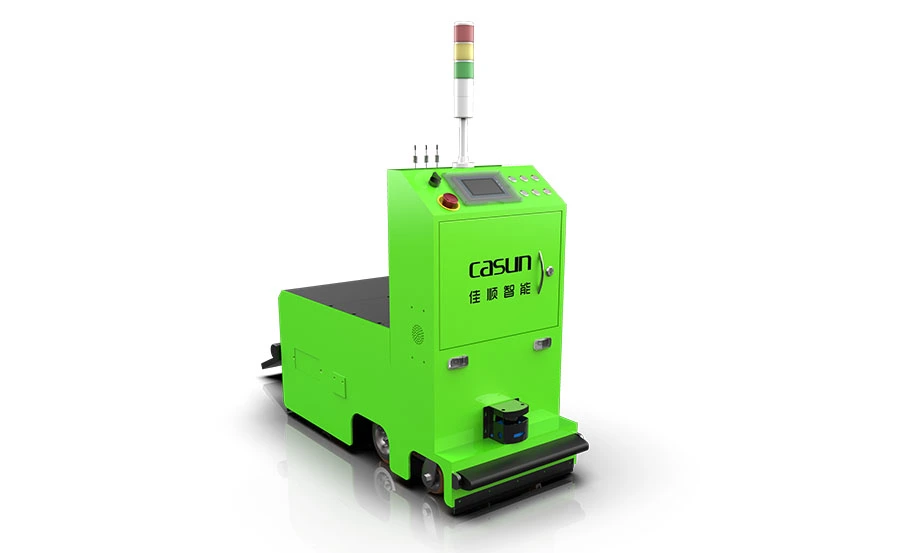

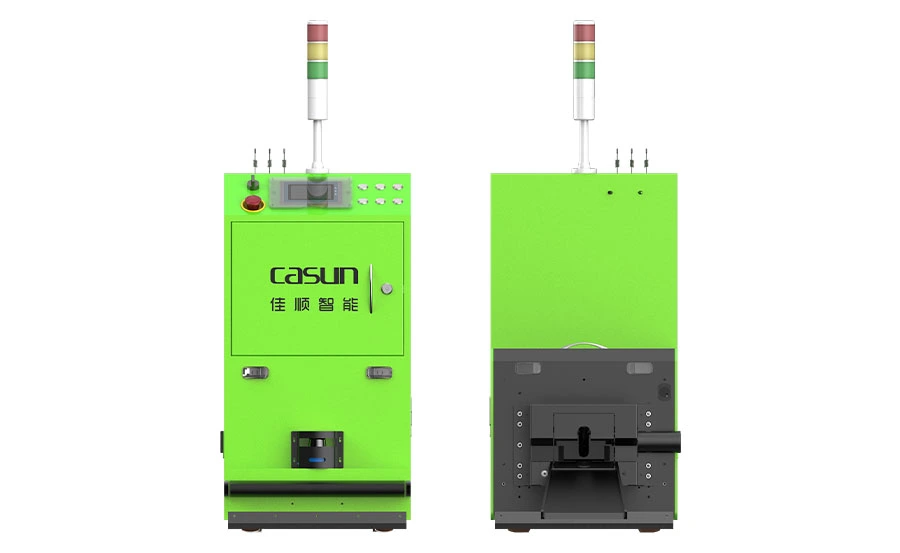

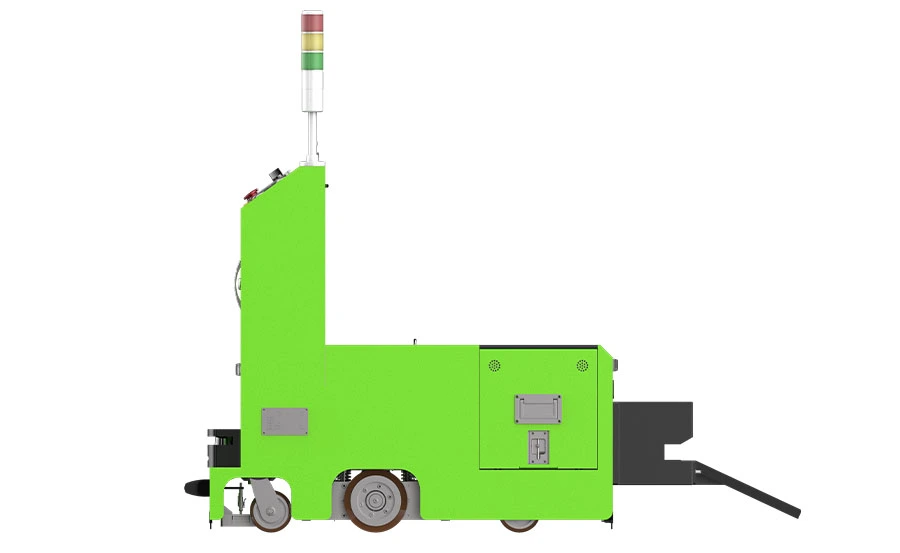

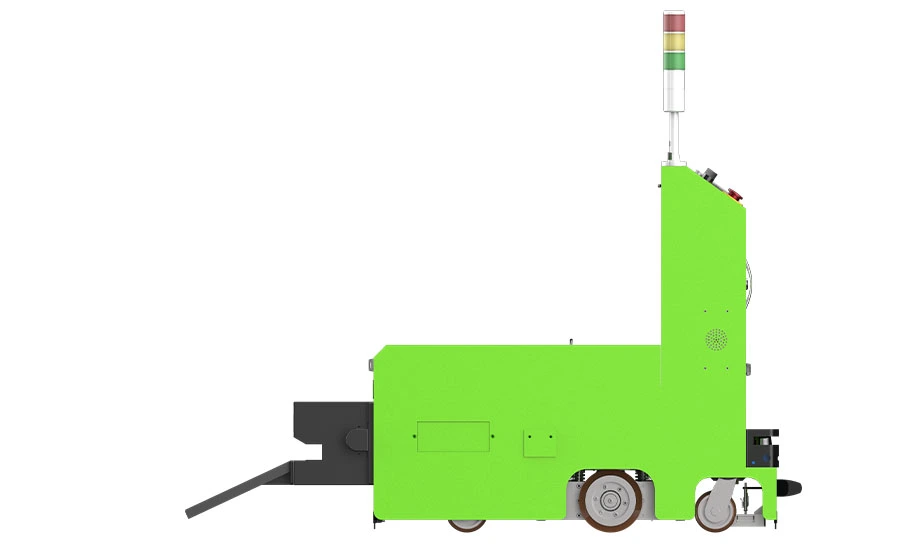

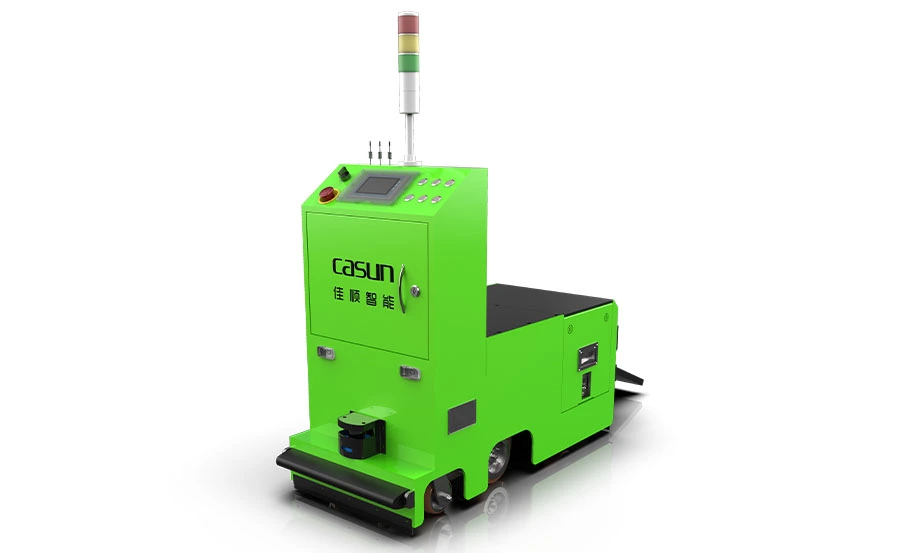

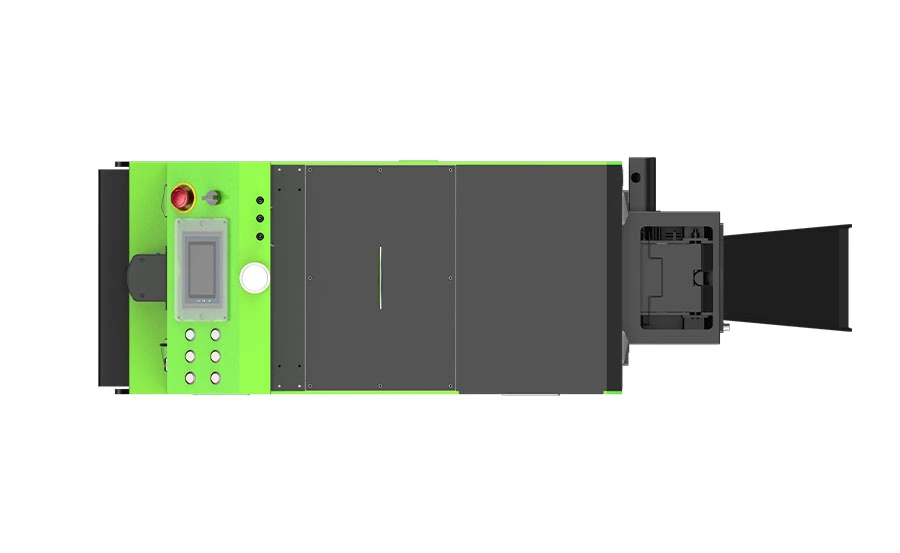

C4-L2 Rear Traction AGV

C4-l1 is a rear traction AGV based on magnetic navigation. This AGV tugger is used to automatically hook up the trolley to move the material, so as to realize efficient transfer in the working scene. At the same time, pallets, racks, boxes and other goods can be placed on the AGV for handling.


C4-L2  Rear Traction AGV

Parameters of C4-L2 Tugger AGV


GuidanceMagnetic navigationDriving methodDifferential drive
DimensionsL1376*W650*H918(mm)Charging methodAuto charger(Side/Ground type)
Traveling directionForward, reverse, 0~90 degree turn and easy asternBatteryLithium battery
Load capacity1500KG / 2000KG / 2500KGCommunicationRF/WiFi/5G
Travel speed0~45m/minSafety alarmSound and visual warning
Turning radius600mmSafety detecting range≤3m(adjustable)
Guidance accuracy±10mmProtectionsFront obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch
Stopping accuracy±10mm


Core Advantages of C4-L2 Tugger AGV

Core Advantages of C4-L2 Tugger AGV

01
Mature and stable, cost-effective

Magnetic navigation technology is mature, stable and cost-effective.

02
Up and down the elevator

It can be communicated with ordinary elevator, with cross-floor operation function.

03
Use easily

It can realize the Independent operation according to scheduling instructions, without manual intervention in the production process.

04
Fault self-testing

Own perfect fault self-check function, and have remote fault diagnosis and self-recovery function.

05
Charging automatically

When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.

06
Autonomous docking

Without the scheduling of the upper computer system, it can independently interact with the line equipment for data exchange, so as to achieve fast material transfer.

07
Multiple security protection

It's equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
