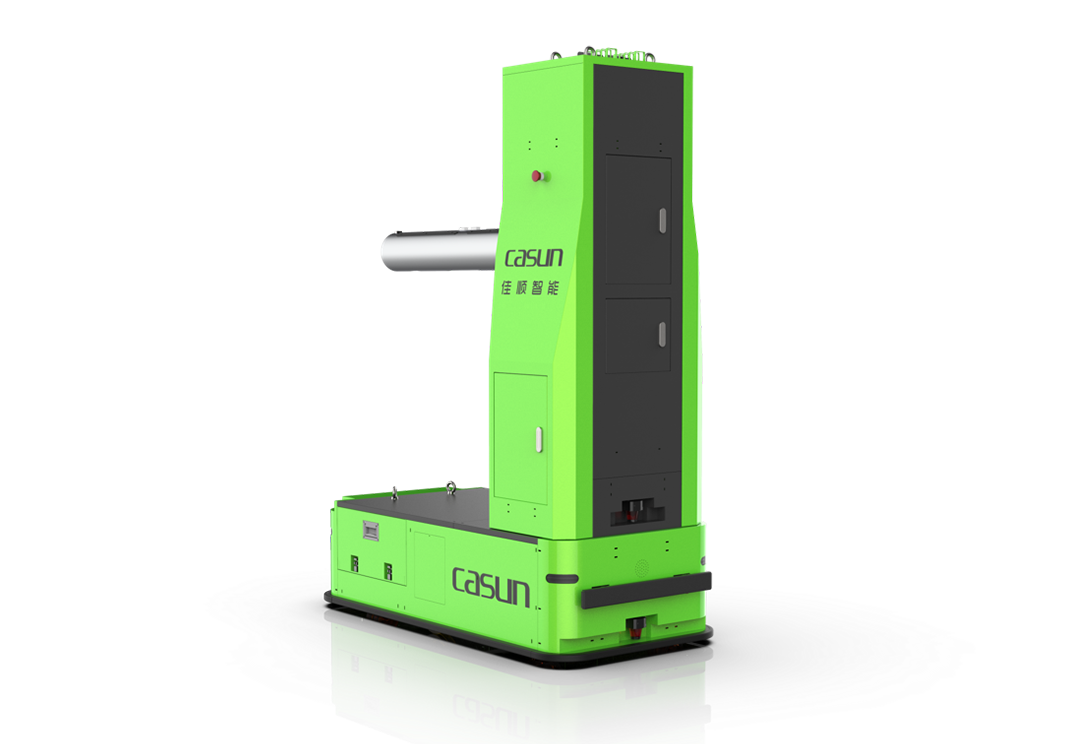

CCM-53 is a single cantilever AGV, at present, the most widely used is the front-end process of the battery cell production workshop in the new energy lithium battery industry, which is used for the pole roll handling after slitting.
Working method: automatically connect with the line edge equipment to realize the automatic loading and unloading and handling functions of the pole roll after slitting.
| Basic parameters | Dimensions | L1610*W800*H2125mm |
| maximum load | 850kg | |
| Rotation diameter | 1735mm | |
| docking height | 900-1750mm | |
| Navigation performance | Navigation | QR code navigation |
| Navigation accuracy | ±10mm | |
| Stop accuracy | ±5mm | |
| Docking accuracy | ±2mm | |
| athletic performance | walking direction | Forward, backward, turn, rotate |
| drive mode | two-wheel differential | |
| maximum walking speed | 1.0 m/s | |
| battery performance | Battery Type | lithium battery |
| charging method | side charge | |
| charging time | After full discharge, the charging time is less than or equal to 1H | |
| Rated battery life | 6H | |
| network performance | communication method | WiFi/5G |
| Protection performance | Safety Alert | ●Light warning ●Voice broadcast |
| Safe sensing range | ≤3m adjustable | |
| Security | ●Front and rear diagonal obstacle detection sensors ●Mechanical anti-collision mechanism ●Emergency stop switch |
SLAM navigation or QR code navigation can be used;
automatic docking with line-side equipment to realize unmanned operation of the process;
double-pronged design is adopted to complete the exchange of empty and full, improve work efficiency and reduce equipment downtime waiting time;
high-precision control, the docking accuracy with the equipment is ±2mm.
