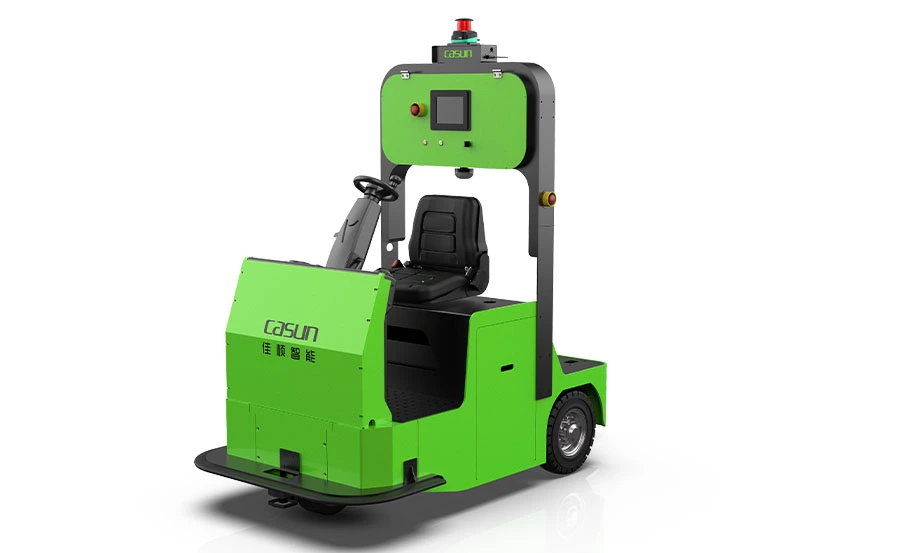

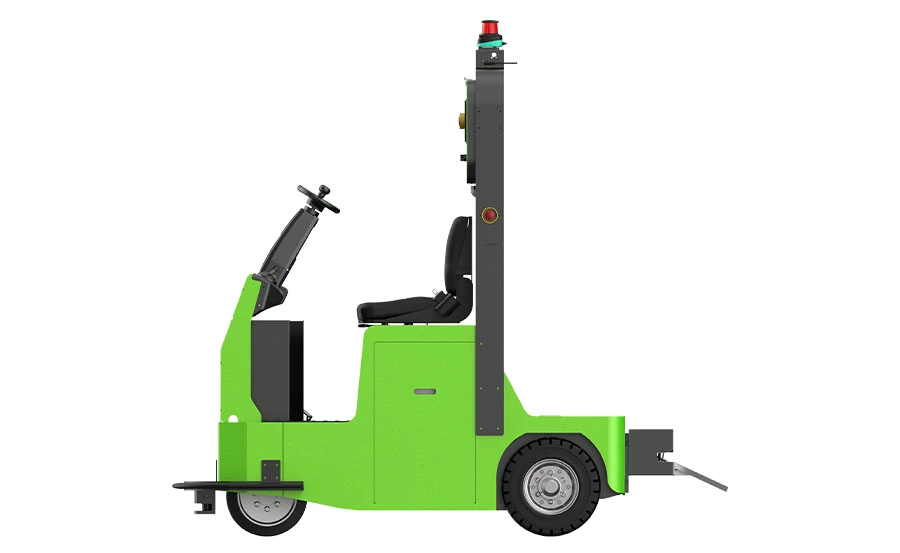

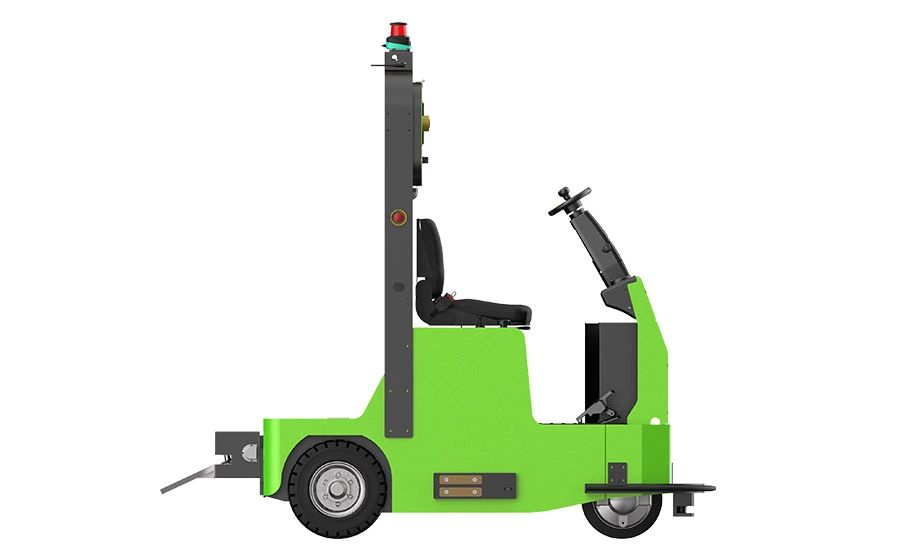

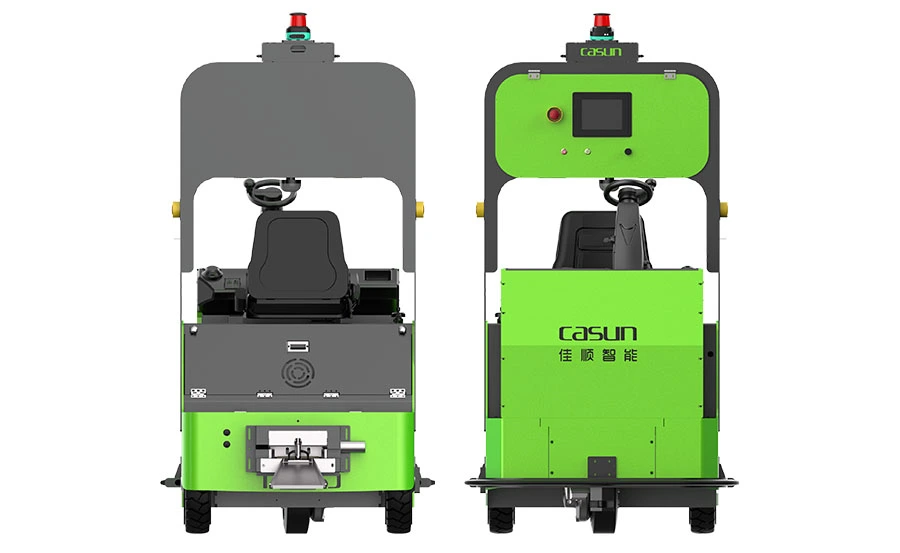

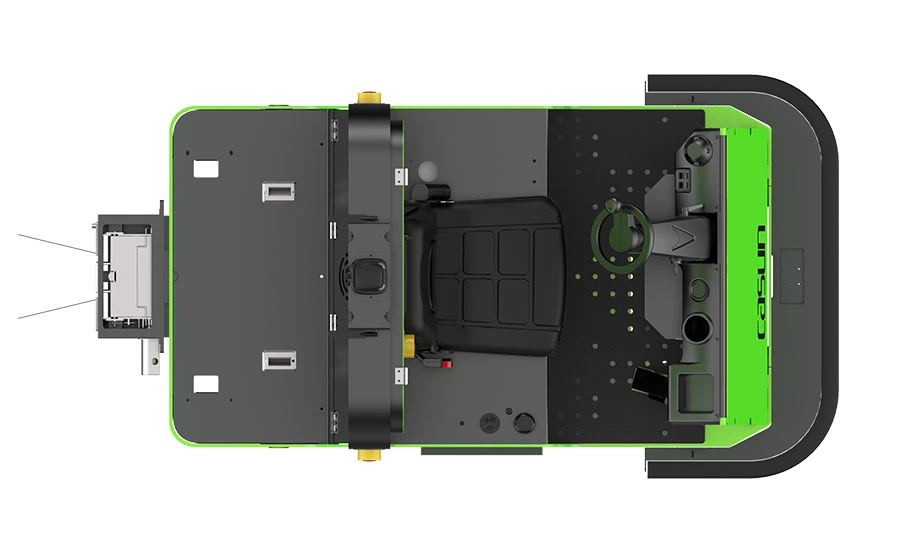

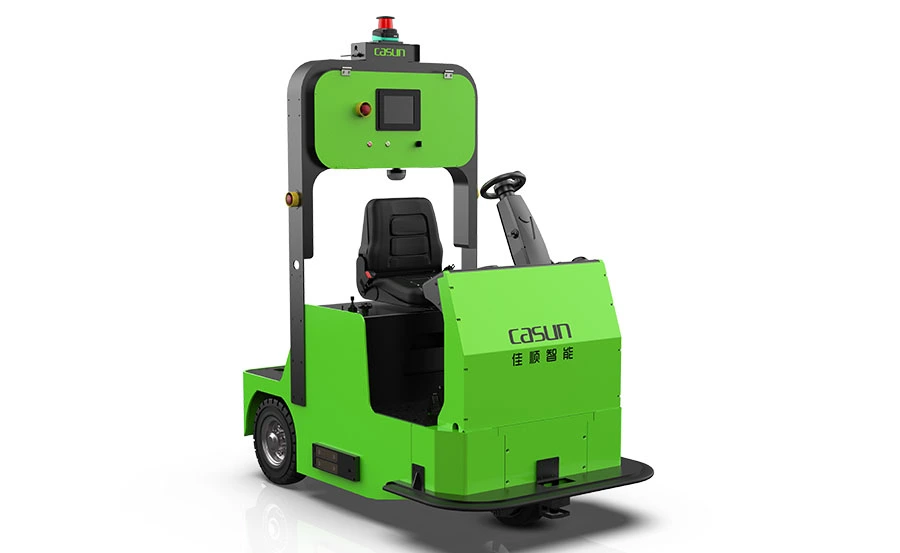

C4-C2 traction AGV is a laser guide navigation traction tugger AGV, using the tail traction device to pull materials, the traction capacity can reach 5T.
.webp "C4-C2 (1).jpg")
.webp "C4-C2 (4).jpg")
.webp "C4-C2 (5).jpg")
.webp "C4-C2 (6).jpg")
.webp "C4-C2 (3).jpg")
| Dimension | L2427*W1183*H2149 (mm) | Max moving speed | 1.5m/s / 1.2m/s |
| Max payload | 5000kg | Max climbing capability | ≤3° |
| Weight | 1500kg | Battery type | Lithium battery |
| Turning radius | 2000mm | Charging mode | Side charging |
| Connection mode to material cart | Manual+Semi-automatic+Full-automatic | Charging time | ≤1H |
| Navigation mode | Laser positioning / SLAM navigation | Rated endurance | 8H |
| Navigation accuracy | ±10mm / ±15mm | Communication Method | WiFi / 5G |
| Stop accuracy | ±10mm / ±10mm | Safety warning | ●Light warning ●Voice broadcast |
| stop angle accuracy | ±1° | Safe sensing range | ≤3m adjustable |
| Moving direction | Forward, turn left&right, backward≤2m | Safety protection |
|
| Drive mode | Steering wheel drive | Working temperature | -10℃ ~ 45℃ |
| Acceleration | 0.5m/s² | Working Environment | No dust, no flammable/explosive/corrosive gases |
